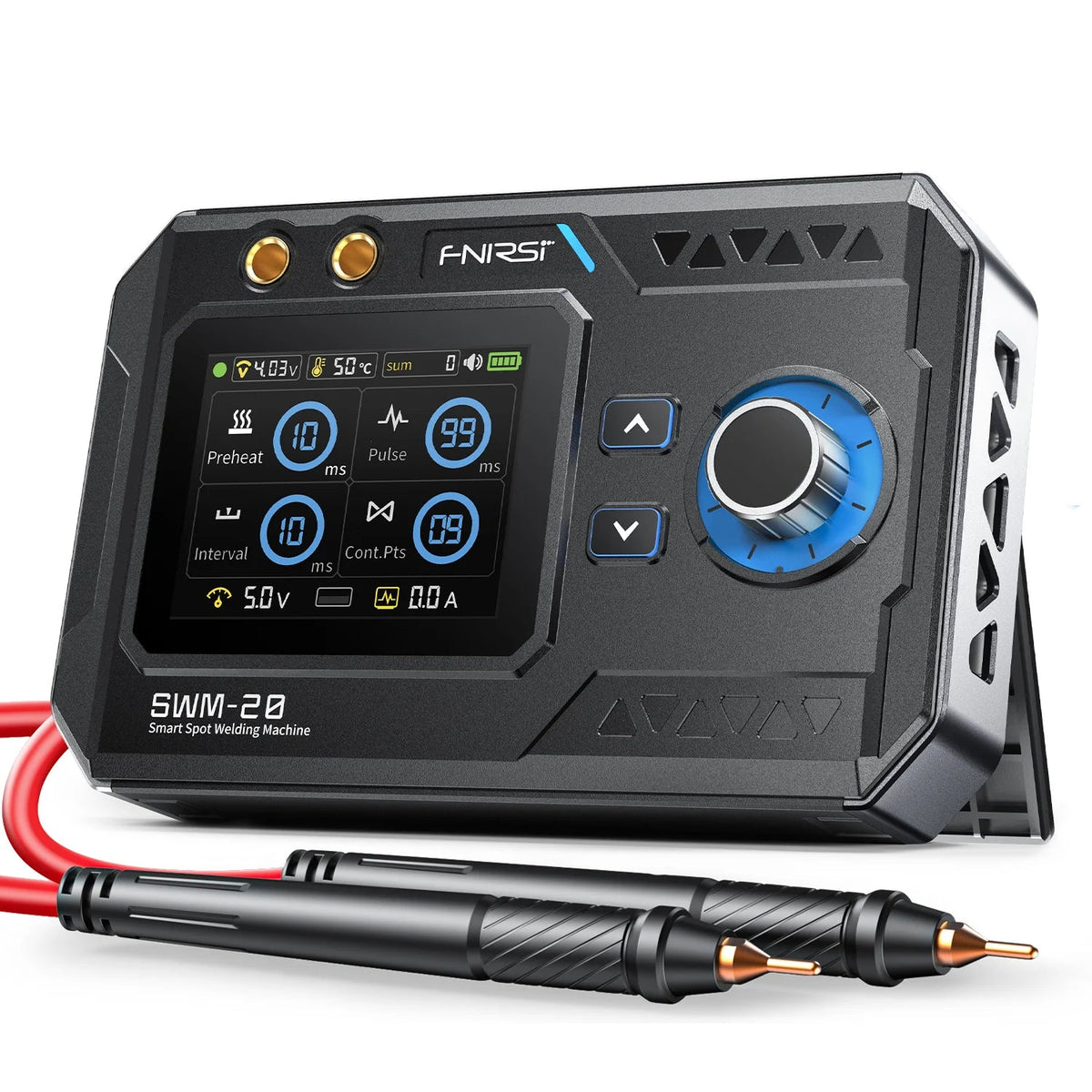

FNIRSI SWM-20 1200A Dual-Pulse Portable Spot Welder – Battery Pack Builder and Power Bank

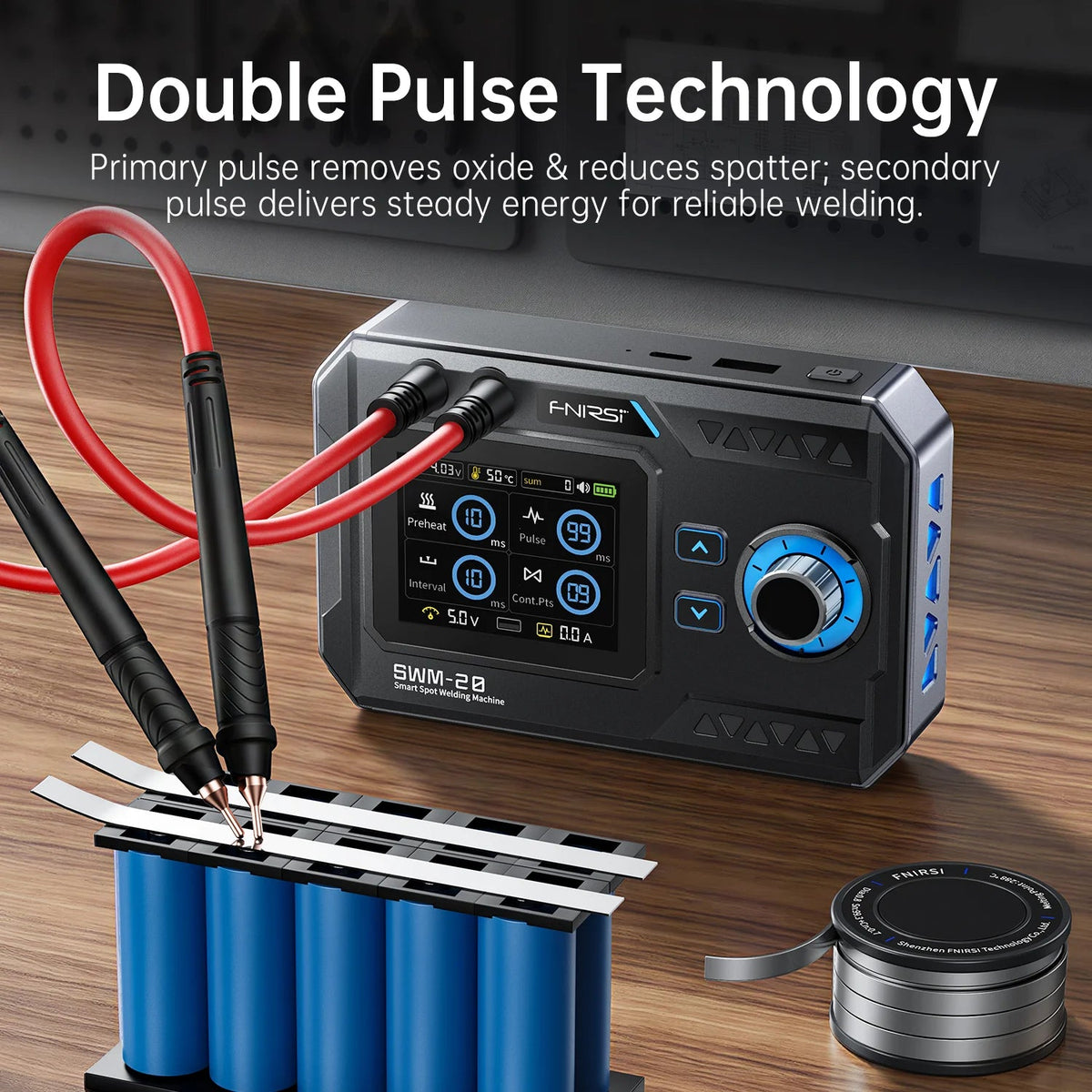

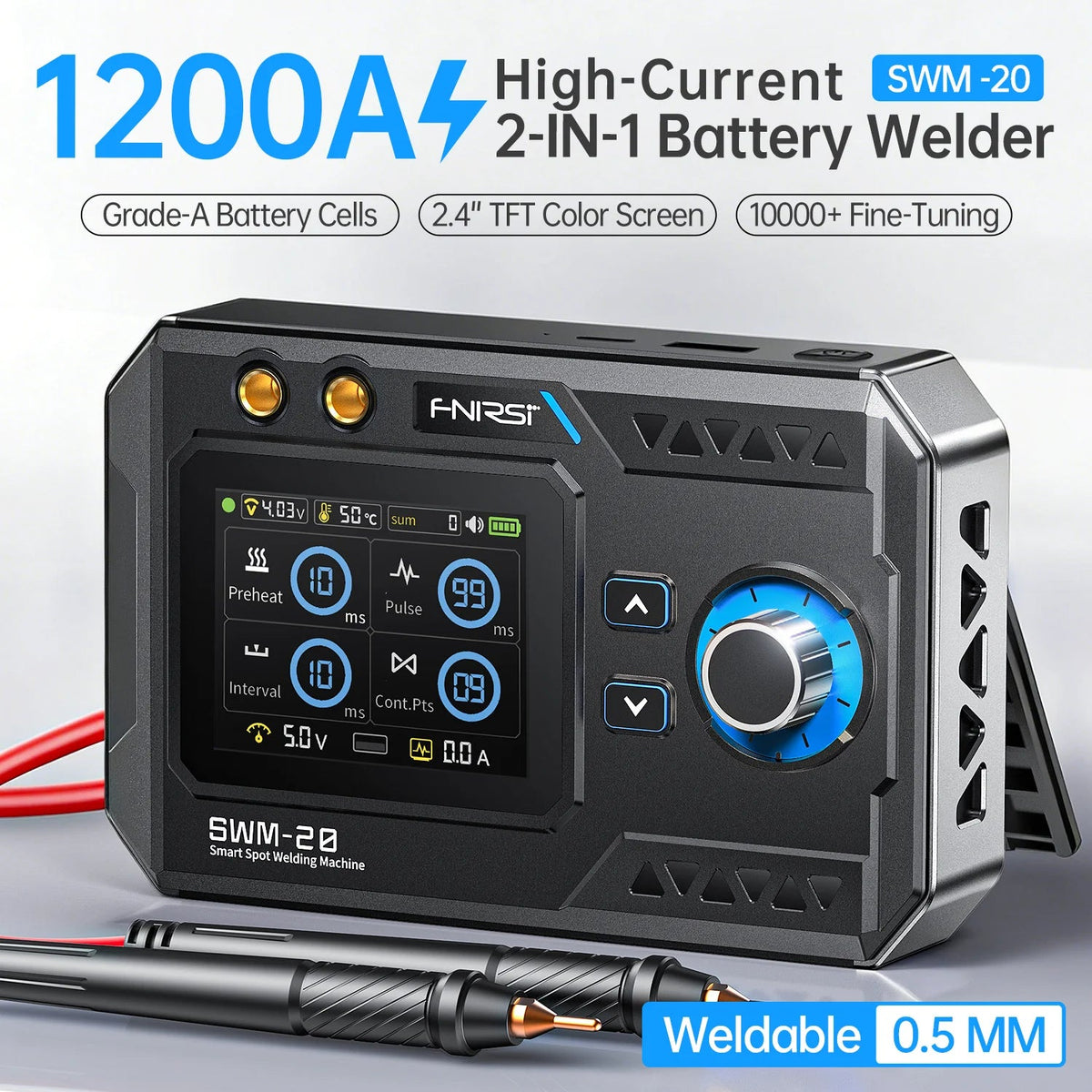

The FNIRSI SWM-20 is a handheld dual-pulse spot welder for building 18650 and lithium battery packs. It delivers up to 1200A, with a first pulse to break through oxide and a second pulse for a clean weld.

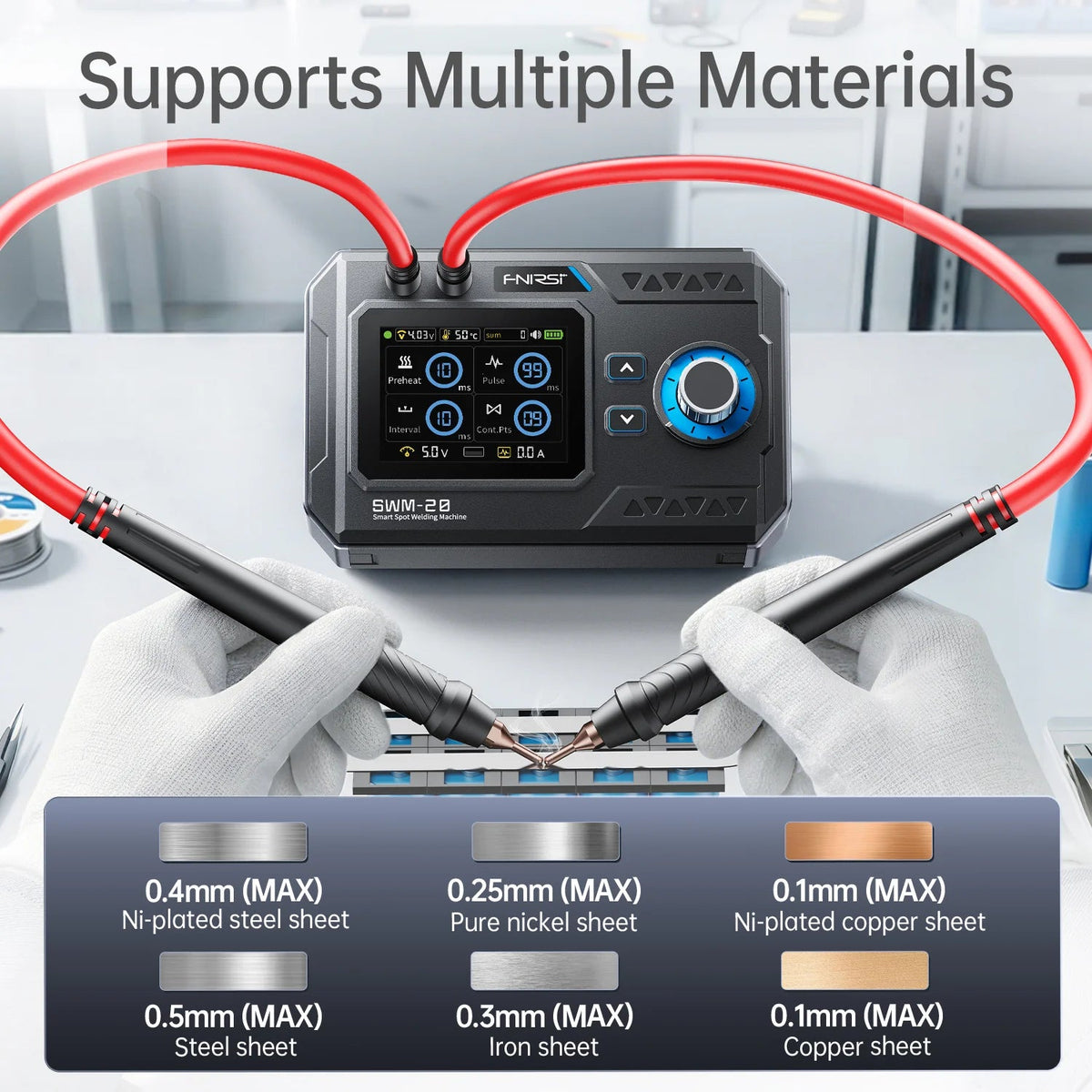

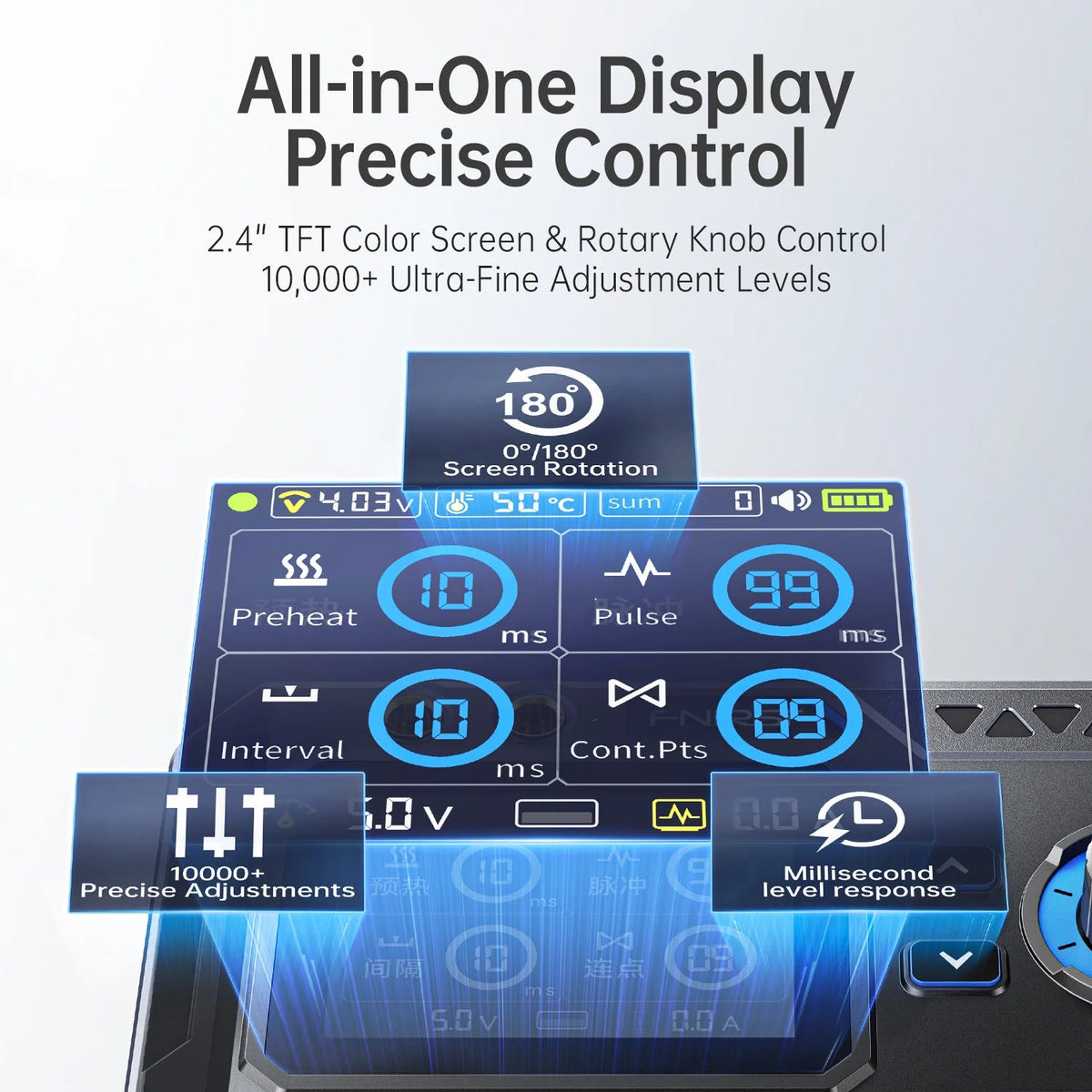

It welds pure nickel strip up to 0.25mm and nickel-plated steel up to 0.4mm, with fine control of preheat, pulse and interval on a 2.4-inch screen. Its 5000mAh cells give about 1500 welds per charge, and it doubles as a 5V 2.1A power bank.
Key Features
- ⚡ 1200A peak dual-pulse welding
- 🔩 Nickel strip to 0.25mm nickel-plated steel to 0.4mm
- 🎚️ 10,000+ adjustment levels and 4 presets
- 🔋 5000mAh, ~1500 welds per charge plus 5V 2.1A power-bank output
- 🛡️ 8 safety protections and detachable copper pens
Technical Specifications
| Max welding current | 1200A |
|---|---|
| Welding thickness | 0.1 – 0.5mm |
| Pure nickel | max 0.25mm |
| Nickel-plated steel | max 0.4mm |
| Steel | max 0.5mm |
| Battery | 5000mAh |
| Charging / output | 5V 2.1A Type-C / USB |
| Display | 2.4" TFT |
What's in the Box
- 1 × SWM-20 host
- 1 × welding pen set
- Replacement tips
- 1 × USB-C cable
- 1 × nickel strip
- 1 × user manual
