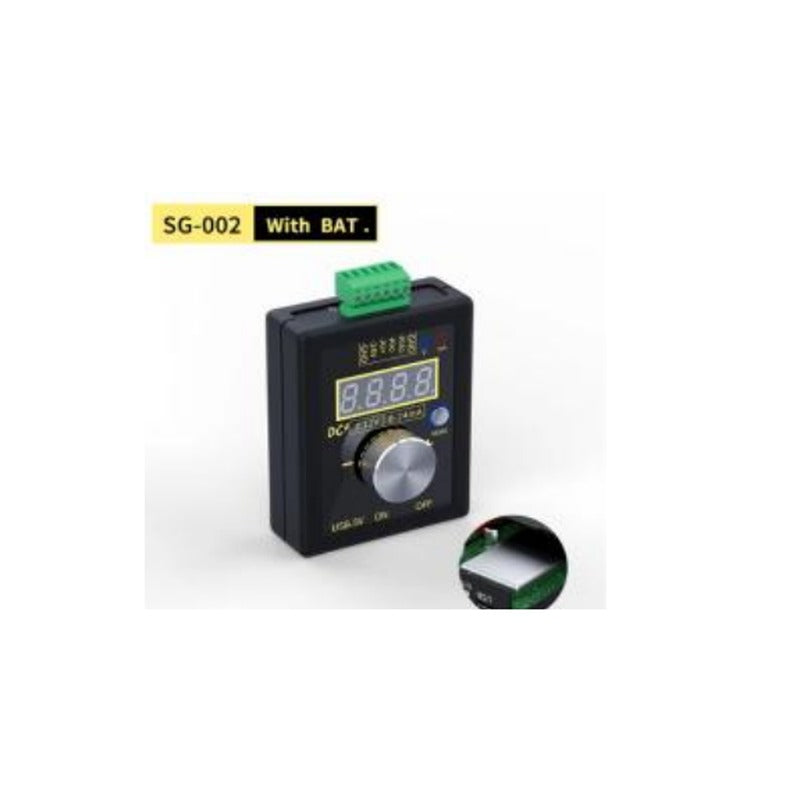

FNIRSI SG-002 4-20mA Signal Generator with Battery – 0-24mA Current and Voltage Source
The FNIRSI SG-002 is a low-cost current and voltage signal source for testing PLC analog inputs, valve actuators, VFD speed inputs and panel meters. It outputs 0 – 24mA in 0.01mA steps, covering both 0 – 20mA and 4 – 20mA standards, in active or passive loop configuration.
Switch to voltage mode for 0 – 10V style signals. It runs from its internal lithium battery, from USB 5V, or from a 15 – 30V external supply such as a PLC's 24V rail, and connects through detachable screw terminals.
Key Features
- 🔌 0 – 24mA current output 0.01mA steps, active or passive
- ⚡ Voltage output mode for 0 – 10V, 0 – 5V and similar signals
- 🔧 2-, 3- and 4-wire connection via detachable terminals
- 🔋 Internal 3.7V 1100mAh battery plus USB 5V or 15 – 30V external power
- 🎚️ Coarse and fine adjustment with a 4-digit display
Technical Specifications
| Current output | 0 – 24mA, 0.01mA steps (0 – 20mA / 4 – 20mA) |
|---|---|
| Loop modes | Active / passive |
| Voltage output | Selectable ranges including 0 – 10V |
| Display | 4-digit LED |
| Power | 3.7V 1100mAh Li-ion, micro USB 5V, or DC 15 – 30V external |
| Size | 89 × 69 × 28 mm |
What's in the Box
- 1 × FNIRSI SG-002 signal generator (battery version)
