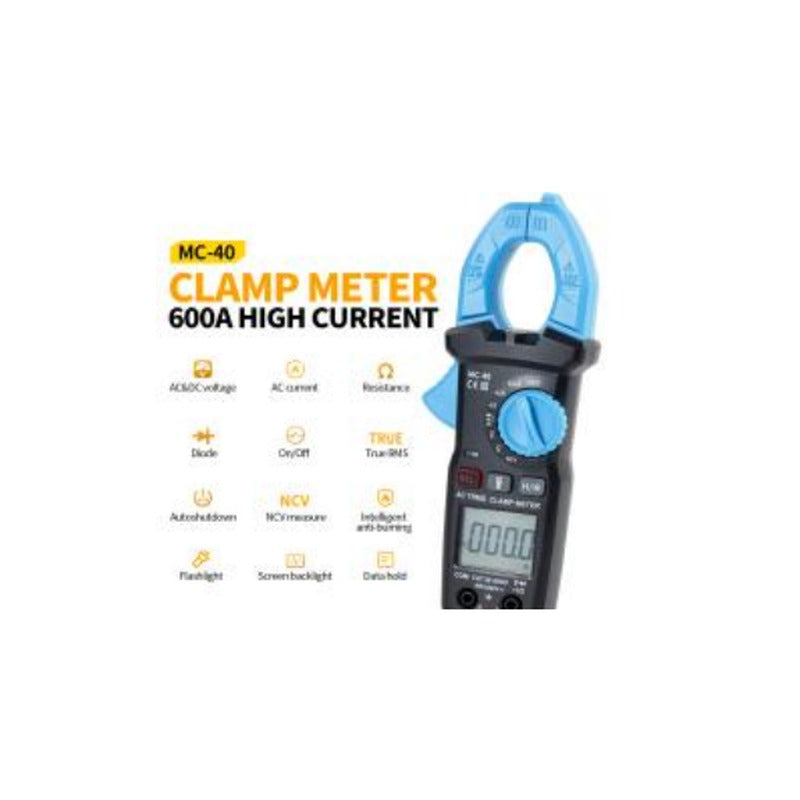

FNIRSI MC-40 Digital AC Clamp Meter – 600A, True RMS, NCV
The FNIRSI MC-40 is a budget True RMS clamp meter for electricians. Close the jaw around one conductor to read AC current up to 600A without breaking the circuit, then use the test leads for voltage, resistance, diode and continuity checks.
Auto ranging, NCV, data hold, a backlit display and a flashlight cover everyday DB-box and panel work. It runs on two AAA cells and switches itself off after inactivity.
Key Features
- ⚡ AC current to 600A through the clamp jaw
- 📏 AC/DC voltage to 600V True RMS, auto ranging
- 🔧 Resistance 400Ω – 40MΩ plus diode and continuity
- ⚠️ NCV detection for live wires
- 🔦 Backlight, flashlight and data hold
Technical Specifications
| AC current | 4A / 40A / 600A |
|---|---|
| AC / DC voltage | 4V / 40V / 600V |
| Resistance | 400Ω – 40MΩ |
| Other | True RMS, NCV, diode, continuity, data hold |
| Sampling | 3 readings/s |
| Power | 2 × AAA (not included) |
| Auto power-off | after inactivity |
| Size | 185 × 71 × 35 mm |
What's in the Box
- 1 × FNIRSI MC-40 clamp meter
- 1 × pair of test leads
