FNIRSI LPM-10A Network Cable Tracker and Tester – Length, PoE, Crimp Test

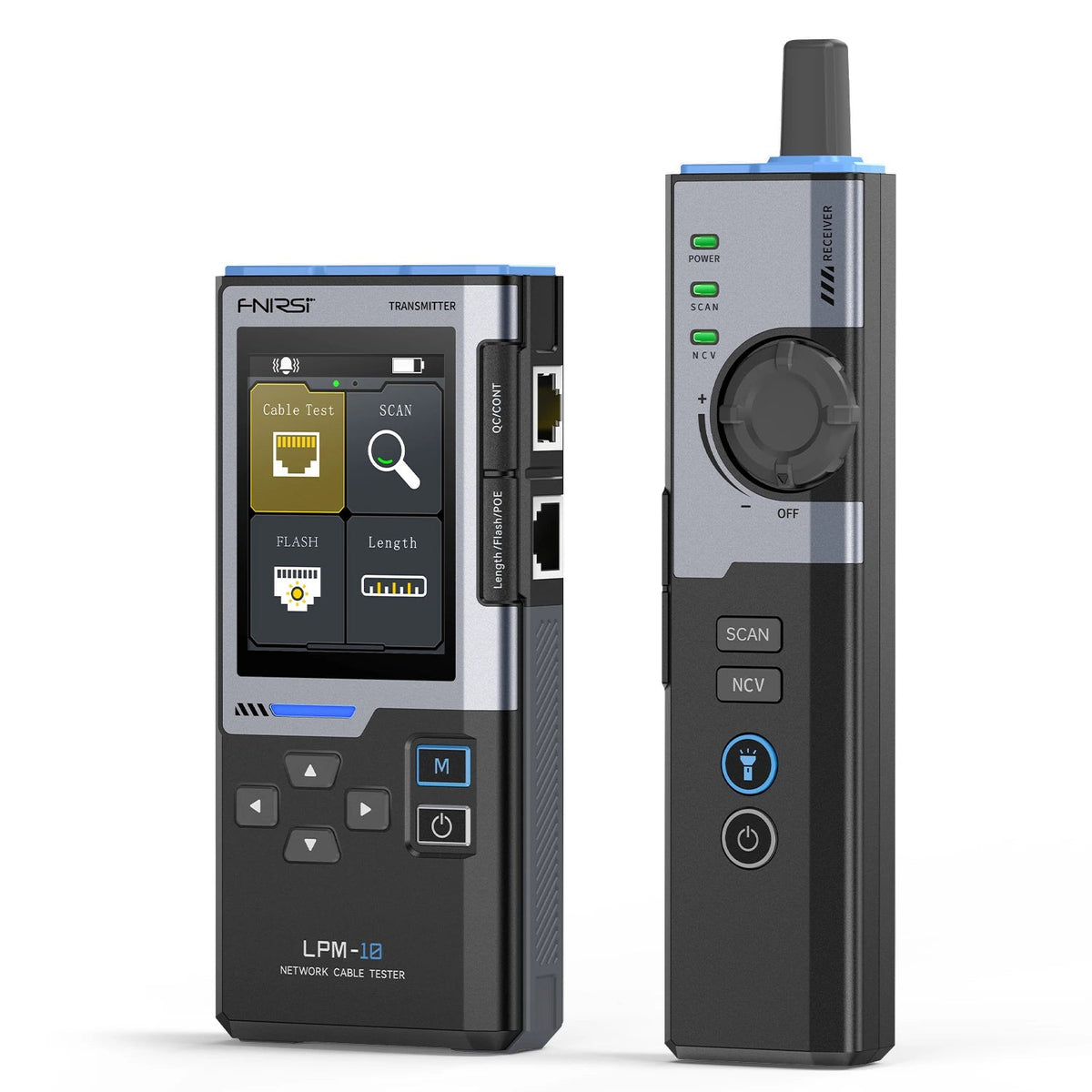

The FNIRSI LPM-10A is a cable tracker and network tester for LAN installers and IT technicians. It traces network and telephone cables, with an anti-interference mode for busy patch panels, and finds a cable's port by flashing its link light.
It measures cable length to 100m (±3.2m), checks wiremap and RJ45 crimping, detects PoE type and voltage, and includes NCV and a flashlight. A 1500mAh battery runs up to 10 hours.

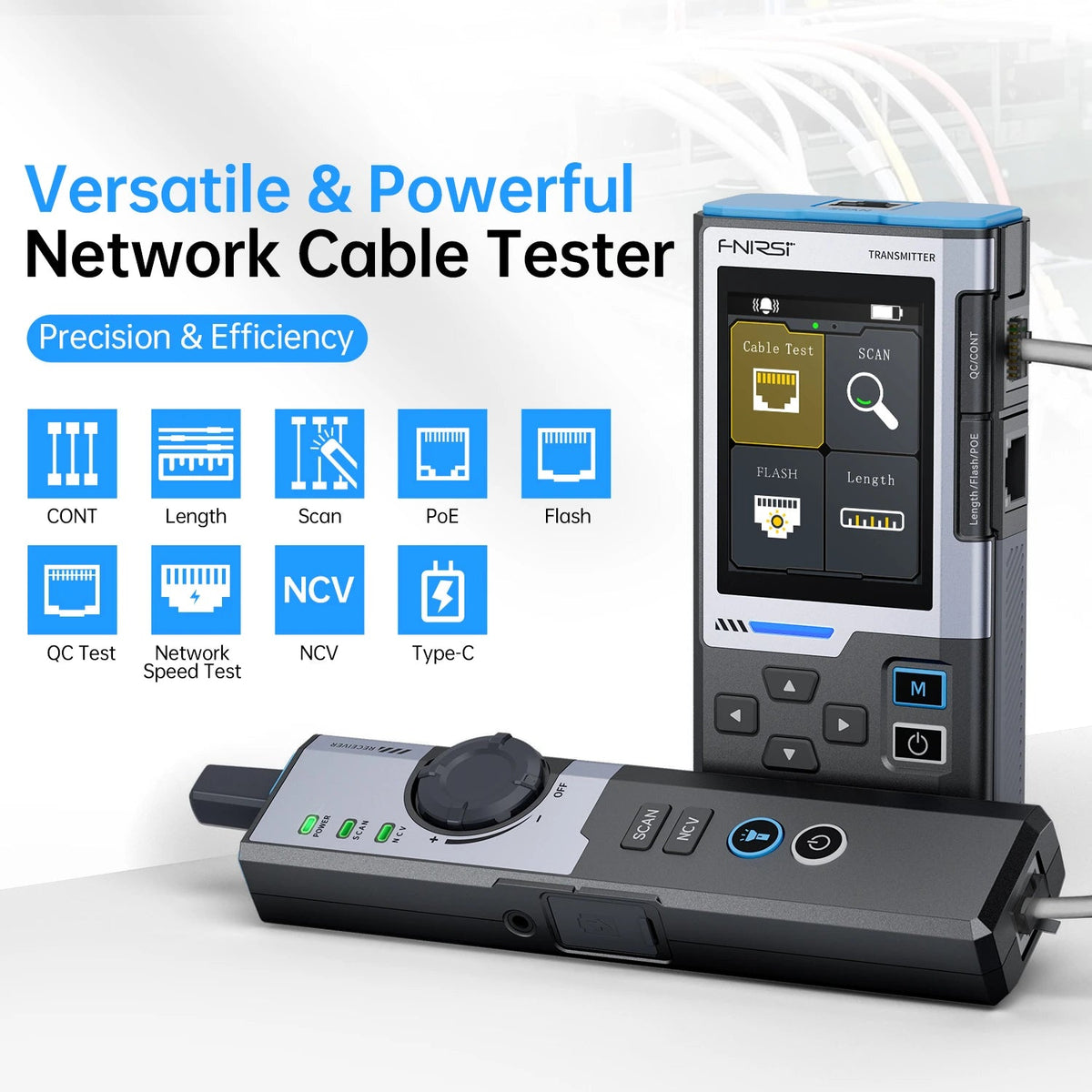

Key Features

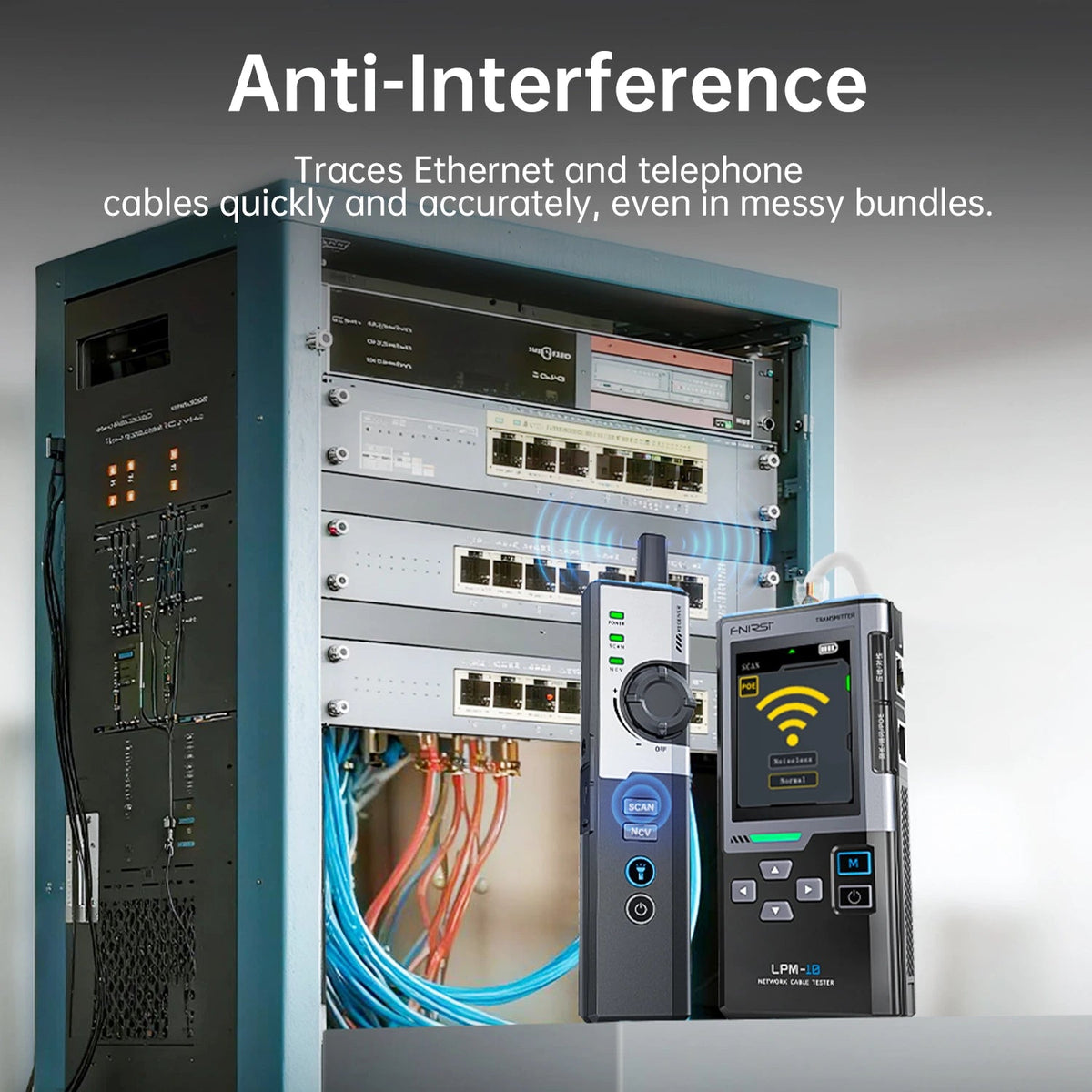

- 🔎 Cable tracing normal and anti-interference modes
- 📏 Length measurement ±3.2m over 100m

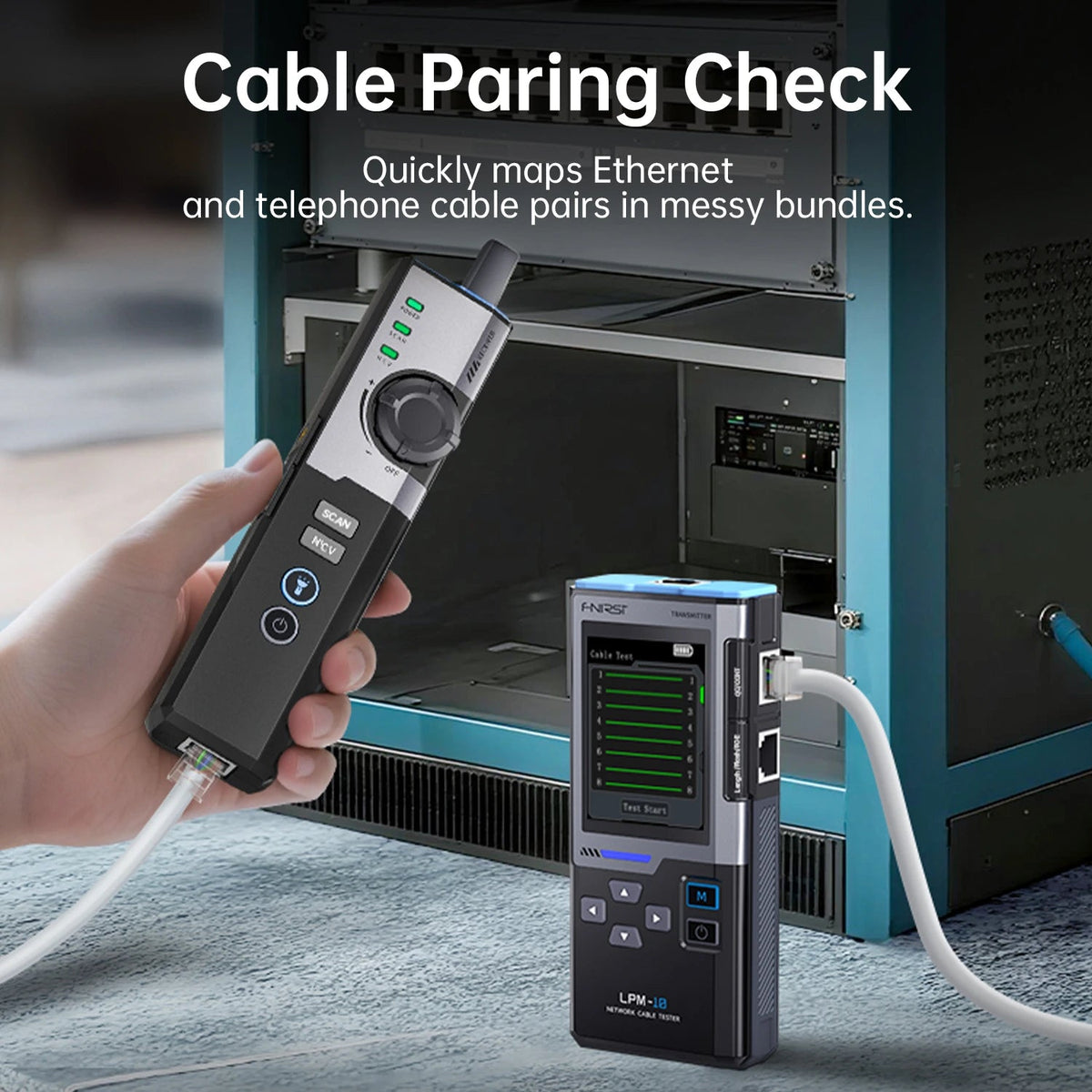

- 🔌 Wiremap and crimp test open, short and crossover
- ⚡ PoE detection mode, standard and voltage
- 💡 Port flashing, NCV and flashlight
Technical Specifications

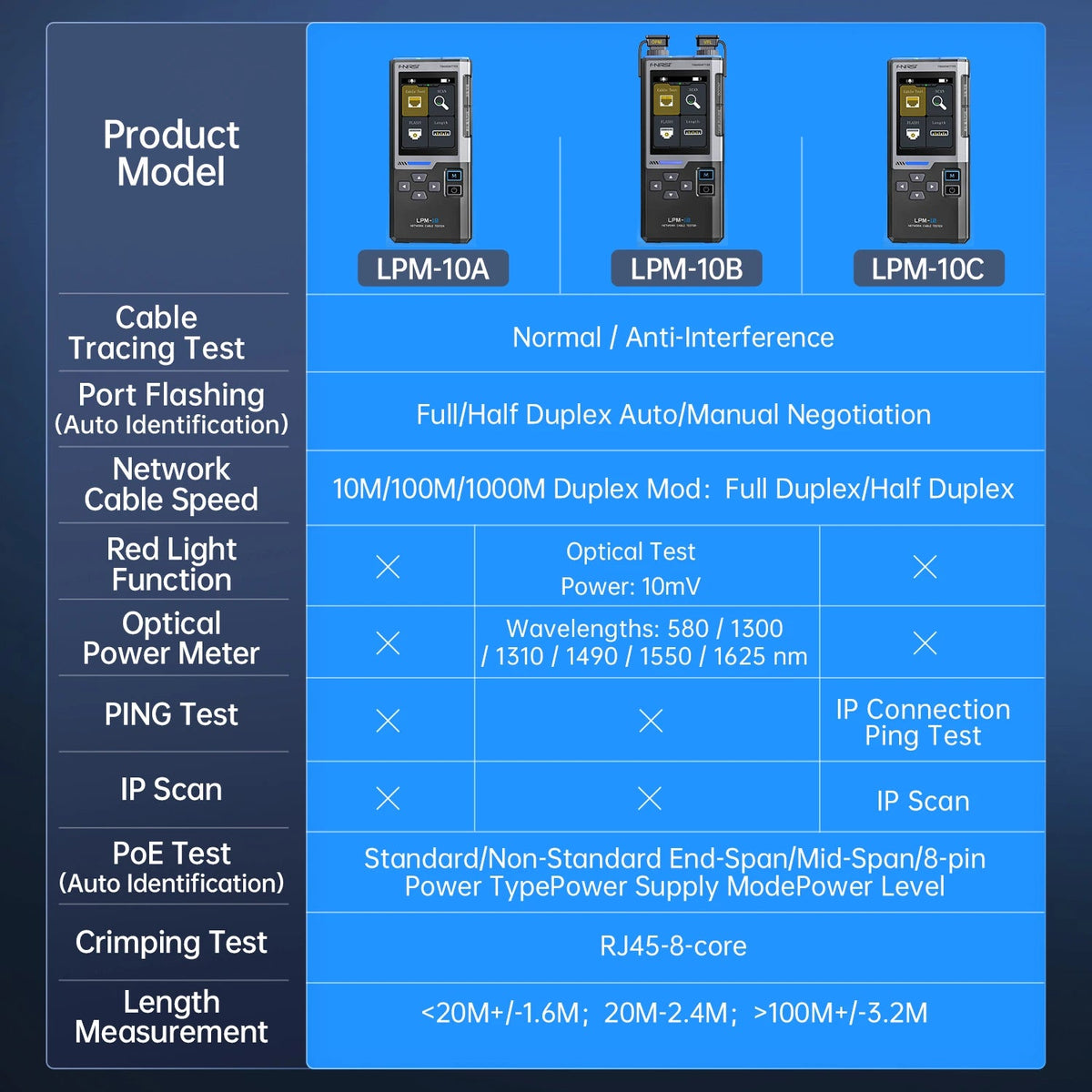

| Functions | Tracing, length, wiremap, crimp, PoE, port flash, NCV |
|---|---|

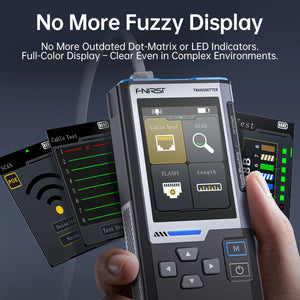

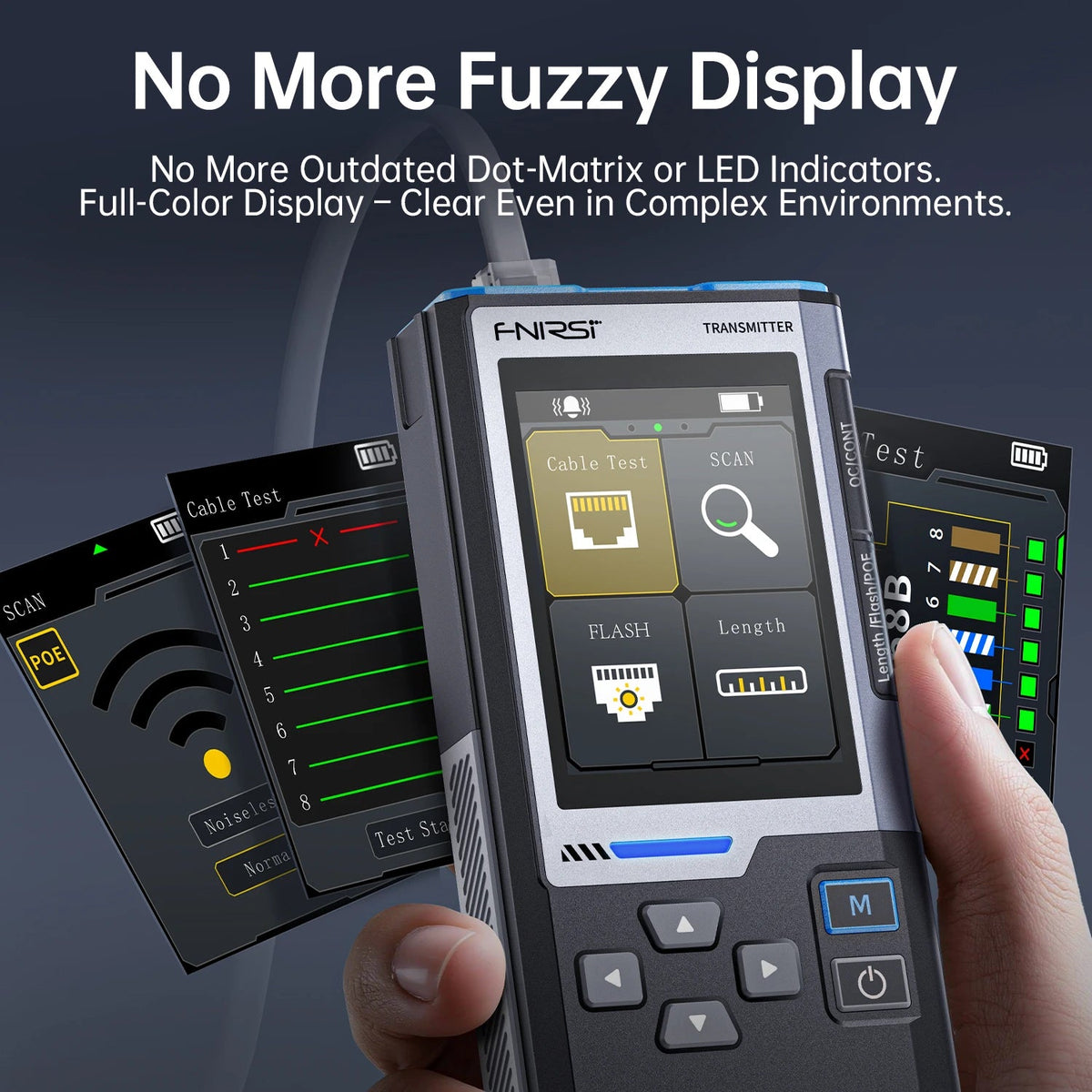

| Display | 2.4" colour |
| Battery | 1500mAh, up to 10 h |
| Charging | Type-C 5V 1A |
| Size | ≈152 × 68 × 31 mm |
What's in the Box
- 1 × LPM-10A unit
- 1 × Type-C cable
- 1 × alligator clip lead
- 1 × headphone cable
- 1 × RJ45 to RJ11 cable
- 1 × RJ45 cable
- 1 × storage bag
