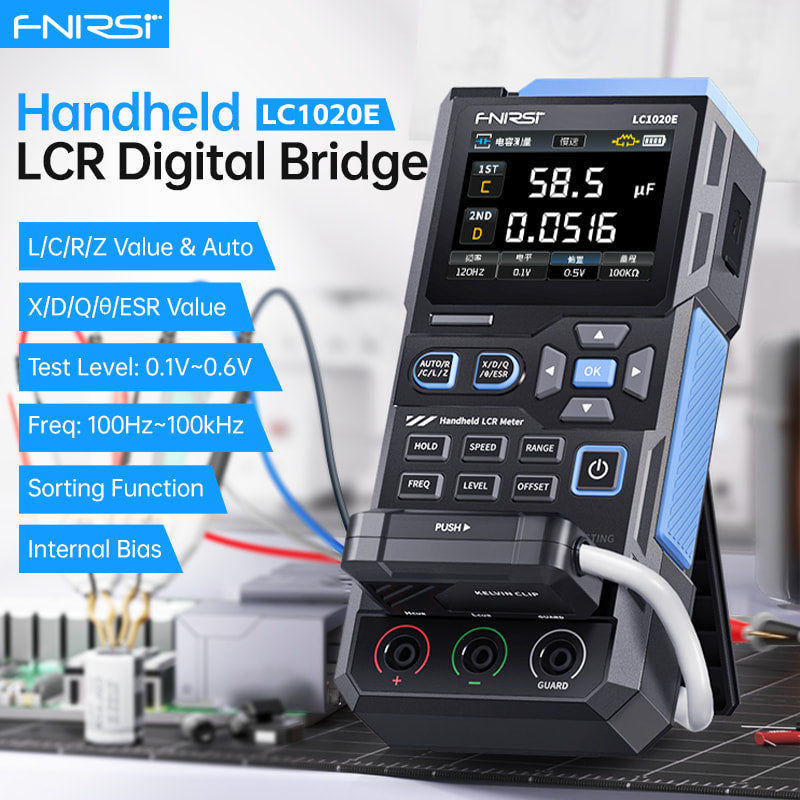

The FNIRSI LC1020E is a handheld digital LCR bridge with a 4.5-digit display and 0.3% basic accuracy. It measures L, C, R and Z with X, D, Q, θ and ESR as secondary readings, and picks the component type automatically.

Test frequency runs from 100Hz to 100kHz with 0.1V, 0.3V or 0.6V test levels and selectable bias. With both 3-terminal and 5-terminal (4-wire Kelvin) inputs, open/short calibration and tolerance sorting, it suits incoming inspection as well as repair.

Key Features

• 🎯 0.3% basic accuracy 4.5-digit main and secondary readings

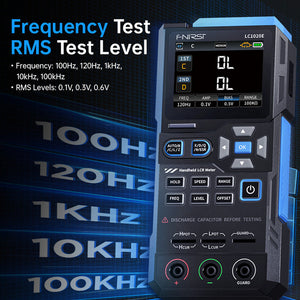

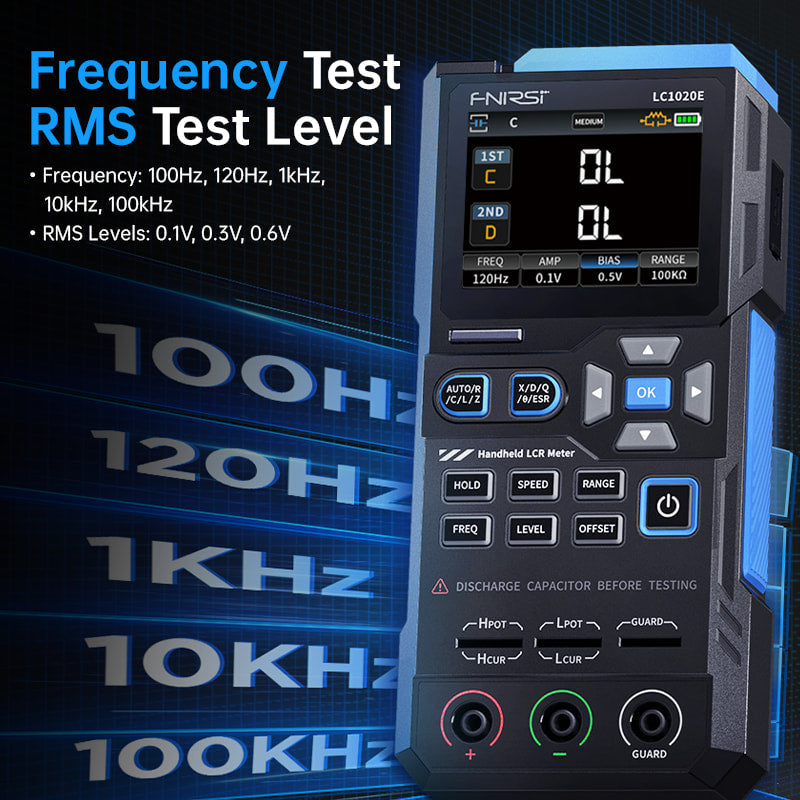

• 🎚️ 100Hz, 120Hz, 1kHz, 10kHz, 100kHz 0.1 / 0.3 / 0.6V test levels

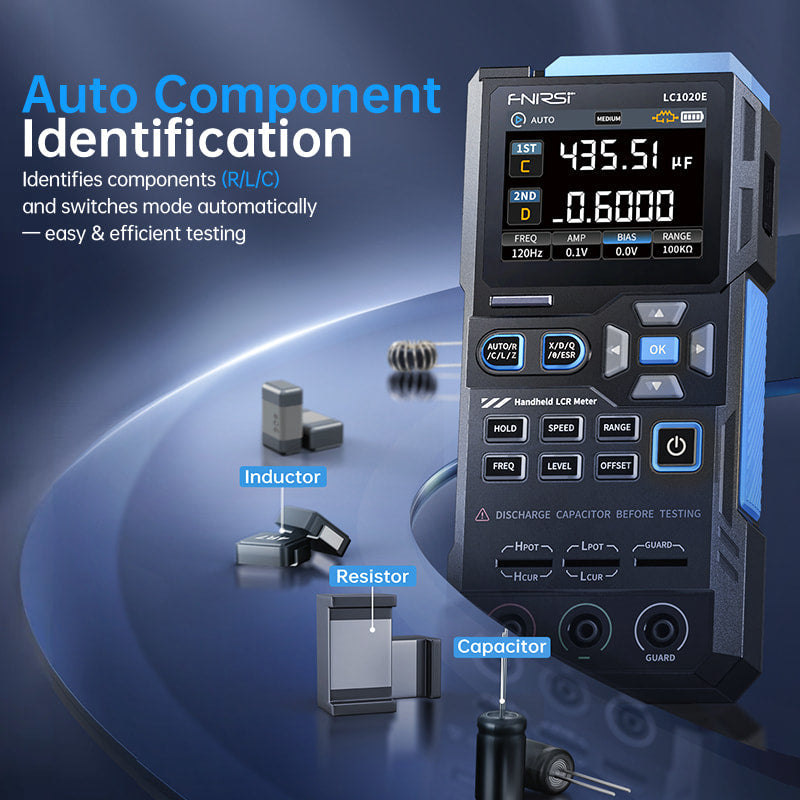

• 🔍 Automatic R / L / C recognition with series/parallel models
• 🔌 3-terminal and 5-terminal Kelvin inputs Kelvin clip included

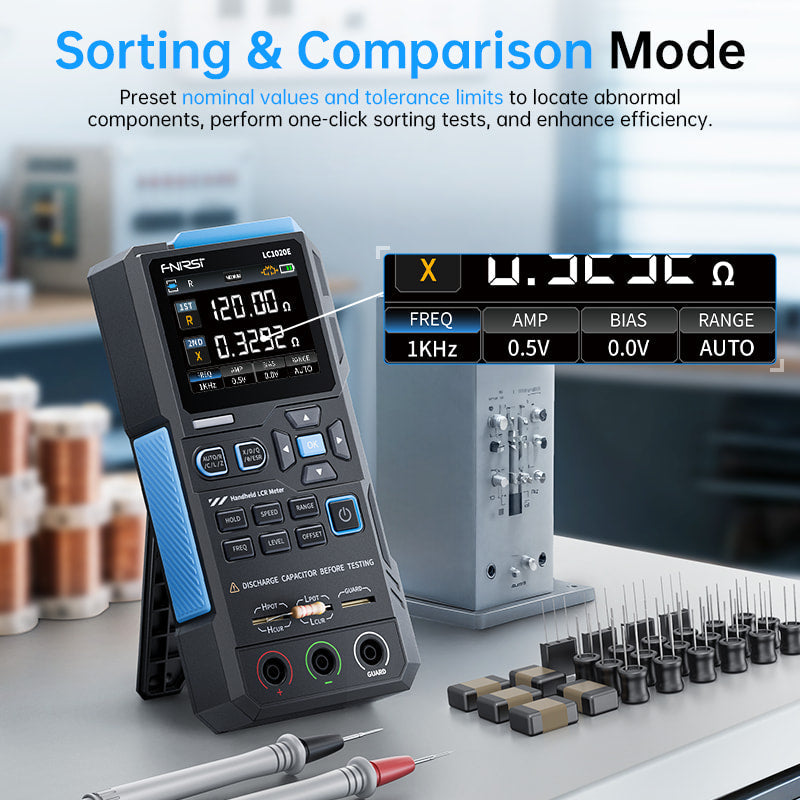

• ✅ Sorting with 0.1 – 99.9% tolerance and pass/fail counts
• 🔋 3.7V 3000mAh battery USB-C virtual serial port

Technical Specifications

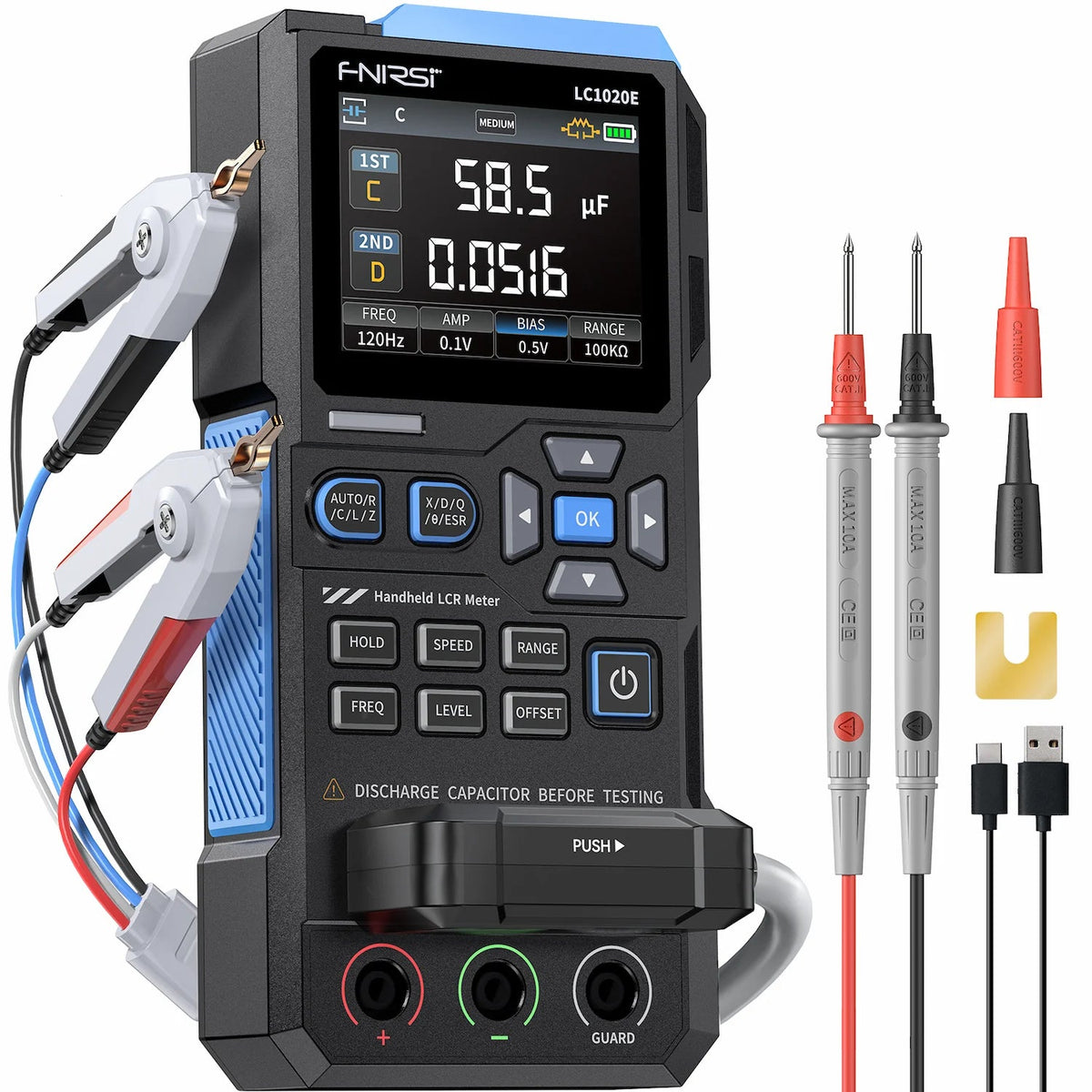

What's in the Box

• 1 × LC1020E LCR meter
• 1 × data cable
• 1 × shorting plate
• 1 × Kelvin test clip
• 1 × pair of test leads (red, black)
• 1 × user manual
