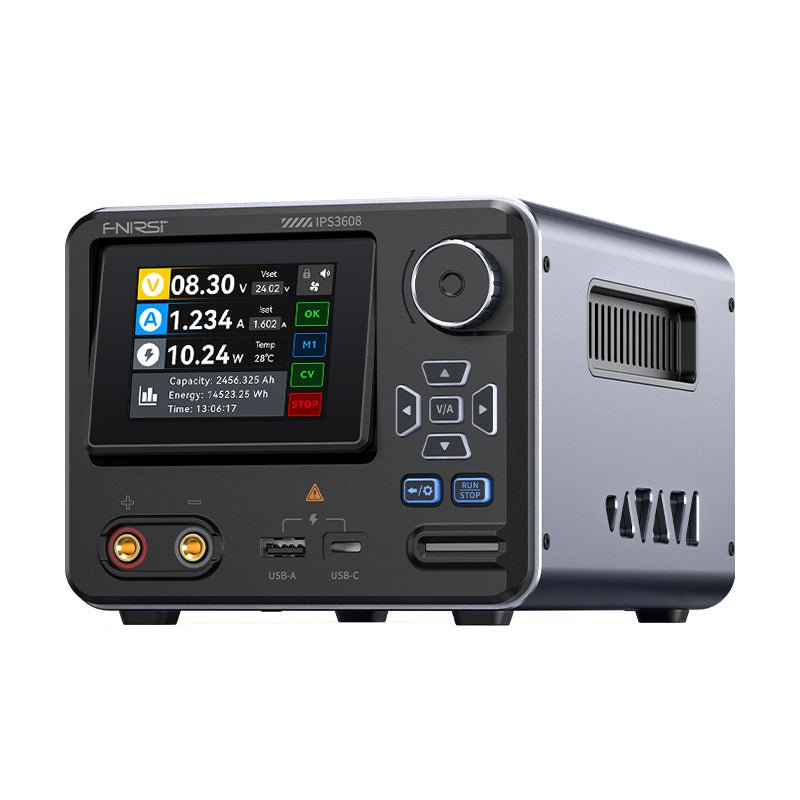

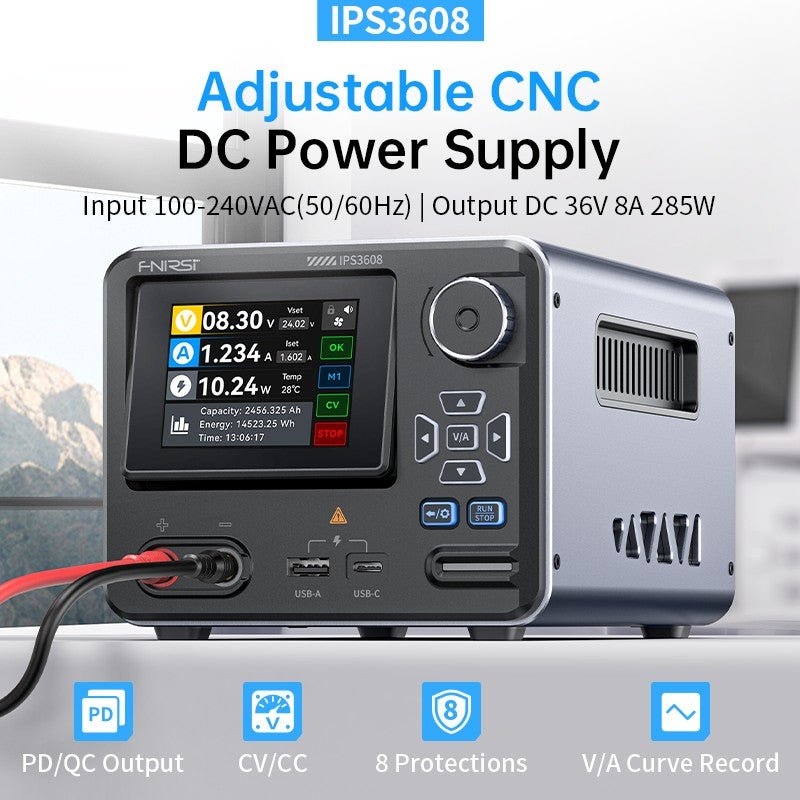

FNIRSI IPS3608 Programmable DC Power Supply – 36V 8A 285W, AC Input
Pickup available at Digilog Electronics
Usually ready in 2 hours
FNIRSI IPS3608 Programmable DC Power Supply – 36V 8A 285W, AC Input
The FNIRSI IPS3608 is a mains-powered digital bench power supply with 0 – 36V and 0 – 8A output, up to 285W. Voltage sets in 10mV steps and current in 1mA steps, with readback accurate to ±(0.3% + 3 digits) for voltage.

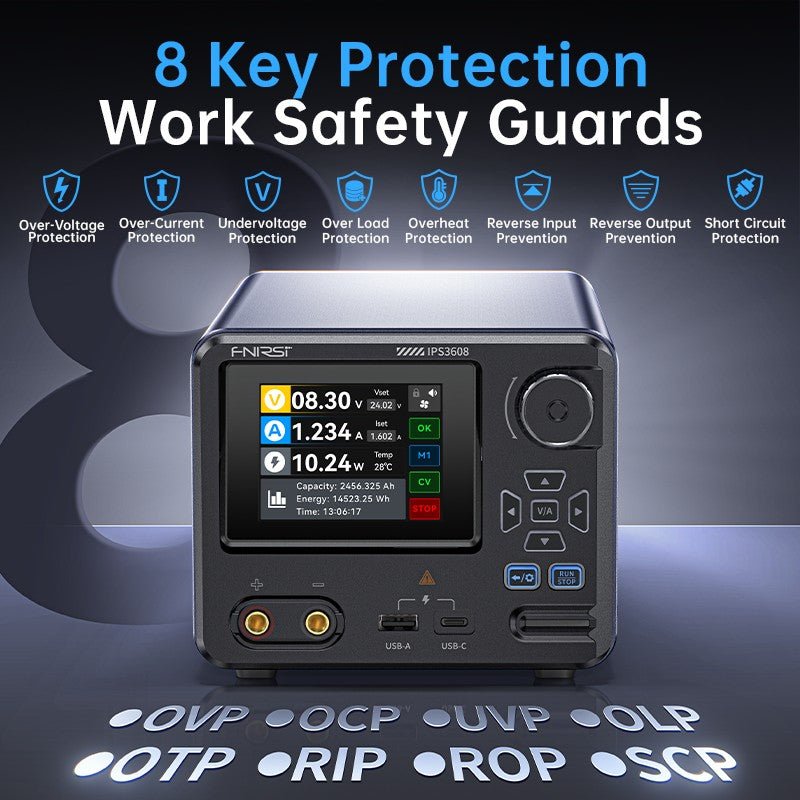

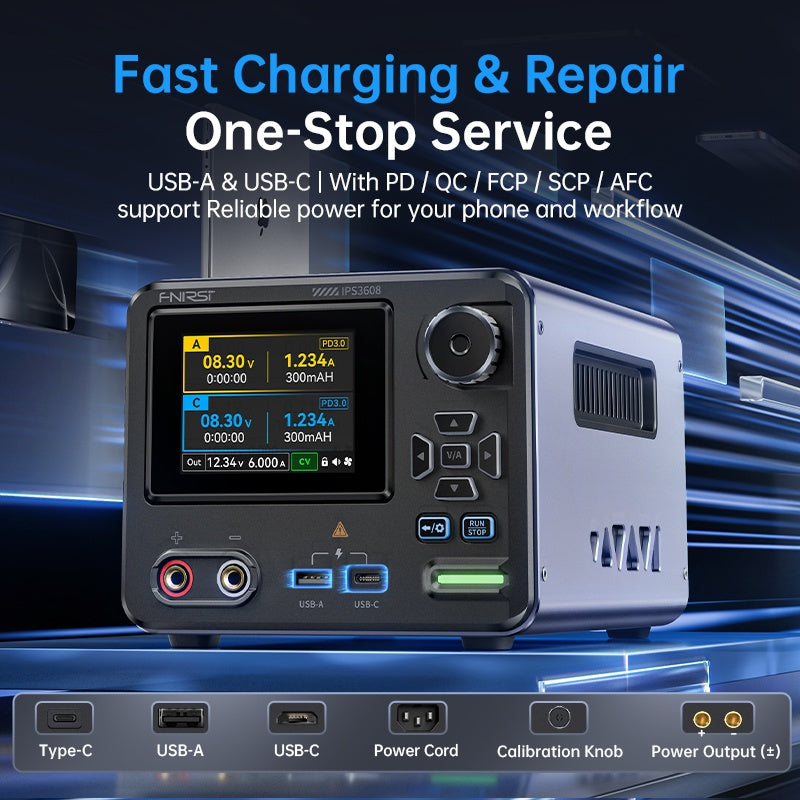

Eight protections cover over-voltage, over-current, over-power, over-temperature, short circuit and reverse connection. USB-C PD3.0 and USB-A QC/FCP/SCP/AFC ports also let you charge or test phones and laptops.
Key Features
- ⚡ 0 – 36V, 0 – 8A, 285W from 100 – 240V AC
- 🎯 10mV / 1mA setting resolution
- 🛡️ 8 protection circuits OVP, OCP, OPP, OTP, short circuit and more
- 🔌 USB-C PD3.0 and USB-A fast charge
- 🖥️ 2.8" colour screen adjustable backlight
Technical Specifications
| Input | 100 – 240V AC, 50/60Hz |
|---|---|
| Output | 0 – 36V, 0 – 8A, 0 – 285W |
| Setting resolution | 0.01V / 0.001A |
| Voltage readback | ±(0.3% + 3 digits) |
| Current readback | ±(0.15% + 5 digits) |
| Load regulation | ±(0.2% + 2 digits) |
| Fast charge | USB-C PD3.0; USB-A FCP, SCP, AFC, QC2.0, QC3.0 |
| Display | 2.8" colour |
| Size | ≈138 × 214 × 115 mm |
| Weight | ≈1.54 kg |
What's in the Box
- 1 × IPS3608 power supply
- 1 × power cable
- 2 × alligator clip leads (red, black)
- 1 × data cable
- 1 × user manual
