FNIRSI DWS-200 200W Soldering Station with F210 Handle – 100 to 450°C

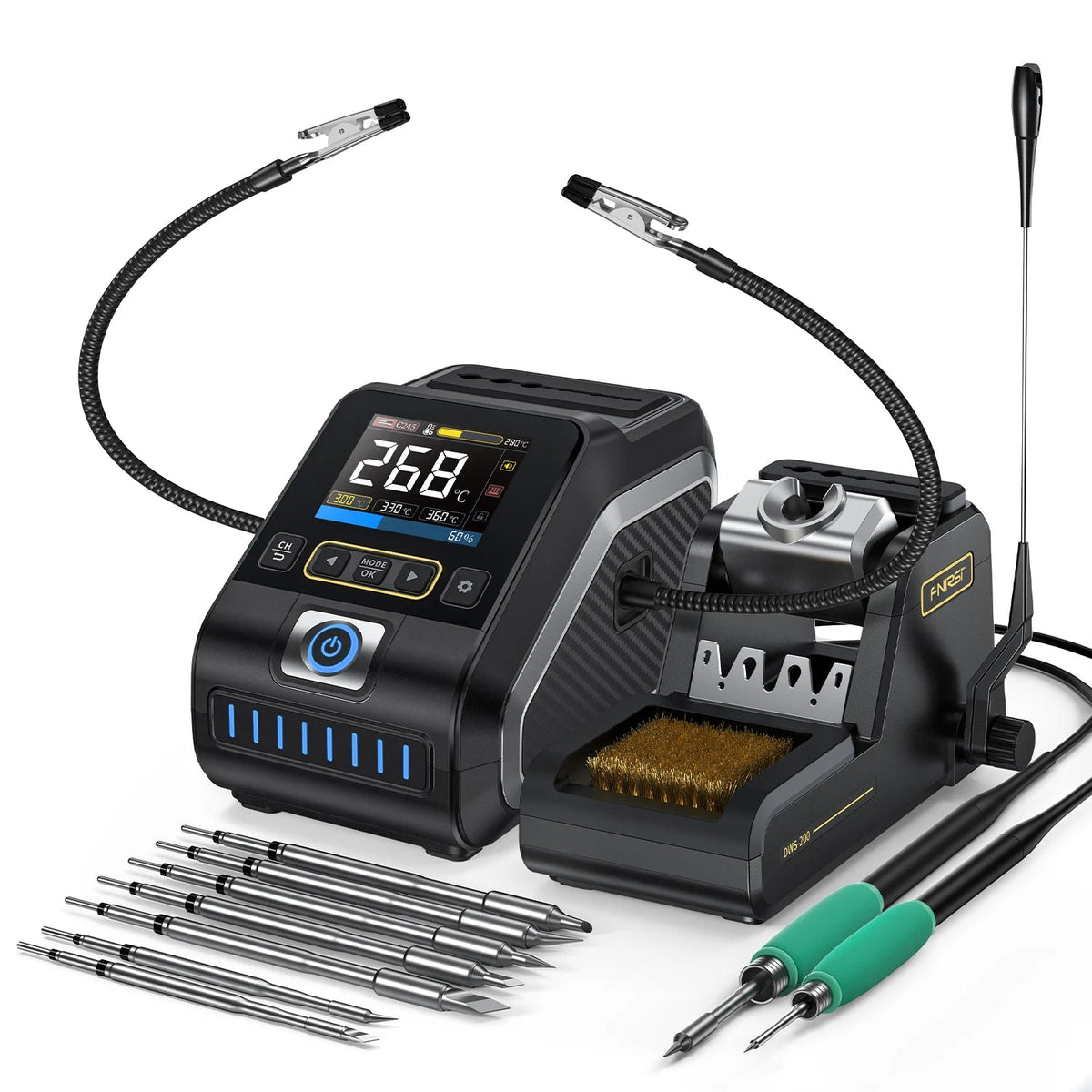

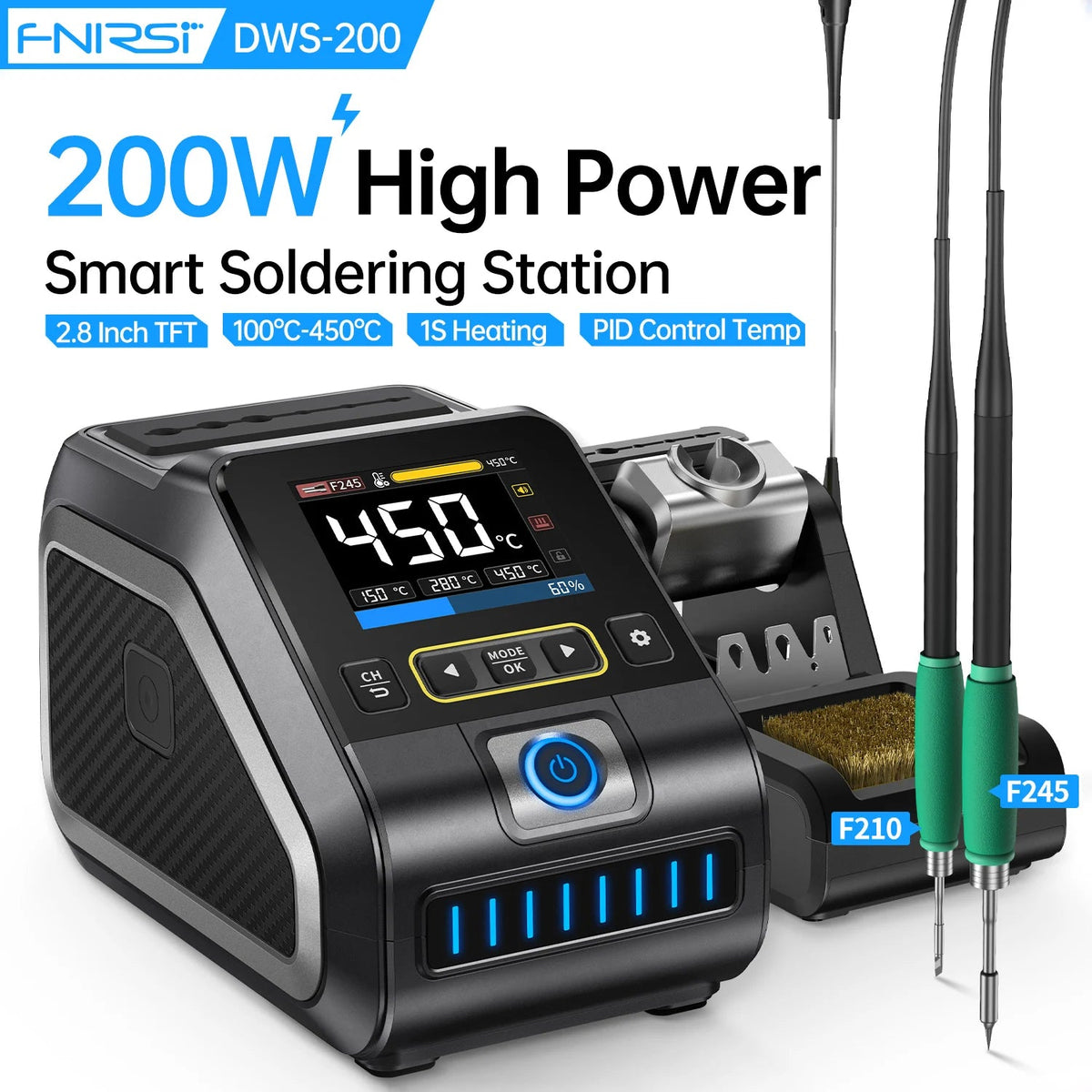

The FNIRSI DWS-200 is a 200W soldering station with a pure-copper transformer and a 2.8-inch TFT display. This kit uses the F210 handle, which takes fine precision tips for SMD and mobile-phone repair.
Temperature is adjustable from 100 to 450°C with three presets, and the stand sensor drops the iron into standby when you put it down. The handle uses the upgraded 7-pin connector, which is not compatible with older 5-pin handles.
Key Features
- 🔥 200W peak power fast heat-up and recovery

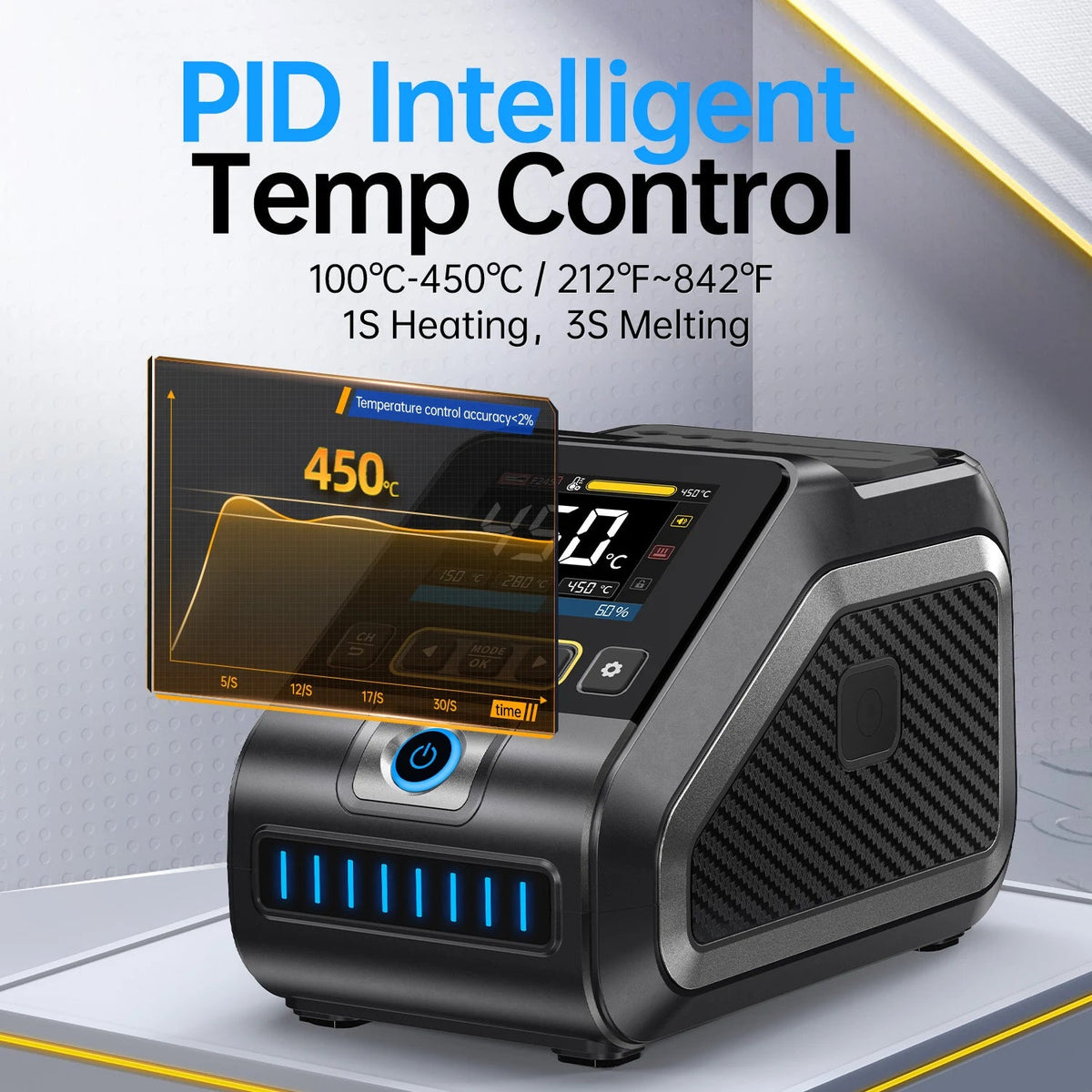

- 🌡️ 100 – 450°C °C/°F switchable, 3 presets
- ✏️ F210 precision handle for fine-pitch SMD work

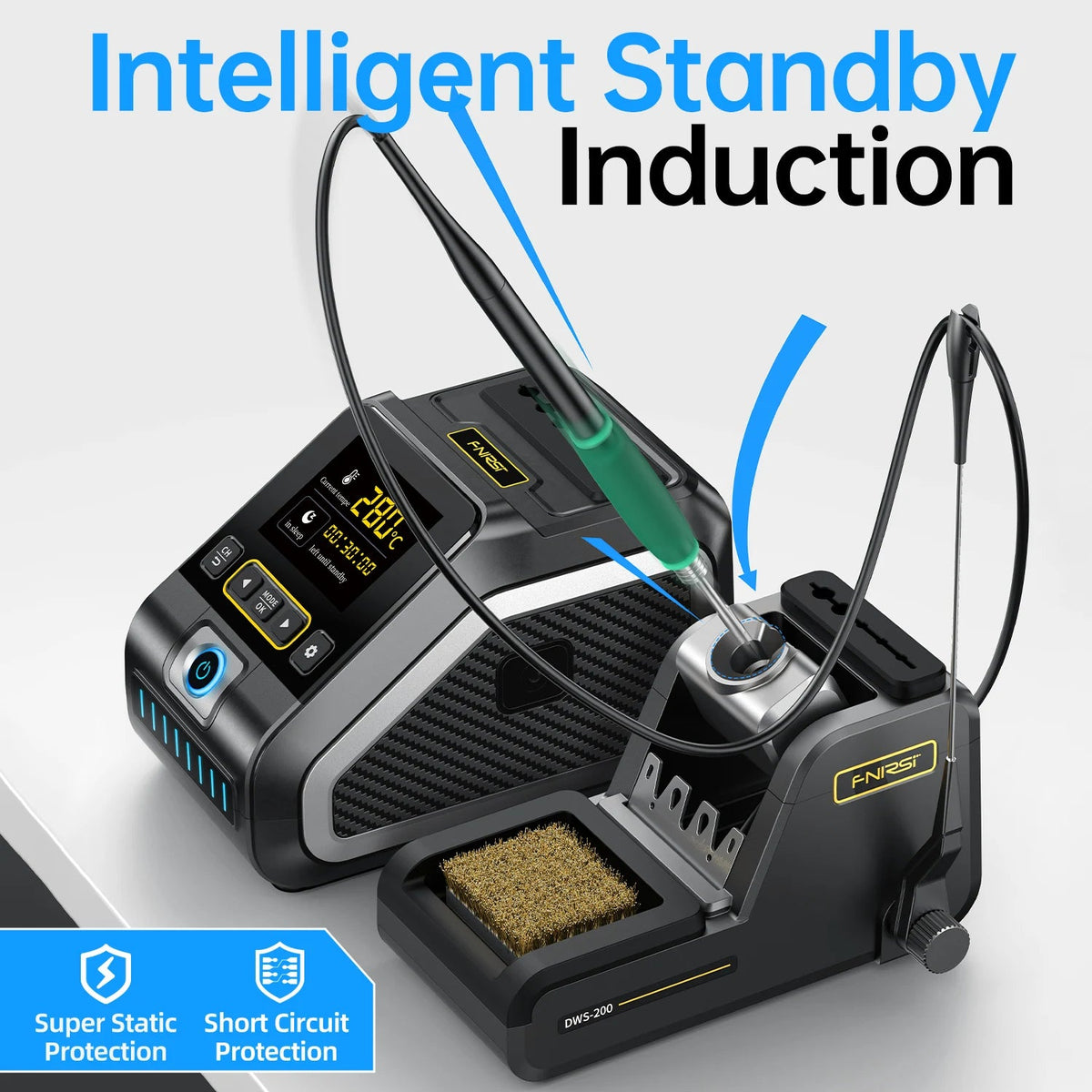

- 💤 Stand-sensing standby

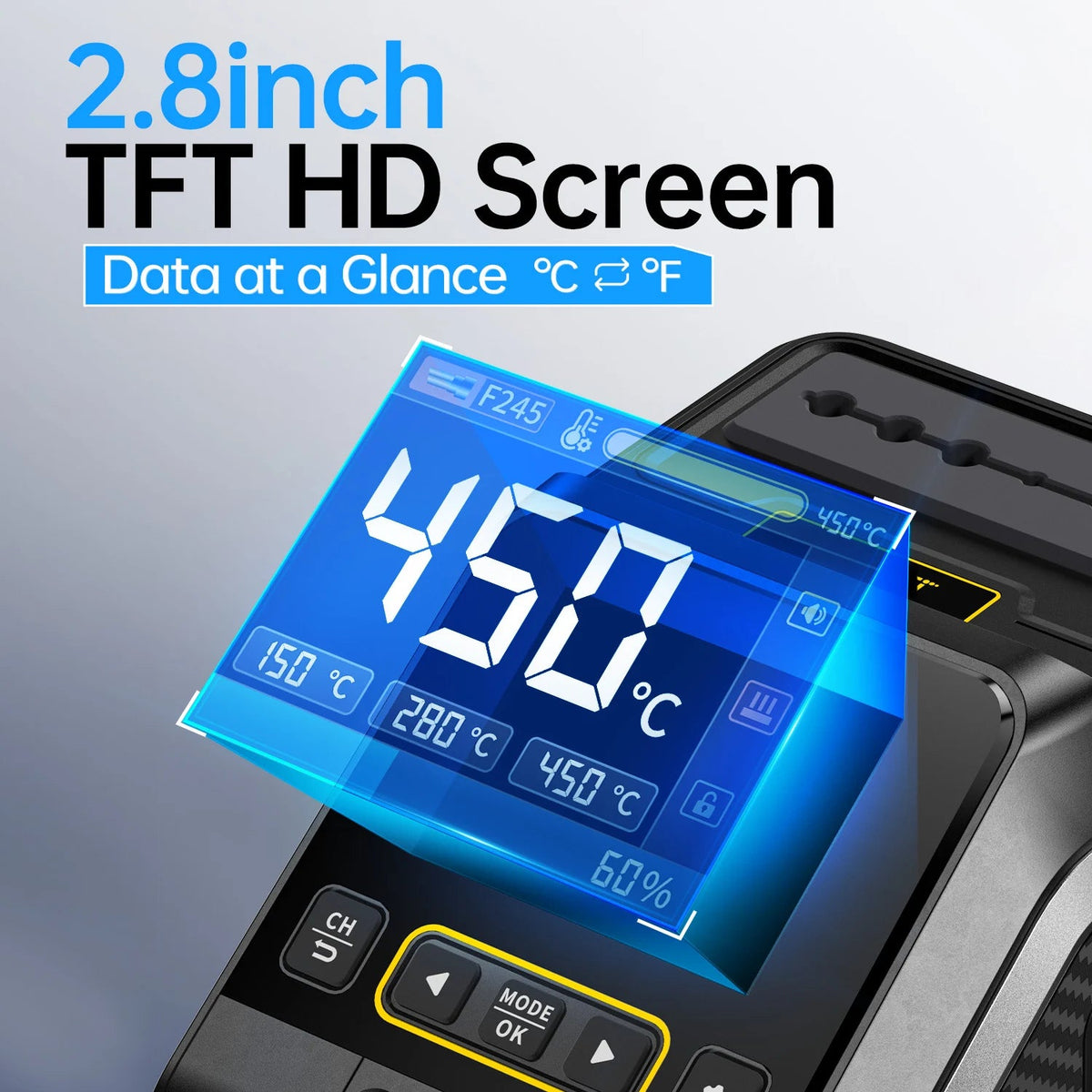

- 🖥️ 2.8" TFT with live temperature curve
Technical Specifications
| Power | 200W max |
|---|---|
| Temperature range | 100 – 450°C / 212 – 842°F |
| Input | 100 – 240V AC |
| Handle | F210 (7-pin) |
| Display | 2.8" TFT |
| Fuse | 3A |
| Host size | 156 × 96 × 103 mm |
| Host weight | 475 g |
What's in the Box
- 1 × DWS-200 station
- 1 × F210 handle with tip
- Stand and accessories as supplied by FNIRSI
