FNIRSI DSO-510 10MHz Mini Oscilloscope with Signal Generator – 48MSa/s

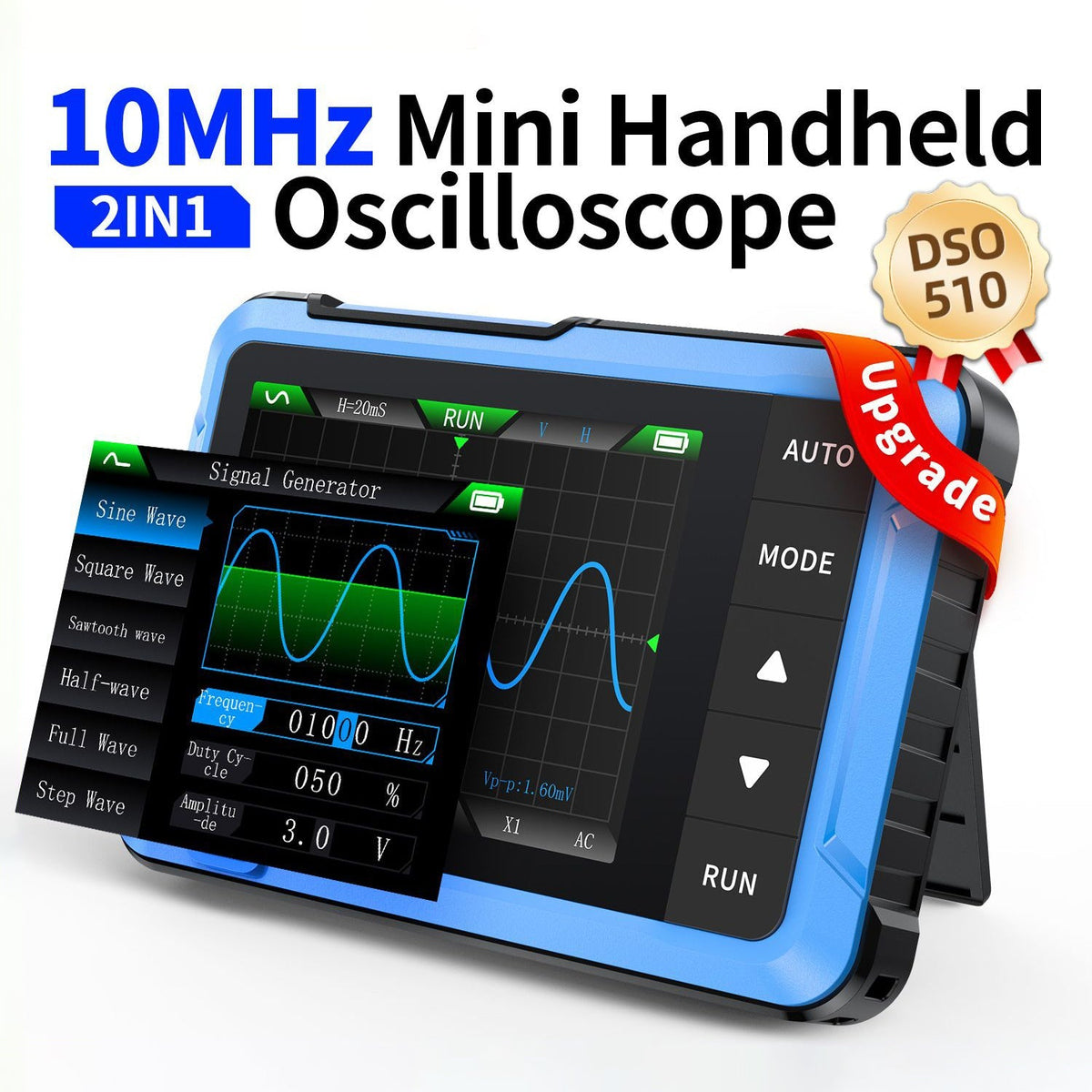

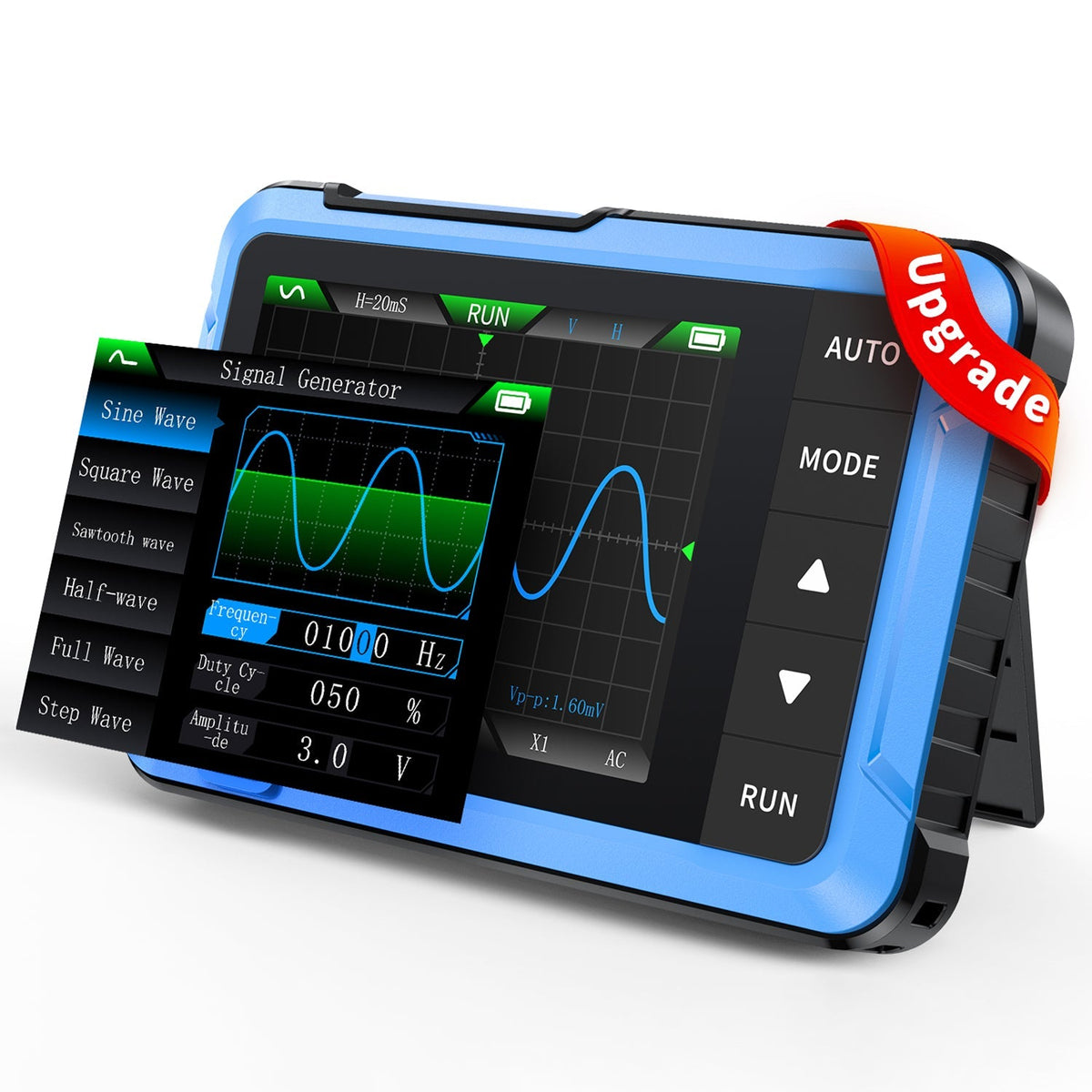

The FNIRSI DSO-510 is the fastest of FNIRSI's pocket scopes, with 48MSa/s sampling and 10MHz bandwidth in a 99 mm body. It handles both periodic analog signals and one-shot digital signals.
A 50kHz signal generator with 13 waveforms is built in. It has a 2.8-inch 320 × 240 display, measures up to ±400V with a 10X probe, and runs about 4 hours on its 1000mAh battery.
Key Features
- ⚡ 10MHz bandwidth, 48MSa/s single channel

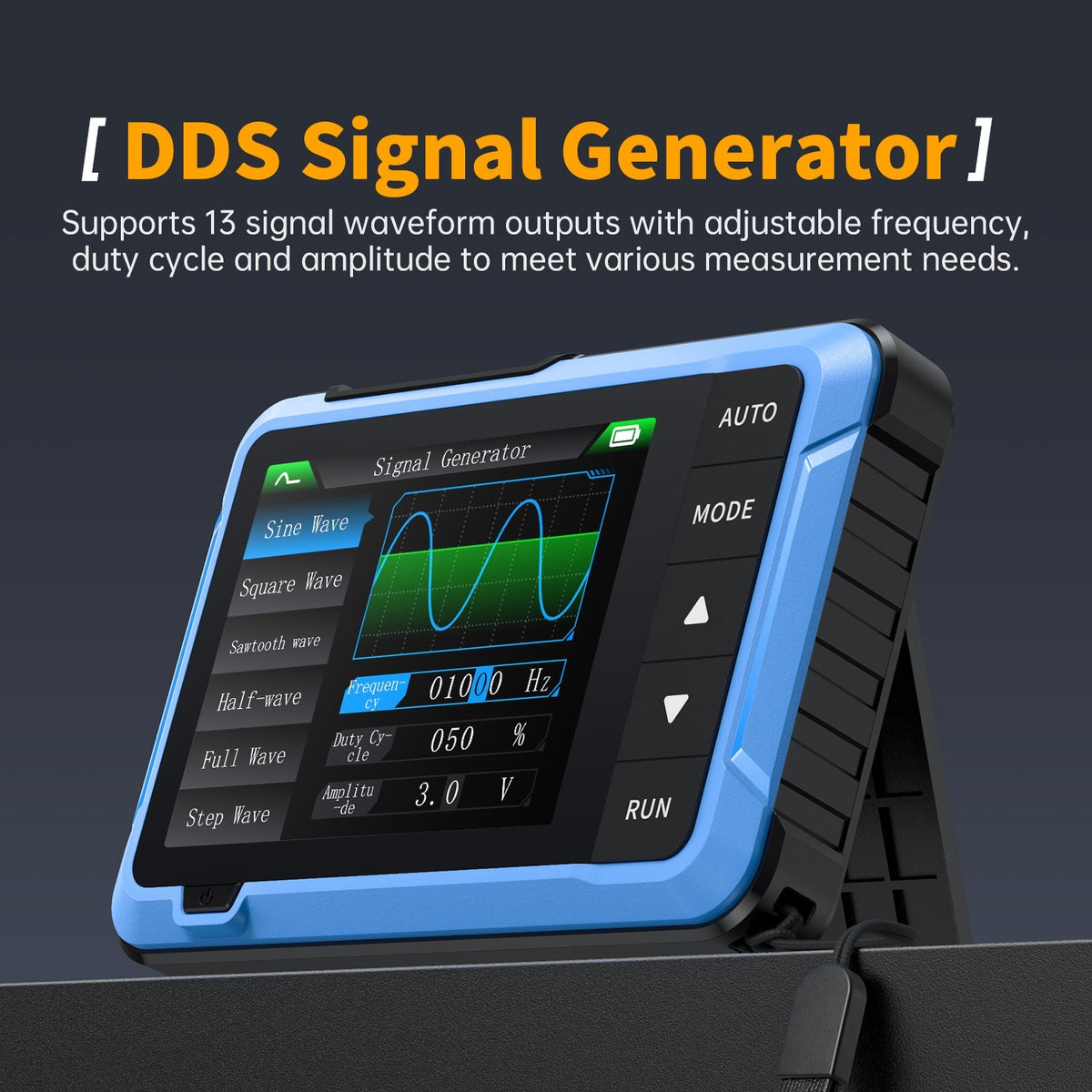

- 🎛️ 50kHz signal generator with 13 waveforms, 0.1 – 3.0V

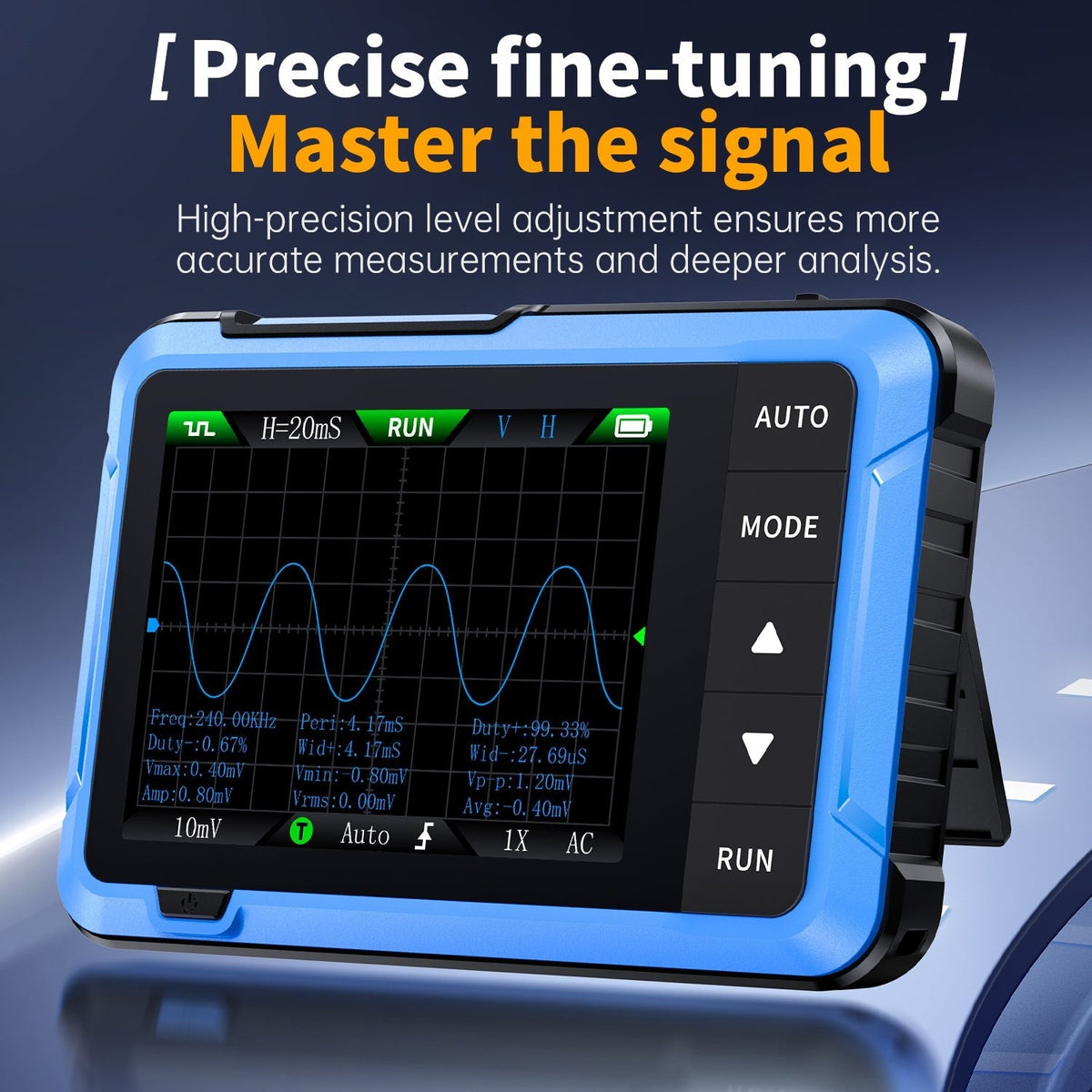

- 🎯 Auto, normal and single trigger with one-click AUTO
- 🛡️ Measures up to ±400V with a 10X probe
- 🔋 1000mAh battery about 4 hours, Type-C charging
Technical Specifications
| Channels | 1 |
|---|---|
| Bandwidth | 10MHz |
| Sampling rate | 48MSa/s |
| Vertical sensitivity | 10mV – 20V/div |
| Time base | 50ns – 20s/div |
| Voltage range | X1: ±40V, X10: ±400V |
| Coupling | AC / DC |
| Signal generator | 0 – 50kHz, 0.1 – 3.0V, 13 waveforms |
| Display | 2.8", 320 × 240 |
| Battery | 1000mAh, 5V 1A charging |
| Size | 99 × 68.3 × 19.5 mm |
| Weight | 104 g |
What's in the Box
- 1 × FNIRSI DSO-510 oscilloscope
- Probe and USB cable as supplied by FNIRSI
