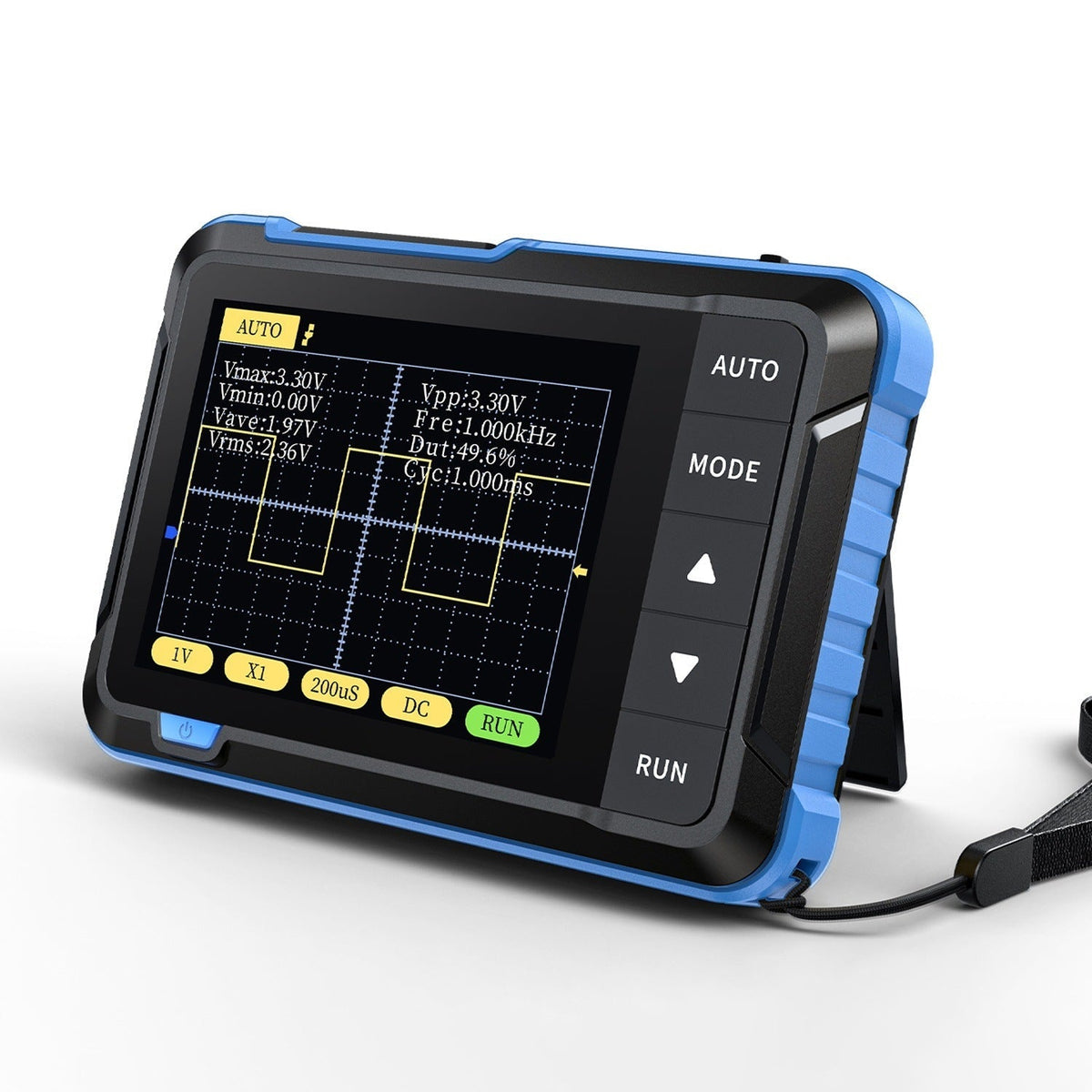

FNIRSI DSO-152 Pocket Oscilloscope – 200kHz, 2.5MSa/s, ±400V
The FNIRSI DSO-152 is an entry-level pocket oscilloscope for learning and basic maintenance. It has 200kHz bandwidth, 2.5MSa/s sampling and complete single, normal and auto triggering.
One-key AUTO puts the waveform on screen without fiddling, and it measures up to ±400V with a 10X probe. The 1000mAh battery gives about 4 hours of use and charges over Type-C.
Key Features

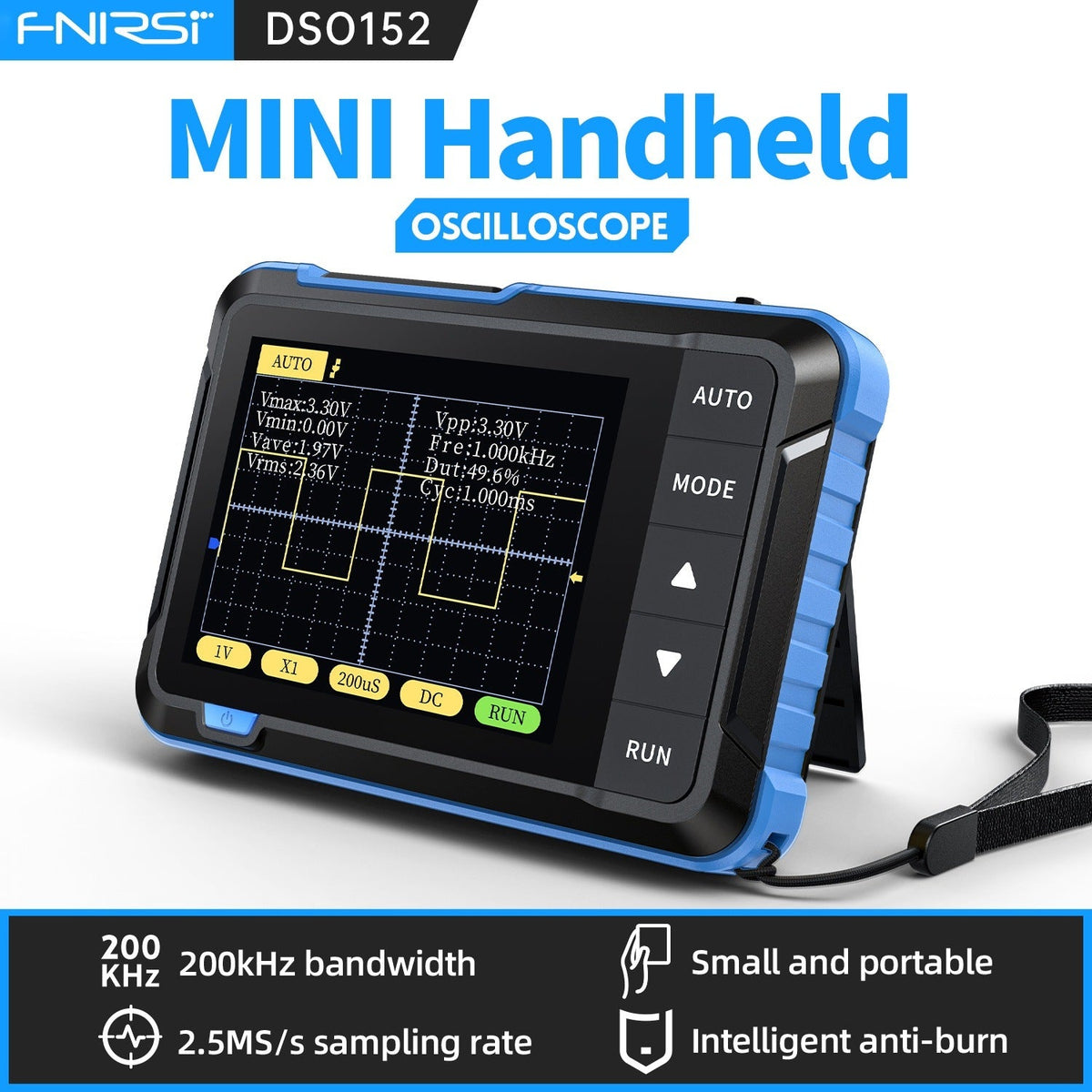

- ⚡ 200kHz bandwidth, 2.5MSa/s single channel

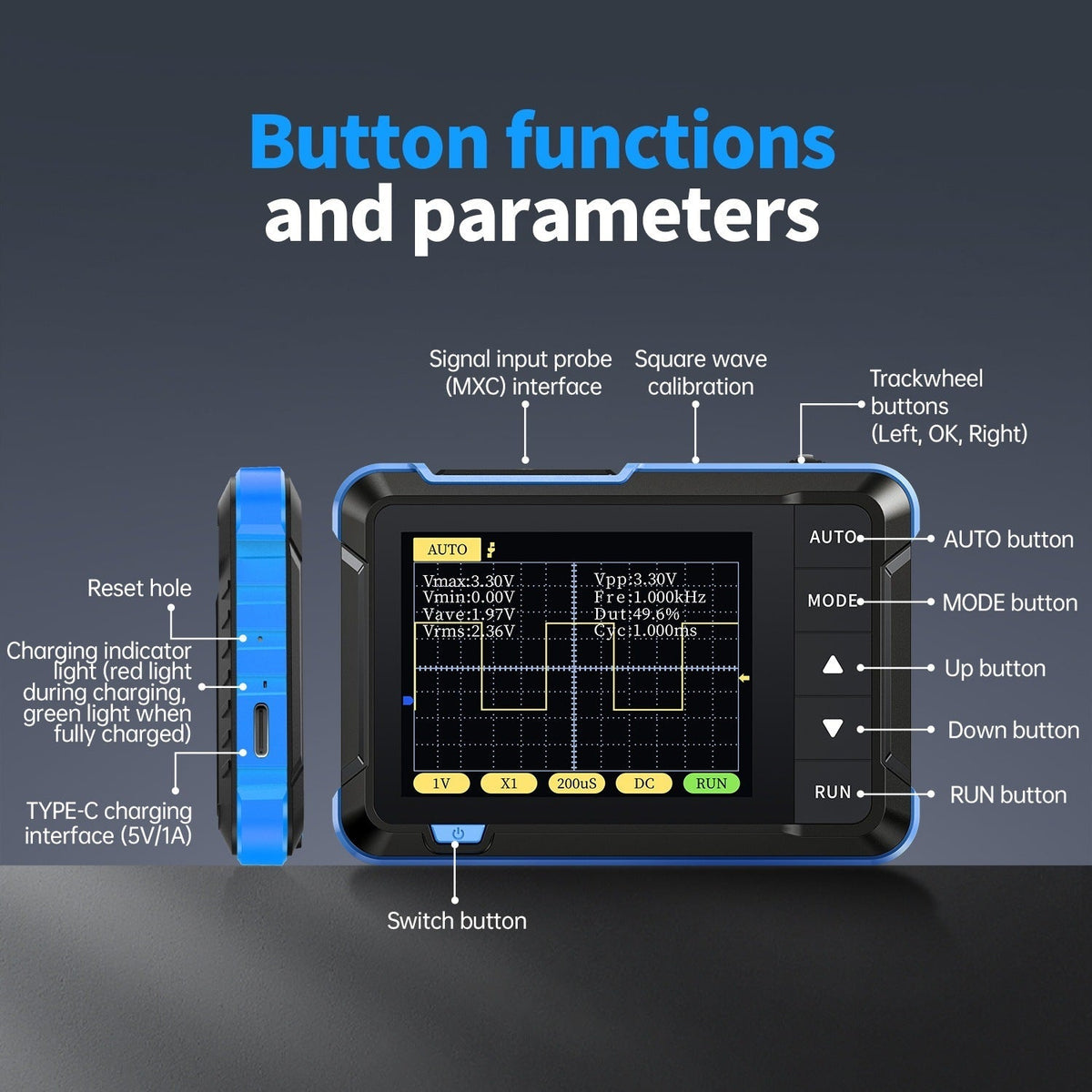

- 🎯 Auto, normal and single trigger with one-key AUTO
- 🛡️ Measures up to ±400V with a 10X probe
- 🖥️ 2.8" 320 × 240 display

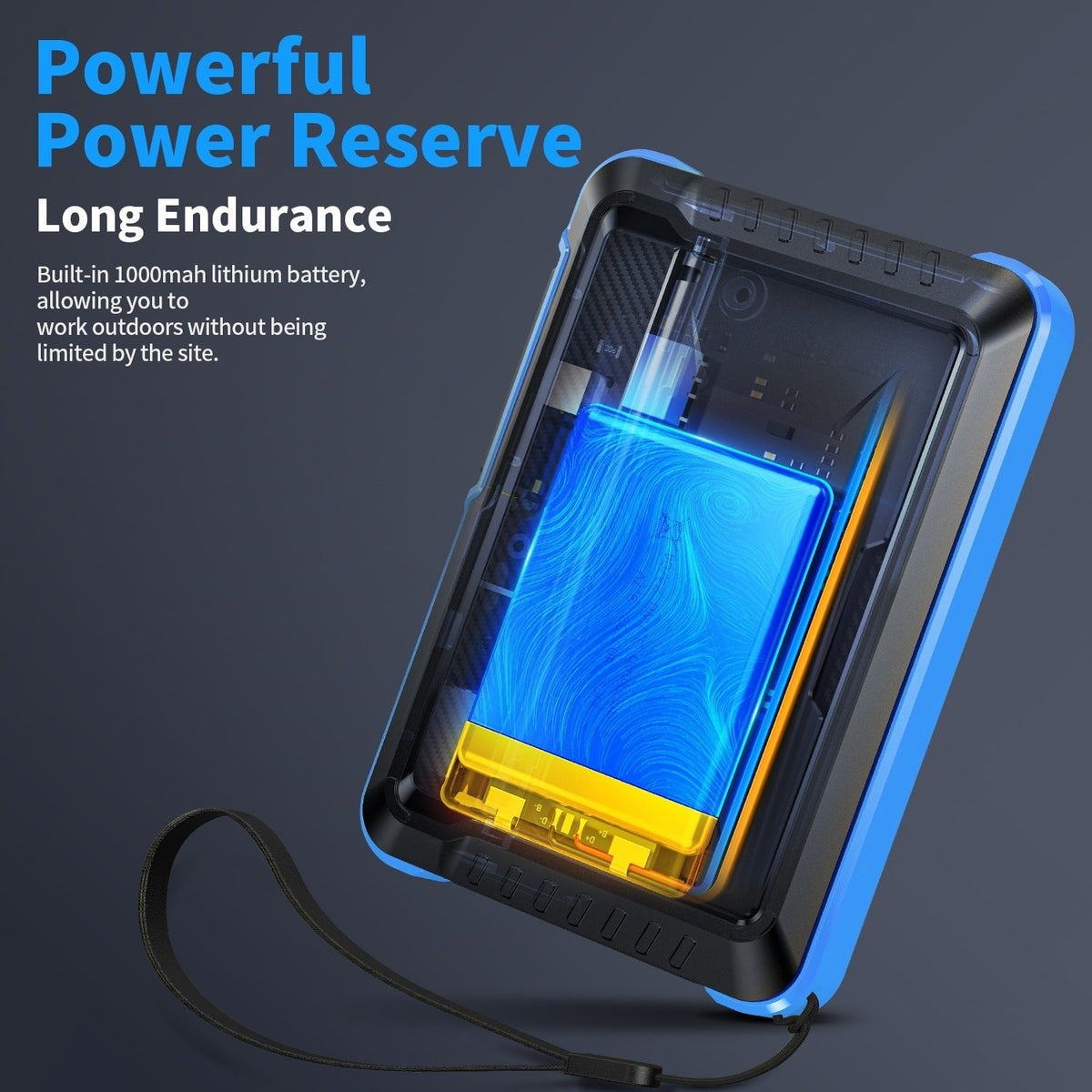

- 🔋 1000mAh battery about 4 hours, Type-C charging
Technical Specifications
| Channels | 1 |
|---|---|
| Bandwidth | 200kHz |
| Sampling rate | 2.5MSa/s |
| Vertical sensitivity | 10mV – 20V/div |
| Time base | 10µs – 50s/div |
| Voltage range | X1: ±40V, X10: ±400V |
| Coupling | AC / DC |
| Calibration signal | 1kHz square, 50% |
| Display | 2.8", 320 × 240 |
| Battery | 1000mAh, 5V 1A charging |
| Size | 99 × 68.3 × 19.5 mm |
| Weight | 100 g |
What's in the Box
- 1 × FNIRSI DSO-152 oscilloscope
- Probe and USB cable as supplied by FNIRSI
