FNIRSI DPOS350P 4-in-1 350MHz Tablet Oscilloscope, Signal Generator and Spectrum Analyzer

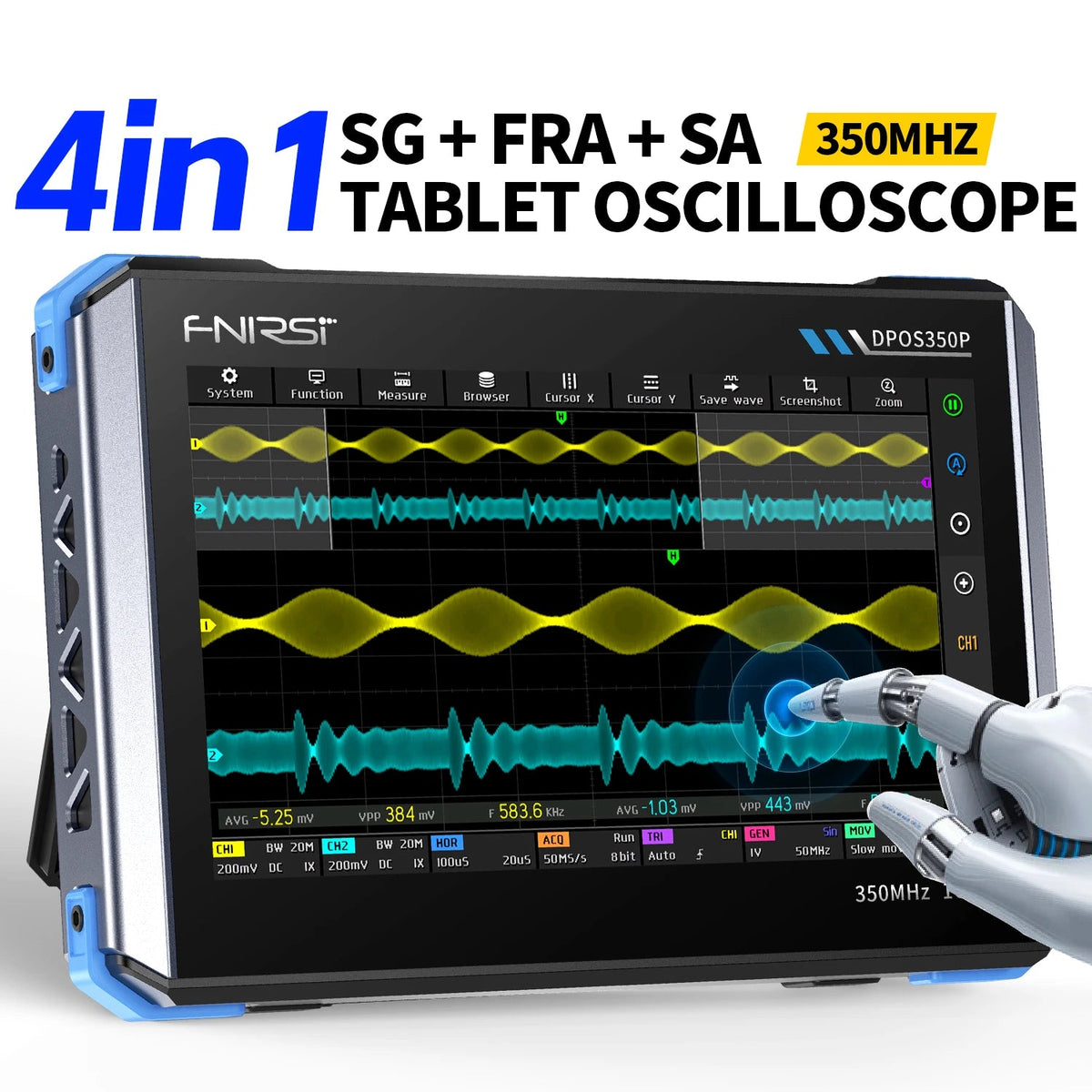

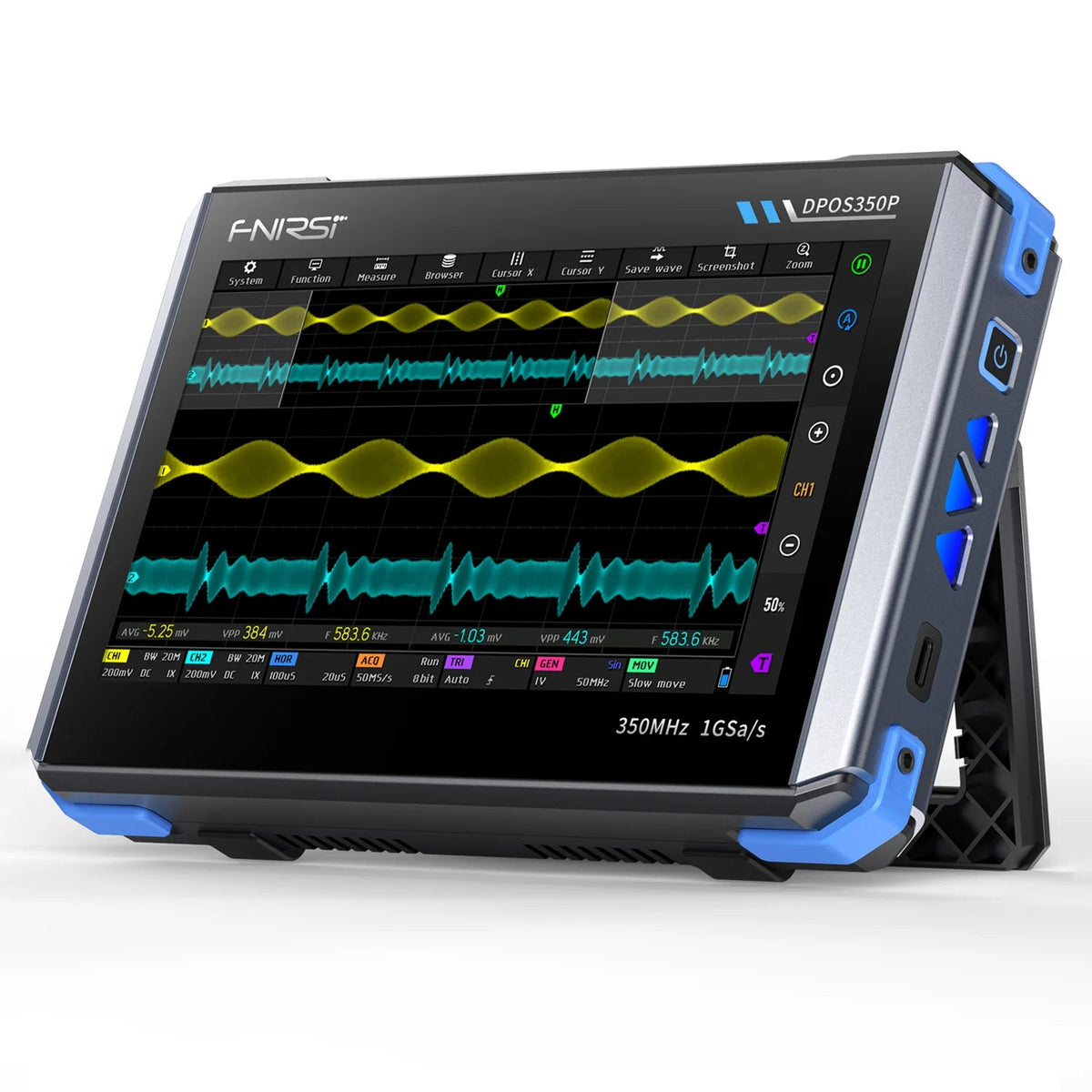

The FNIRSI DPOS350P puts four instruments in one 7-inch touchscreen tablet: a 350MHz, 1GSa/s two-channel oscilloscope, a 50MHz signal generator, a 200kHz–350MHz FFT spectrum analyzer and a 50MHz frequency response (Bode) analyzer.
It suits circuit debugging, EMI checks and filter tuning on the bench or in the field. The 8000mAh battery gives about 3 hours of use, charges over USB-C at 18W, and the inputs are protected to 400V.
Key Features

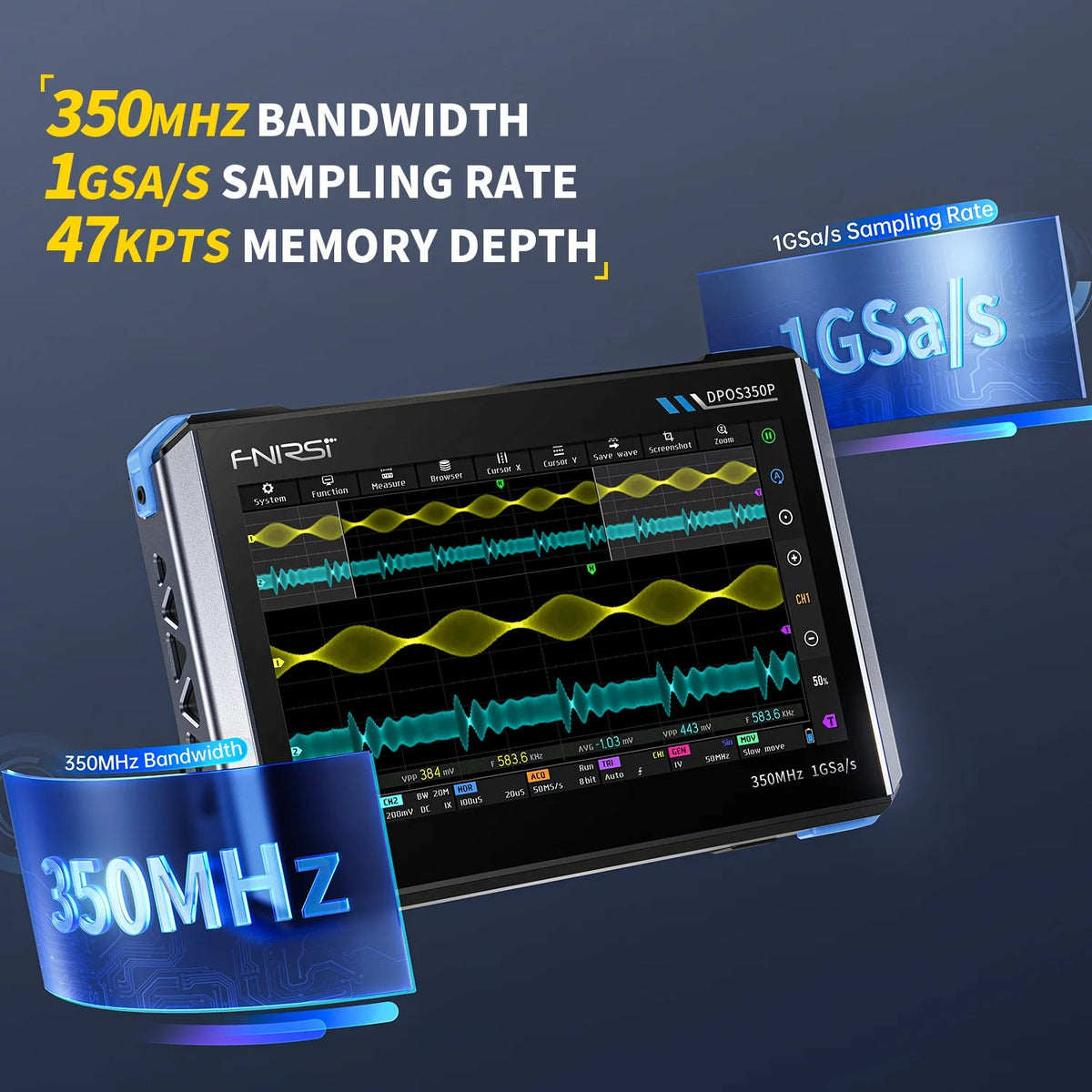

- ⚡ 350MHz, 1GSa/s oscilloscope with 50,000 wfm/s refresh and 1ns rise time
- 🎛️ 50MHz signal generator with 14 standard waveforms plus captured waveform output

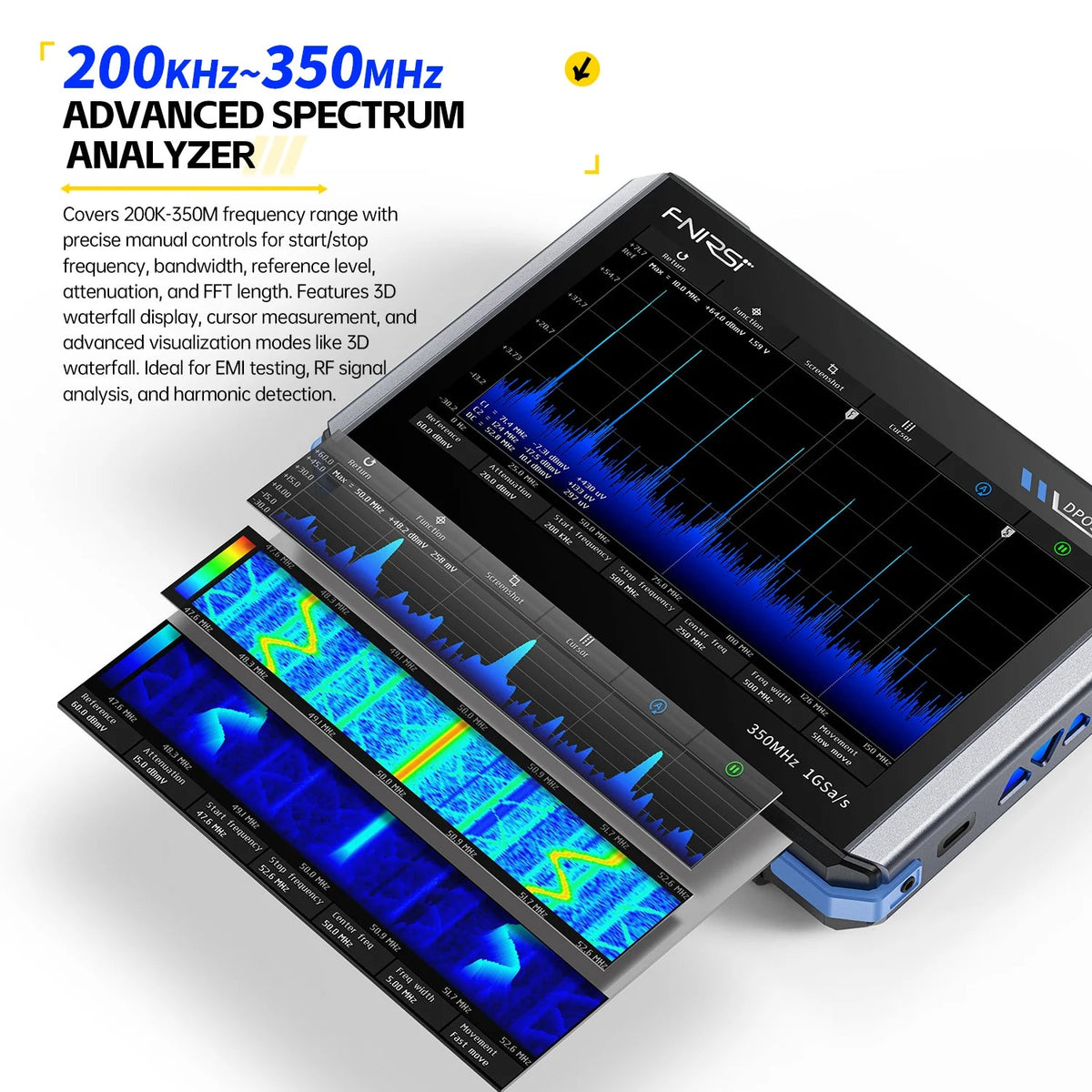

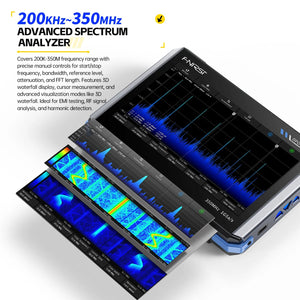

- 📊 Spectrum analyzer 200kHz – 350MHz with waterfall and 3D waterfall views
- 📉 Frequency response analyzer 10Hz – 50MHz with gain and phase cursors

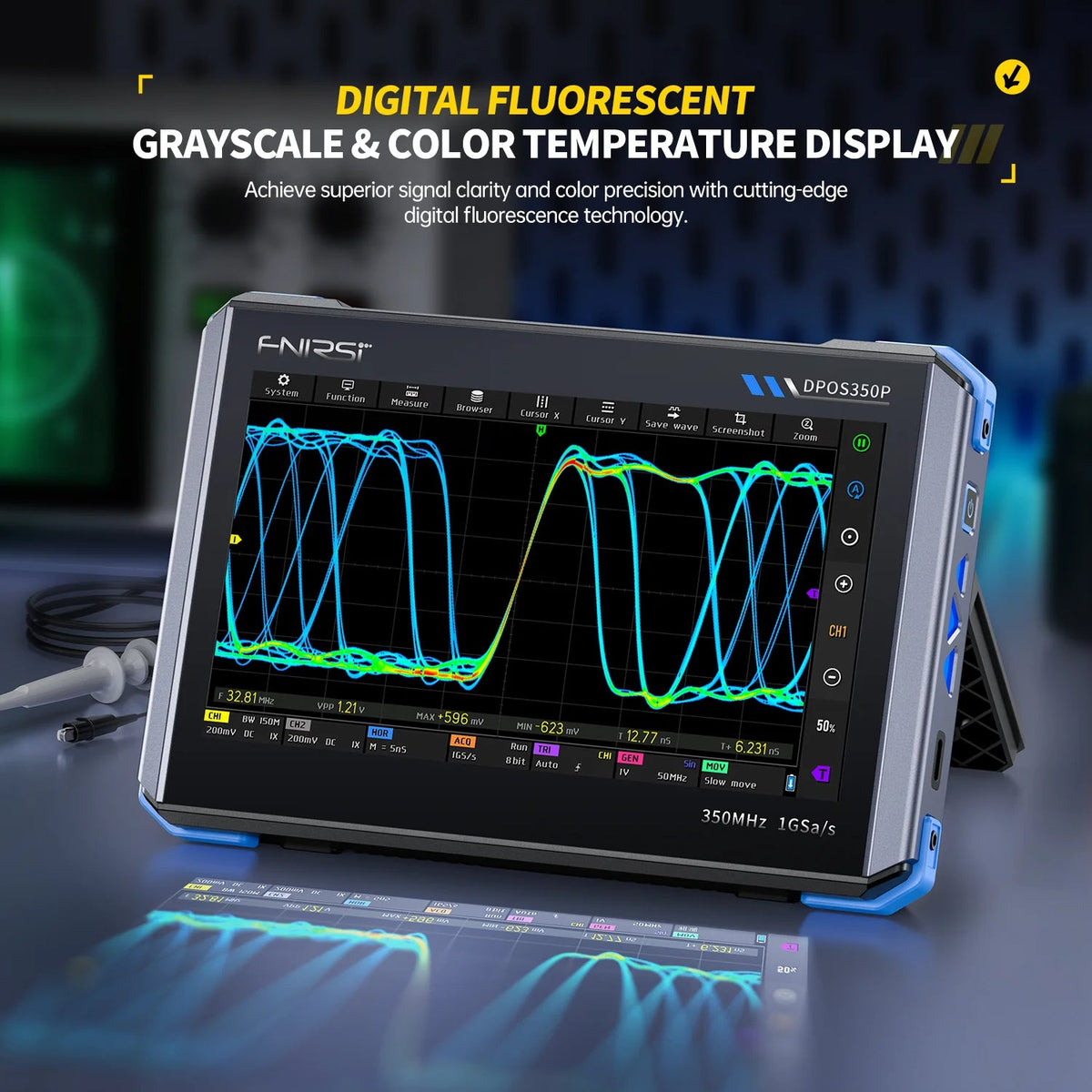

- 🖐️ 7" 1024 × 600 IPS touchscreen with grayscale and colour-temperature modes
- 💾 500 waveform files and 90 screenshots with USB export
Technical Specifications
| Channels | 2 |
|---|---|
| Bandwidth | 350MHz (single channel) |
| Sampling rate | 1GSa/s |
| Memory depth | 47Kpts |
| Rise time | 1ns |
| Vertical sensitivity | 2mV – 20V/div (1X) |
| Time base | 5ns – 50s |
| Input impedance | 1MΩ, 14pF |
| Bandwidth limit | 150MHz / 20MHz |
| Max input | 400V (1X probe) |
| Signal generator | 0 – 50MHz sine; 0 – 5Vpp; 14 waveforms |
| Spectrum analyzer | 200kHz – 350MHz, FFT 4K – 32K |
| Frequency response analyzer | 10Hz – 50MHz |
| Display | 7" IPS capacitive touch, 1024 × 600 |
| Battery | 3.7V 8000mAh, ~3 h |
| Charging | QC 18W, 12V 1.5A, USB-C |
| Dimensions | 190 × 128 × 37 mm |
What's in the Box
- 1 × FNIRSI DPOS350P tablet oscilloscope (EU plug charger)
- Probes and accessories as supplied by FNIRSI
