FNIRSI C1 Type-C USB Tester with Bluetooth – PD Trigger, 24V 6.5A
Pickup available at Digilog Electronics
Usually ready in 2 hours
FNIRSI C1 Type-C USB Tester with Bluetooth – PD Trigger, 24V 6.5A

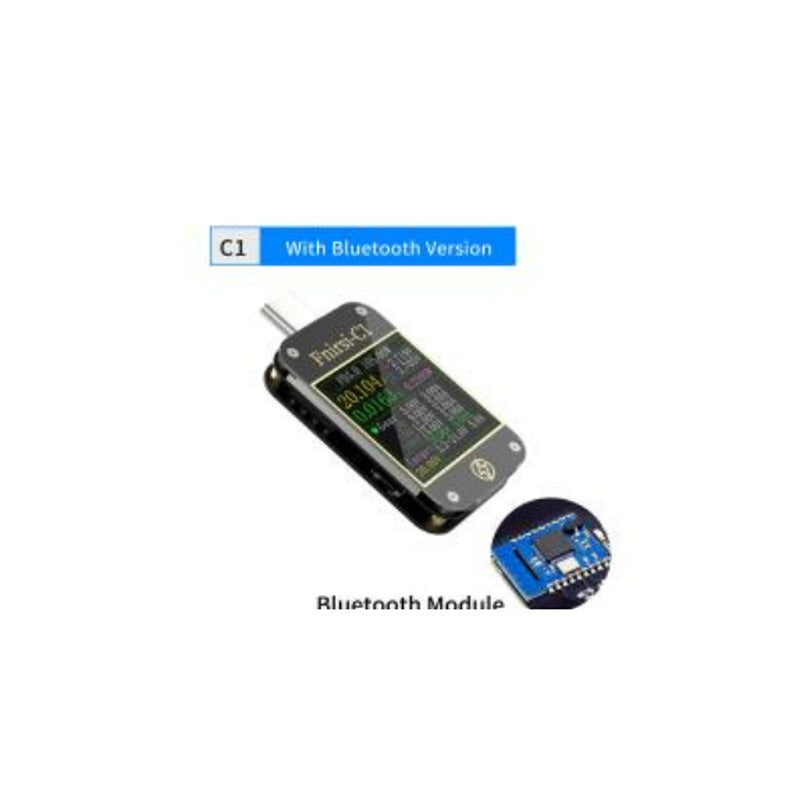

The FNIRSI C1 is a compact Type-C power meter and fast-charge trigger. It reads voltage, current and power up to 24V, 6.5A and 130W, and logs capacity, energy and cable resistance.
It detects and triggers QC2.0/QC3.0, Huawei FCP/SCP, Samsung AFC and USB PD, and reads cable E-marker data. This is the Bluetooth version, so you can monitor readings away from the device.
Key Features
- ⚡ 4 – 24V, 0 – 6.5A, 130W
- 📲 PD, QC, FCP, SCP and AFC detection and triggering
- 🏷️ E-marker reading for Type-C cables
- 📶 Bluetooth version for remote monitoring
- 🖥️ 1.3" 240 × 240 colour TFT 16-bit external ADC
Technical Specifications
| Voltage | 4 – 24V |
|---|---|
| Current | 0 – 6.5A |
| Power | 0 – 130W |
| D+/D- voltage | 0 – 3.3V |
| Capacity / energy | 0 – 9999.99Ah / Wh |
| Accuracy | V ±(0.2‰ + 2), A ±(0.5‰ + 2) |
| Protocols | QC2.0/3.0, Huawei FCP/SCP, Samsung AFC, USB PD |
| Display | 1.3" TFT, 240 × 240 |
| Version | With Bluetooth |
| Size | 50 × 25 × 8 mm |
| Weight | 47 g |
What's in the Box
- 1 × FNIRSI C1 USB tester (Bluetooth version)
