FNIRSI 1C15 110MHz Handheld Digital Oscilloscope – 500MSa/s, Single Channel

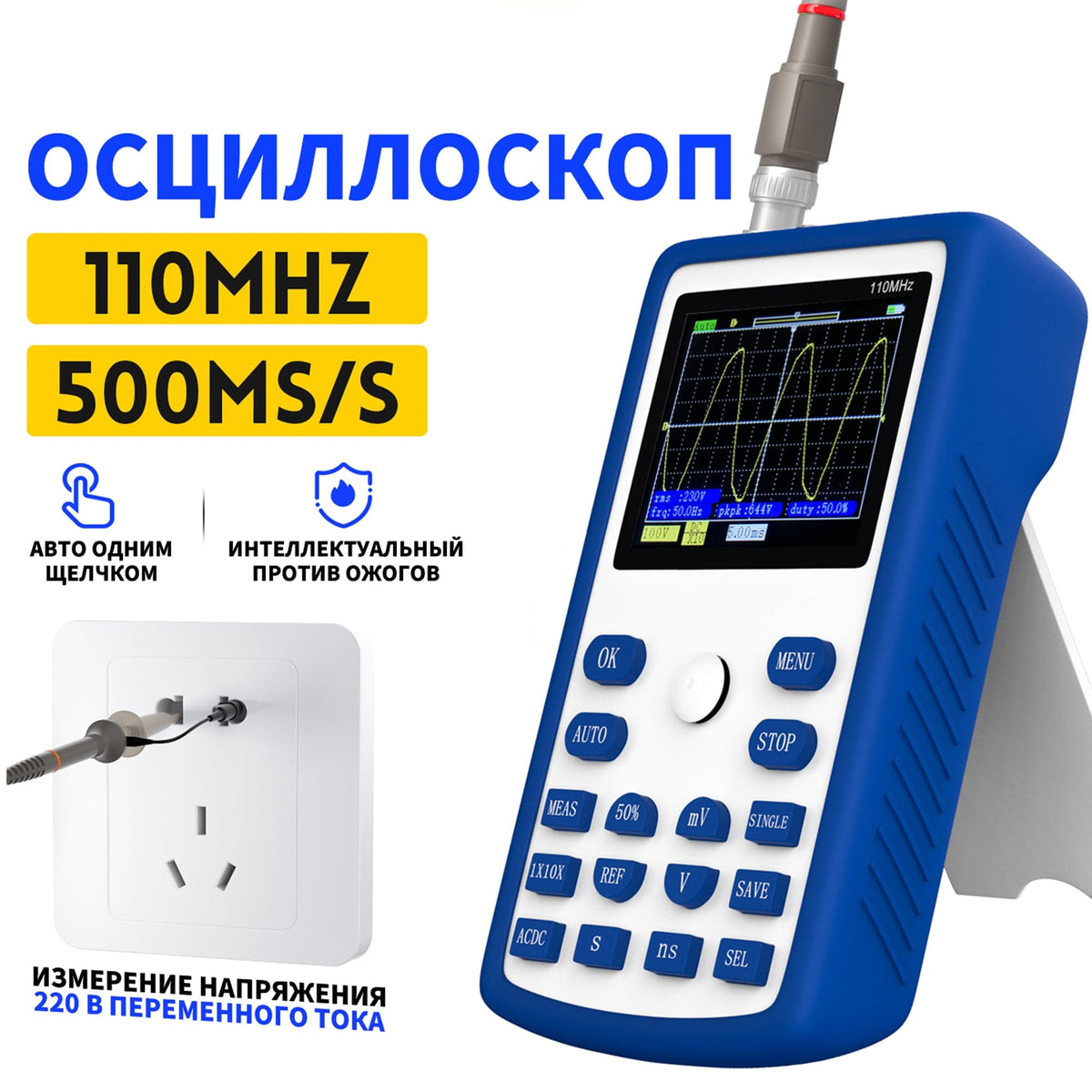

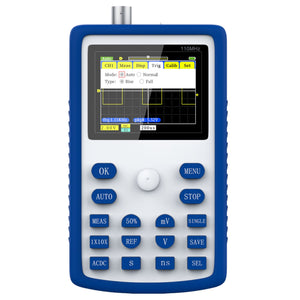

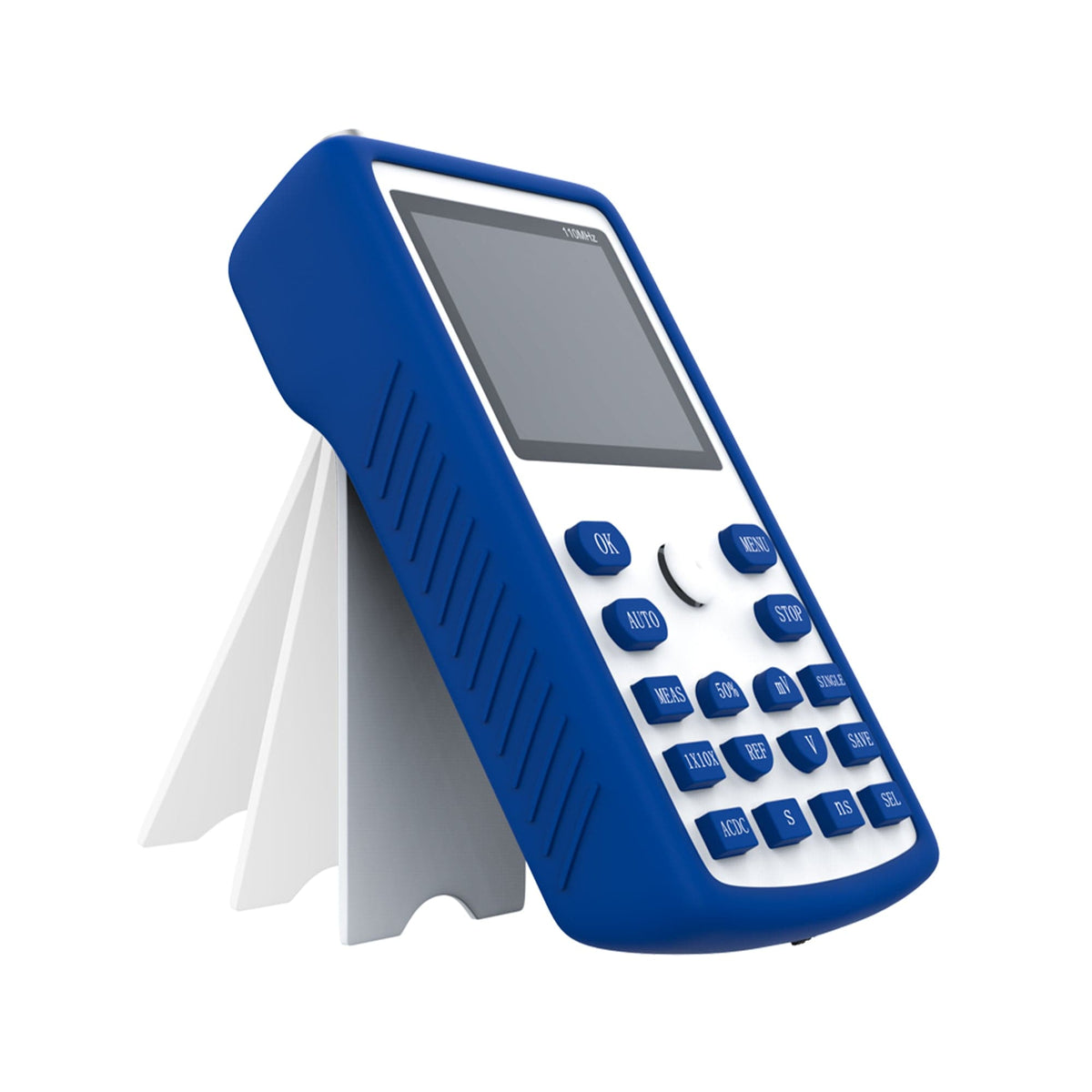

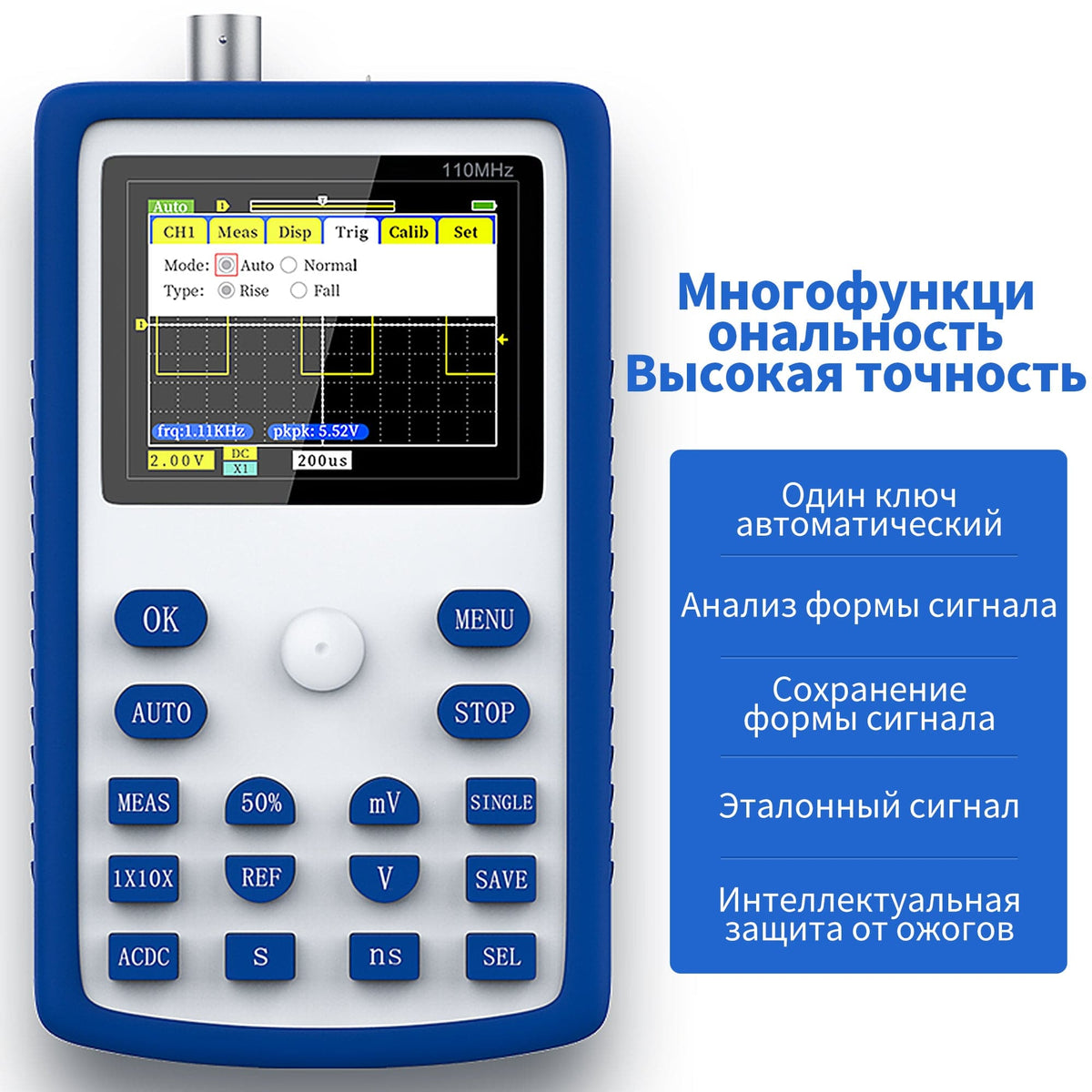

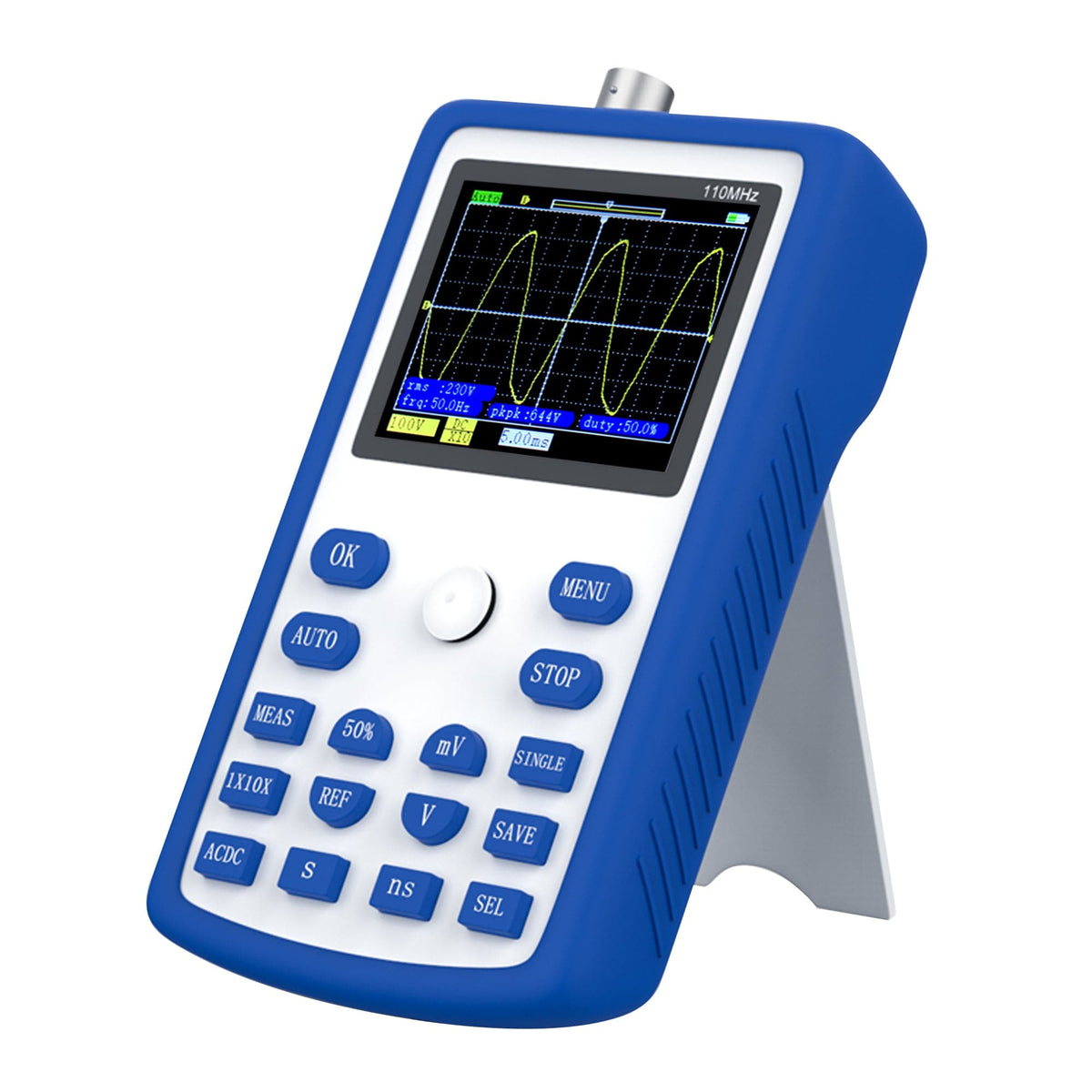

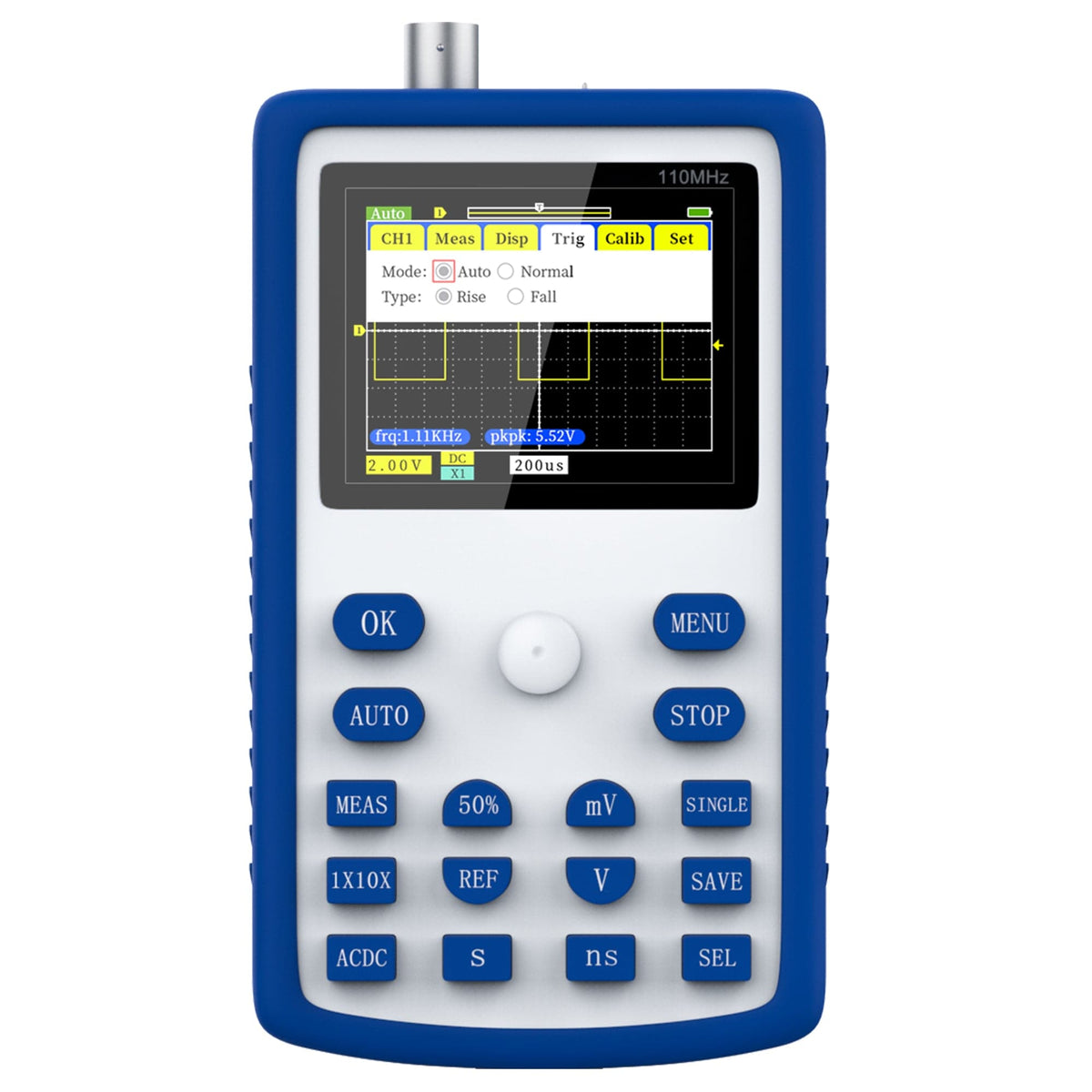

The FNIRSI 1C15 is a palm-sized single-channel oscilloscope with 110MHz bandwidth and 500MSa/s sampling, a lot of speed for a meter-sized tool. A joystick and one-key AUTO make it quick to get a stable waveform on screen.
A silicone sleeve protects it from drops, and the 3000mAh battery runs for more than 10 hours. Persistence and roll modes help when you are hunting intermittent faults during maintenance or repair.
Key Features
- ⚡ 110MHz bandwidth, 500MSa/s single channel
- 🕹️ Joystick control plus one-key AUTO set-up
- 🔁 Persistence and roll modes for catching intermittent faults
- 💾 Stores 81 waveform pictures
- 🔋 3000mAh battery for more than 10 hours of use

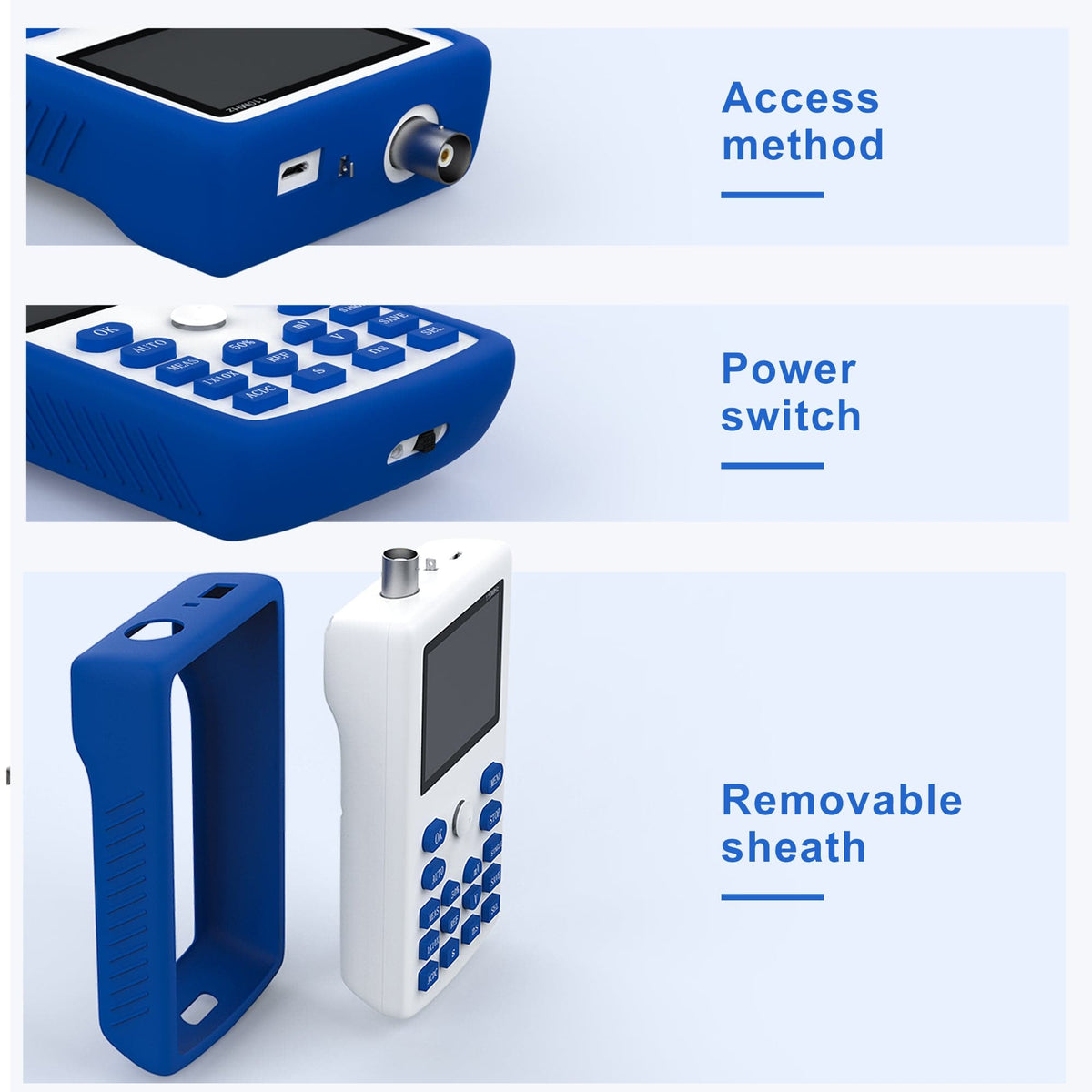

- 🛡️ Silicone anti-drop sleeve with non-slip grip
Technical Specifications
| Channels | 1 |
|---|---|
| Bandwidth | 110MHz |
| Sampling rate | 500MSa/s |
| Modes | Auto, persistence, roll |
| Storage | 81 waveform pictures |
| Battery | 3000mAh, over 10 hours |
What's in the Box
- 1 × FNIRSI 1C15 oscilloscope
- Probe and accessories as supplied by FNIRSI
