FNIRSI 1014D 100MHz 2-Channel Bench Oscilloscope with Signal Generator – 1GSa/s

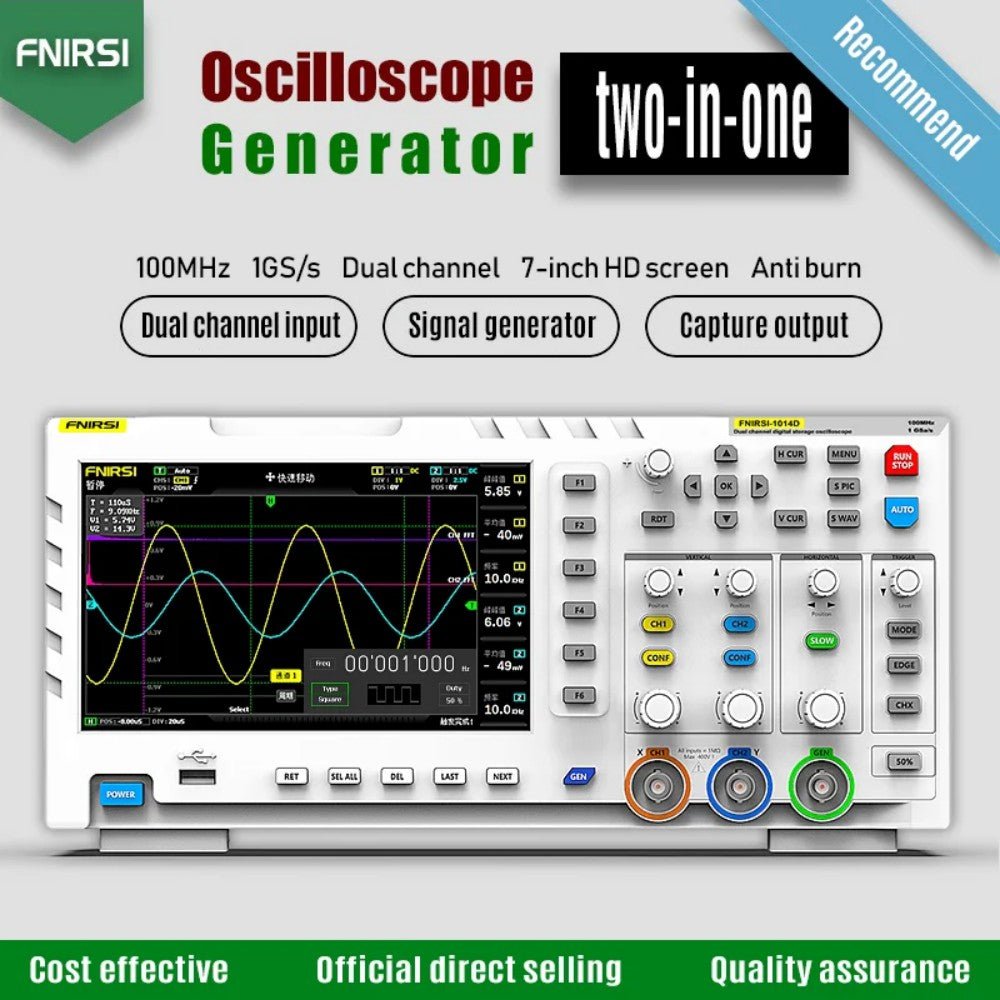

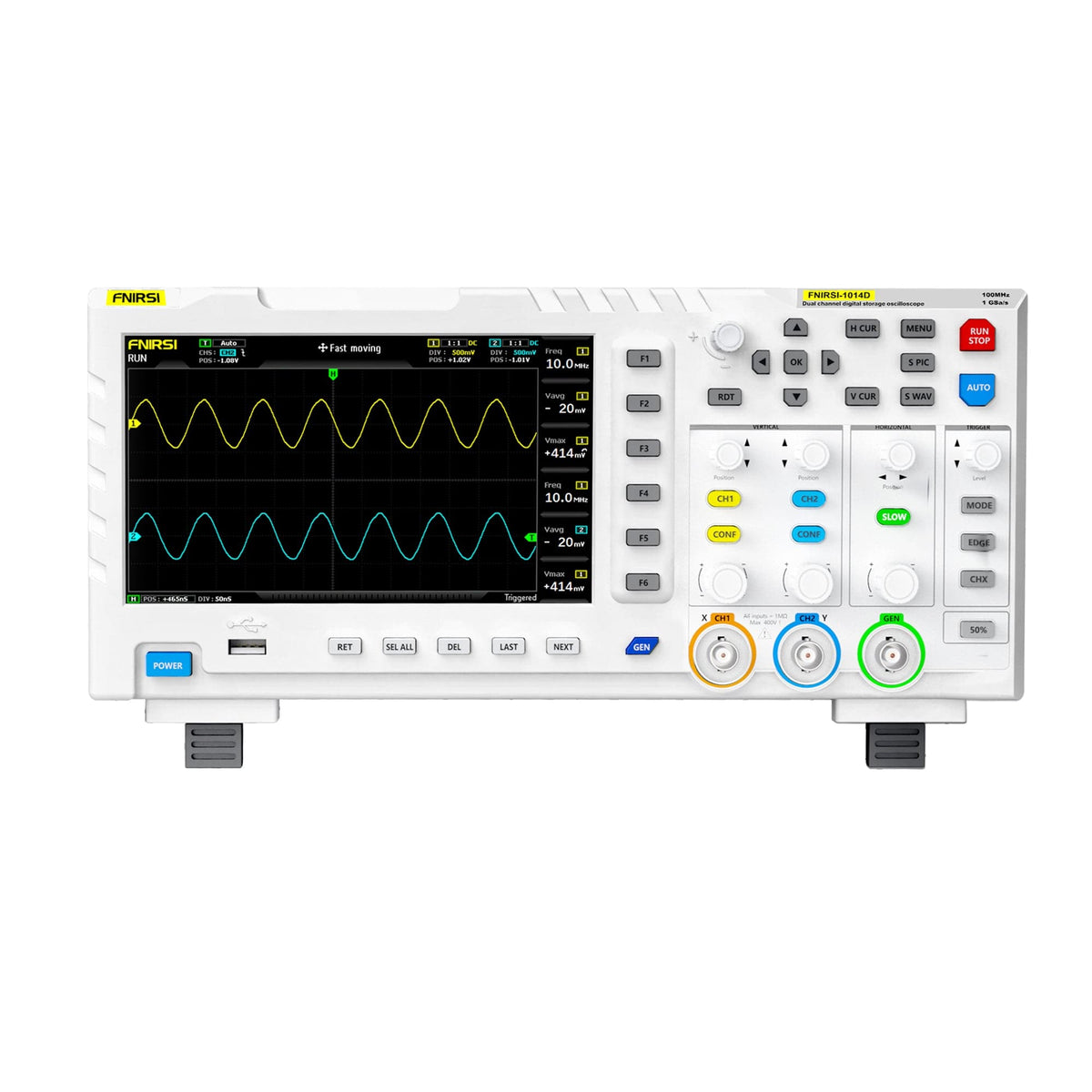

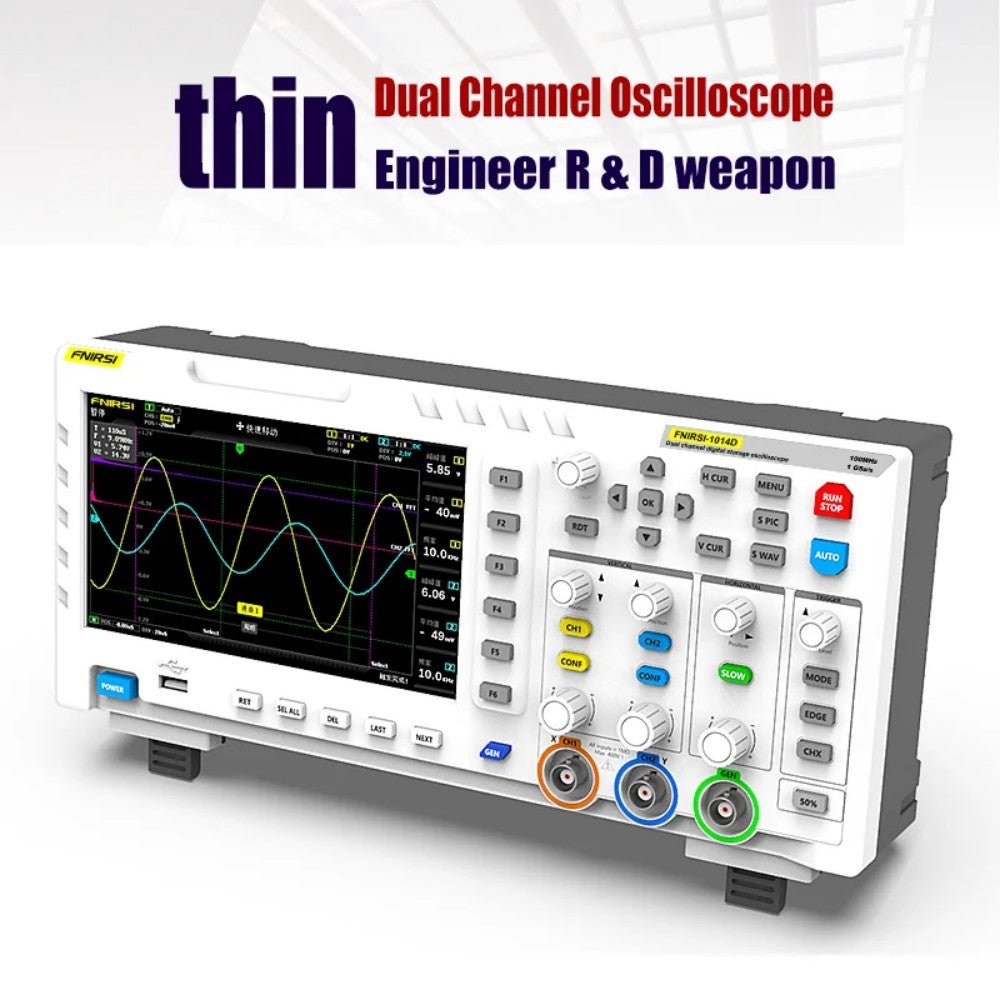

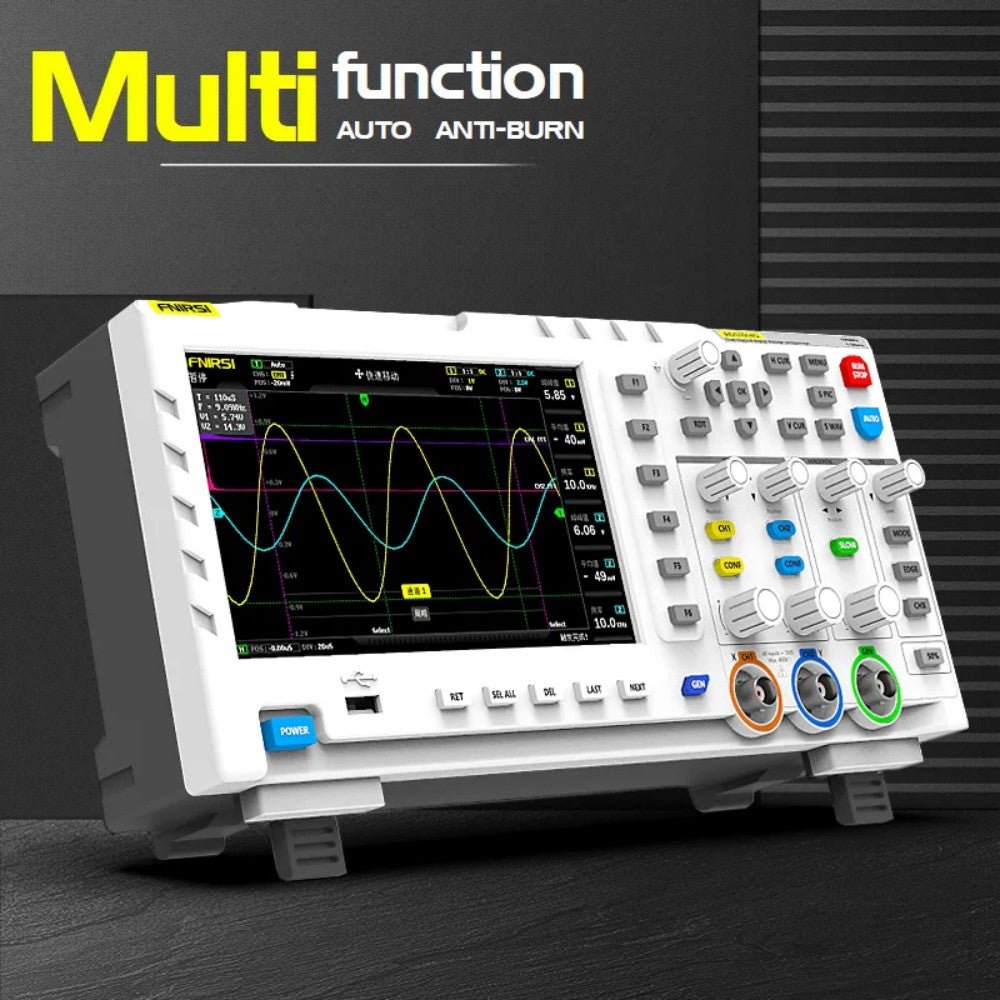

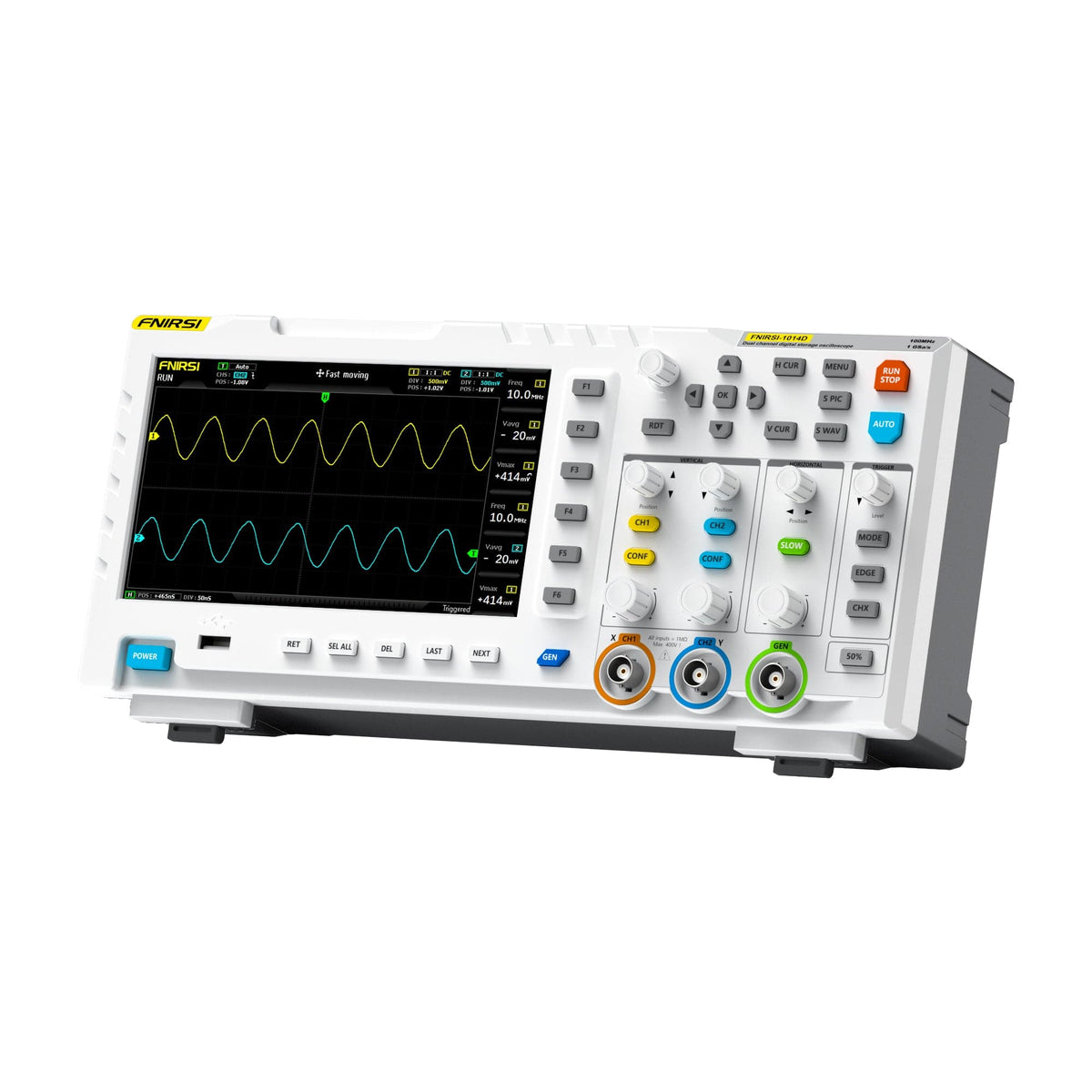

The FNIRSI 1014D is a compact benchtop oscilloscope with two 100MHz channels, 1GSa/s sampling and a 7-inch 800 × 480 colour display. Physical knobs and buttons make it feel like a full-size scope at a much lower price.
A built-in DDS generator outputs 14 standard waveforms (sine up to 10MHz) plus a captured custom waveform, so you can drive and measure a circuit with one instrument. It stores up to 1000 screenshots and 1000 waveforms.
Key Features
- ⚡ 2 × 100MHz, 1GSa/s 8-bit ADC, <3ns rise time
- 🎛️ DDS signal generator 14 waveforms, sine to 10MHz, others to 2MHz
- 🖥️ 7" 800 × 480 colour display with physical controls
- 🎯 Auto, normal and single trigger plus external trigger input 0 – 40V
- 📐 Cursors, FFT and Lissajous and 12 automatic measurements
- 💾 1000 pictures + 1000 waveforms with USB export
Technical Specifications
| Channels | 2 |
|---|---|
| Bandwidth | 100MHz × 2 |
| Sampling rate | 1GSa/s |
| ADC | 8-bit |
| Rise time | <3ns |
| Memory depth | 240Kbit |
| Vertical sensitivity | 50mV – 500V/div |
| Time base | 10ns – 50s/div |
| Input impedance | 1MΩ |
| Max test voltage | 40V (1X), 400V (10X) |
| Signal generator | 1 channel, 14 waveforms + 1 custom, 2.5Vpp |
| Sine max frequency | 10MHz |
| Display | 7" TFT, 800 × 480 |
| Power | 5V 2A/3A/4A |
| Dimensions | 310 × 145 × 70 mm |
What's in the Box
- 1 × FNIRSI 1014D oscilloscope
- Probes, power adapter and cables as supplied by FNIRSI
