FNIRSI 1013D 100MHz 2-Channel Tablet Oscilloscope – 1GSa/s, 7" Touchscreen

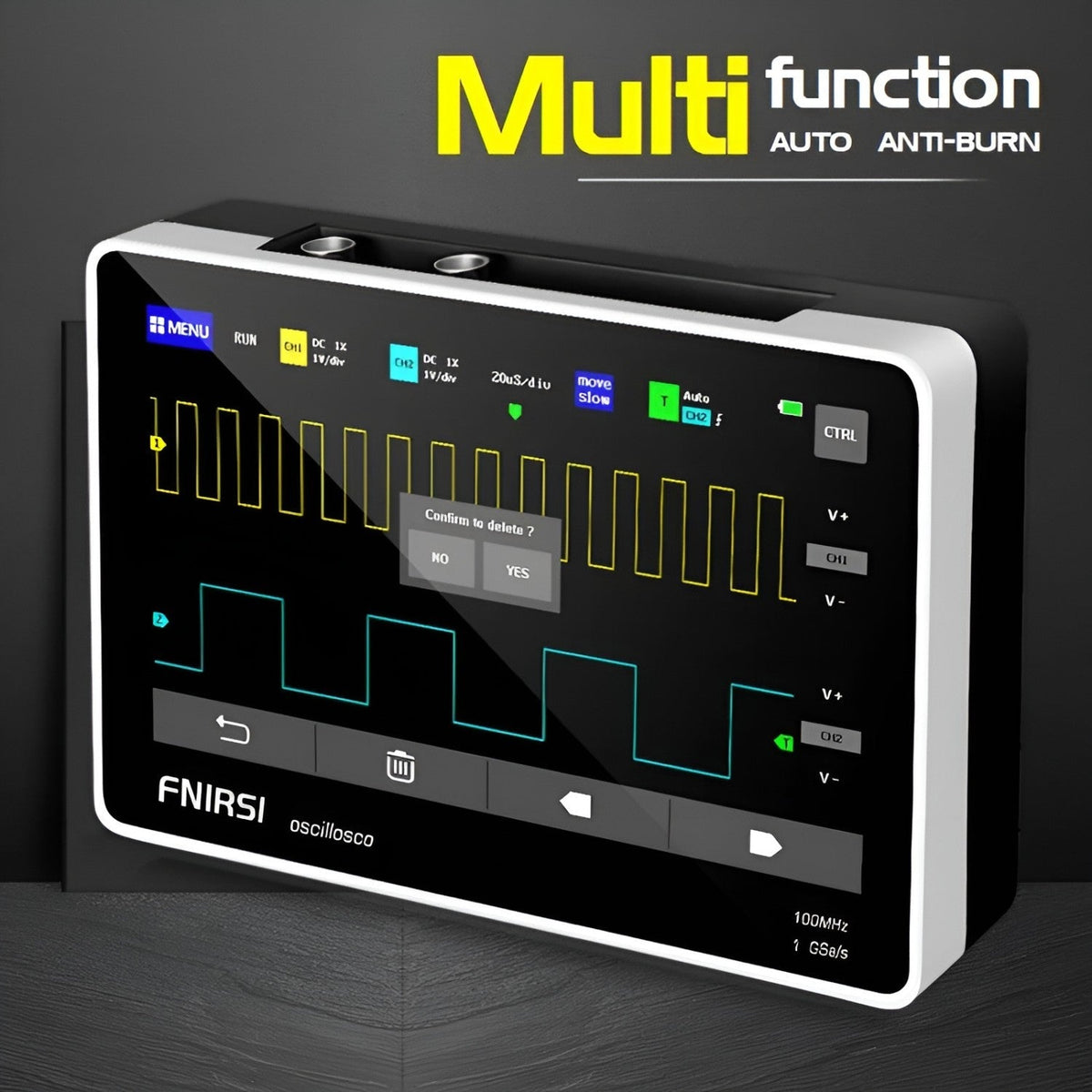

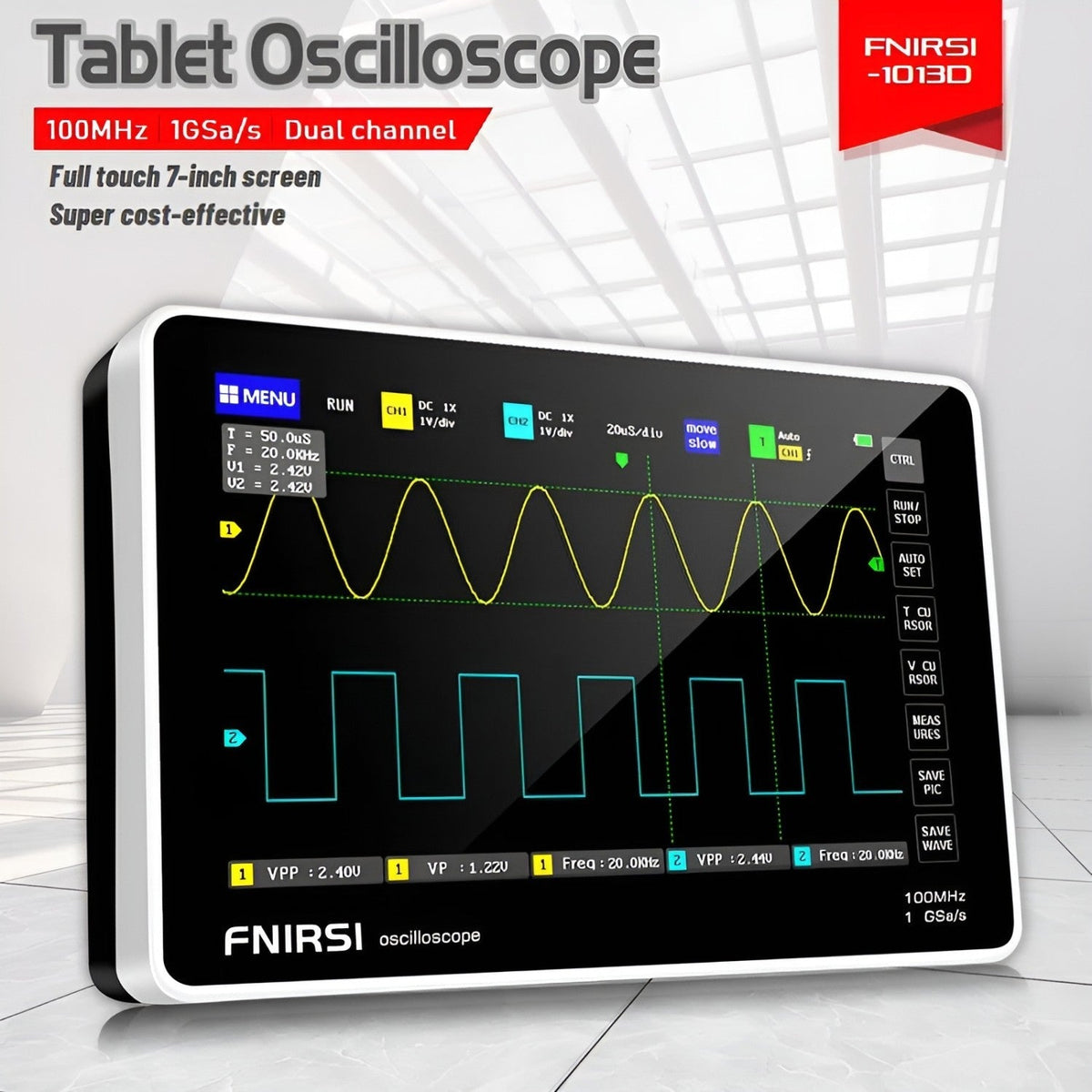

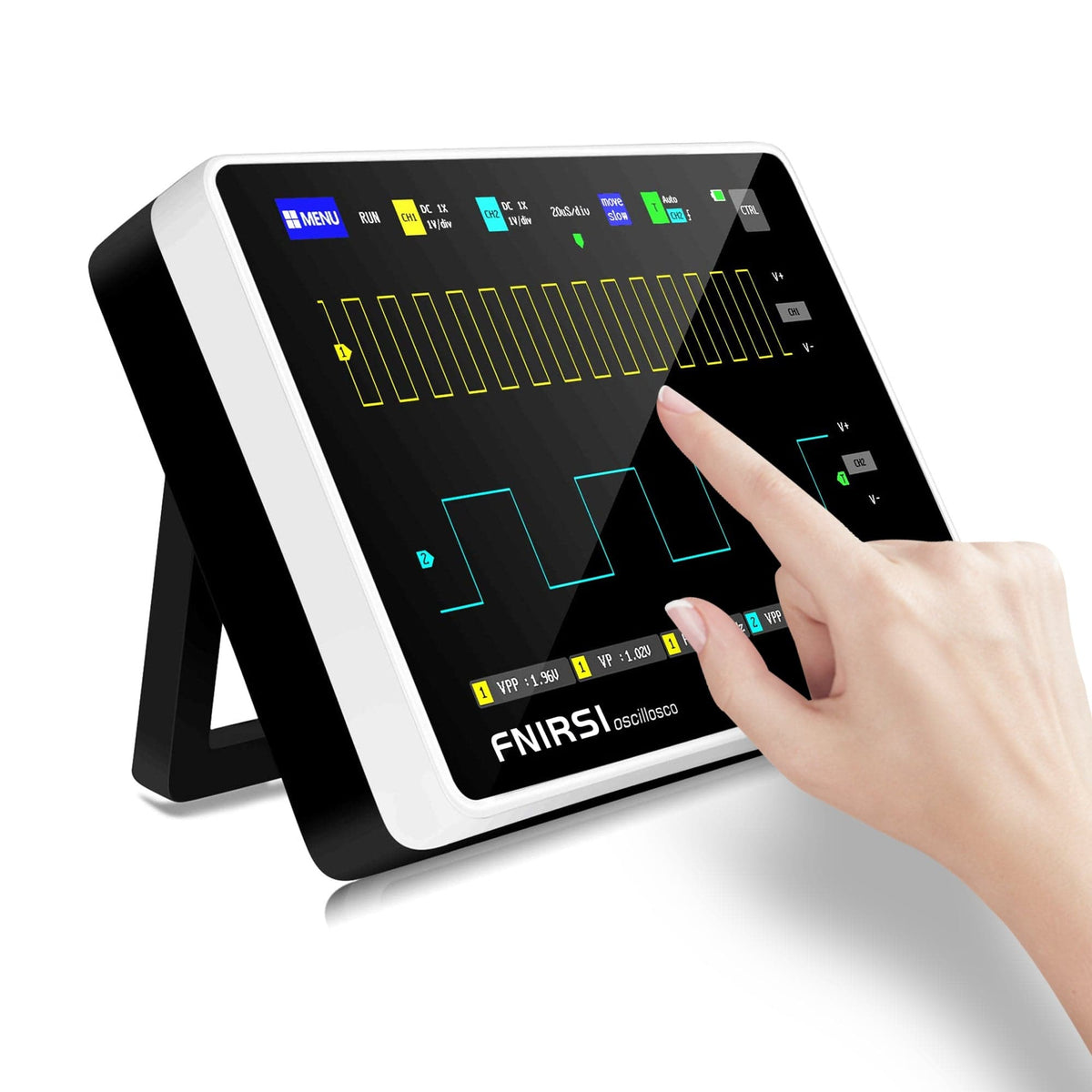

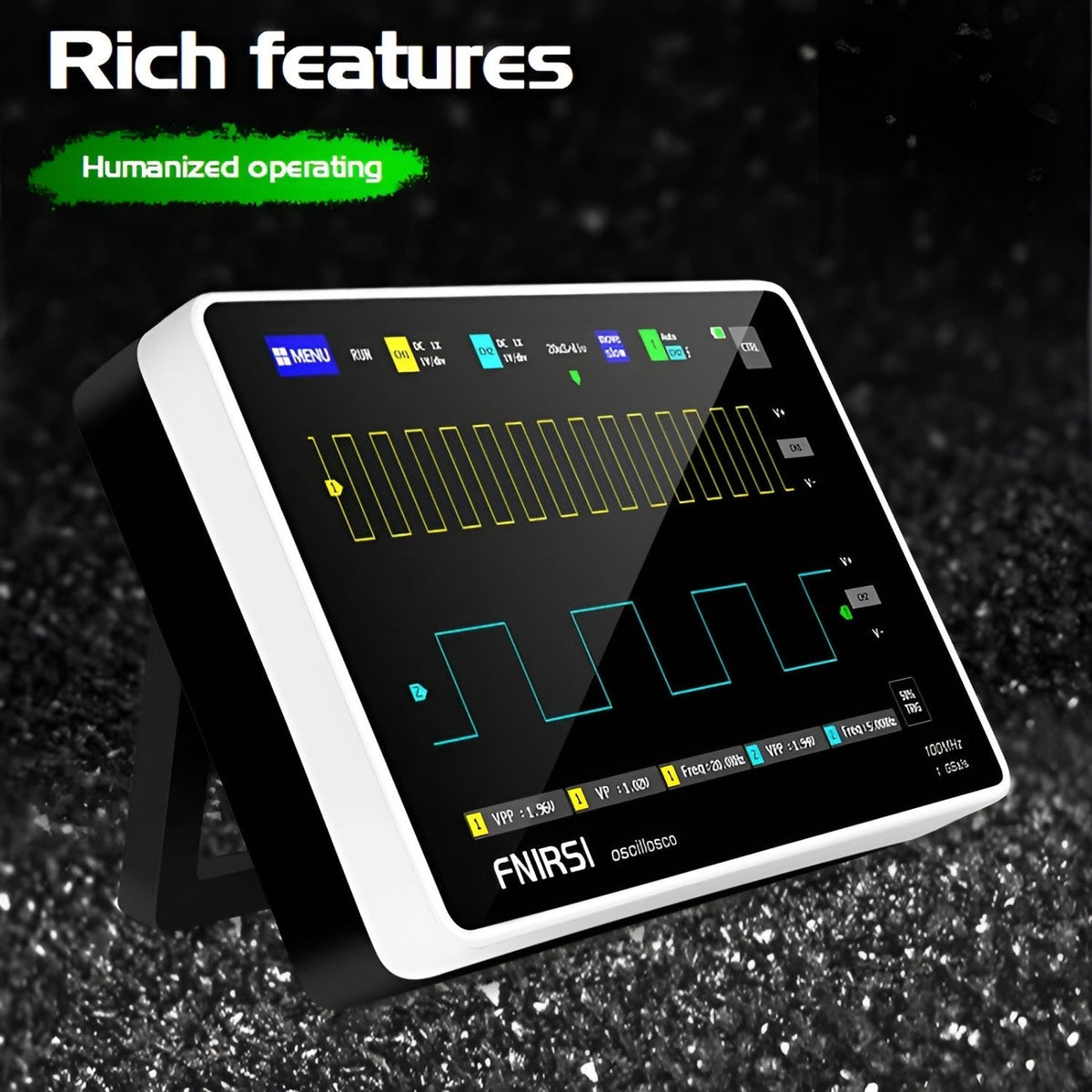

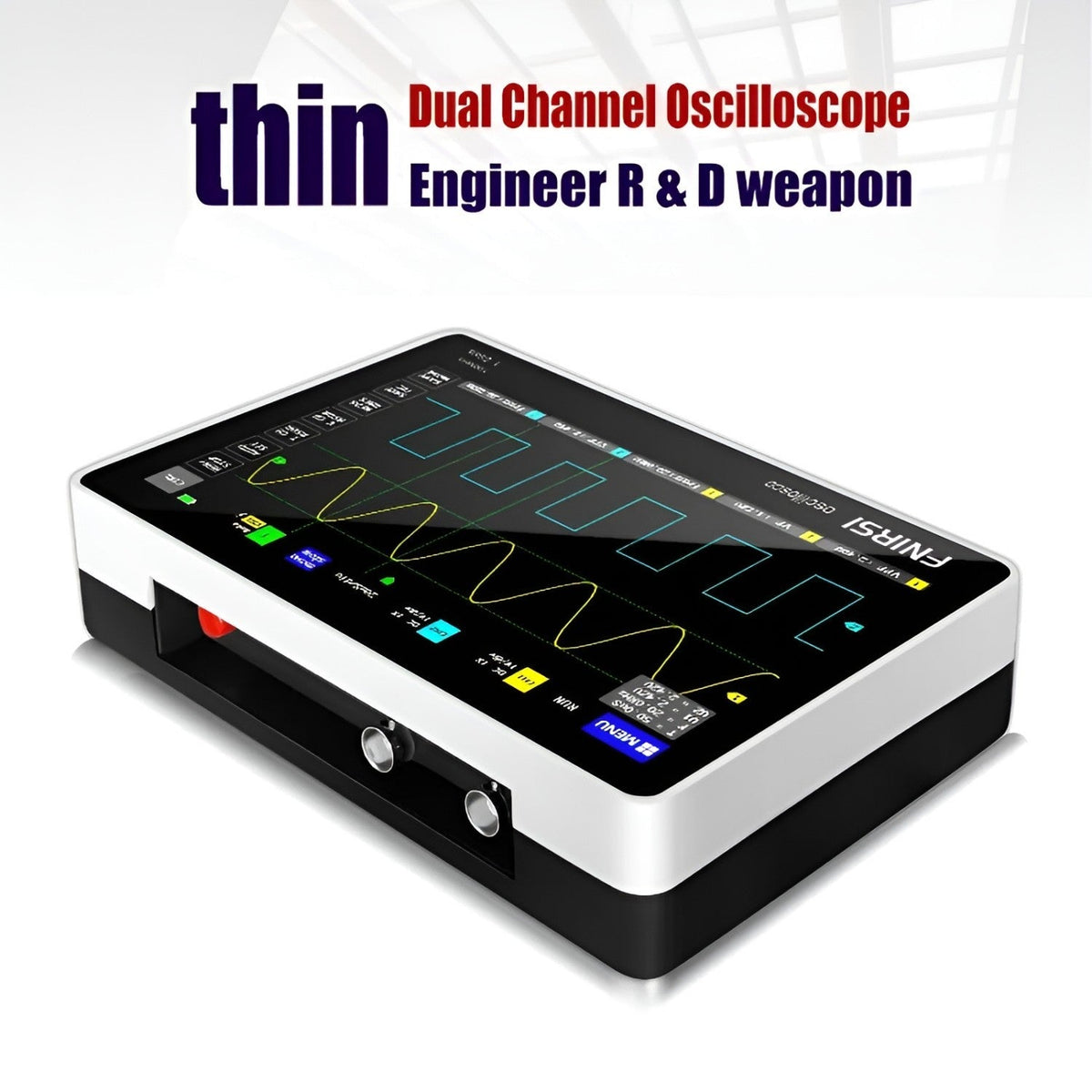

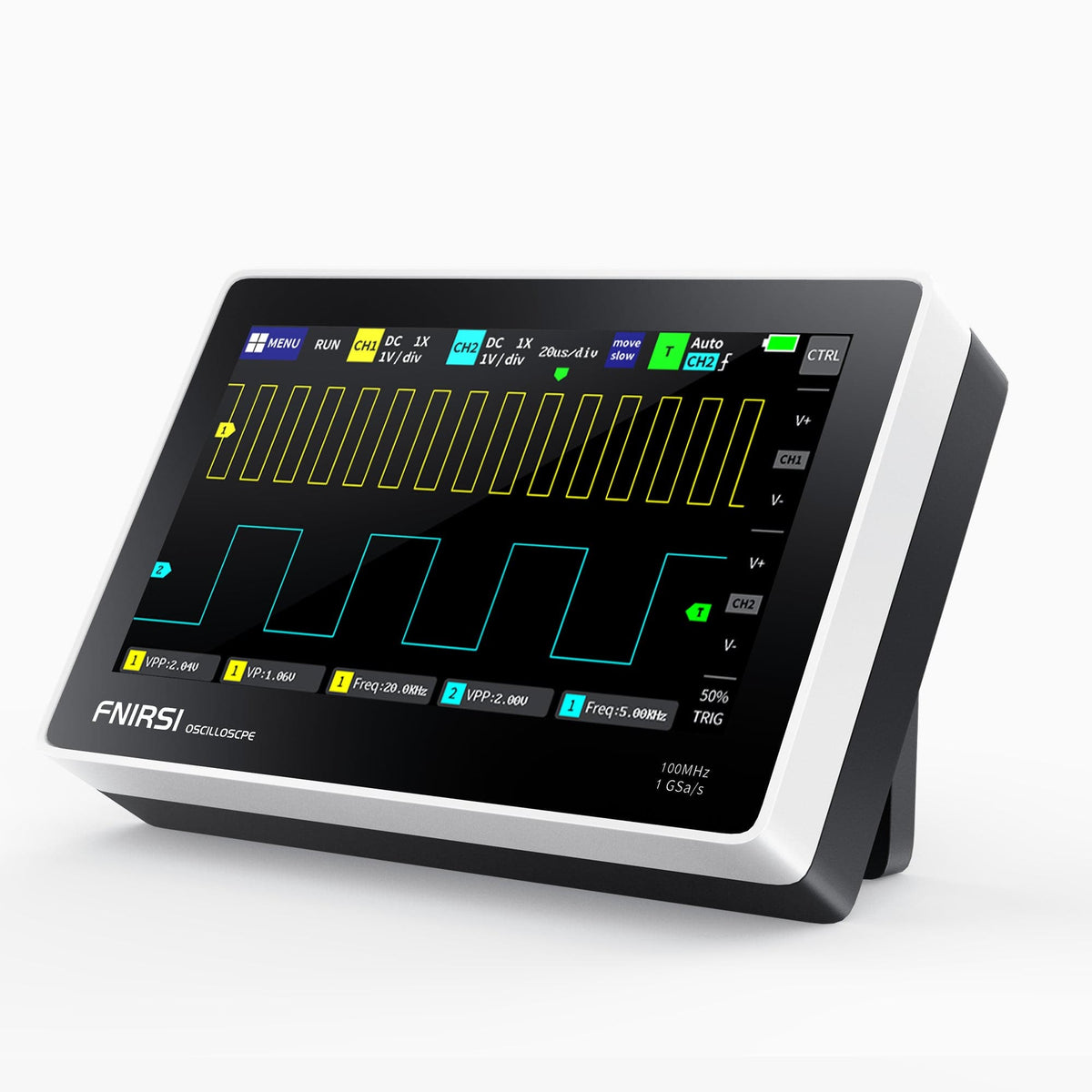

The FNIRSI 1013D is a two-channel tablet oscilloscope with 100MHz bandwidth per channel and a 1GSa/s real-time sampling rate, driven from a 7-inch 800 × 480 touchscreen. One-key AUTO and adaptive triggering bring up a usable waveform in seconds.
Its 1GB storage holds 1000 screenshots and 1000 waveforms that you can export over USB. The 6000mAh battery runs about 4 hours, and the scope can be used while charging. This is the 1013D Standard kit.
Key Features
- ⚡ 2 × 100MHz, 1GSa/s real-time sampling
- 🖐️ 7" 800 × 480 touchscreen with one-key AUTO
- 🎯 Single, normal and auto trigger with adaptive 25/50/75% levels
- 📐 Cursor measurements, FFT and Lissajous plus 12 automatic parameters
- 💾 1000 screenshots + 1000 waveforms with USB export
- 🔋 6000mAh battery about 4 hours per charge, Type-C 5V 2A/3A/4A
Technical Specifications
| Channels | 2 |
|---|---|
| Bandwidth | 100MHz per channel |
| Sampling rate | 1GSa/s |
| Rise time | <3ns |
| Memory depth | 240Kbit |
| Time base | 10ns – 50s |
| Vertical sensitivity | 50mV – 500V |
| Input impedance | 1MΩ |
| Max test voltage | 1X: 40V, 10X: 400V |
| Voltage accuracy | ±2% |
| Frequency accuracy | ±0.01% |
| Display | 7" TFT touchscreen, 800 × 480 |
| Battery | 6000mAh, about 4 h |
| Charging | Type-C 5V 2A/3A/4A |
What's in the Box
- 1 × FNIRSI 1013D tablet oscilloscope (Standard kit)
- Probes, charger and cable as supplied by FNIRSI
