On Demand Fluke 789 Process Meter The Ultimate Loop Calibration Multimeter+ Fast Shipping

Rs 400,000 PKR
SKU:
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

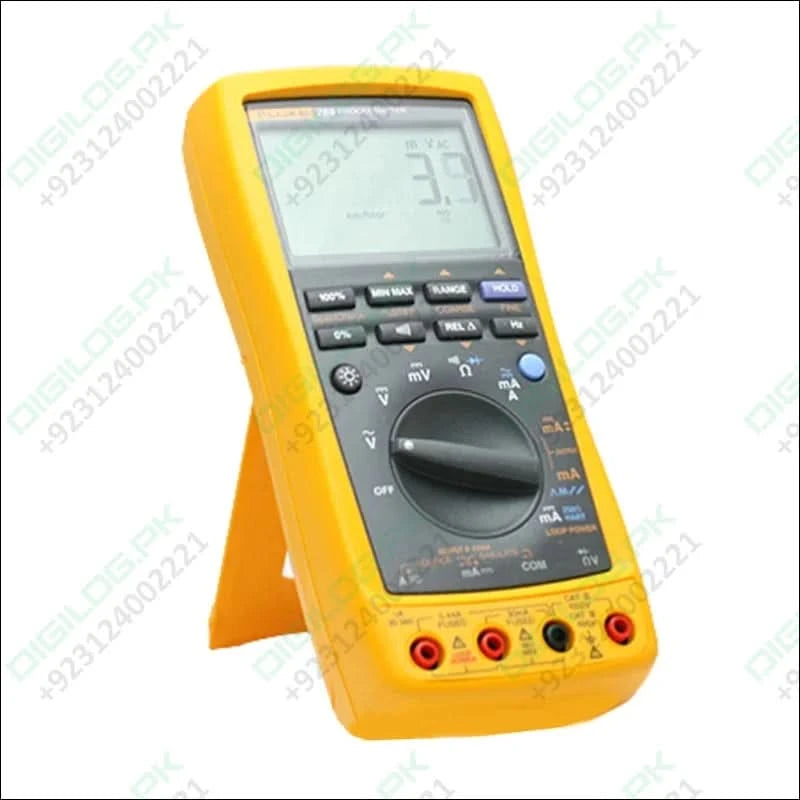

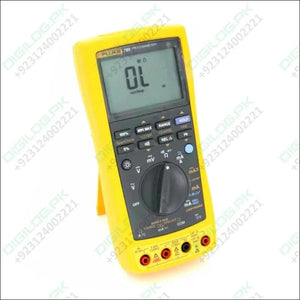

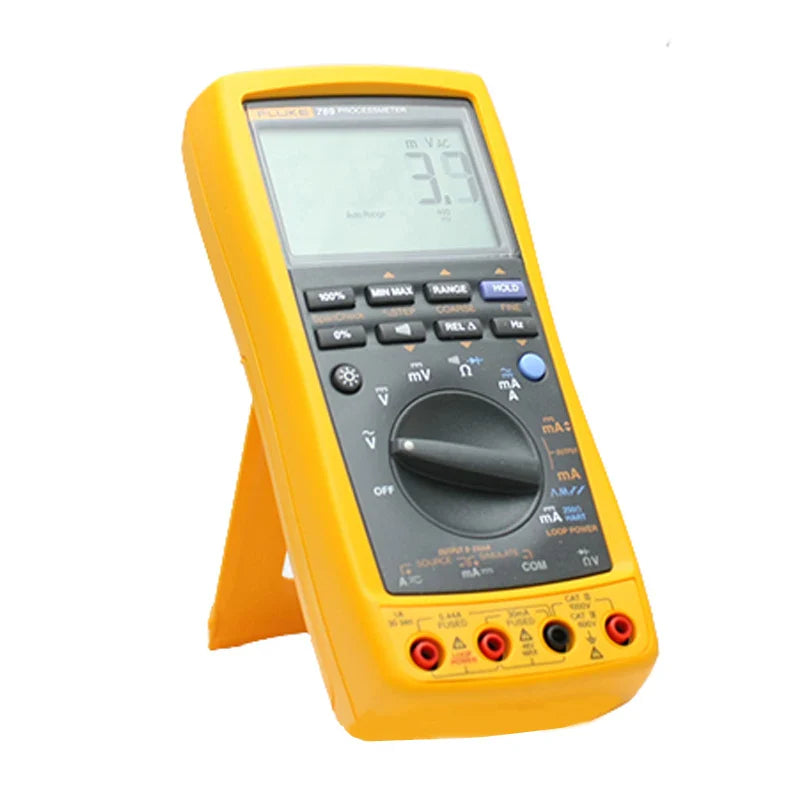

Fluke 789 ProcessMeter the Ultimate Loop Calibration Multimeter+ Fast Shipping

The F789 Fluke Process Multimeter is the first process multimeter to combine a digital multimeter and a loop calibrator, doubling the capabilities of process technicians. Fluke has now introduced a new and better model, the Fluke 789 Loop Calibration Multimeter. The Fluke 789 has a 24V loop power supply and does not require separate carrying of loop power for offline transmitter testing; the built-in optional 250 Ω HART loop resistor eliminates the need to carry the load resistor alone. Fluke 789 lets you carry less and finish more.


Features:

24 V loop power supply

Double display large screen

Enhanced backlight, 2-level brightness adjustable

1200 Ohm drive capability with mA output

HART mode with loop power supply, built-in 250 ohm resistor

The 0% and 100% buttons toggle between the 4 and 20 mA outputs for quick full-scale inspection

Battery compartment door for easy battery replacement

Fluke 789 contains all features that the Fluke 787 has

Precision 1000 V, 440 mA True RMS Digital Multimeter

0.1% DC Voltage Accuracy

0.05% DC Current Accuracy

Up to 20 kHz frequency measurement

Min/Max/Avg/Contact Hold/Relative Mode

Diode test function and on-off buzzer

Simultaneous reading of mA readings and percentage readings

20 mA DC Current Output / Loop Calibrator / Simulator

Manual stepping (25%, coarse adjustment, fine adjustment), automatic stepping and automatic ramping

Battery compartment door for easy battery replacement


Specifications:

Current measurement

Range: 0-1 A AC or DC
Resolution: 1 mA
Accuracy: 0.2% + 2 LSD (DC)
  The
Range: 0-30 mA
Resolution: 0.001 mA
Accuracy: 0.05% + 2 least significant digits

Output current

Range: 0-20 mA or 4-20 mA
Resolution: 0.05% full scale
Drive capability: 24 V or 1200 Ω @ 20 mA

Frequency

To 19.999 kHz, 0.005% + 1 least significant bit

Continuity



Beep at impedance <100 Ω


Voltage measurement


Range: 0-1000 V AC (true rms) or DC
Resolution: 0.1 mV to 1.0 V
Accuracy: 0.1% reading + 1 least significant bit (VDC)


Resistance measurement



Up to 40 MΩ, 0.2% + 1 least significant bit

Diode test



2.0 V display diode voltage drop

Shows the percentage of current and full scale

Yes

Automatic stepping, automatic slope

Yes

Environmental parameters:

Operating temperature


-20 C to 55 C

Storage temperature



 -40 C to 60 C

Humidity (non-condensing)



95% to 30 C
  75% to 40 C
  45% to 50 C
  35% to 55 C

Temperature Coefficient



 0.05 x (Nominal Accuracy) /oC (When Temperature < 18 C or > 28 C)

Safety technical parameters

Electrical Safety


Its design complies with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-92

Overvoltage category

  IEC 1010-1 CAT III 1000 V
  IEC 1010-1 CAT IV 600 V

Maximum voltage



1000 V RMS

Mechanical and general parameters

Dimensions

50 x 100 x 203 mm

Weight

600 g

Batteries



 4 AA alkaline batteries

warranty period

3 years

Battery Life



 140 hours, typical value (measurement); 10 hours, typical value (output 20 mA)
Vibration and vibration

Vibration and vibration



Random, 2 g, 5-500 Hz
  1 meter drop test

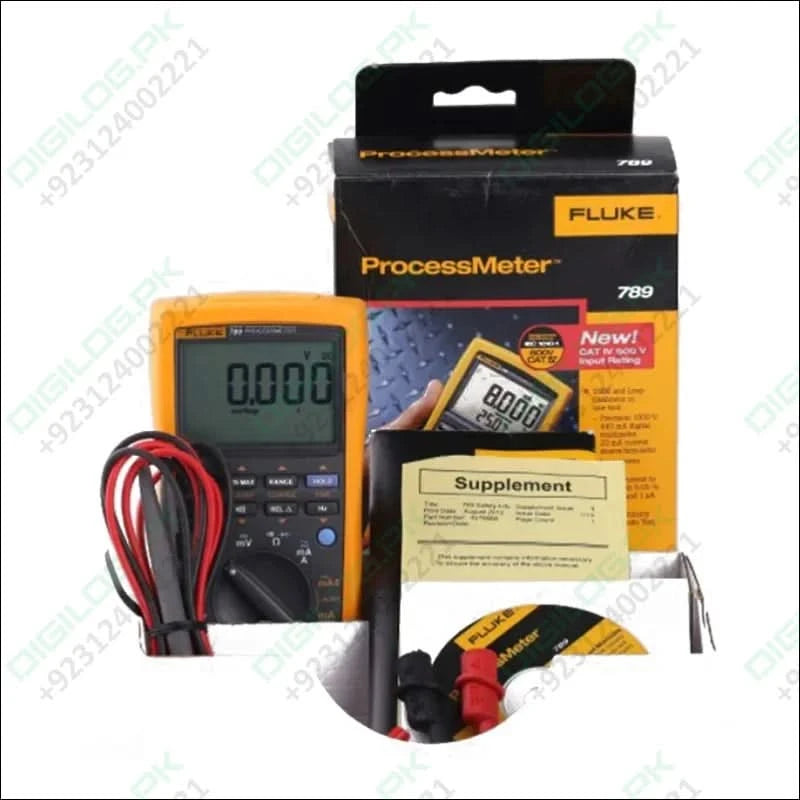

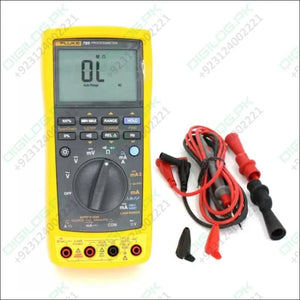

Model Name

Description

 Fluke 789

 Process Multimeter
AC72 alligator clip
Four AA Models 1.5 V Alkaline Batteries (Installed) Not included package
TL71 Safety Design Test Lead Set
User Manual and Quick Reference Guide
Notes: the batteries not included package
