Description

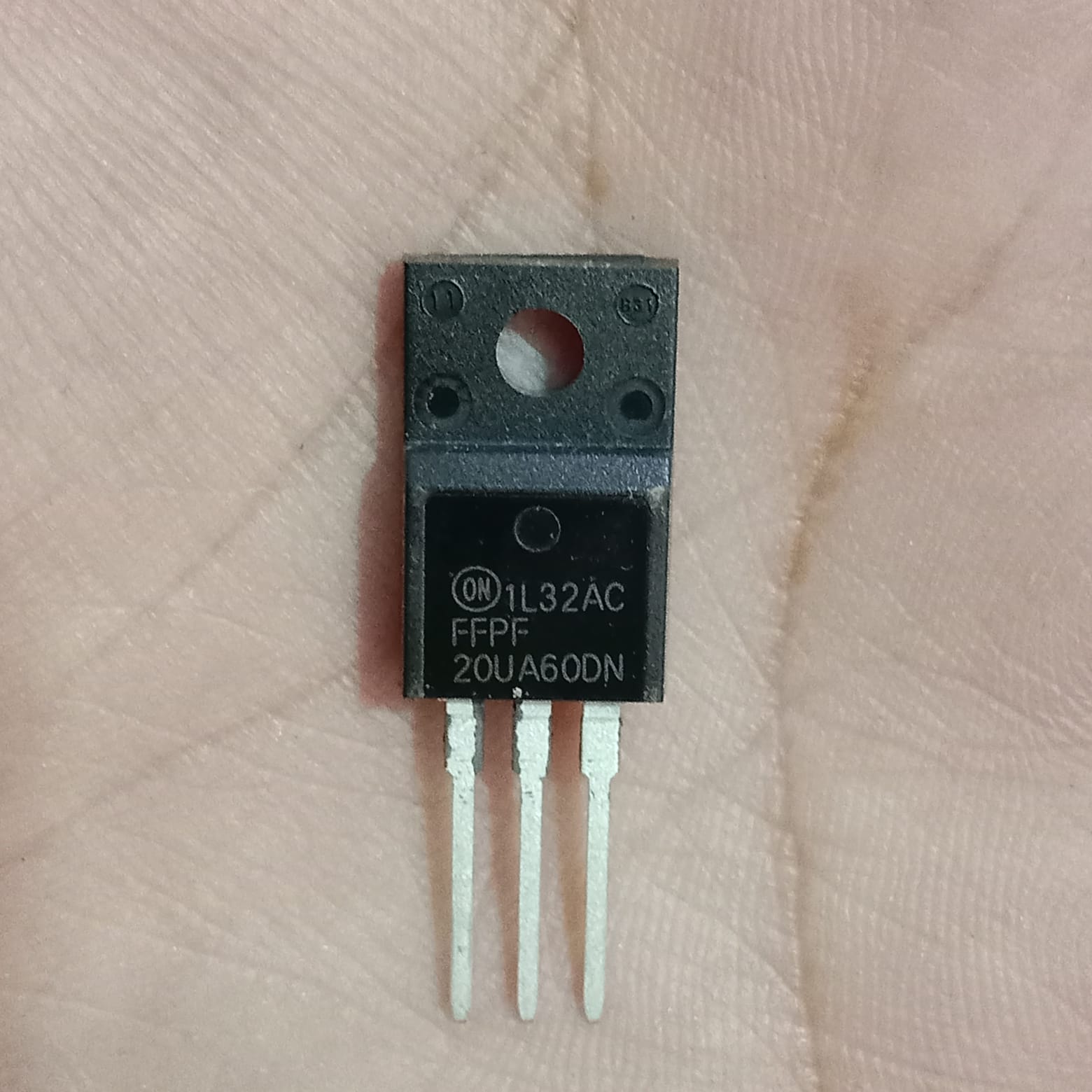

Marked "FFPF20UA60DN" on the package with ON Semiconductor's logo, this is ON Semiconductor's (formerly Fairchild) FFPF20UA60DN, an Ultrafast Dual Diode in a common cathode configuration. It is featuring low forward voltage drop and ultrafast recovery duration (trr<45 ns), engineered to minimize switching losses and electromagnetic interference (EMI) in high-frequency power conversion systems.

Housed in a fully isolated TO-220F package, it allows direct heat-sink mounting without requiring external isolation pads, making thermal assembly fast and efficient.

Key Specifications

• Type: Ultrafast Recovery Dual Rectifier Diode (Common Cathode)

• Manufacturer: ON Semiconductor (onsemi) / Fairchild

• Package Marking: FFPF20UA60DN

• Package: TO-220F / TO-220F-3L (Isolated 3-pin through-hole)

• Repetitive Peak Reverse Voltage (VRRM): 600V

• Average Rectified Forward Current (IF(AV)): 20A Total (10A per diode, TC=100∘C)

• Peak Forward Surge Current (IFSM): 60A per leg (8.3 ms single half sine-wave)

• Forward Voltage Drop (VF), max: $2.2\text{ V}$ at IF=10 A (TC=25∘C)

• Reverse Recovery Time (trr), max: $45\text{ ns}$ at IF=1 A

• Operating Junction Temperature Range: −65∘C to +150∘C

Common Applications

• High-frequency Switch-Mode Power Supplies (SMPS)

• Free-wheeling diode for motor controllers and inverters

• Power Factor Correction (PFC) output rectification

• High-voltage secondary-side rectification in DC-DC converters and welding power supplies

Package Includes

• 1 x ON Semiconductor FFPF20UA60DN 600V 20A Ultrafast Dual Diode (TO-220F)
