ET612 Network Cable Tracker and Tester – Wire Finder, PoE Test, Continuity

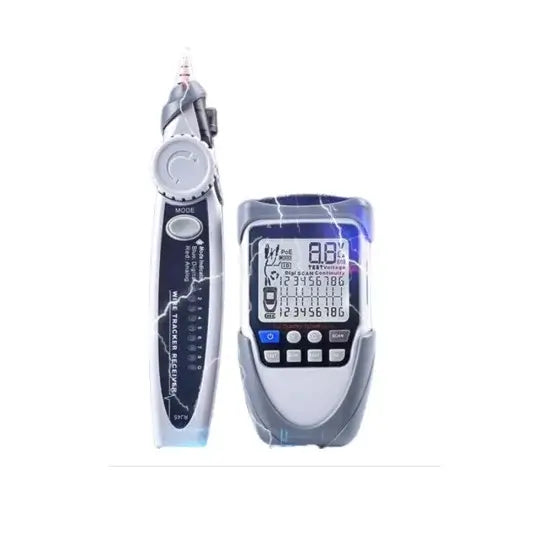

The ET612 is a two-piece cable tracker and tester for network, telephone and CCTV installers. Connect the transmitter to one end of a cable and use the receiver probe to find that exact cable in a crowded rack or bundle.
It also checks continuity, battery voltage and polarity, and tests PoE (Power over Ethernet) voltage, polarity and mode on standard and non-standard devices. Analog and digital tracing modes, adjustable sensitivity and a built-in torch.
Key Features
- 🔎 Cable tracing in analog and digital modes
- 🔌 PoE test: voltage, polarity and power mode
- 🔋 Battery voltage and polarity check
- ✅ Continuity test for wire pairs
- 🔦 Adjustable sensitivity, LCD display and LED torch
Technical Specifications
| Model | ET612 |
|---|---|
| Modes | PoE, digital, analog |
| Tests | Cable tracing, continuity, battery voltage and polarity, PoE |
| Display | LCD |
| Other | Adjustable sensitivity, LED flashlight |
| Material | ABS |
| Applications | Telephone, computer network, video network and other metal cable lines |
What's in the Box
- 1 × ET612 transmitter
- 1 × ET612 receiver
