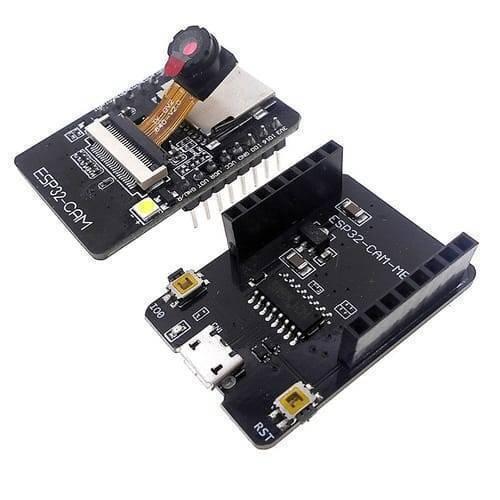

Esp32 Cam Mb Wifi Bluetooth Development Board Micro Usb Interface Ch340g Usb To Serial Port And Ov2640 Camera Module

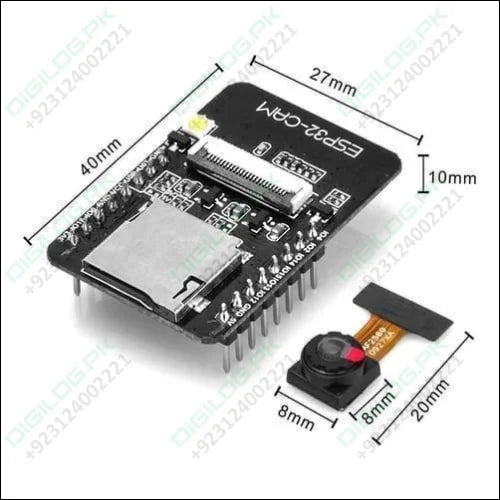

The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC moduleHK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
Features:
- Using low-power dual-core 32-bit CPU, which can be used as an application processor.
- The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
- Built-in 520 KB SRAM, external 8MB PSRAM
- Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
- Support OV2640 and OV7670 cameras, built-in flash
- Support picture WiFI upload
- Support TF card
- Support multiple sleep modes.
- Lwip and FreeRTOS embedded
- Support STA/AP/STA+AP working mode
- Support Smart Config/AirKiss one-click network configuration
- Support secondary development
Specifications:
- Working voltage: 4.75-5.25V
- SPIFlash: Default 32Mbit
- RAM: Internal 520KB + external 8MB PSRAM
- Wi-Fi: 802.11b/g/n/e/i
- Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
- Support interface (2Mbps): UART, SPI, I2C, PWM
- Support TF card: maximum support 4G

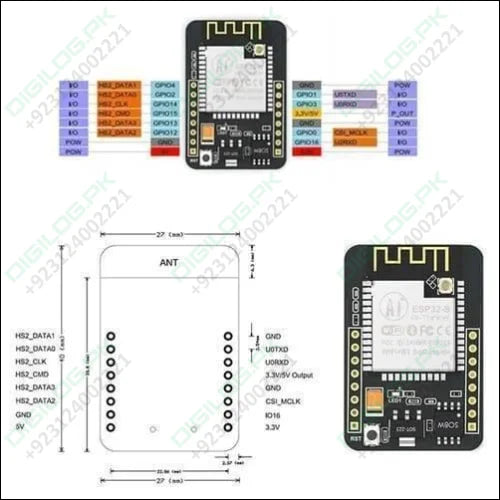

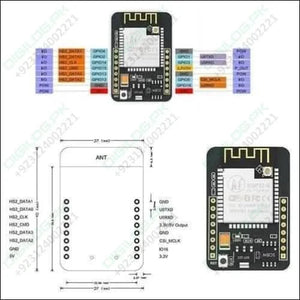

- IO port: 9
- Serial port rate: default 115200bps
- Spectrum range: 2400 ~2483.5MHz

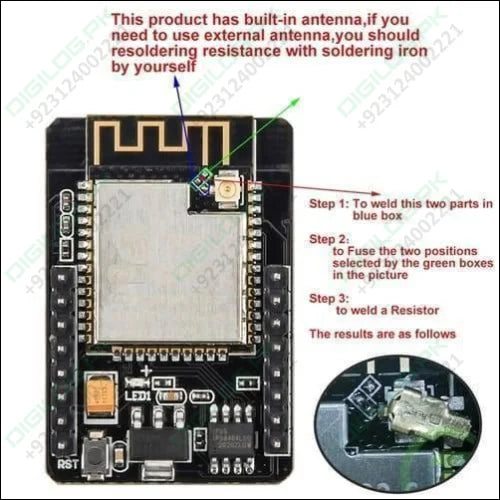

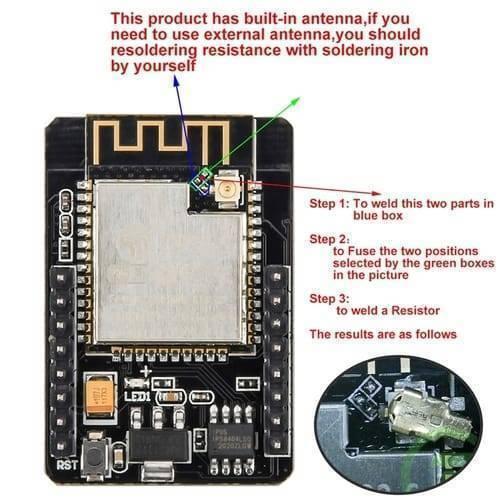

- Antenna form: onboard PCB antenna, gain 2dBi
- Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
- Package method: DIP-16
- Transmit power: 802.11b: 17±2dBm (@11Mbps)
- 802.11g: 14±2dBm (@54Mbps)
- 802.11n: 13±2dBm (@MCS7)
- Receiving sensitivity: CCK, 1Mbps: -90dBm
- CCK, 11Mbps: -85dBm
- 6Mbps(1/2BPSK): -88dBm
- 54Mbps(3/464-QAM): -70dBm
- MCS7 (65Mbps, 72.2Mbps): -67dBm
- Power consumption: Turn off the flash: 180mA@5V
- Turn on the flash and adjust the brightness to maximum: 310mA@5V
- Deep-sleep: The lowest power consumption can reach 6mA@5V
- Modem-sleep: the lowest can reach 20mA@5V
- Light-sleep: the lowest can reach 6.7mA@5V
- Security WPA/WPA2/WPA2-Enterprise/WPS
- Working temperature: -20 ℃~ 70 ℃
- Storage environment: -40 ℃~ 125 ℃, <90%RH
Application scenarios:
- Image transmission of home smart devices
- Wireless monitoring
- Smart agriculture
- QR wireless recognition
- Wireless positioning system signal
- and other IoT applications
Package Include:

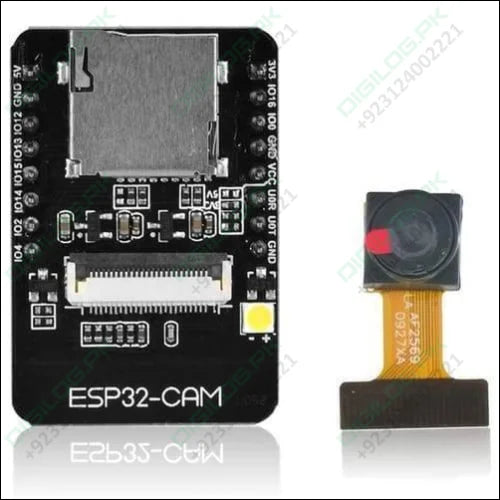

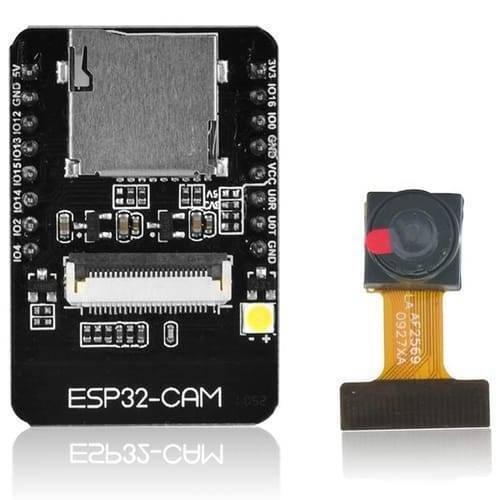

- 1 x ESP32-CAM Module(with Camera Module OV2640 )

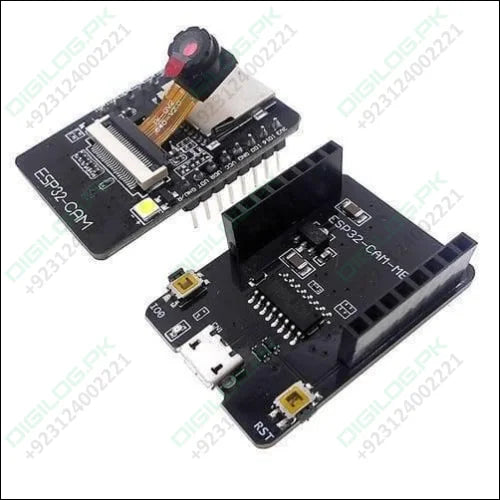

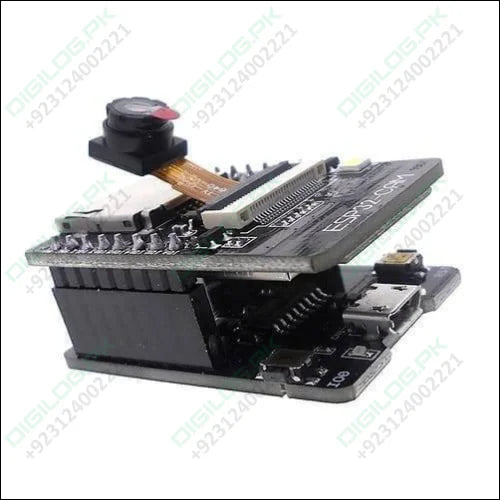

- 1 x Base
