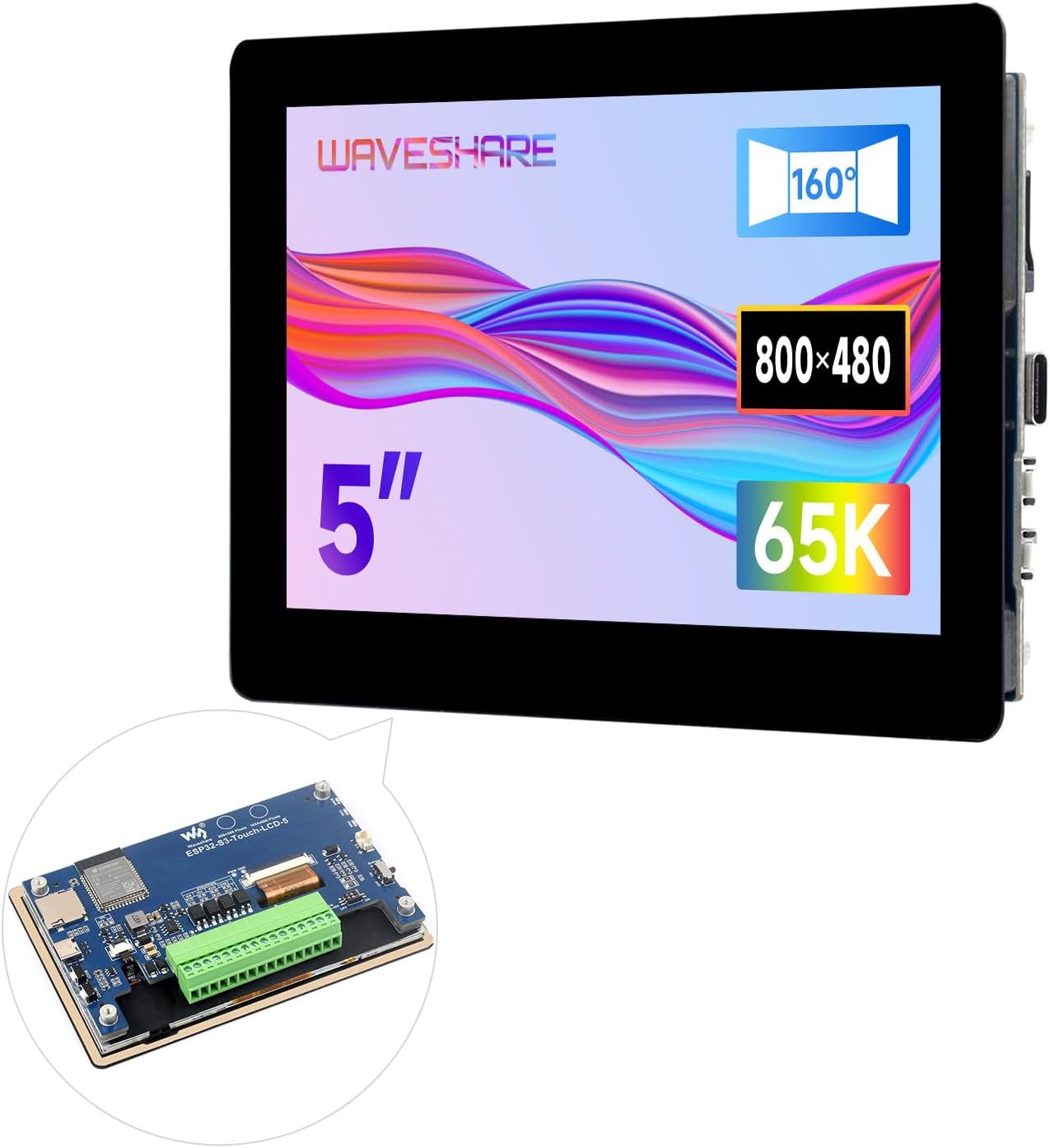

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - screen displaying Waveshare branding, 800x480 resolution, and 65K colors, with a circuit board inset.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - blue PCB, a large green 16-pin screw terminal, an ESP32-S3 module, and buttons on a white background.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - a black rectangular 5-inch touchscreen displaying a "Sustainable Energy Power" dashboard interface.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - two black rectangular touch screens with green terminal blocks in a side-by-side layout.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - application scenarios, IPS display angles, and a 5-point touch interface demonstration.

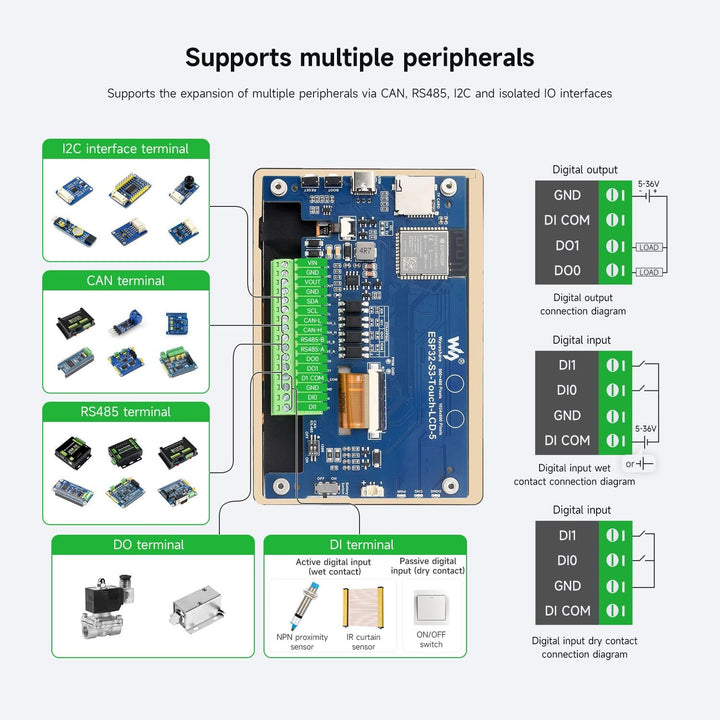

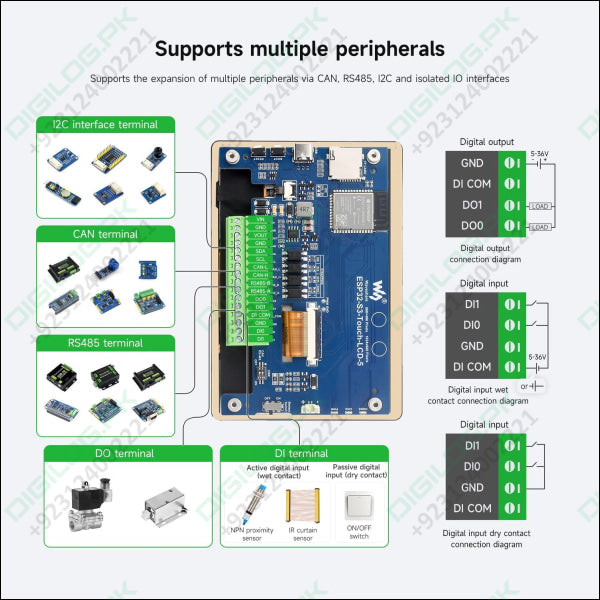

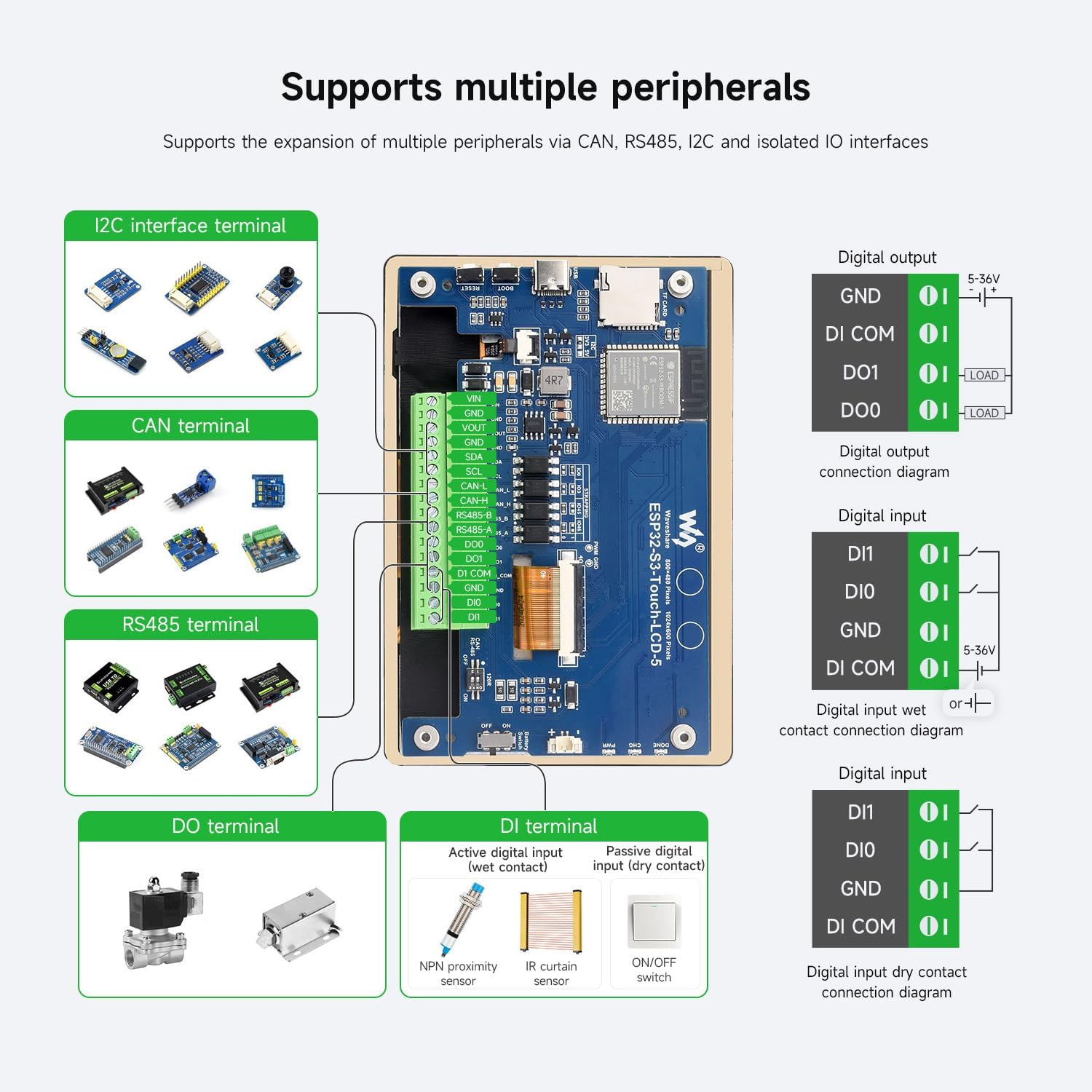

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - a technical diagram of its peripheral interfaces, terminal connections, and wiring.

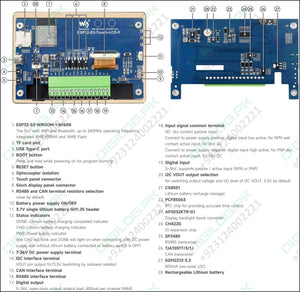

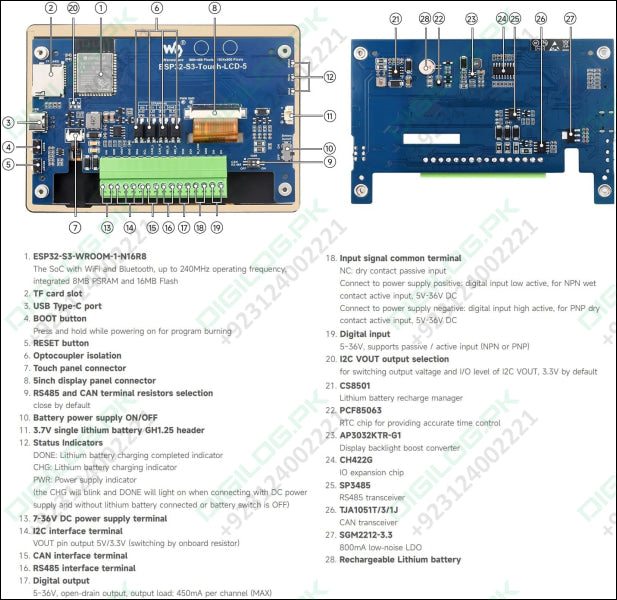

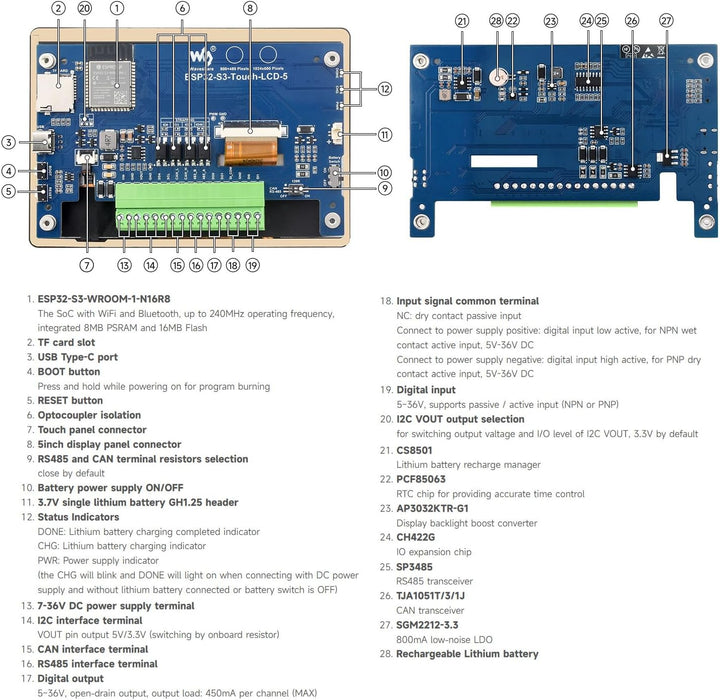

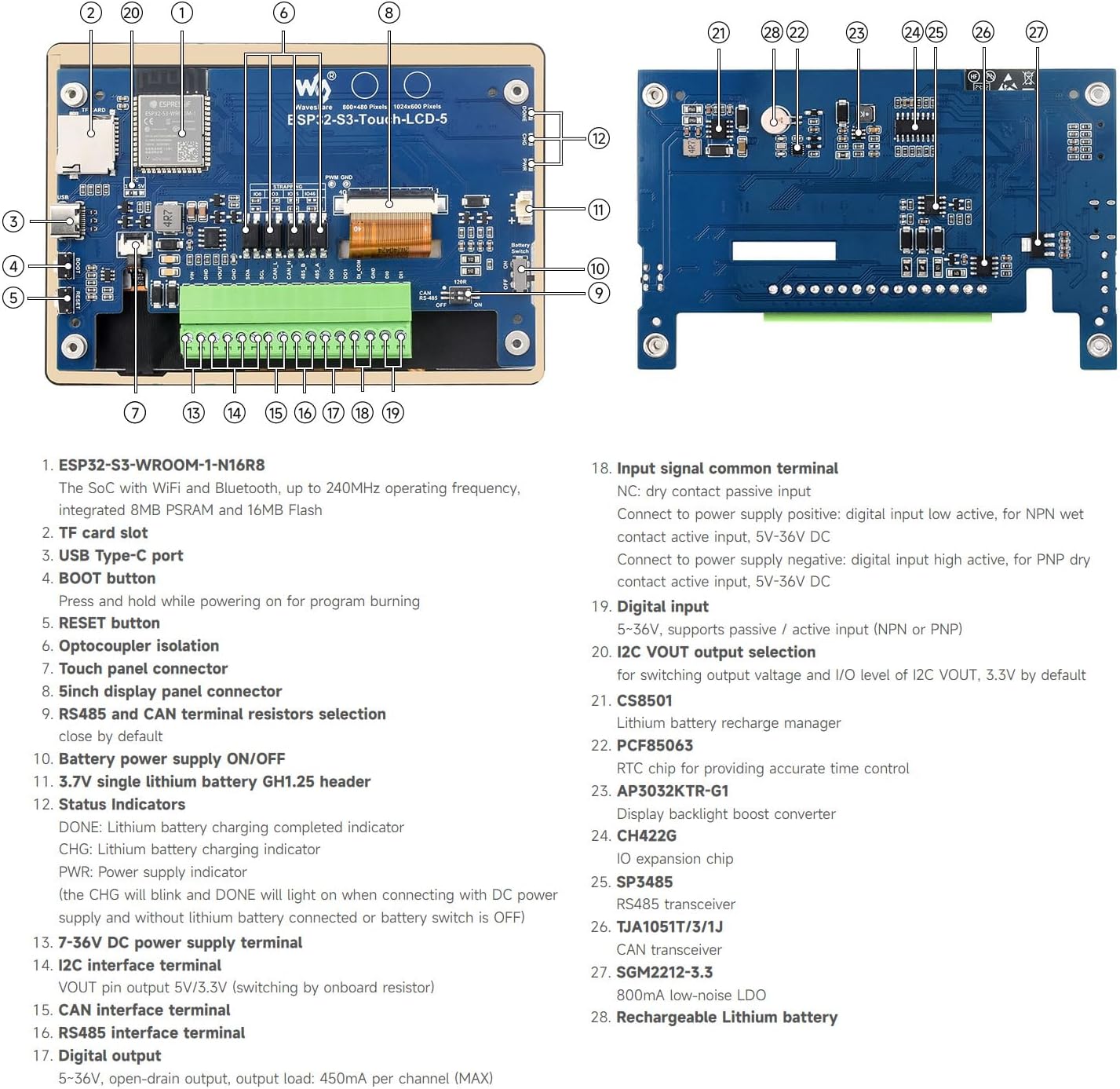

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - shown in a technical diagram with numbered labels pointing to its ports, buttons, and components.

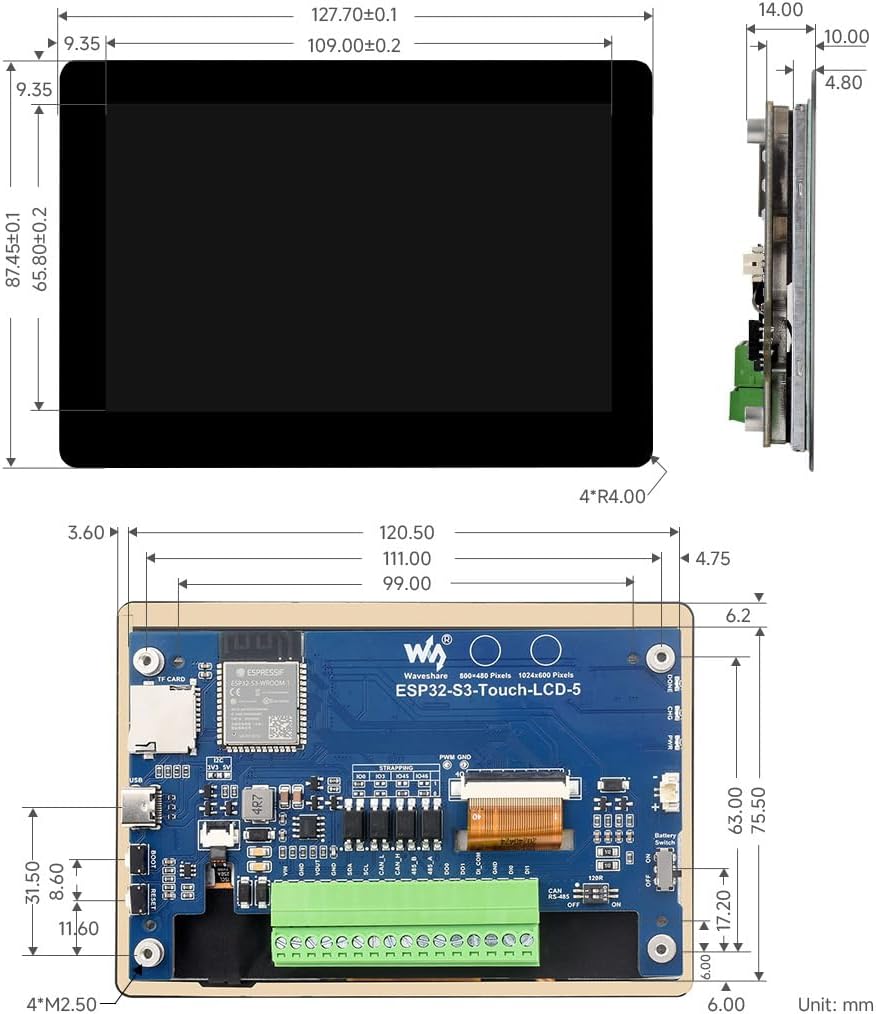

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - shown in a technical diagram with front, side, and rear views including dimensions and ports.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - a white rectangular cardboard box with Waveshare branding and French recycling labels.
ESP32-S3 5 inch touch display board video - Wi-Fi, BLE, 5-point touch - Digilog Electronics
Sold out
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - screen displaying Waveshare branding, 800x480 resolution, and 65K colors, with a circuit board inset.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - blue PCB, a large green 16-pin screw terminal, an ESP32-S3 module, and buttons on a white background.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - a black rectangular 5-inch touchscreen displaying a "Sustainable Energy Power" dashboard interface.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - two black rectangular touch screens with green terminal blocks in a side-by-side layout.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - application scenarios, IPS display angles, and a 5-point touch interface demonstration.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - a technical diagram of its peripheral interfaces, terminal connections, and wiring.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - shown in a technical diagram with numbered labels pointing to its ports, buttons, and components.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - shown in a technical diagram with front, side, and rear views including dimensions and ports.
On Demand ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution - a white rectangular cardboard box with Waveshare branding and French recycling labels.
ESP32-S3 5 inch touch display board video - Wi-Fi, BLE, 5-point touch - Digilog Electronics

ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi & BLE, with Onboard Antenna, 800×480 Display Resolution

Sale price Rs 14,620
SKU: b269,krt111
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

ESP32-S3 5-Inch Display Development Board

Model: ESP32-S3-WROOM-1-N16R8

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-5



Key Features

  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
  • Integrated 8MB PSRAM and 16MB Flash
  • Built-in 512KB SRAM and 384KB ROM
  • Onboard 5-inch capacitive touch display, 65K color
  • Display options: 800×480 or 1024×600 resolution
  • Supports 5-point touch via I2C interface with interrupt support
  • Wide input voltage: 7–36V DC
  • Onboard RTC chip and rechargeable battery for time backup
  • Supports CAN, RS485, I2C interfaces and TF card slot
  • Optocoupler-isolated digital input/output for noise protection
  • Digital output up to 450mA per channel
  • Onboard voltage regulator with selectable 5V/3.3V VOUT
  • LED indicators for power and battery charging status
  • Low power consumption design with flexible clock and independent power domains

Interfaces & Controls

  • USB Type-C port
  • BOOT button (hold during power-on to flash firmware)
  • RESET button
  • TF card slot
  • Touch panel connector
  • 5-inch display connector
  • RS485 and CAN terminal resistor options (default: closed)
  • Battery ON/OFF switch for 3.7V lithium battery (GH1.25 header)

Status Indicators

  • PWR: Power supply indicator
  • CHG: Charging indicator (blinks when charging)
  • DONE: Charging complete indicator

Power Supply

  • 7–36V DC terminal input
  • 3.7V lithium battery supported (optional rechargeable)

Onboard Chips

  • CS8501: Lithium battery recharge manager
  • PCF85063: RTC chip
  • AP3032KTR-G1: Display backlight boost converter
  • CH422G: I/O expansion chip
  • SP3485: RS485 transceiver
  • TJA1051T/3/1J: CAN transceiver
  • SGM2212-3.3: 800mA low-noise LDO regulator

Additional Information

Rich Wiki resources are available for setup and programming. Visit the official Wiki or contact us for more details.

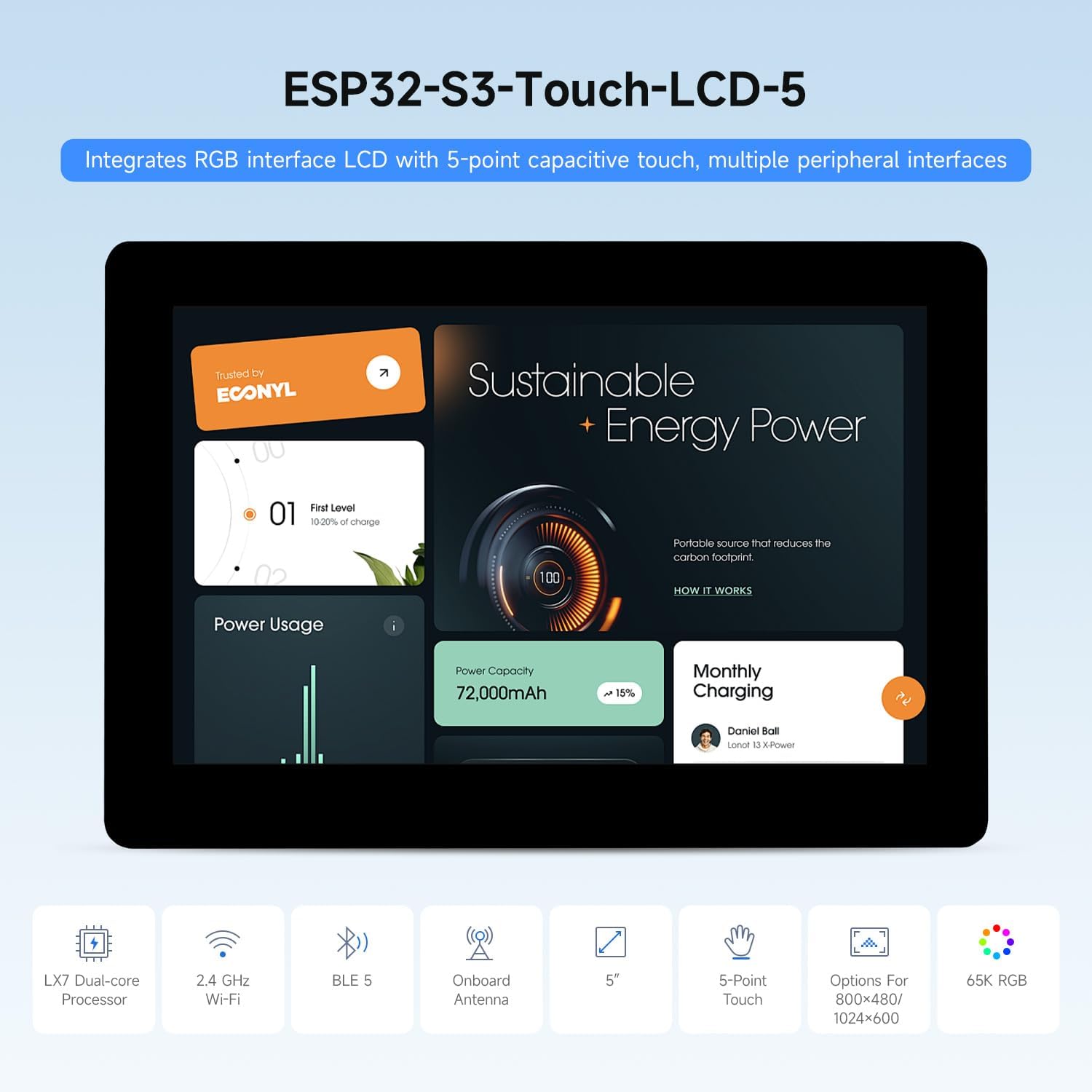

ESP32-S3-Touch-LCD-5

Integrates RGB interface LCD with 5-point capacitive touch, multiple peripheral interfaces

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board 5-Point Touch 32-Bit LX7 Dual-Core Processor

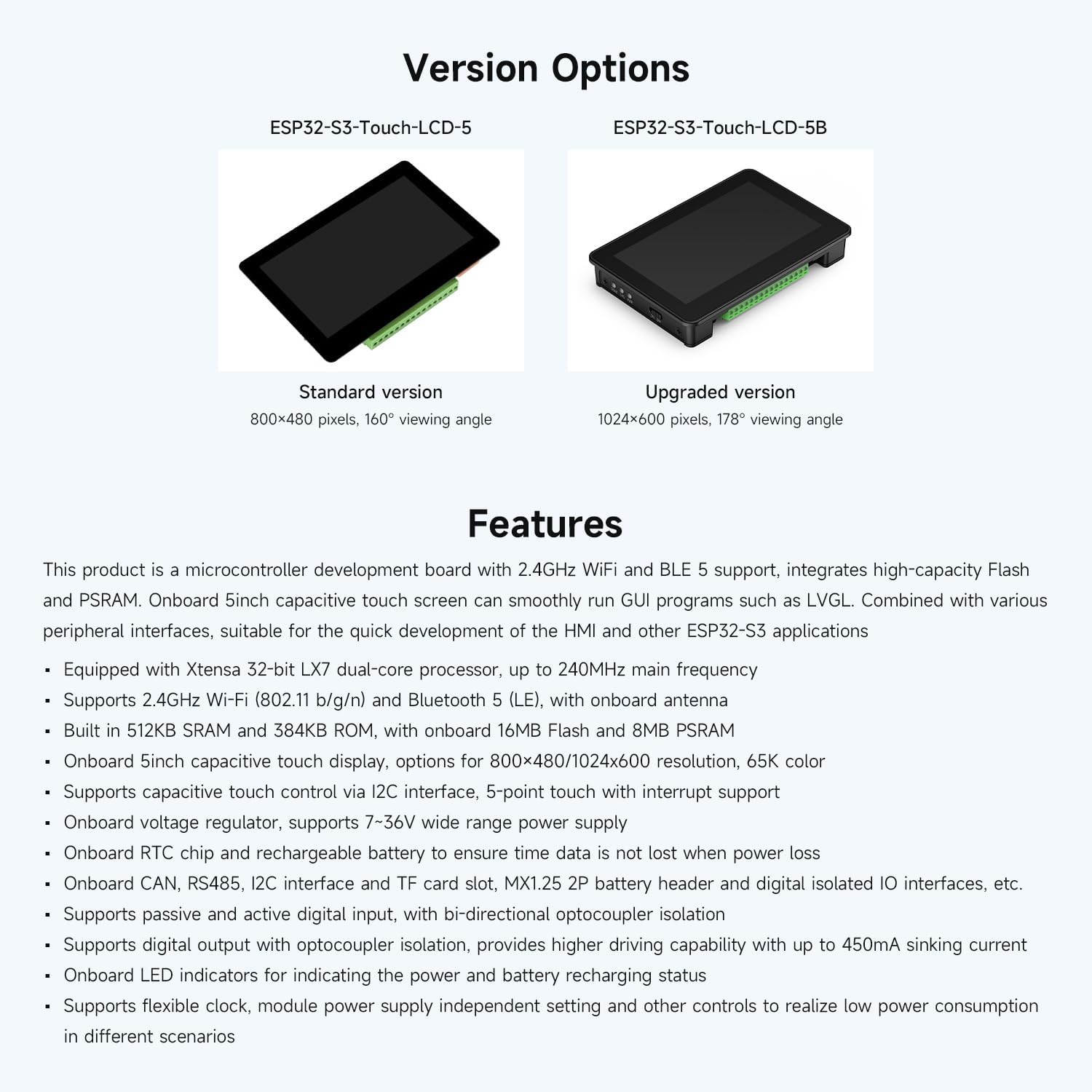

Version Options

ESP32-S3-Touch-LCD-5

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board 5-Point Touch 32-Bit LX7 Dual-Core Processor

Standard version
800×480 pixels, 160° viewing angle


ESP32-S3-Touch-LCD-5B

On Demand ESP32-S3 5inch Capacitive Touch Display Development Board 5-Point Touch 32-Bit LX7 Dual-Core Processor

Upgraded version
1024×600 pixels, 178° viewing angle
