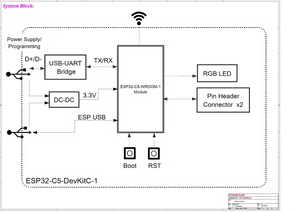

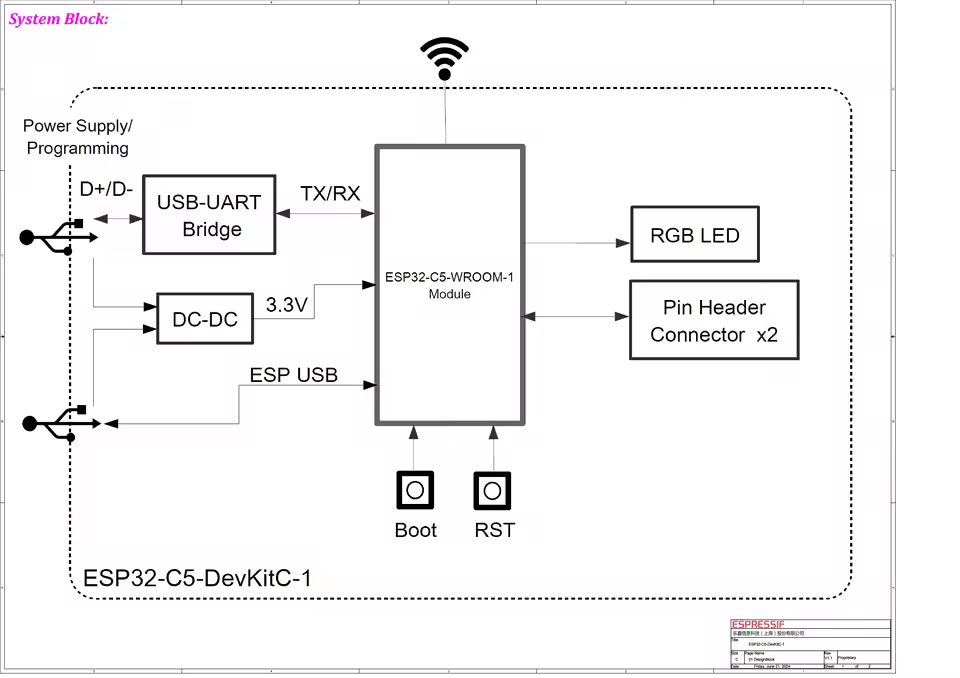

ESP32-C5-DevKitC-1 - ESP32-C5-DevKitC-1 system block diagram showing the module, USB-UART bridge, DC-DC converter, USB ports, RGB LED, pin headers, and boot/reset buttons.
ESP32-C5-DevKitC-1 - a black development board with an ESP32-C5-WROOM-1 module, two USB-C ports, two push buttons, and an RGB LED on a circuit board.
ESP32-C5-DevKitC-1 - two identical black development boards with metal shielding, USB-C ports, buttons, and pin headers, alongside descriptive text.
ESP32-C5-DevKitC-1 - with an ESP32-C5-WROOM-1 module, two USB-C ports, boot and reset buttons, pin headers, and an RGB LED.
ESP32-C5-DevKitC-1 - the black development board, its GPIO labels, two buttons, and two USB ports with a technical specifications list.
ESP32-C5-DevKitC-1 - ESP32-C5-DevKitC-1 system block diagram showing the module, USB-UART bridge, DC-DC converter, USB ports, RGB LED, pin headers, and boot/reset buttons.
ESP32-C5-DevKitC-1 - a black development board with an ESP32-C5-WROOM-1 module, two USB-C ports, two push buttons, and an RGB LED on a circuit board.

ESP32-C5-DevKitC-1

Sale price Rs 6,050
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

ESP32-C5-DevKitC-1 - two identical black development boards with metal shielding, USB-C ports, buttons, and pin headers, alongside descriptive text.

ESP32-C5-DevKitC-1

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
ESP32-C5-DevKitC-1 - two identical black development boards with metal shielding, USB-C ports, buttons, and pin headers, alongside descriptive text.
ESP32-C5-DevKitC-1
Sale priceRs 6,050

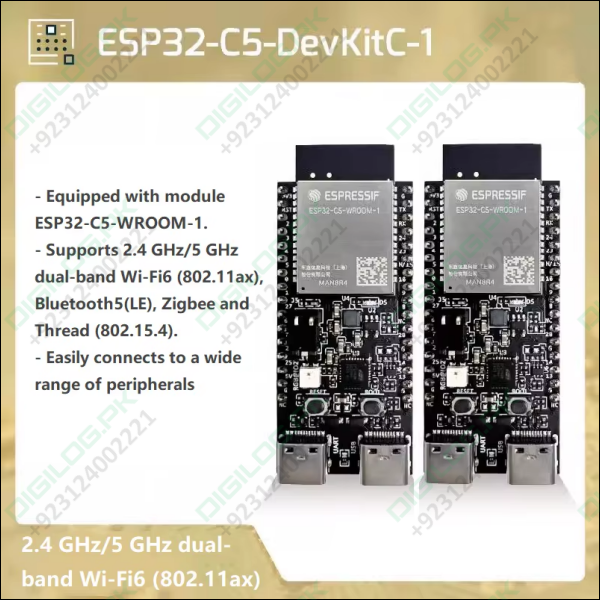

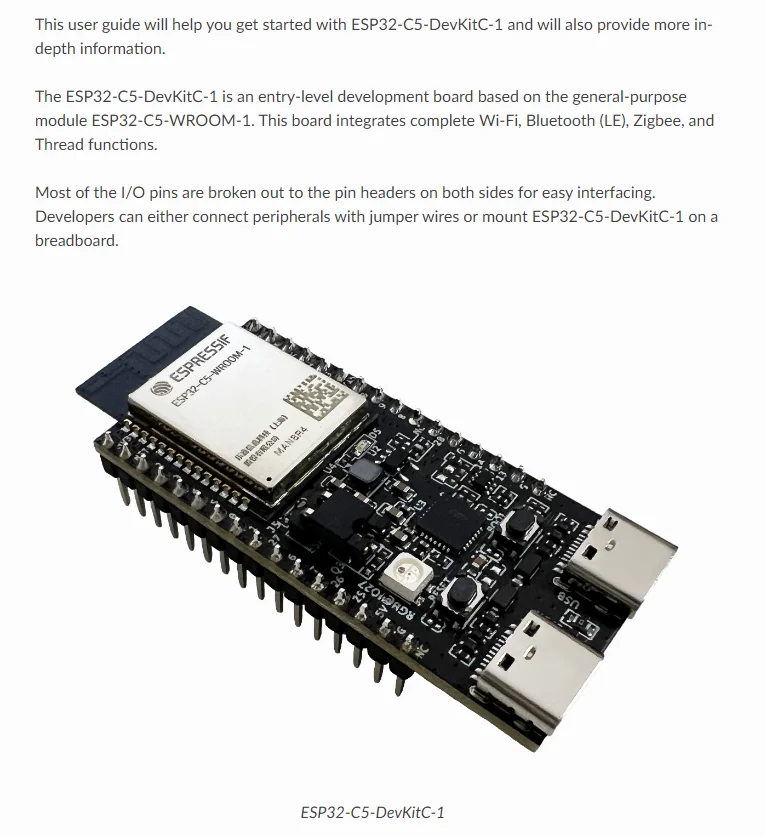

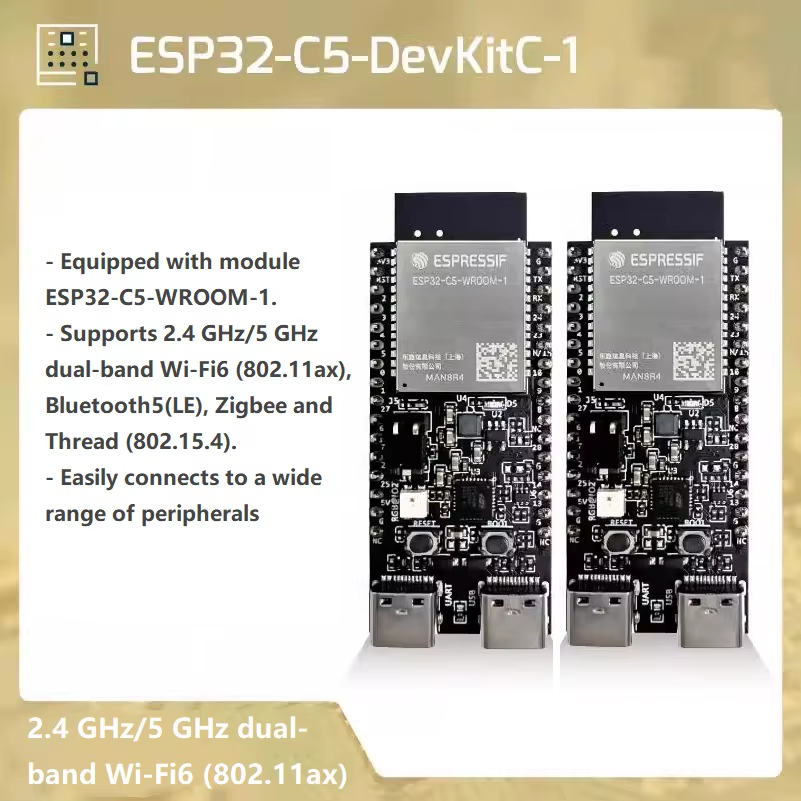

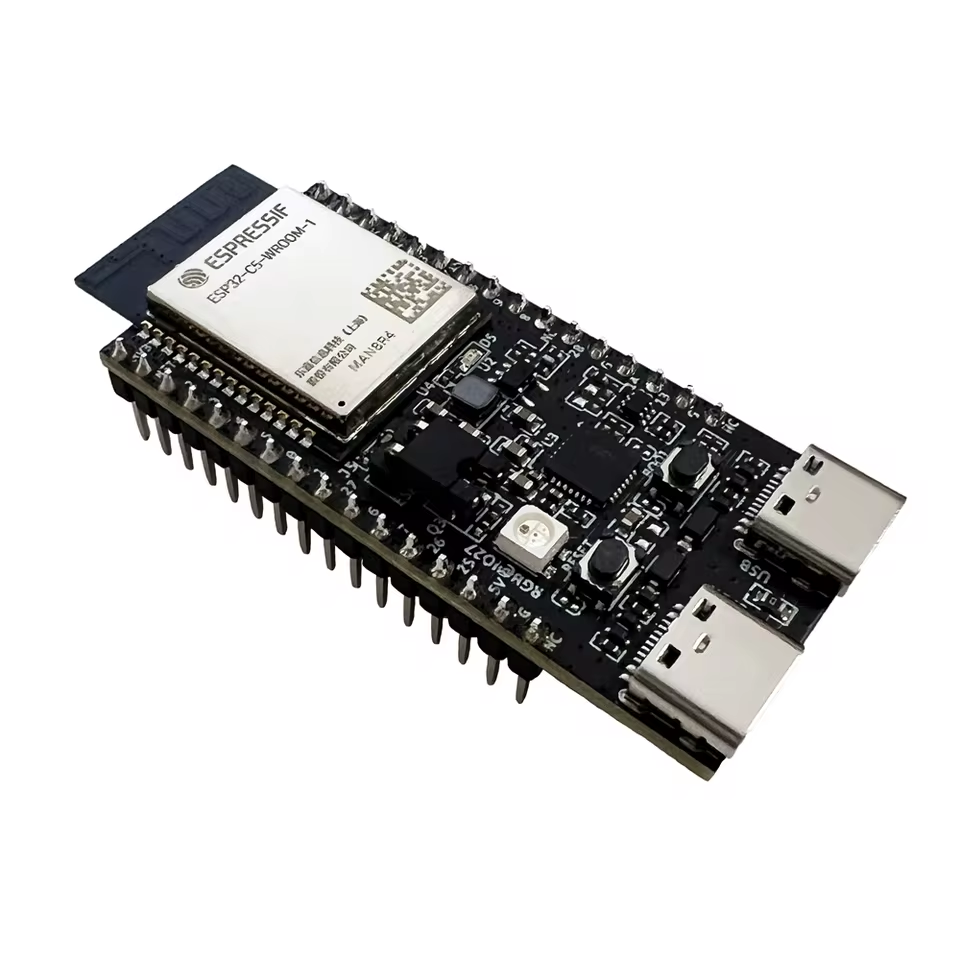

Equipped with module ESP32-C5-WROOM-1

  • Supports 2.4 GHz/5 GHz dual-band Wi-Fi6 (802.11ax), Bluetooth5(LE), Zigbee and Thread (802.15.4)
  • Easily connects to a wide range of peripherals

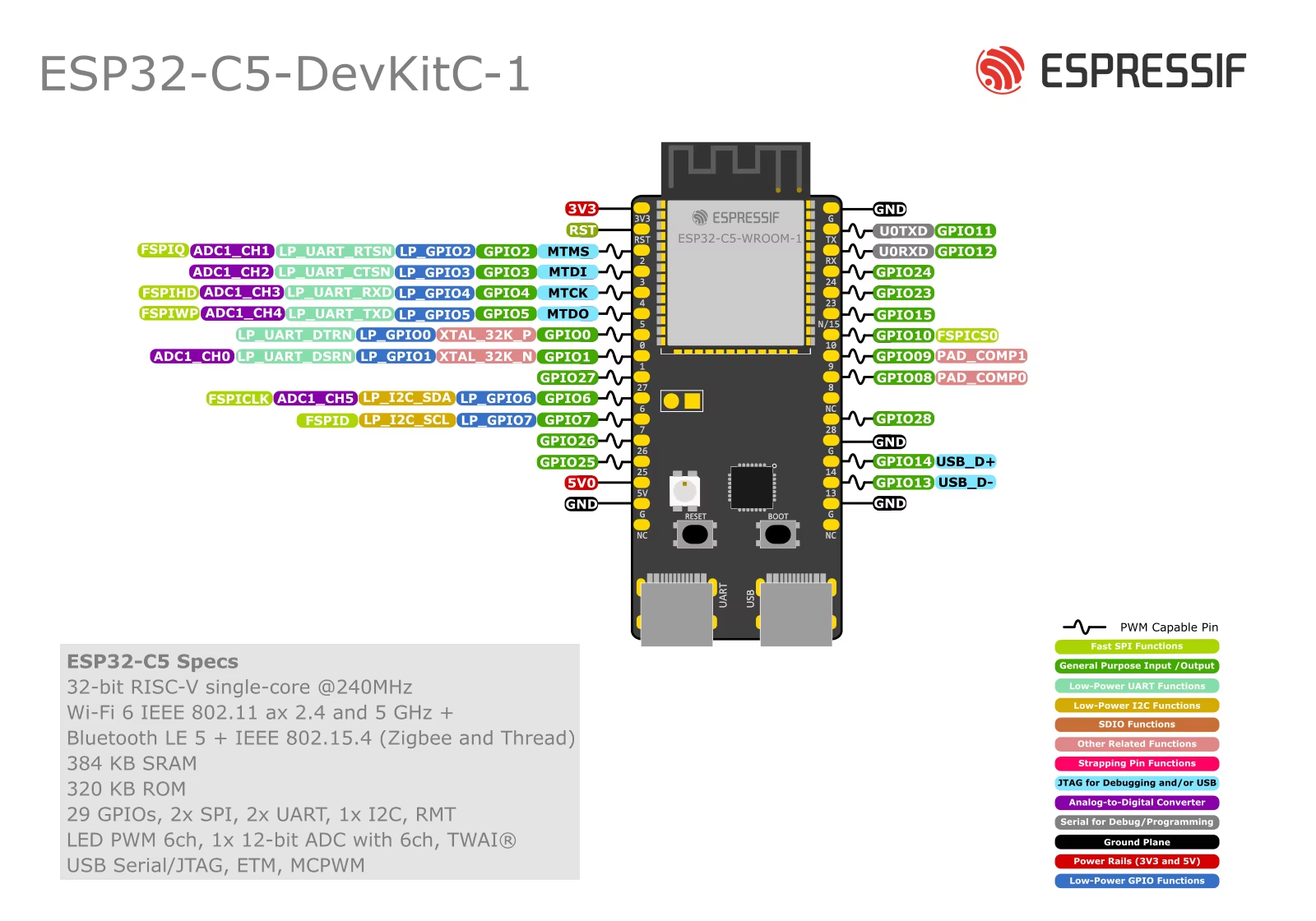

ESP32-C5 Specs:

  • 32-bit RISC-V single-core @240MHz
  • Wi-Fi 6 IEEE 802.11 ax 2.4 and 5 GHz + Bluetooth LE 5 + IEEE 802.15.4 (Zigbee and Thread)
  • 384 KB SRAM
  • 320 KB ROM

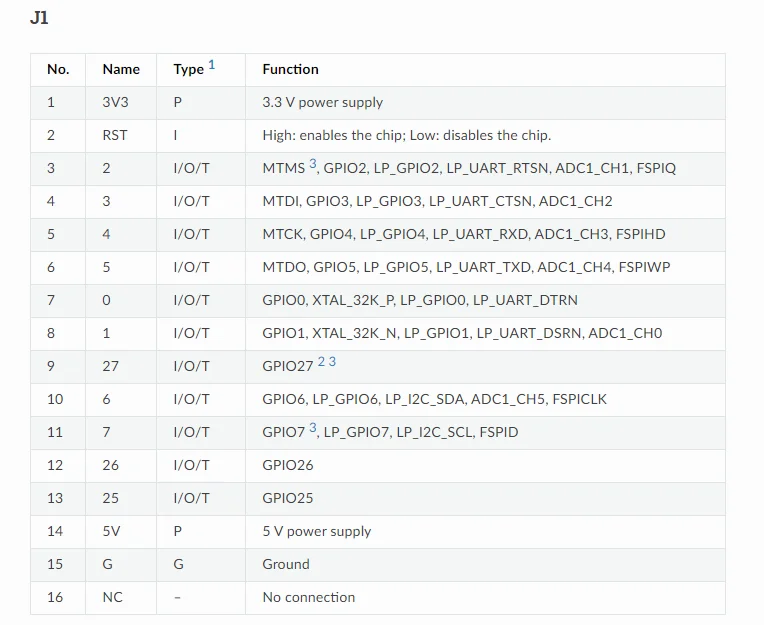

  • 29 GPIOs, 2x SPI, 2x UART, 1x I2C, RMT
  • LED PWM 6ch, 1x 12-bit ADC with 6ch, TWAI®
  • USB Serial/JTAG, ETM, MCPWM

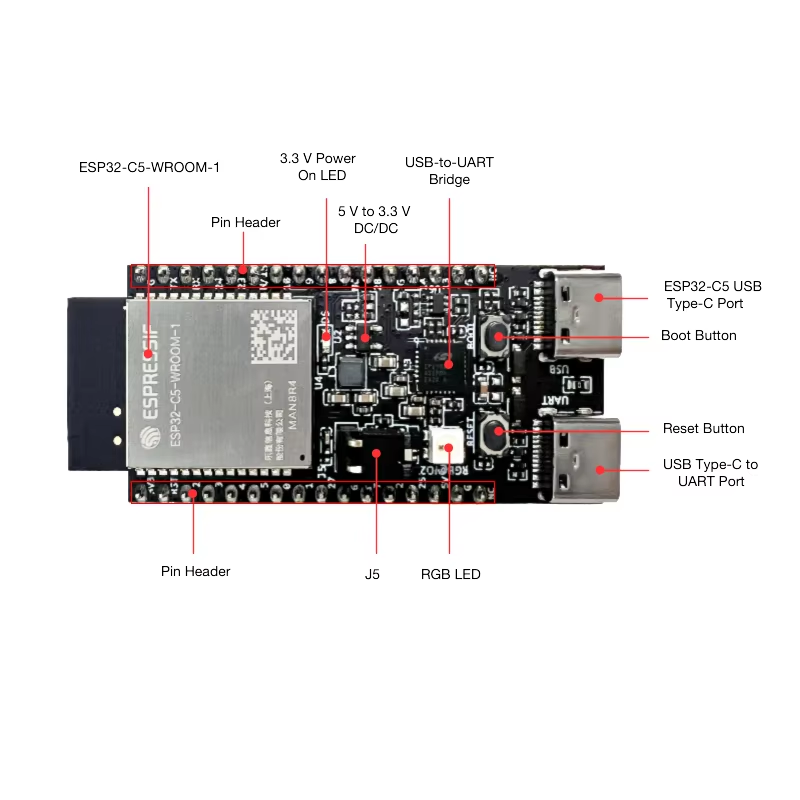

Features:

  • ESP32-C5-WROOM-1 Module
  • Pin Headers
  • 3.3 V Power On LED
  • 5 V to 3.3 V DC/DC
  • USB-to-UART Bridge
  • ESP32-C5 USB Type-C Port
  • Boot Button
  • Reset Button
  • USB Type-C to UART Port
  • RGB LED

wiki：


https://docs.espressif.com/projects/esp-dev-kits/en/latest/esp32c5/esp32-c5-devkitc-1/user_guide.html



ESP32-C5-DevKitC-1

The document consists of the following major sections:

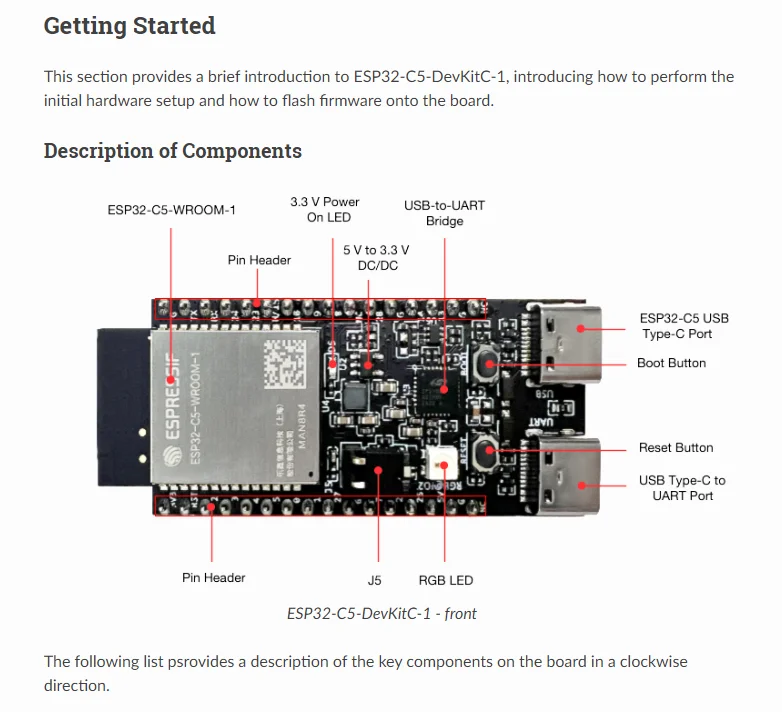

  • Getting Started: Overview of ESP32-C5-DevKitC-1 and hardware/software setup instructions to get started.

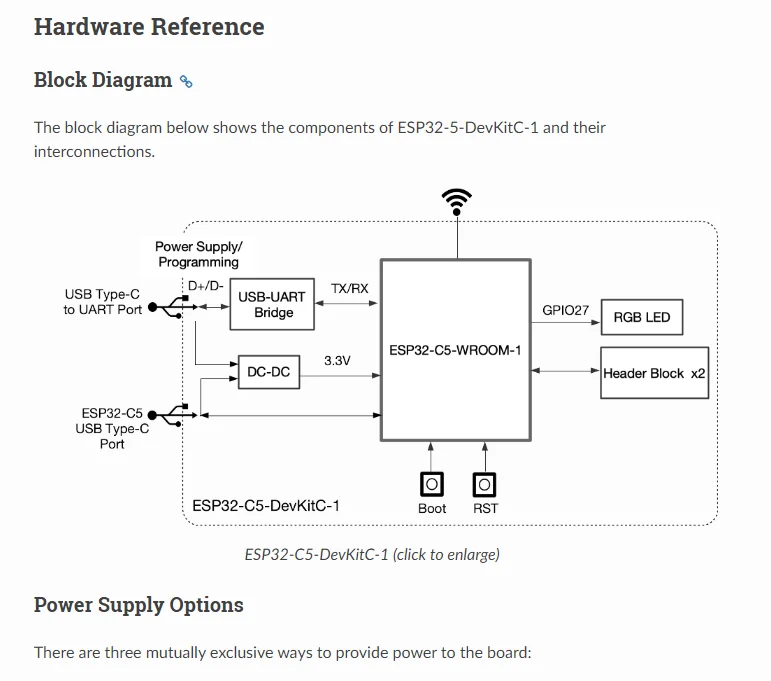

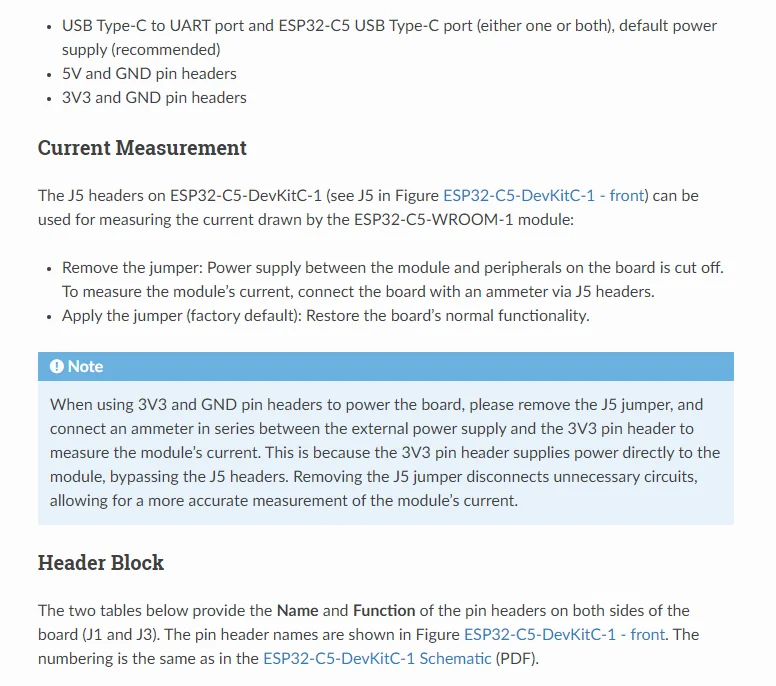

  • Hardware Reference: More detailed information about the ESP32-C5-DevKitC-1’s hardware.

  • Hardware Revision Details: Information about revision history, known issues, and links to user guides for previous versions (if any).

  • Related Documents: Links to related documentation.
