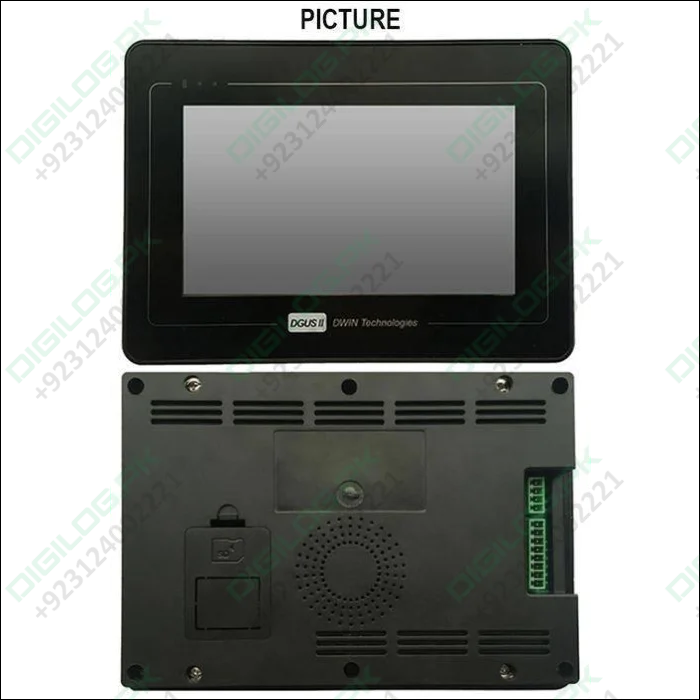

Dwin 7 Inch Industrial Hmi Lcd Touch Screen 800x480 Display Module Dmg80480t070 A5 Wtr In Pakistan

Dwin 7 Inch Industrial Hmi Lcd Touch Screen 800x480 Display Module Dmg80480t070 A5 Wtr In Pakistan

Regular price Rs 15,000
Regular price Rs 17,000 Sale price Rs 15,000
Sale Sold out
Shipping calculated at checkout.

SKU:B793

NOTIFY ME WHEN IN STOCK

Dwin 7 Inch Industrial HMI LCD Touch Screen 800X480 Display Module Uart RS232 RS485 Smart Panel Arduino Dmg80480t070 A5wtr In Pakistan

Features:

● Self-designed T5L ASIC, 16.7M Color, 24bit, 800*480 Pixel;

● All in one resistive touch screen,built-in speaker, photosensitive resistance;

●  RS232/RS485 Interface,8Pin_3.81mm Socket ;

● Download via SD card or on-line serial port,USB and Wifi optinal ;

● DWIN DGUS V7.624 GUIs Development tool ;

● Two  Development Modes: DGUS II/ TA(Commend);

● TN View Angle:70/70/50/70 (L/R/U/B);

● Support connect with PLC,Modbus protocal is supported.

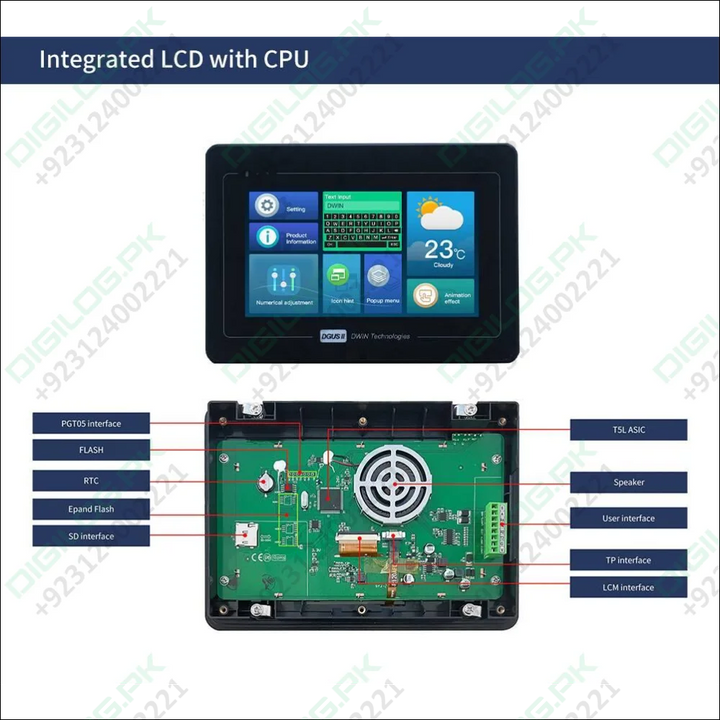

ASIC Information

T5L1 ASIC Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times

Display

Color 16.7M(16777216) colors
LCD Type TN, TFT LCD
Viewing Angle Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)

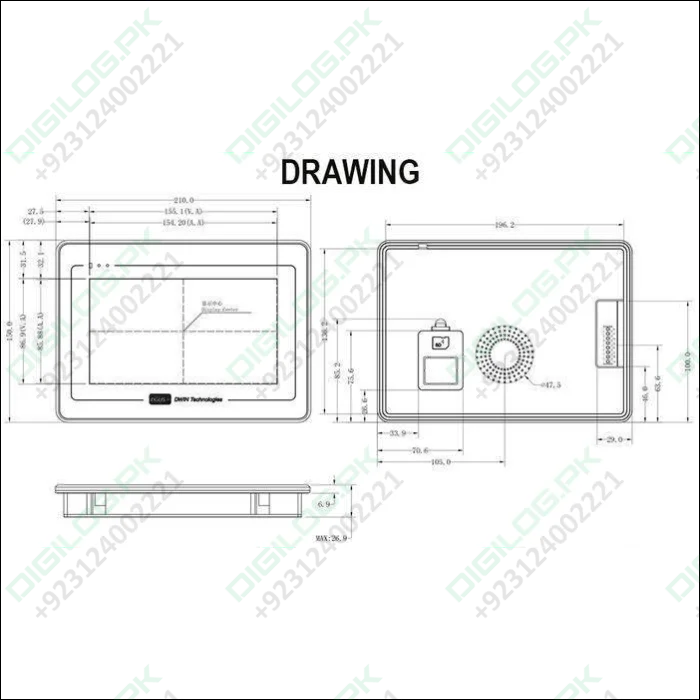

Display Area(A.A) 154.20mm (W) ×85.88mm (H)
Resolution 800x480
Backlight LED
Brightness 260nit

Touch parameters

Type Five-wire RTP (Resistive touch panel)
Structure ITO film + ITO glass
Touch Mode Support point touch and drag
Surface Hardness 3H
Light Transmittance Over 80%
Life Over 1,000,000 times touch

Voltage & Current

Power Voltage 7~36V
Operation Current VCC = +12V, Backlight on,230mA
VCC = +12V, Backlight off,80mA

Reliability Test

Working Temperature -20~70℃
Storage Temperature -30~85℃
Working Humidity 10%~90%RH
Conformal coating Yes
Protective Level IP65 (Front)

Interface

LCM interface FCC50_0.5mm, RGB interface
RTP interface FCC5Pin_1.0mm interface
Baudrate 3150~3225600bps
Output Voltage Output 1,lout=1mA;2.5V~5V
Output 0, Iout =-1mA;-5~-2.5 V
Input Voltage
(RXD)
Input 1, Iin = 1mA;0~2.5V
  Input 0,Iin = -1mA;-2.5~-0.2V
Interface UART2:N81,RS232
UART4:N81,RS232
UART5:RS485
User Interface 8Pin_3.81mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expandable to 64Mbytes NOR Flash
Speaker Onboard speaker. Power: 2W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Peripheral

DMG80480T070_A5WTR 5-wire resistance touch screen, Built-in Speaker(4Ω2W), Built-in RTC(using farad
capacitor as RTC backup power supply),Green LED(P2.7), Red LED(P2.6), Photosensitive
sensor(AD7)

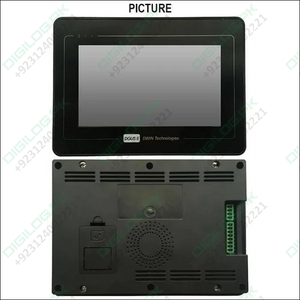

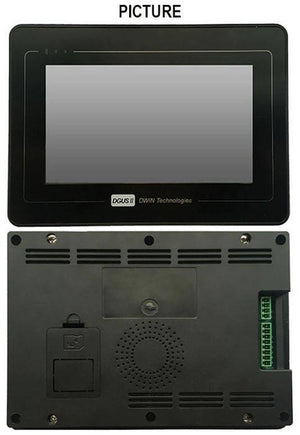

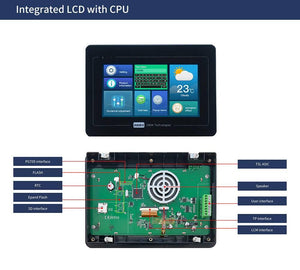

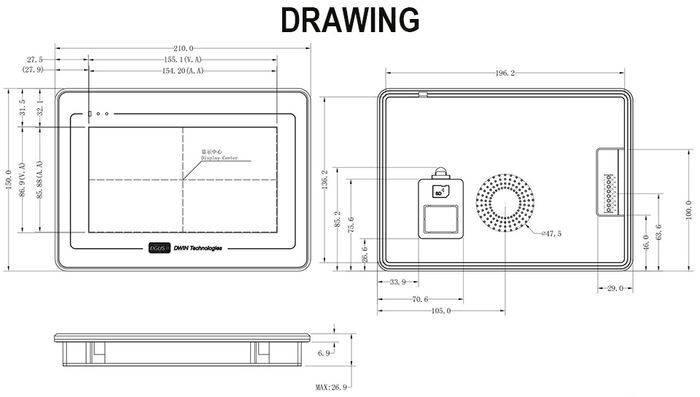

Dwin 7 Inch Industrial Hmi Lcd Touch Screen 800x480 Display









Model No.:

DMG80480T070_15WTR / DMG80480T070_A5WTR / DMG10600T070_A5WTR



D10

D8

D4

D5

D6

D7

D9







Menu_02

Shenzhen Surenoo Technology Co., Ltd. is a professional display supplier since 2005, The company has its own trademark "Surenoo Display", dedicated to the LCD industry over 10 years, supply service for numerous domestic and foreign eBay and Alixpress buyers and companies. After more than ten years of development, it has gradually gained recognition and recognition from domestic and foreign customers. The company has a rich product line. The company's designers are composed of a group of experienced and experienced professionals who can provide customers with fast, high-quality design solutions and meticulous technical support.

In June 2019, we joined the Alibaba China Supplier Gold Certified Member, and we will provide professional services to our customers with more advantageous LCD product resources.

Factory

Factory

Certificate

Certificate

View full details
