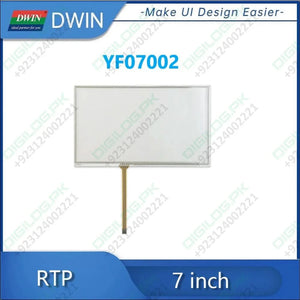

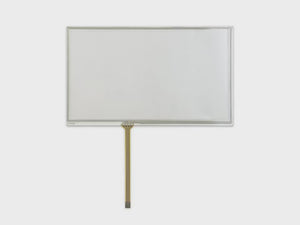

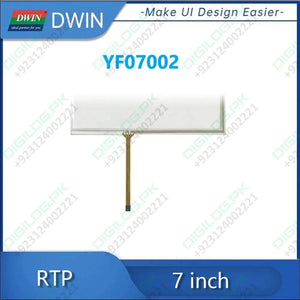

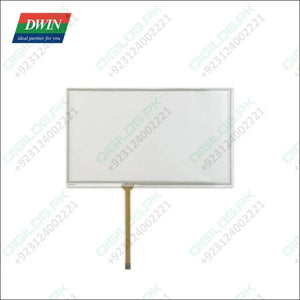

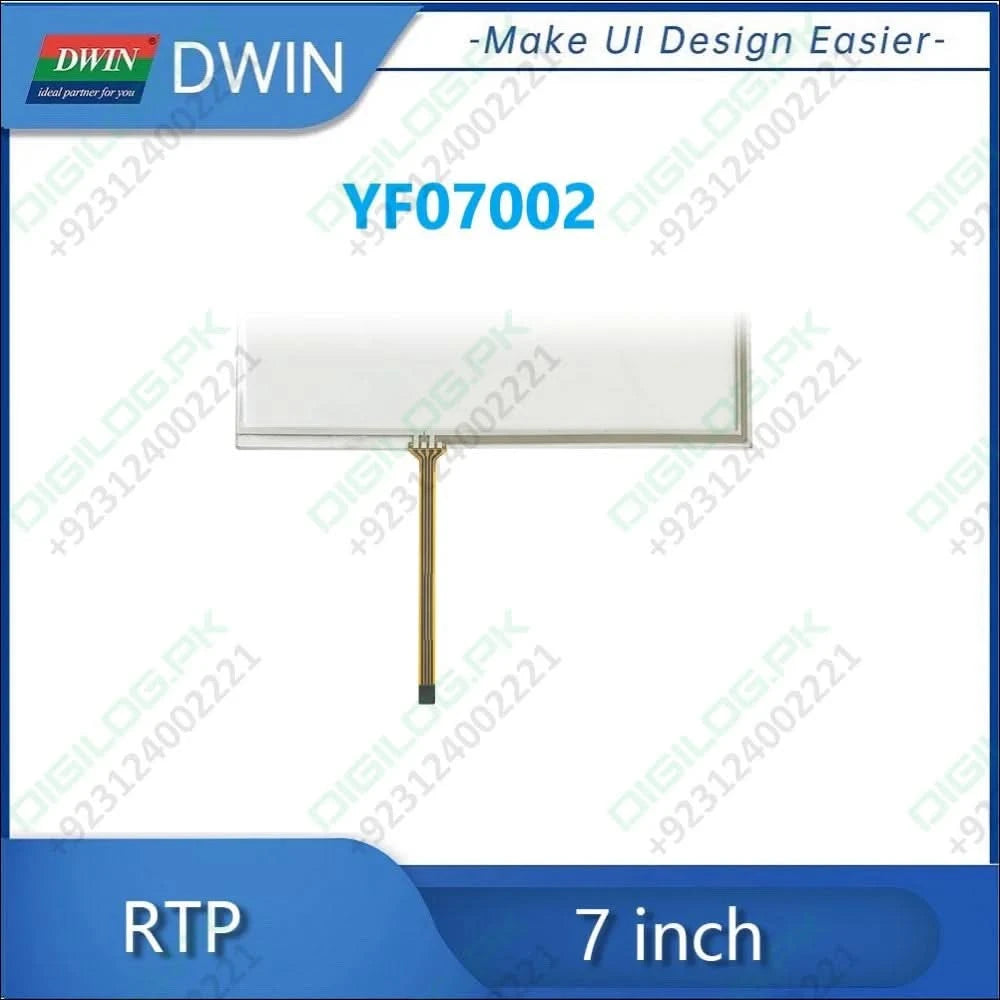

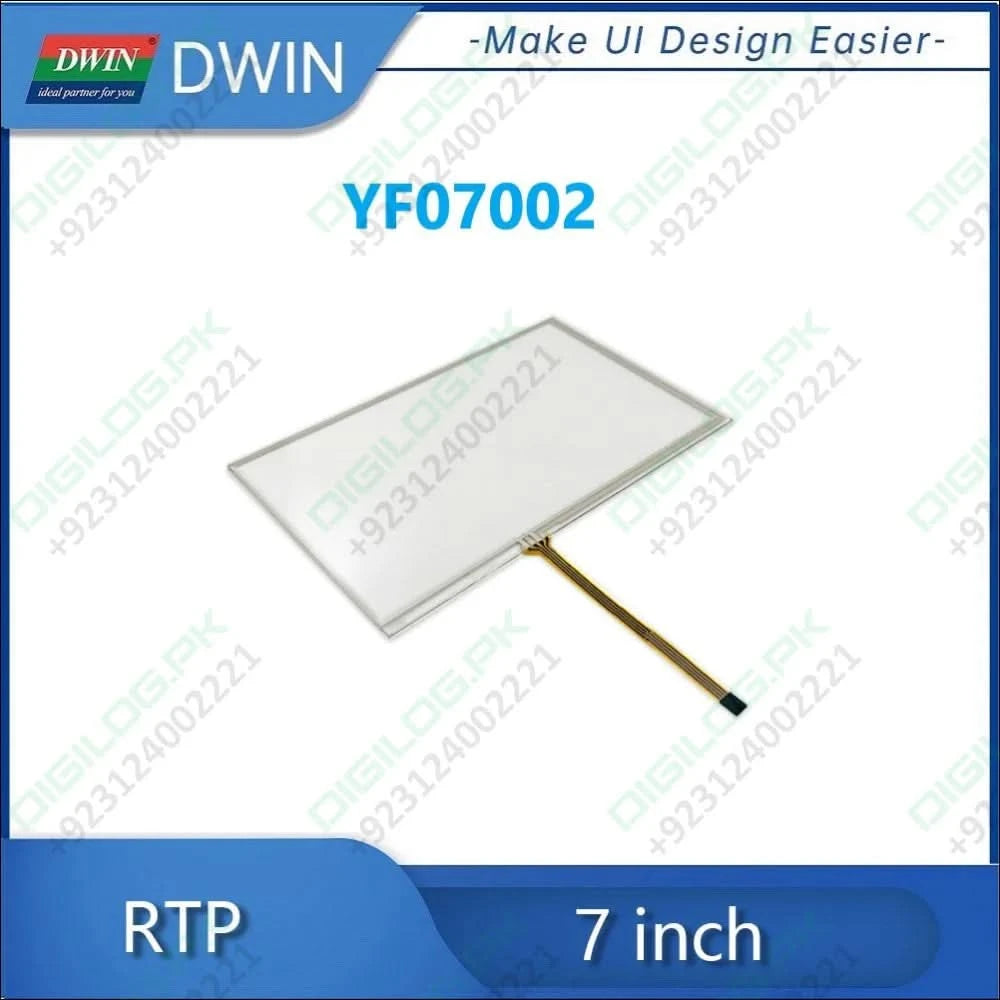

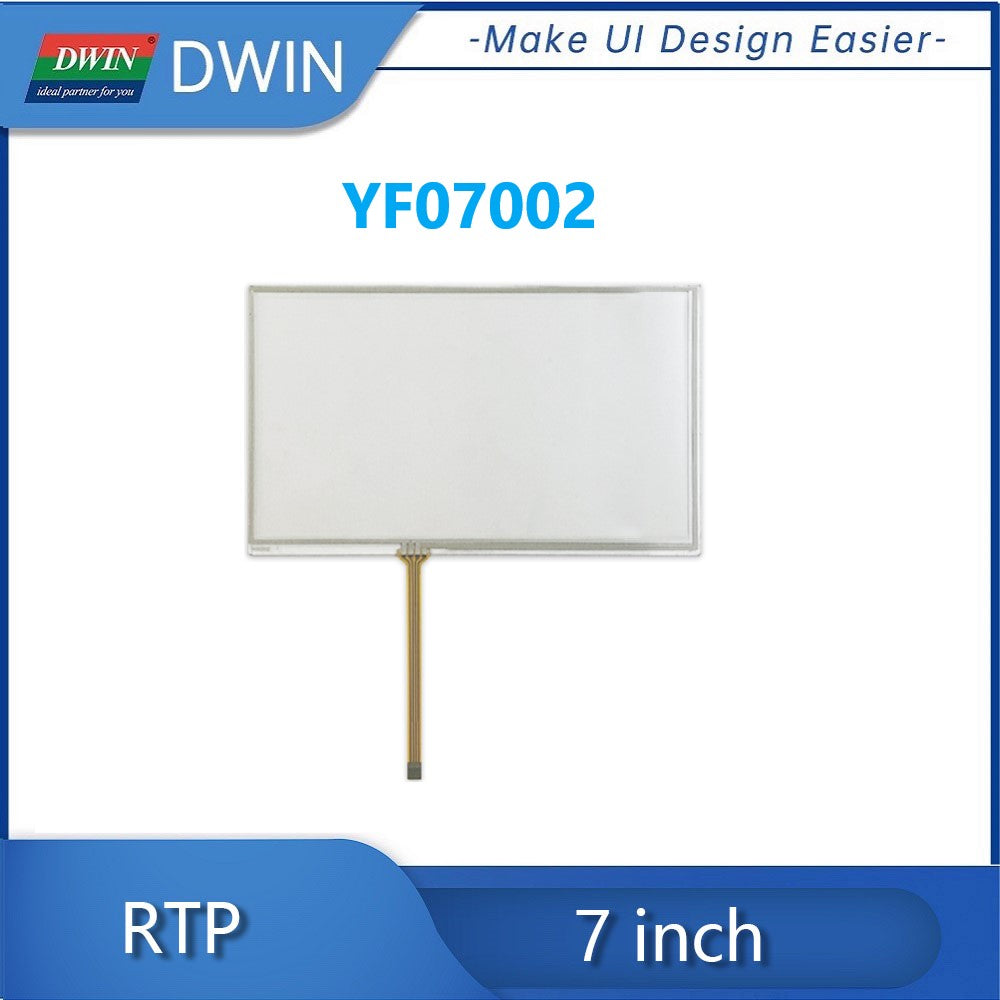

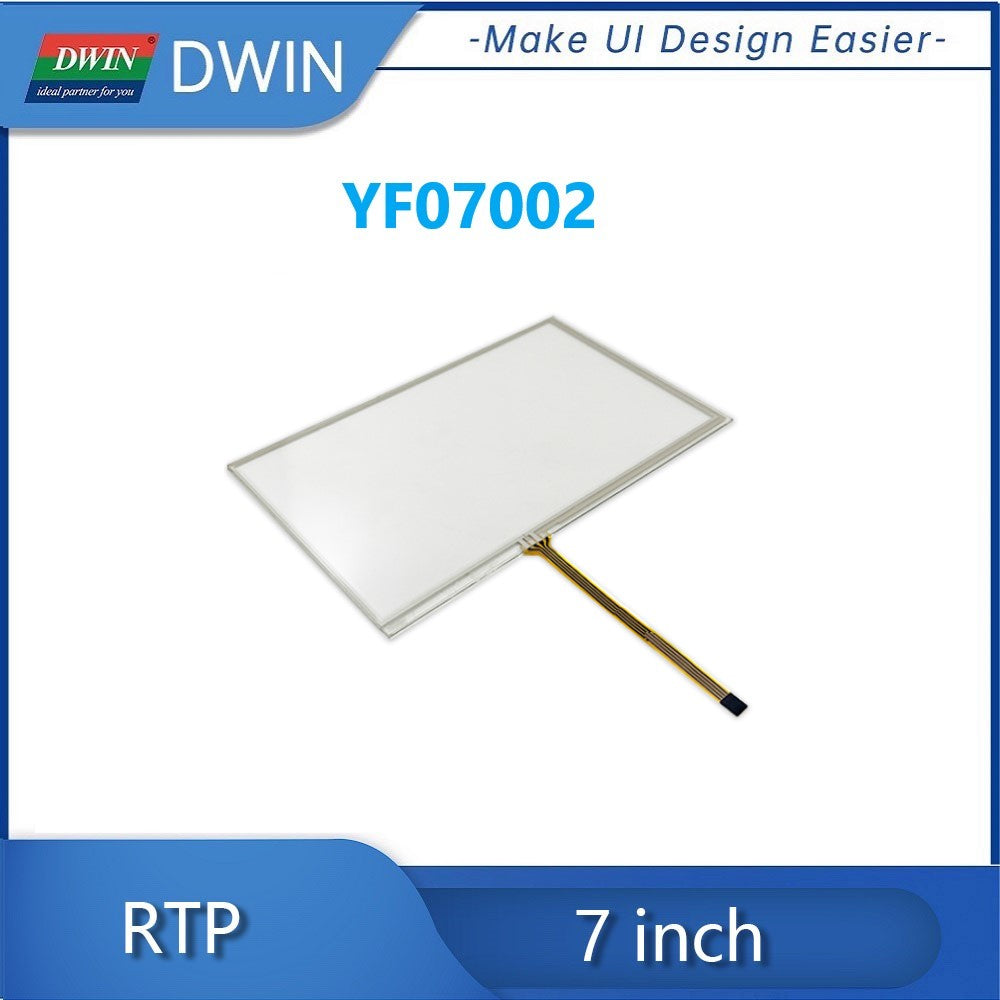

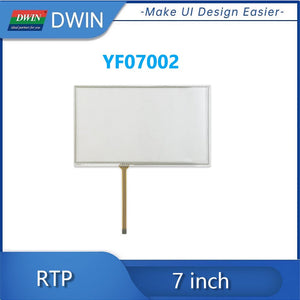

DWIN 7 Inch 4 Wire Resistive Touch Panel YF07002
Support customization for touch panel, such as high temperature, high humidity and anti-UV
|
Structure |
Materials |
Description |
|
Top Circuit |
ITOFilm |
Thickness: 0.188mm ITO Film with Anti-glare hard |
|
Bottom Circuit |
ITO Glass |
Thickness: 1.1mm ITO Glass with Anti-reflection |
|

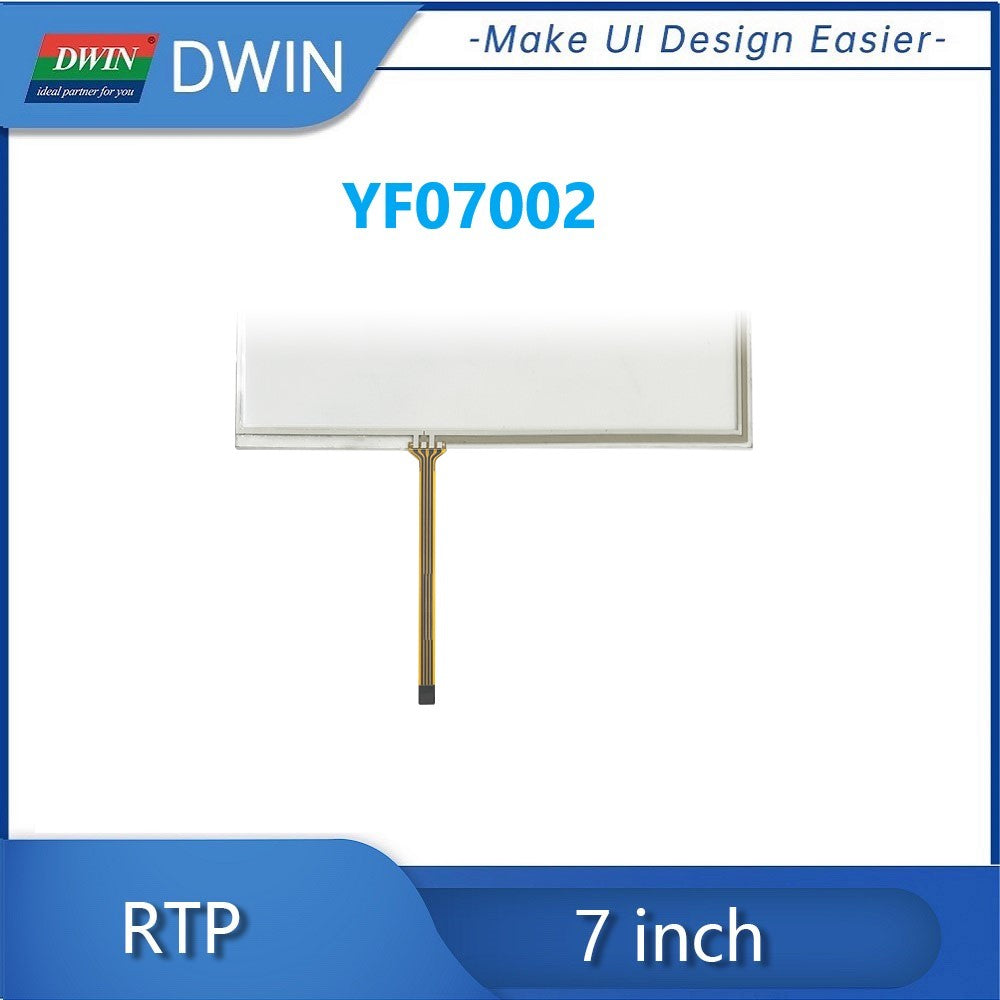

Tail Type |
FPC |
Thickness: 0.3mm |
|
Item |
Description |
Unit |
|
Type |
Four-Wire Resistive |
- |
|
Screen Size |
7 |
inch |
|

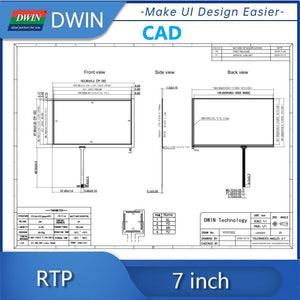

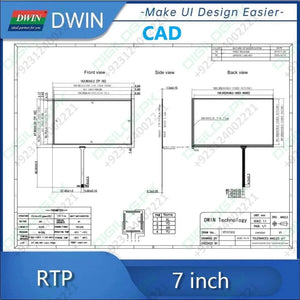

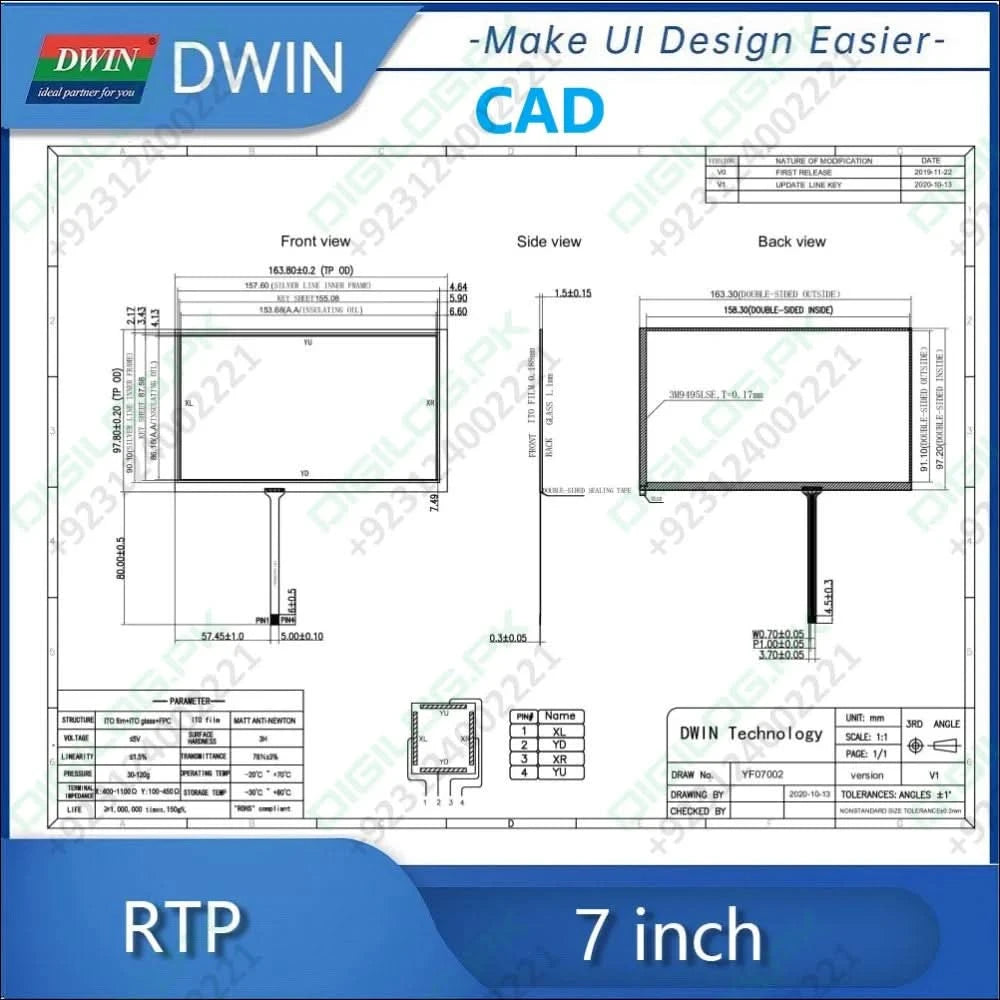

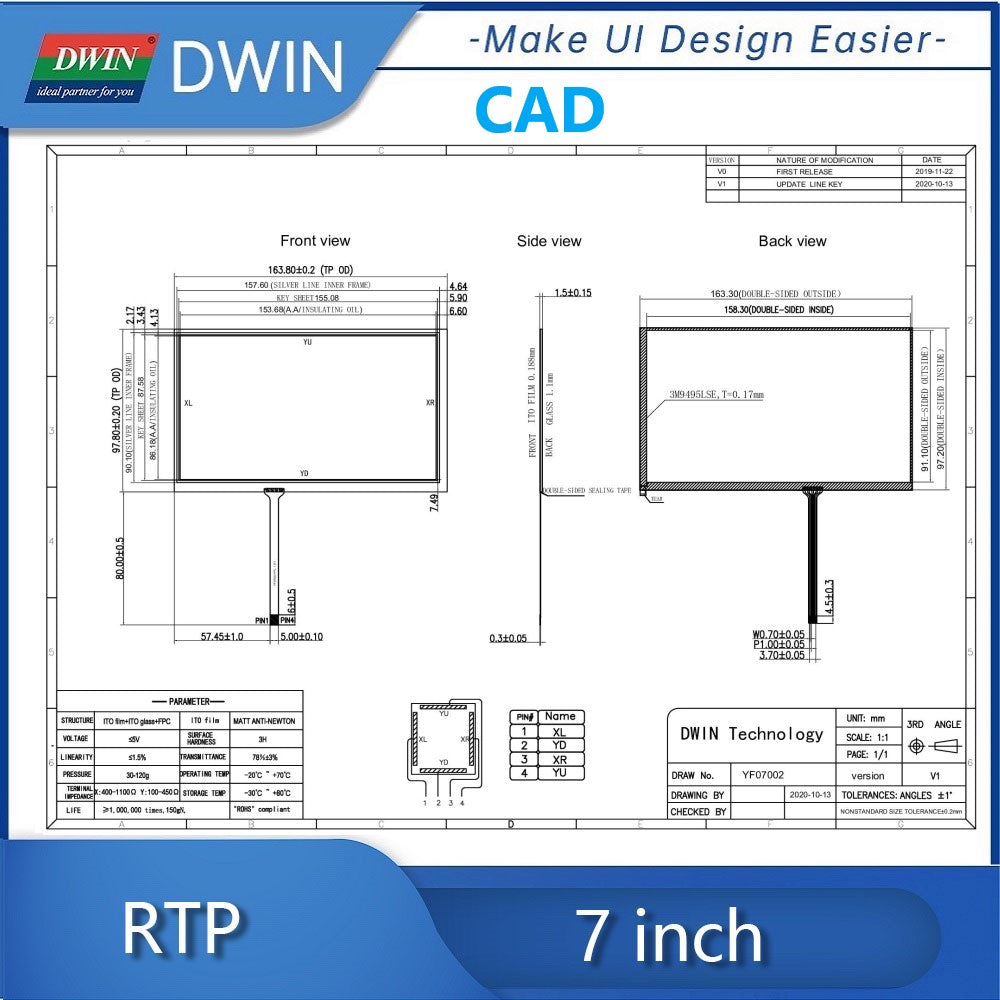

Physical Dimension |
163.8(W)*97.8(H)*1.50(D) |
mm |
|
Active Area |
153.68(W)*86.18(H) |
mm |
|
Tail Length |
80±0.5 |
mm |
|
Input Method |
Press |
- |
|
Surface Hardness |
3H |
- |
|
Life |
≥1,000,000 times 150g N |
- |
|
Humidity |
20%~90% non dew condensation |
|
|
Operating Temperature |
-20~70 |
℃ |
|
Storage Temperature |
-30~80 |
℃ |
|
PIN |
Signal |
Description |
|
1 |
XL |
X-(Left) |
|
2 |
YD |
Y-(Down) |
|
3 |
XR |
X-(Right) |
|
4 |
YU |
Y-(Up) |
|
Item |
Value |
Remark |
|
Light Transmittance |
78%±3% |
|
|
Item |
Value |
Remark |
|
Rated Voltage |
≤5V |
|
|
Current |
- |
|
|
Terminal Impedance |
X: 400-1100Ω Y: 100-450Ω |
|
|
Linearity |
X direction: within ±1.5℅ |
Testing method as Figure 1 |
|
Y direction: within ±1.5℅ |
||
|
Insulation Resistance |
DC 25V 20MΩ above |
Connect X+～X-and Y+～Y-, apply 25V DC Between X and Y for perform measurements |
View more
