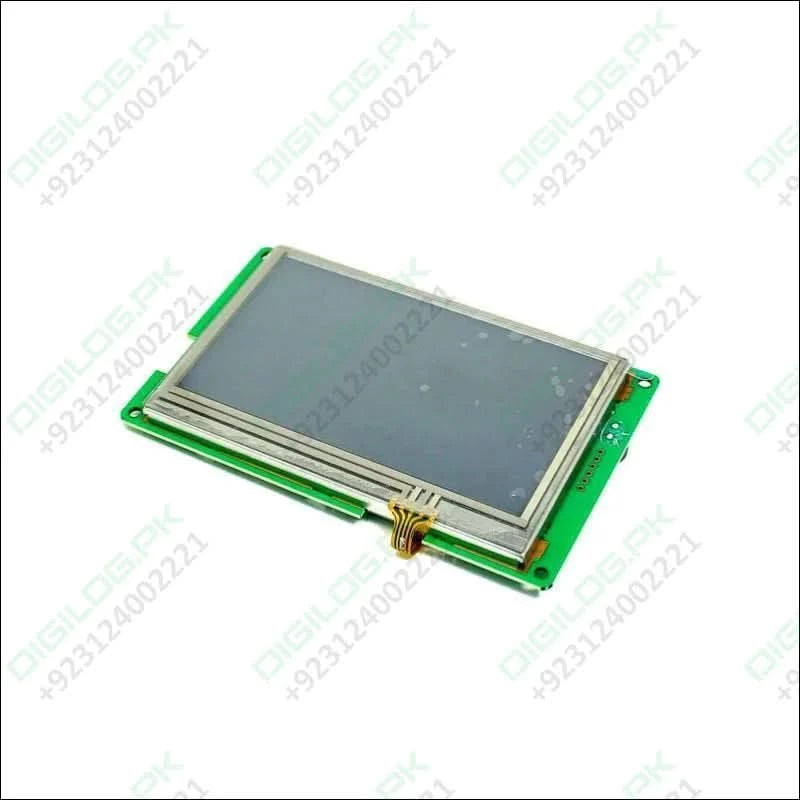

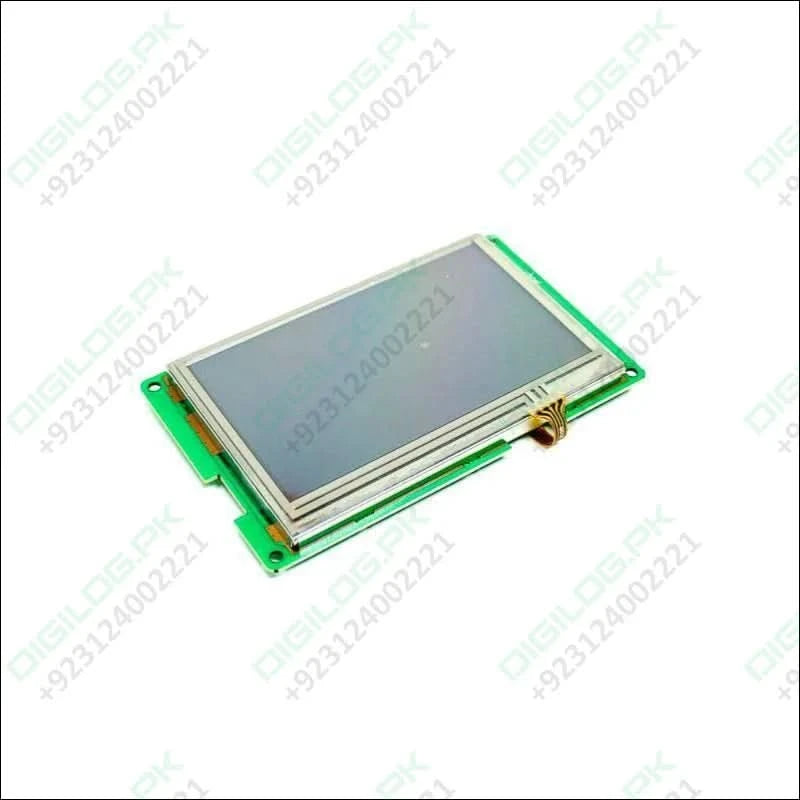

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display Dmg48270c043-03wtr In Pakistan

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display Dmg48270c043-03wtr In Pakistan

Regular price Rs 8,500
Regular price Sale price Rs 8,500
Sale Sold out
Shipping calculated at checkout.

SKU:B823 krt110

NOTIFY ME WHEN IN STOCK

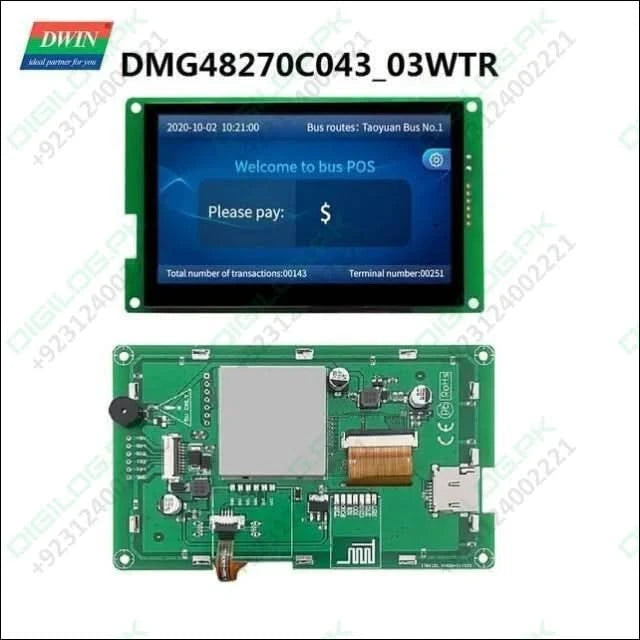

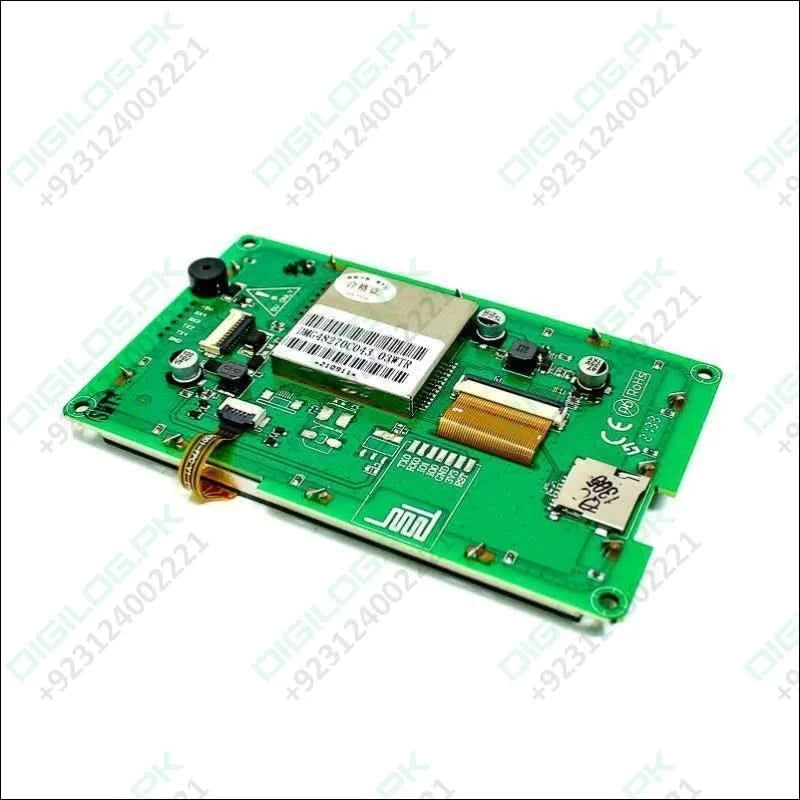

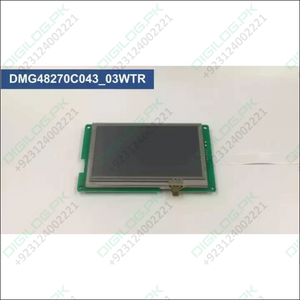

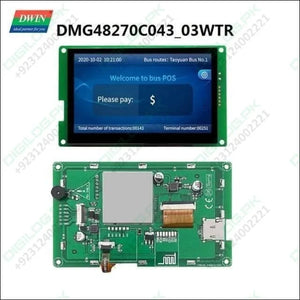

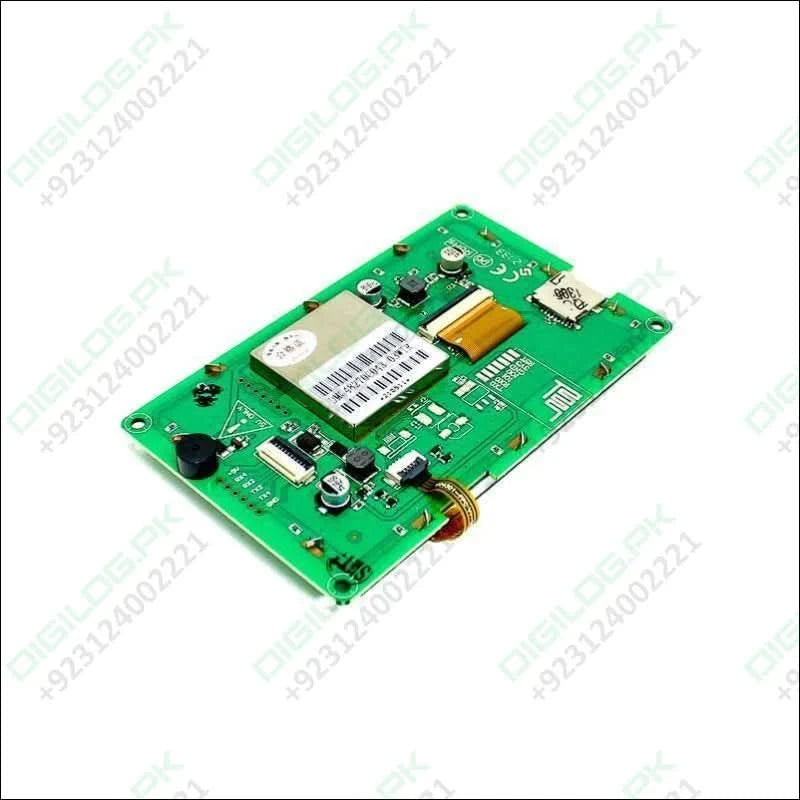

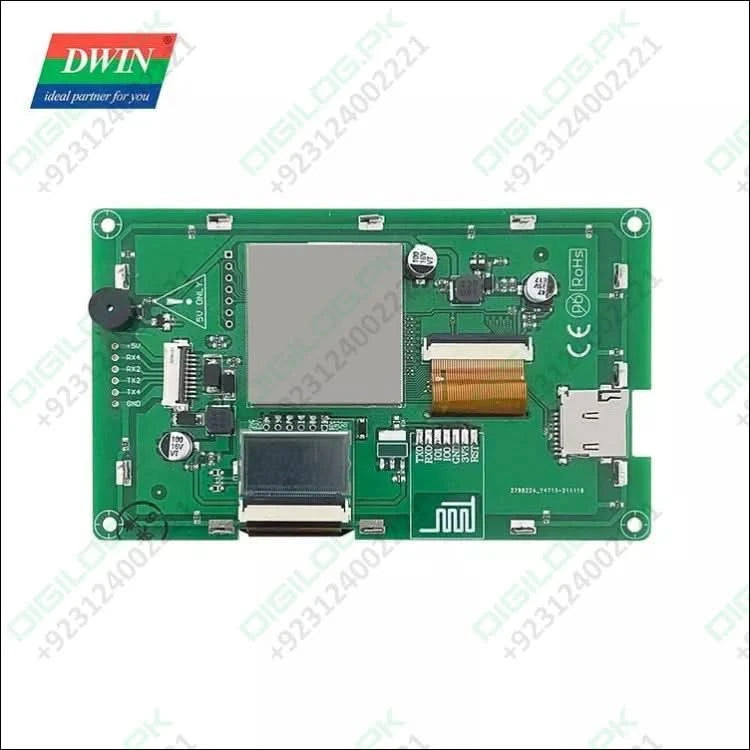

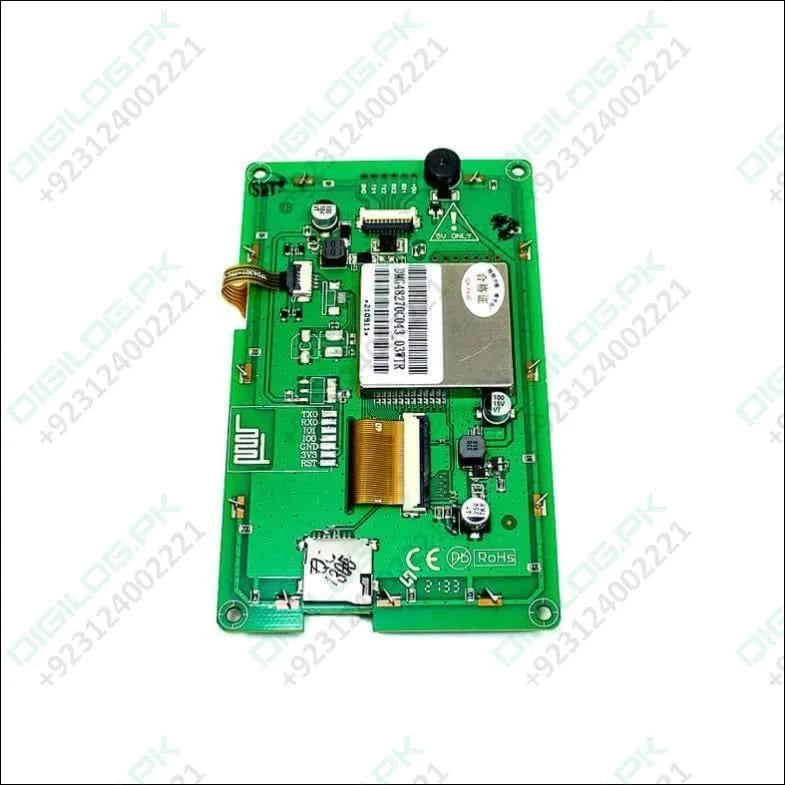

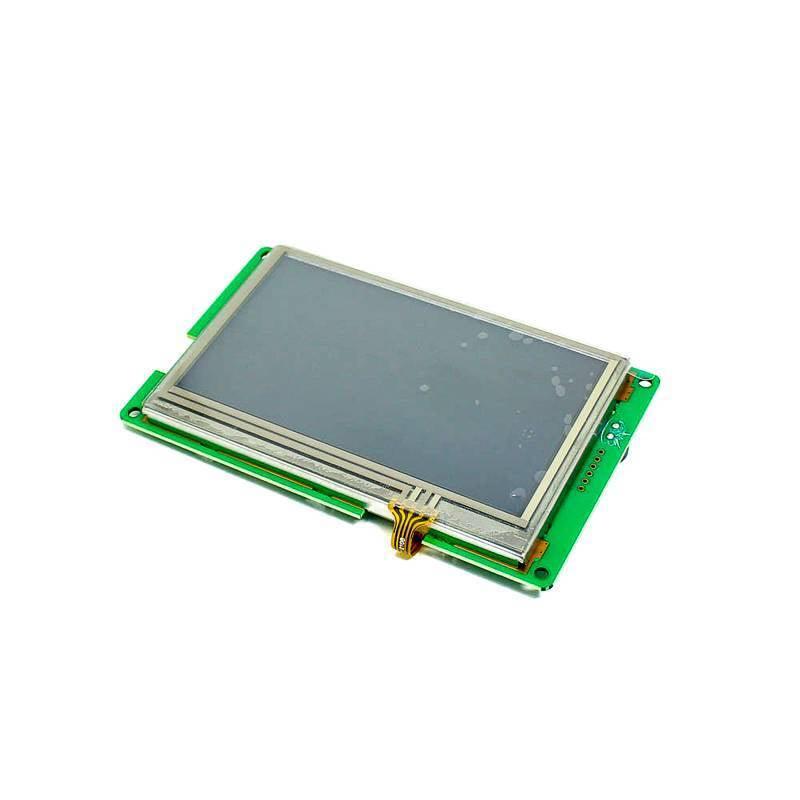

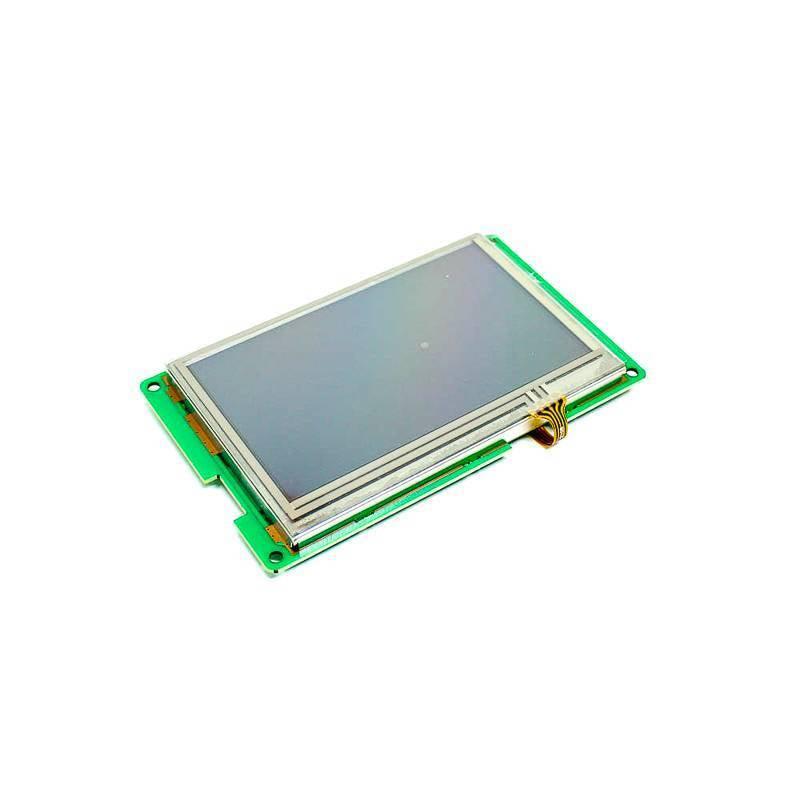

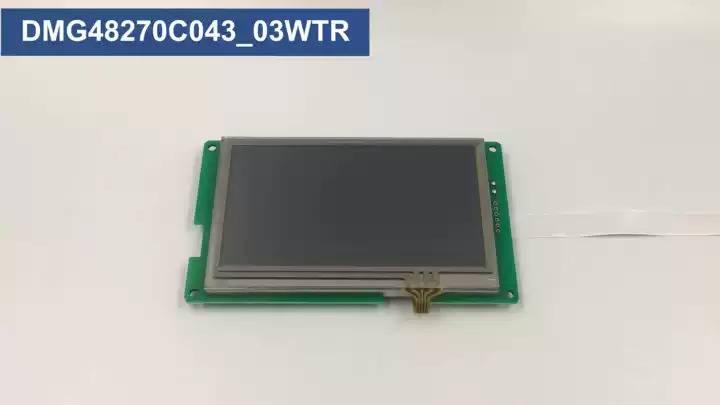

 DWIN 4.3 Inch HMI TFT Touch Screen LCD Display DMG48270C043-03WTR

This DWIN 4.3 inch SMART Screen is quite useful and is full features load SMART screen. It is called a SMART screen because it comes with UI development Software from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI such as a button, slider, Graph, Text Display, etc on their own.

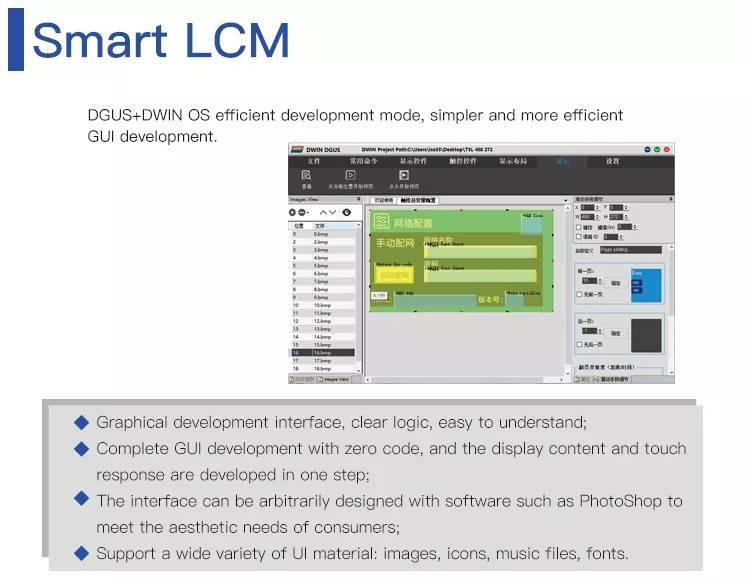

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colours and 16.7M colours. It is also equipped with 200nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interfaced with I2C communications.

Features:

  1. UI Version: TA / DGUS II ( DGUS II pre-installed)
  2. Powerful data management
  3. Dimensions:121.9(W) × 73.2(H) ×14.1 (T) mm
  4. Capacitance touch panel, Buzzer, WIFI module interface
  5. Powerful data management
  6. Built-in DGUS II intelligent software

Display:

  1. Size -4.3″
  2. Display Format -480×800 Pixel Matrix
  3. Brightness -200nit
  4. Active Area – 56.16mm (W) ×93.6mm (H)
  5. Colour – 24-bit colour 8R8G8B
  6. Backlight – LED

Interface:

  • UART2: N81, 3.3V TTL/CMOS
  • UART4: Optional N81/E81/O81/N82 four mode, 3.3V TTL/CMOS

Operating Voltage (VDC)

4.5 ~ 5.5

RAM

128KB

Flash Memory

16MB

Interface

I2C
UART

LED Brightness (MCD)

200

Touch Type

Resistive

Shipment Weight

0.176 kg

Shipment Dimensions

16 × 11 × 5 cm

T5L_DGUSII Application Development Guide

About this screen:

DWIN 4.3 Inches, 480xRGBx272, 262K Colors, TN screen, no touch, capacitive touch screen, and resistive screen can be supported.

Commercial smart screen, Standard instruction set (TA) / DGUSⅡ system、Cost-Effective screen.

About DWIN:

DWIN can provide LCD modules, smart LCM, Android LCM, Linux LCM, HDMI, COF display, AIOT display, ASIC, smart solutions, etc., and accept all customization. Our touch panel sizes range from1.54~ 21.5 inches to medical equipment inches, suitable for new energy, financial equipment, construction machinery, industrial equipment, consumer electronics, and beauty equipment. We can be your best win-win partner.

Package Includes :

1 x DWIN 4.3 Inch HMI TFT Touch Screen LCD Display DMG48270C043-03WTR In Pakistan





Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display

Dwin 4.3 Inch Hmi Tft Touch Screen Lcd Display



View full details
