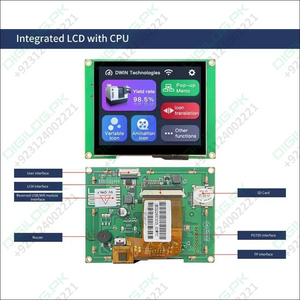

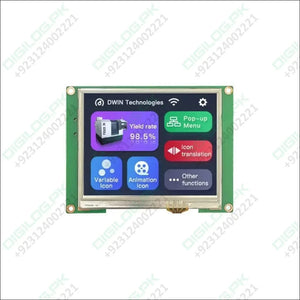

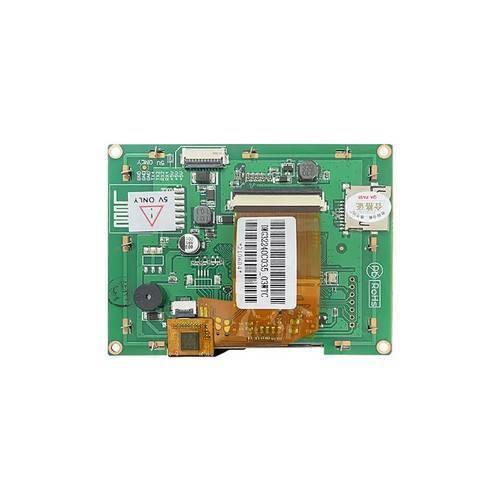

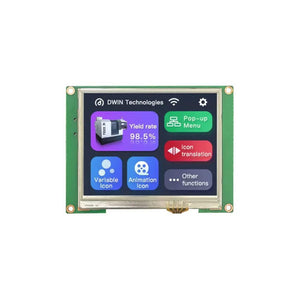

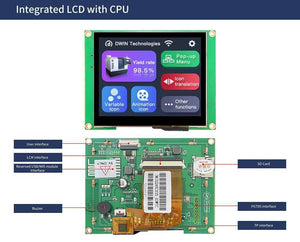

Dwin 3.5 Inch Hmi Tft Touch Screen Lcd Display Dmg32240c035-03wtr In Pakistan

Dwin 3.5 Inch Hmi Tft Touch Screen Lcd Display Dmg32240c035-03wtr In Pakistan

Regular price Rs 8,000
Regular price Sale price Rs 8,000
Sale Sold out
Shipping calculated at checkout.

SKU:B229

NOTIFY ME WHEN IN STOCK

This DWIN 3.5 inch SMART Screen is quite useful and is full features load SMART screen. It is called a SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Such as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed). Also, it is supported with RGB colours and 16.7M colours. It is also equipped with 300 nit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards like Arduino, Raspberry and many more… which can interface with I2C communications.

Features:

  1. Built-in DGUS II intelligent software
  2. Powerful data management
  3. Active Area (AA):49.0mm (W) ×73.4mm (H)
  4. Dimensions:103.3(W) mm× 61.1(H)mm × 12.3(T)mm capacitive touch panel, Built-in Buzzer, WIFI_10 module
  5. Powerful data management
  6. Built-in DGUS II intelligent software

Display:

  1. Size – 3.5″
  2. Display Format -320×480
  3. Brightness -300nit
  4. Active Area – 49.0mm (W) ×73.4mm (H)
  5. Colour – 24-bit colour 8R8G8B
  6. Backlight – LED

Model

DMG48320C035_03WTC

Operating Voltage (VDC)

4.5 ~ 5.5

Interface

I2C
UART

Flash Memory

16MB

RAM

128KB

LED Brightness (MCD)

300

Touch Type

Resistive

Shipment Weight

0.118 kg

Shipment Dimensions

13 × 11 × 6 cm

Interface:

  • UART4: Optional N81/E81/O81/N82 four-mode, 3.3V TTL/CMOS ( Be used after OS
    configuration )



Package Includes :

1 x DWIN 3.5 Inch HMI TFT Touch Screen LCD Display DMG32240C035-03WTR
