This 15.6" HMI LCD display module features a TFT LCD panel with 1364x768 resolution and a colorful touch screen. It comes equipped with RS232 and TTL UART interface options, making it suitable for smart panel applications. The LCD module is designed for durability and optimal performance, guaranteeing clear and precise images.

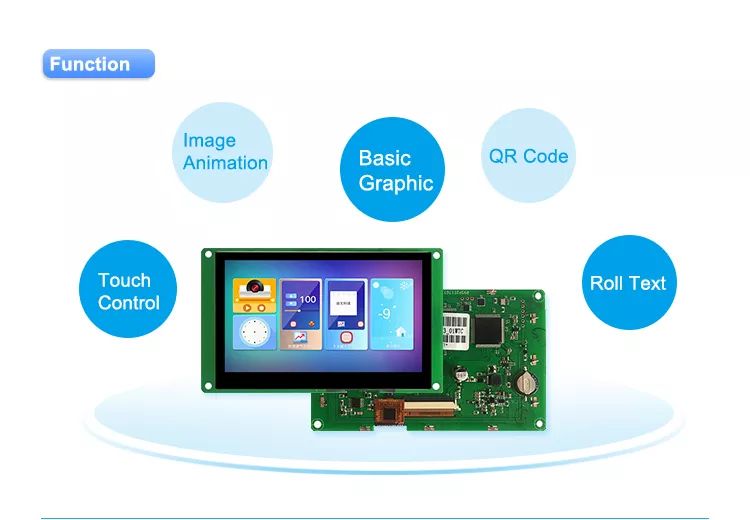

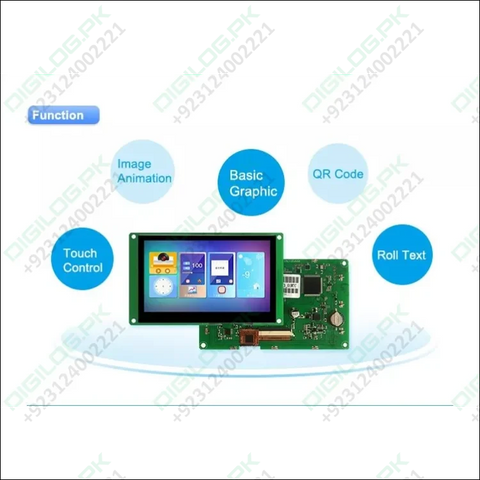

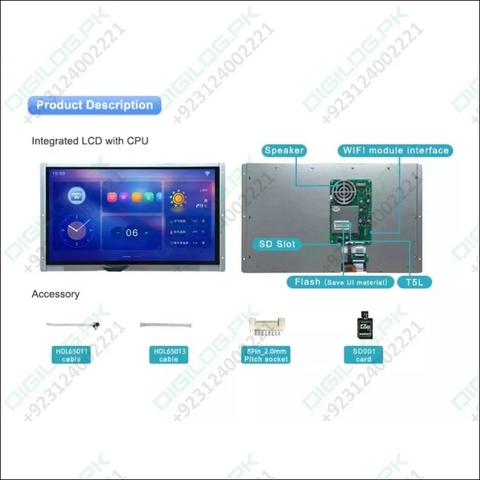

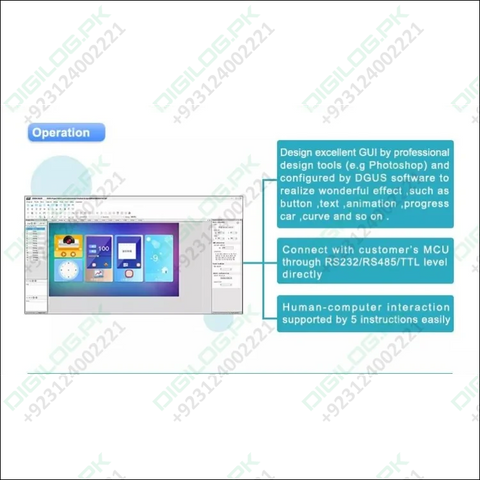

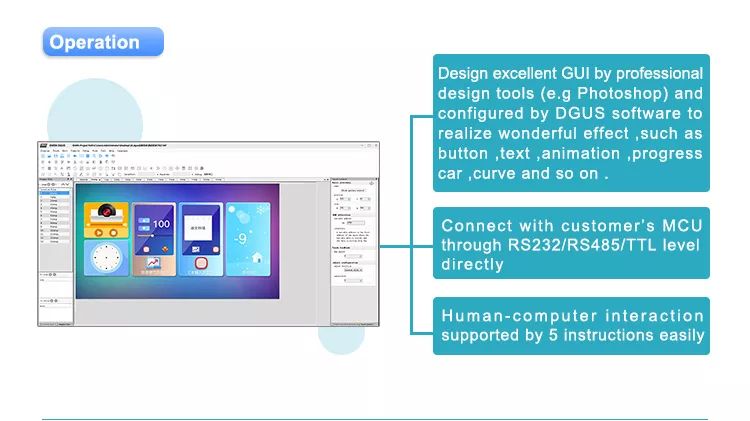

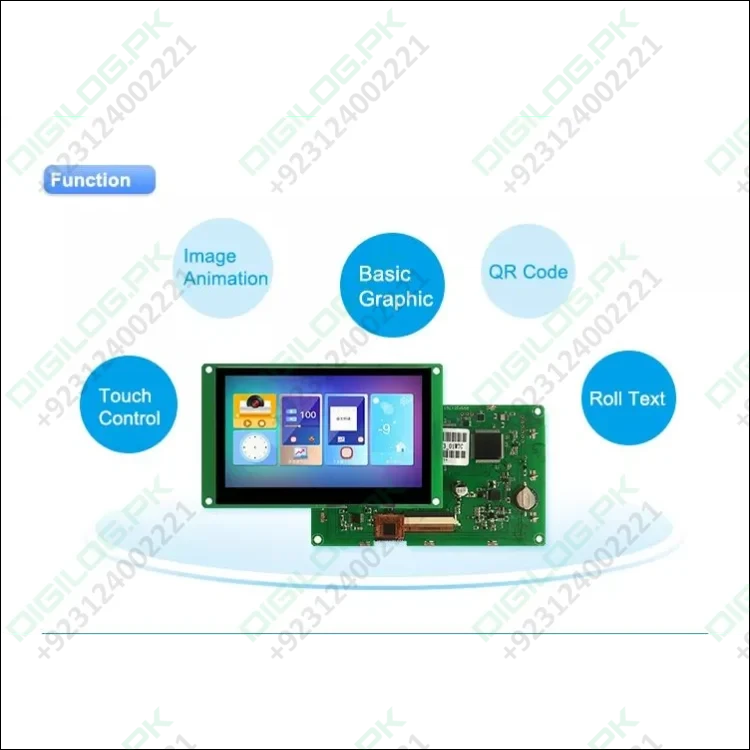

intelligentΒ capacitiveΒ touch screens

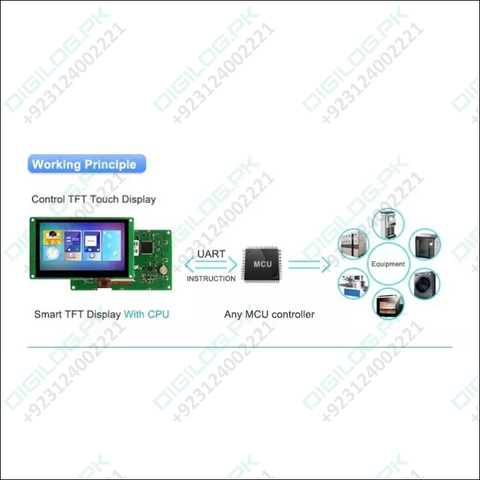

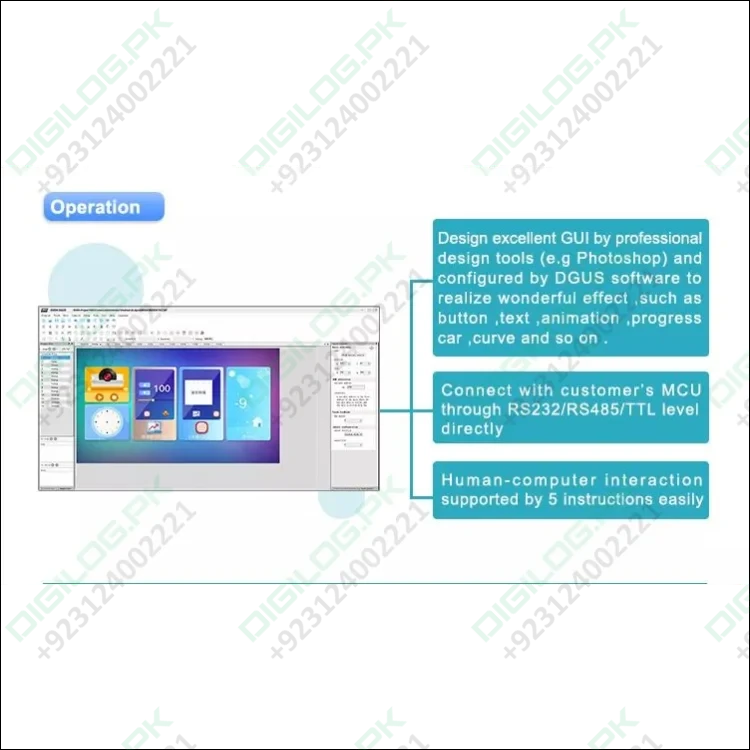

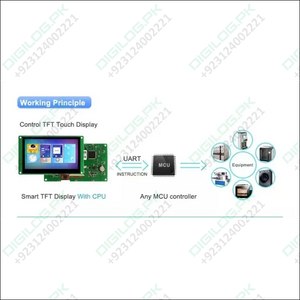

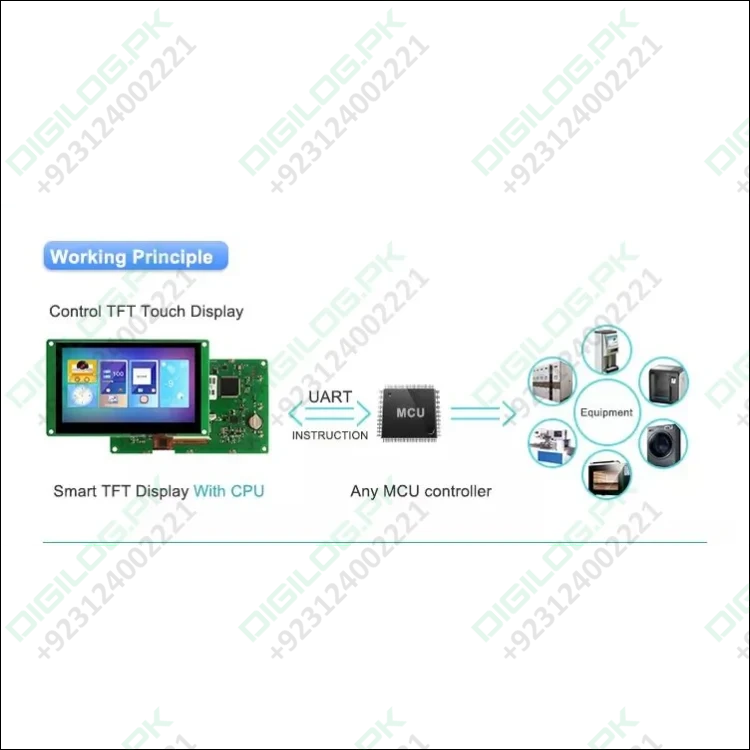

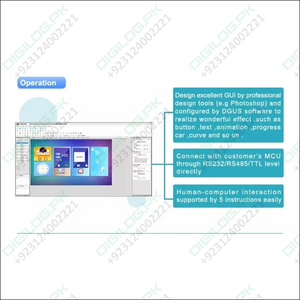

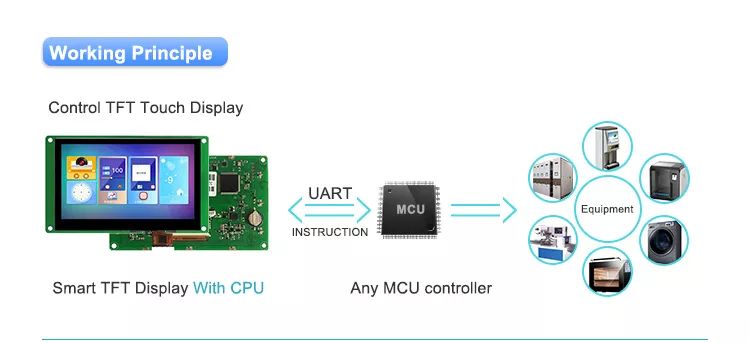

withΒ UART PORTΒ which can be controlled byΒ ANY MCUΒ via
SimpleΒ Powerful Command Set, so it can be used as TFT Display & Touch controller.
in various electronic equipment. The lcd display screen panel, touch lcd.
screen, DWIN display is your best choice for HMI project.
Display
|
Item
|
Parameter
|
Description
|
|
Color
|
262KοΌ262144οΌcolors
|
18 bit color 6R6G6B
|
|
Panel Type
|
EWTN
|
Wide viewing angle TN process TFT LCM.
|
|
Viewing Angle
|
75/75/75/75 (Typ.)(CRβ₯10)
|
Best ViewοΌsymmetrical
|
|
Active Area( A.A)
|
343.23mm (W) Γ192.54mm (H)
|
1366x768 Pixel Matrix
|
|
Resolution
|
1366x768 Pixel Matrix
|
Support 0Β°/90Β°/180Β°/270Β°rotated display
|
|
Backlight
|
LED
|
β₯20000HοΌContinuous working with maximum brightness, time of the brightness decays to 50%
|
|
Brightness
|
WTC/WN:200nit
|
TA system:64 levels adjustment;
DGUSβ ‘system:100 levels adjustmen (It's not recommend to set brightness to 1%~30% of the maximum,which may lead LCD flicker) |
|
Note: Displaying of high-contrast still images for more than 30 minutes may result in residual images. Please add animation to
avoid this problem. |
||
Voltage & Current
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Power Voltage
|
-
|
12.0
|
12.0
|
30.0
|
V
|
|
Operation Current
|
VCC = +12V, Backlight on
|
-
|
370
|
-
|
mA
|
|
VCC = +12V, Backlight off
|
-
|
130
|
-
|
mA
|
Reliability Test
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Working Temperature
|
60%RH at 12V voltage
|
0
|
25
|
50
|
β
|
|
Storage Temperature
|
-
|
-10
|
25
|
60
|
β
|
|
Working Humidity
|
25β
|
10%
|
60%
|
90%
|
RH
|
|
Protective Paint
|
-
|
-
|
-
|
-
|
-
|
|
Aging Test
|
-
|
-
|
-
|
-
|
H
|
|
Electrostatic protection capability
|
Non-contact
|
-
|
Β±4kv
|
-
|
-
|
Interface
|
Item
|
Conditions
|
Min
|
Typ
|
Max
|
Unit
|
|
Baudrate
|
User Set
|
3150
|
115200
|
-
|
bps
|
|
Output Voltage
οΌTXDοΌ |
Output 1, Iout =-4mA
|
4.78
|
5.0
|
-
|
V
|
|
|
Output 0, Iout = 4mA
|
-
|
-
|
0.4
|
V
|
|
Input Voltage
οΌRXDοΌ |
Input 1
|
2.5
|
5.0
|
-
|
V
|
|
|
Input 0
|
-
|
-
|
1.0
|
V
|
|
Interface
|
ON=N81, 3.3V&5V TTL/COMSοΌ
OFF=N81,RS232 |
||||
|

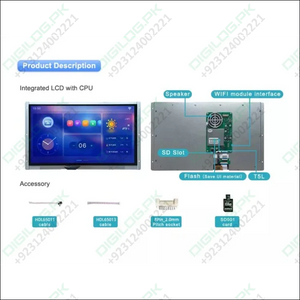

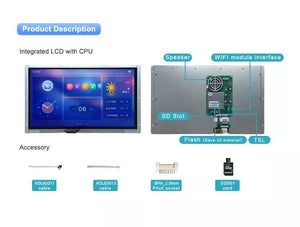

Socket
|
8Pin_2.0mm Socket
|
||||
|
USB
|
none
|
||||
|
SD Slot
|
YES (SDHC/FAT32 Format)
|
||||
|
Speaker
|
YES
|
||||
Memory
|
Item
|
Typical value
|
Features
|
Description
|
|
FLASH
οΌTA/DGUSβ ‘οΌ |
16Mbytes
|
Space of Font
|
A single font of 256Kbytes,store font, icon libraries,and other binary files
|
|
|
Picture Storage
οΌ.ICL file) |
JPEG format(Picture quantity relate to JPEG sizeοΌsize of a single JPEG image file should not exceed 256Kbytes)
|
|
|
RAM
|
128KbytesοΌDGUSβ
‘οΌ
|
RAM
|
Data is not saved when power down
|
|
64KbytesοΌTAοΌ
|
|
|
|
|
Nor FlashοΌDGUSβ
‘οΌ
|
320Kbytes
|
User database
|
Data is saved when power down
|
UI & Peripherals
|
UI & Peripheral
|
|
|
UI Version
|
TA / DGUSβ
‘ ( DGUSβ
‘ pre-installed )
|
|
Peripherals
|
Capacitance touch screen, speaker
|
