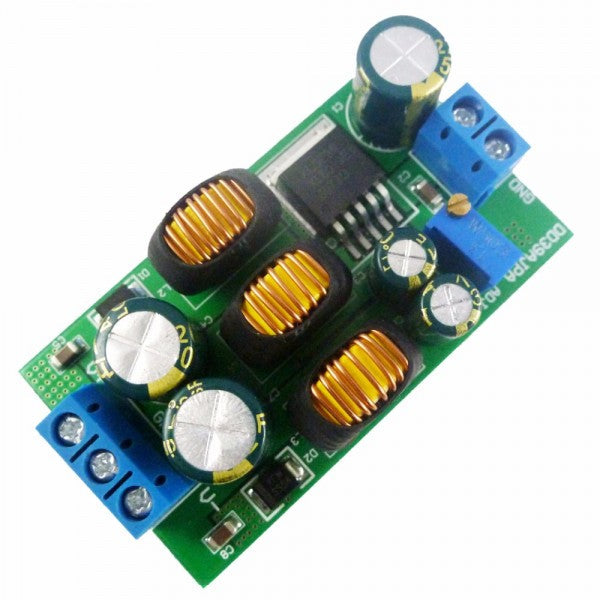

Dual Output DC +-5V 6V 9V 10V 12V 15V 24V Power Supply DC Boost-buck Converter Module
Pickup available at Digilog Electronics
Usually ready in 2 hours
Dual Output DC +-5V 6V 9V 10V 12V 15V 24V Power Supply DC Boost-buck Converter Module
This is a modern switch mode DC/DC converters which take the input voltage, create AC with it through the switchmode process, convert the voltage, regulate, rectify and filter to create a DC output.
specifications
- Input Voltage: DC 3.6-30V
- Maximum output power: 20W
- Output Current: <3000mA
- Output Frequency: DC-DC
- Output Power: 1 - 50W
- Output Type: Dual
- Output Voltage: DC +-3-30V
- Type: DC/DC Converters
- Input voltage 3.6~30V,output ±3~±30V adjustable
- Maximum output power: 20W
- Conversion efficiency :69-88%
- Quiescent current: 3mA
- 20W DC-DC Boost-Buck Converter working frequency 180KHZ.
- Operating ambient temperature : -40~+85 C°
- High efficiency up to 88%
- Built in Frequency Compensation
- Built in Soft-Start Function
- Built in Thermal Shutdown Function
- Built in Current Limit Function
Description
±5V :Input voltage DC 3 ~ 4.5V,output DC ±5V(Deviation is ±5%)
Maximum input current 2A
Maximum output current : +Vo is 1A,-Vo is 200mA
±6V :Input voltage DC 3 ~ 5V,output DC ±6V(Deviation is ±5%)
Maximum input current 2A
Maximum output current : +Vo is 1A,-Vo is 200mA
±9V :Input voltage DC 3.3~ 8V,output DC ±9(Deviation is ±4%)
Maximum input current 1.8A
Maximum output current : +Vo is 800mA,-Vo is 180mA
±12V :Input voltage DC 3.3~ 11V,output DC ±12(Deviation is ±4%)
Maximum input current 1.8A
Maximum output current : +Vo is 700mA,-Vo is 150mA
±15V :Input voltage DC 3.3~ 13V,output DC ±15(Deviation is ±4%)
Maximum input current 1.8A
Maximum output current : +Vo is 600mA,-Vo is 120mA
±24V :Input voltage DC 3.6~ 18V,output DC ±24(Deviation is ±4%)
Maximum input current 1.8A
Maximum output current : +Vo is 400mA,-Vo is 100mA
-

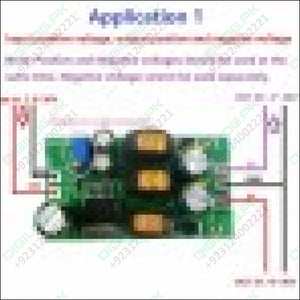

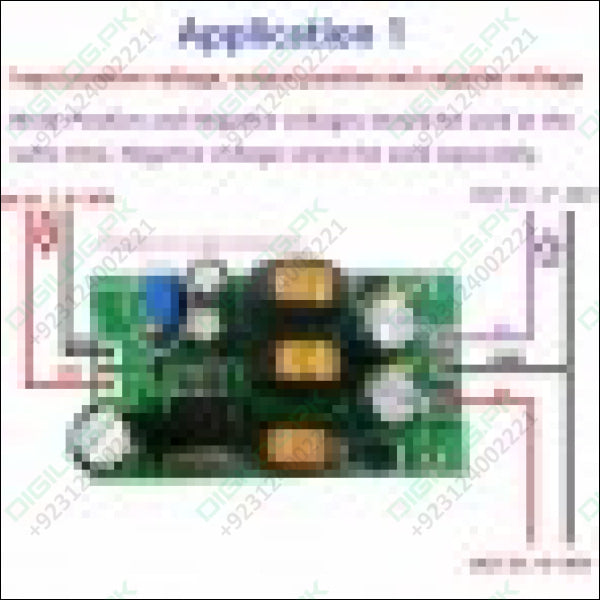

Applications
- ADC/DAC/Operational Amplifier
- RS232 RS485 RS422 Bus
- Audio equipment
- Low power audio power supply
- Car audio amplifier dual power board
- LCD power supply
- Instrumentation equipment
- Instrumentation multimeter
