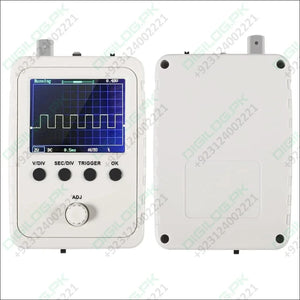

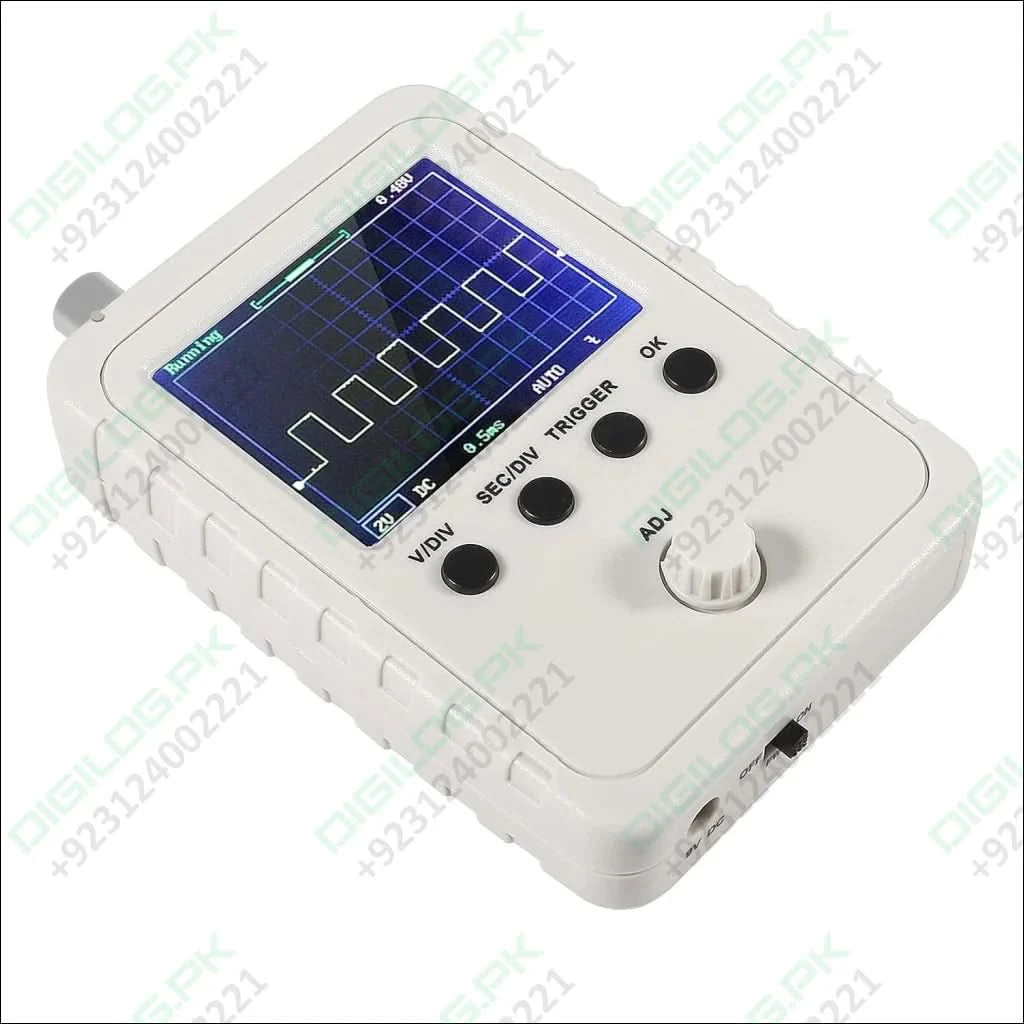

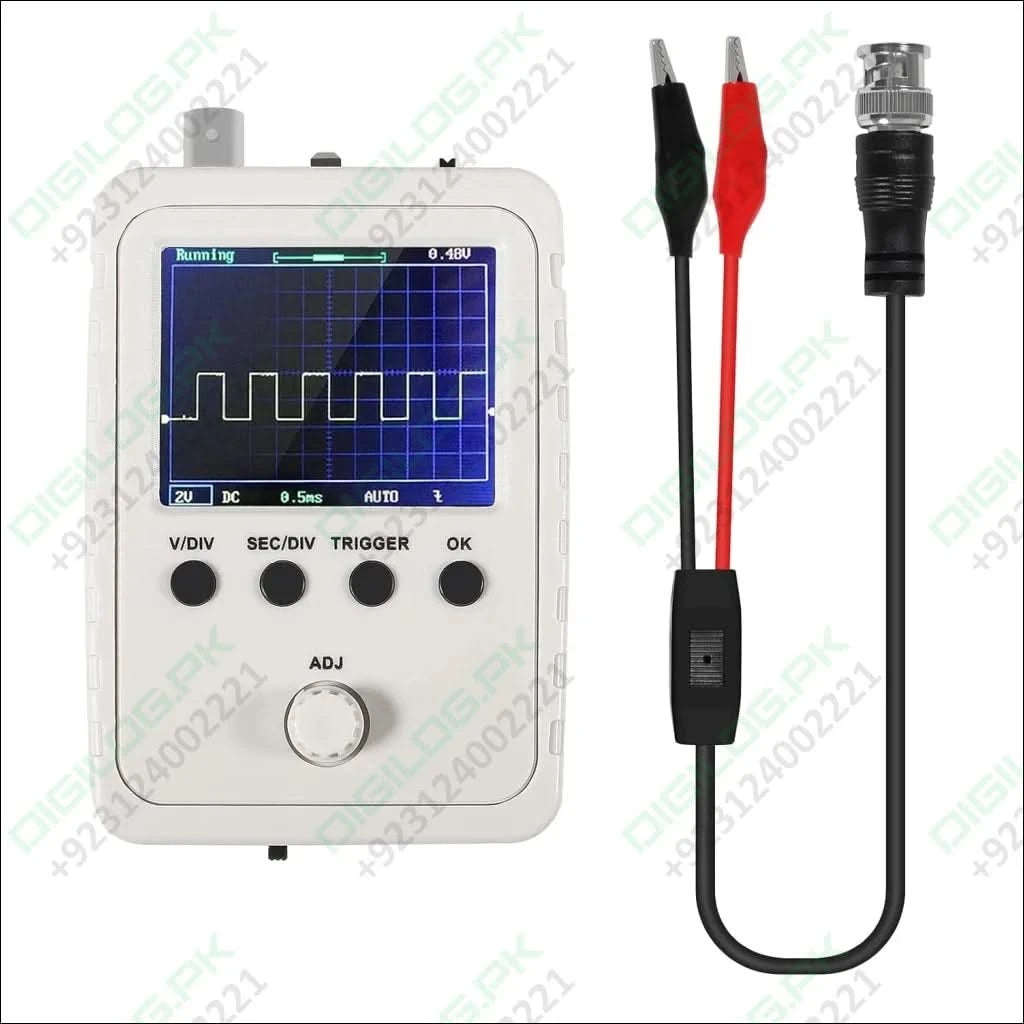

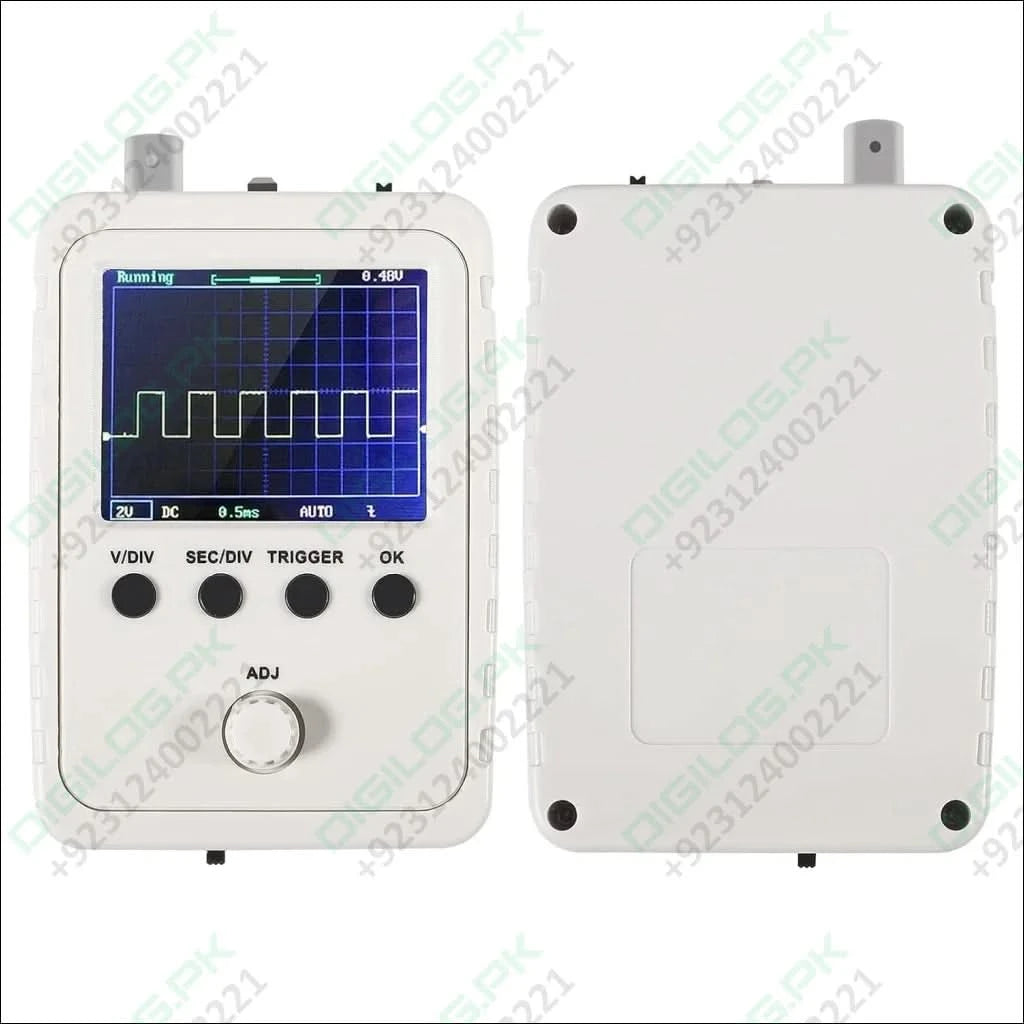

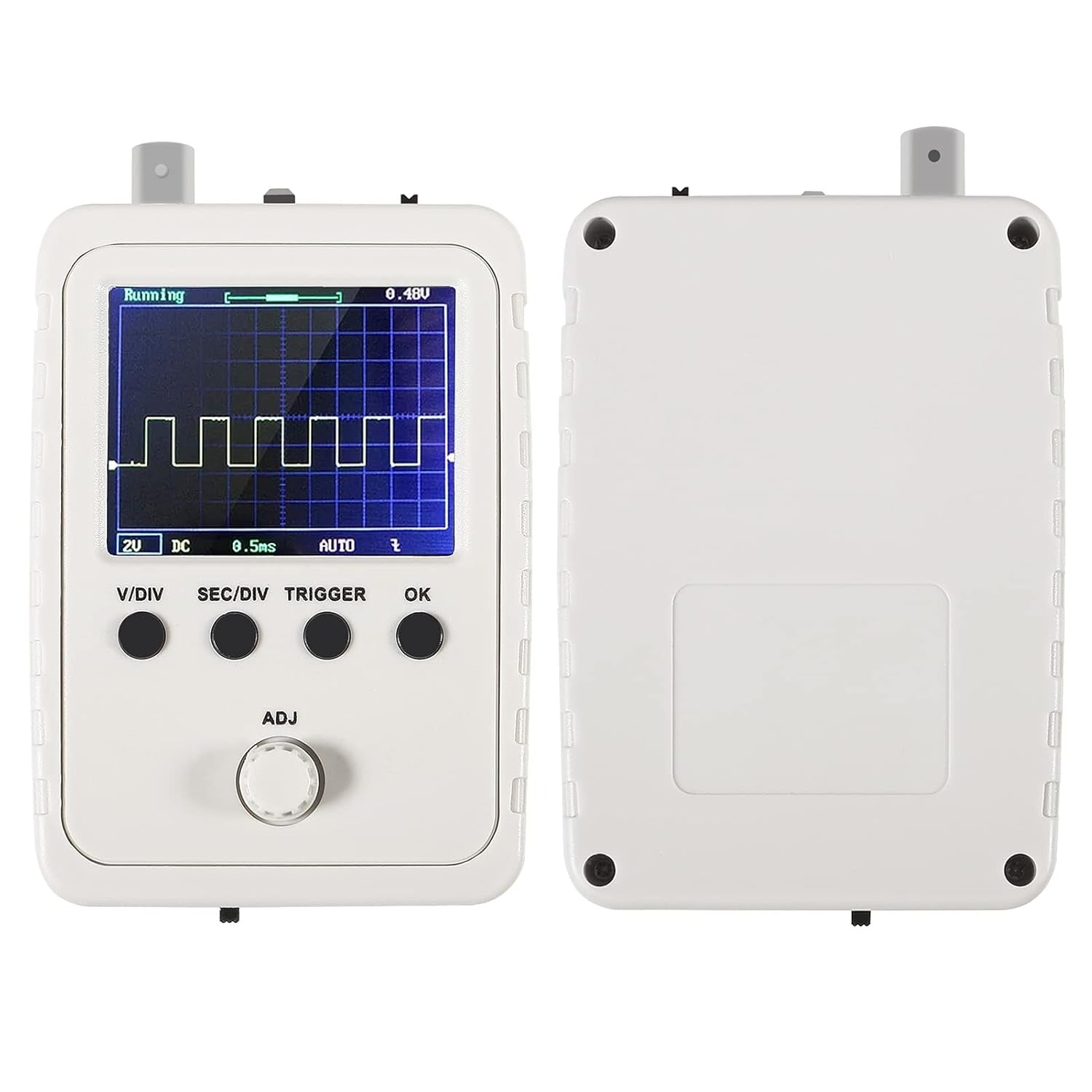

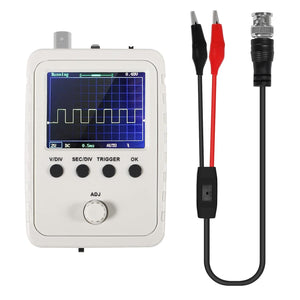

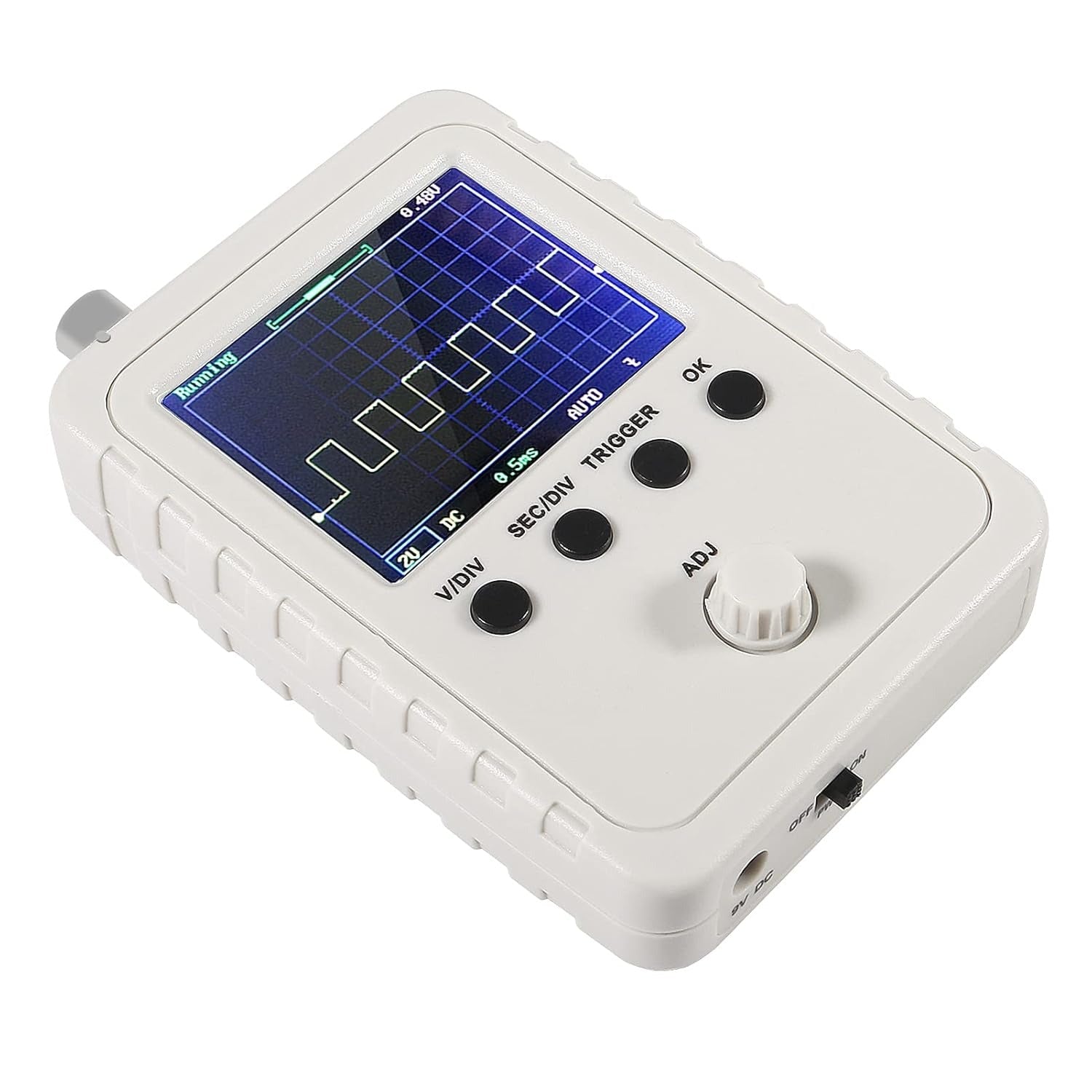

First, get started right away with the DSO150 Digital Oscilloscope Kit that comes fully assembled. Next, explore waveforms easily with its 2.4-inch color TFT display. Then, use it confidently for electronic circuit analysis, testing, and education.

After that, connect the included BNC probe to start viewing signals in real time. Also, enjoy its compact design that makes it perfect for students, hobbyists, and engineers. Finally, count on it as a reliable, budget-friendly tool for your electronics projects

Key Features

• First, use it straight out of the box with the fully assembled design no soldering needed.
• Next, view signals clearly on the 2.4" color TFT LCD display.
• Then, measure a wide range of frequencies with 0–200kHz bandwidth.
• After that, capture detailed waveforms with a fast 1Msps (Million samples per second) sample rate.
• Also, adjust easily with vertical sensitivity from 5mV/div to 20V/div.
• Meanwhile, test instantly using the built-in 1kHz square wave signal.
• Furthermore, connect quickly with the included BNC to crocodile probe.
• Finally, power the device with any standard 9V DC adapter (not included).

Related Products

• RF4 RF-3005D 30V 5A High-Precision Adjustable
• UNI-T UTG9005C-II Arbitrary Waveform
• Mechanic V-Power 8 Ultra / Max 8-Ports

Learn More

• What is a Digital Storage Oscilloscope?
• What is digital oscilloscope and its applications?
• Analog vs. Digital Oscilloscope – Keysight Buying Guide

FAQs

Q1: Is this oscilloscope already assembled?

Yes, this is the fully assembled version no soldering or additional parts are needed.

Q2: Can it measure AC and DC signals?

Yes, it supports both AC and DC waveform analysis up to 200kHz.

Q3: What kind of power source does it need?

It runs on a 9V DC power adapter (not included).

Q4: Is it suitable for Arduino and Raspberry Pi projects?

Absolutely! It’s perfect for hobbyist electronics including Arduino and embedded projects.

Package Includes

• 1 × DSO150 Fully Assembled Oscilloscope Module

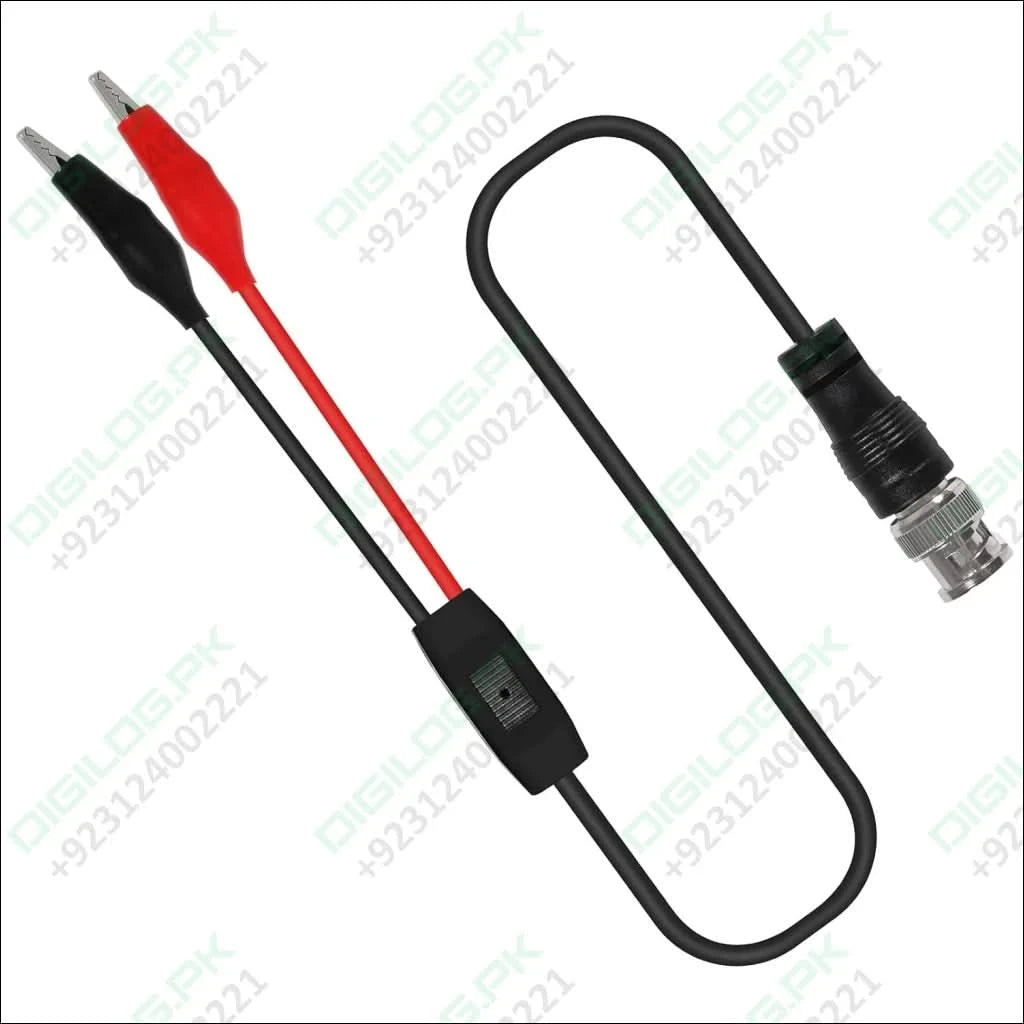

• 1 × BNC to Alligator Clip Probe
• 1 × Acrylic Protective Case (Pre-mounted)
