DSEK60-02A Power Diode – 200V, 30A FRED Technology, TO-247AD Package, Fast 20ns Recovery

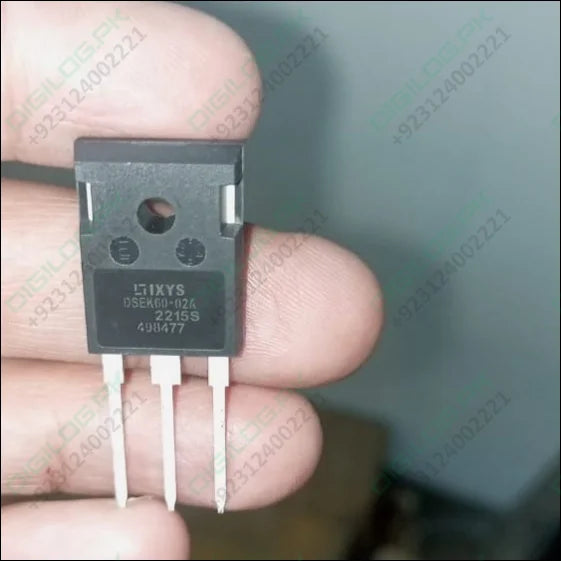

The DSEK60-02A is a reliable power diode with FRED (Fast Recovery Epitaxial Diode) technology in a TO-247AD package.

Specifications

• Repetitive Peak Reverse Voltage (VRRM): 200 V
• Average Forward Current (IFAV): 30 A (per diode)
• Forward Voltage (VF) max: 1.1 V (at IF = 30 A, Tj = 25°C)
• Forward Voltage (VF) typ: 0.85 V (at IF = 30 A, Tj = 150°C)
• Reverse Recovery Time (trr) typ: 20 ns
• Peak Reverse Recovery Current (IRM) typ: 4 A
• Forward Surge Current (IFSM) max: 325 A
• Junction Temperature (Tj) max: 150 °C

Applications

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Ultrasonic cleaners and welders

Buy the DSEK60-02A diode in Lahore, Karachi, Peshawar, Quetta, and Multan. Explore more power diodes at Digilog.pk.

FAQs

Where can the DSEK60-02A diode be used?
In SMPS, UPS, and ultrasonic equipment.

What are the key features?
Low forward voltage, fast switching, low leakage current, and high reliability.

What is the package type?
TO-247AD.
