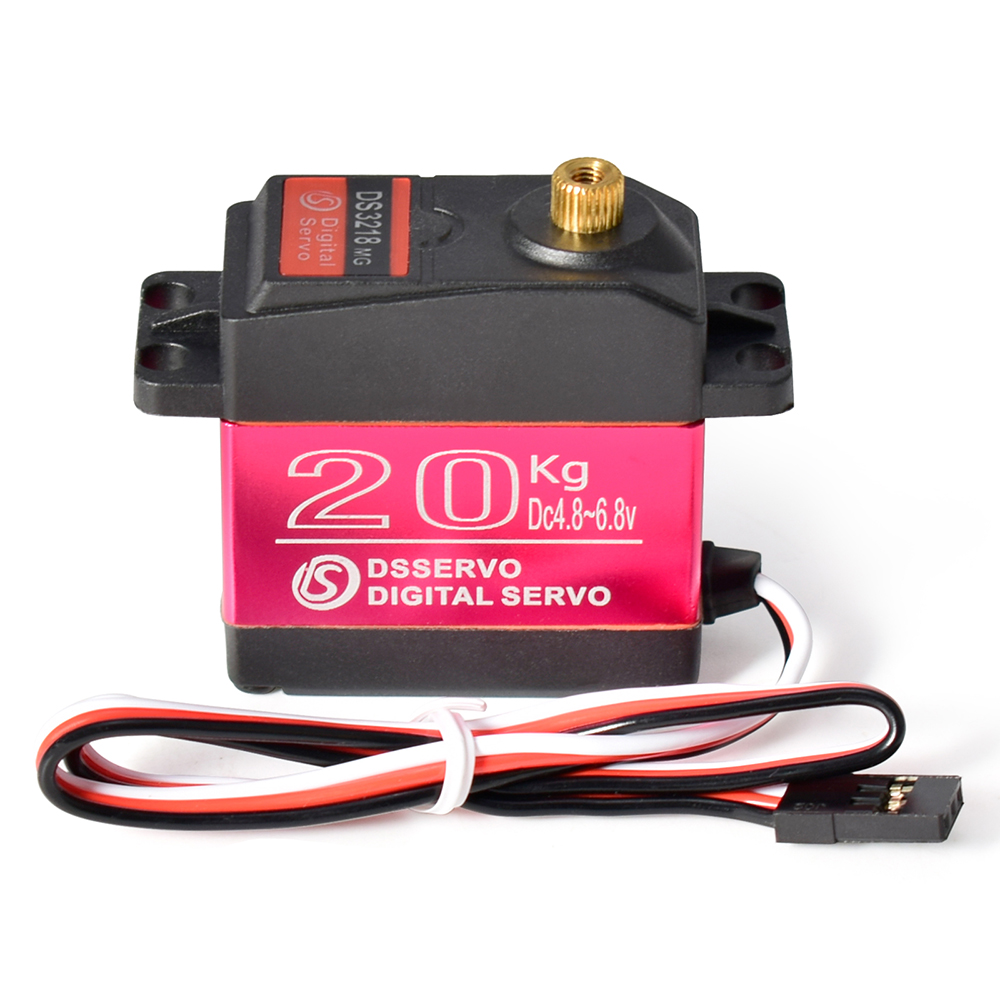

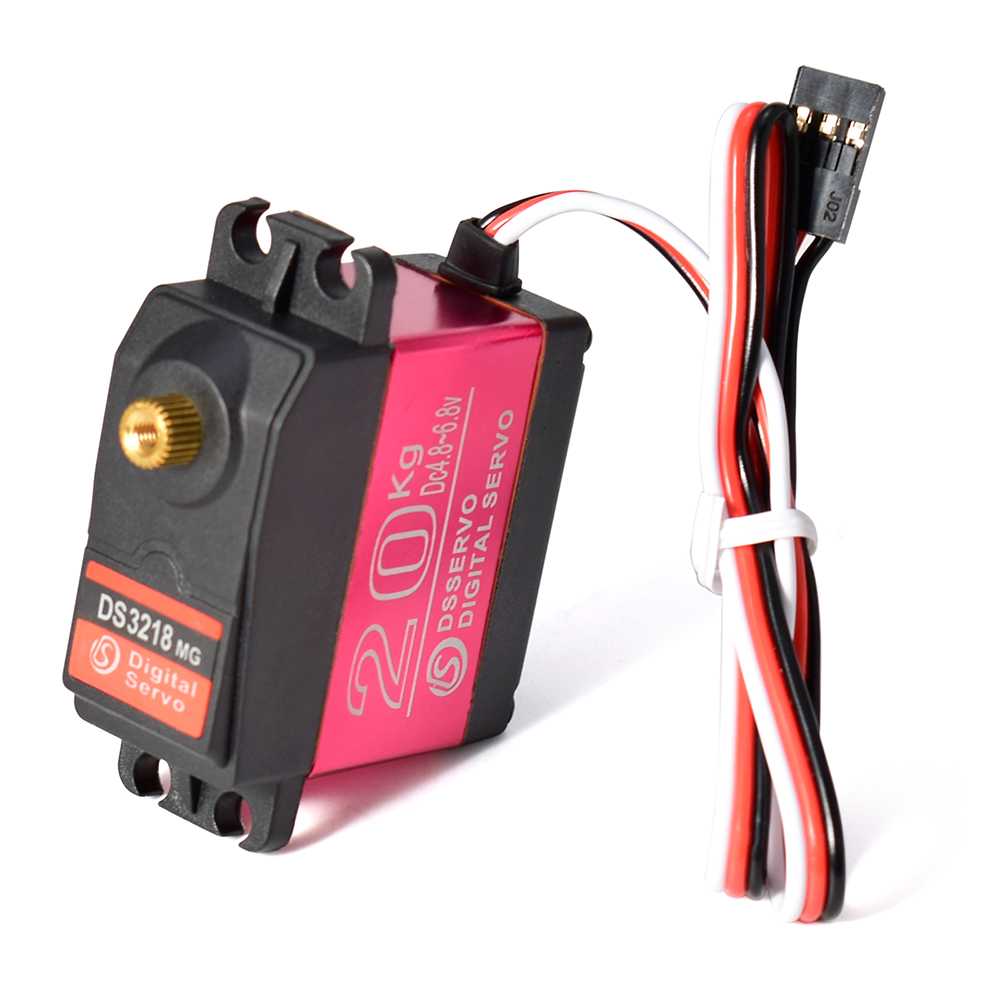

On Demand DS3218 20KG/0.14sec Metal Gear Digital Servo Motor
On Demand DS3218 20KG/0.14sec Metal Gear Digital Servo Motor
Features Servo DS3218 20KG:
1.High performance digital standard servo.
2.High-precision metal gears with hard anodizing.
3.CNC aluminium middle Shell.
4.Dual ball bearings .
1.High performance digital standard servo.
2.High-precision metal gears with hard anodizing.
3.CNC aluminium middle Shell.
4.Dual ball bearings .
Description:

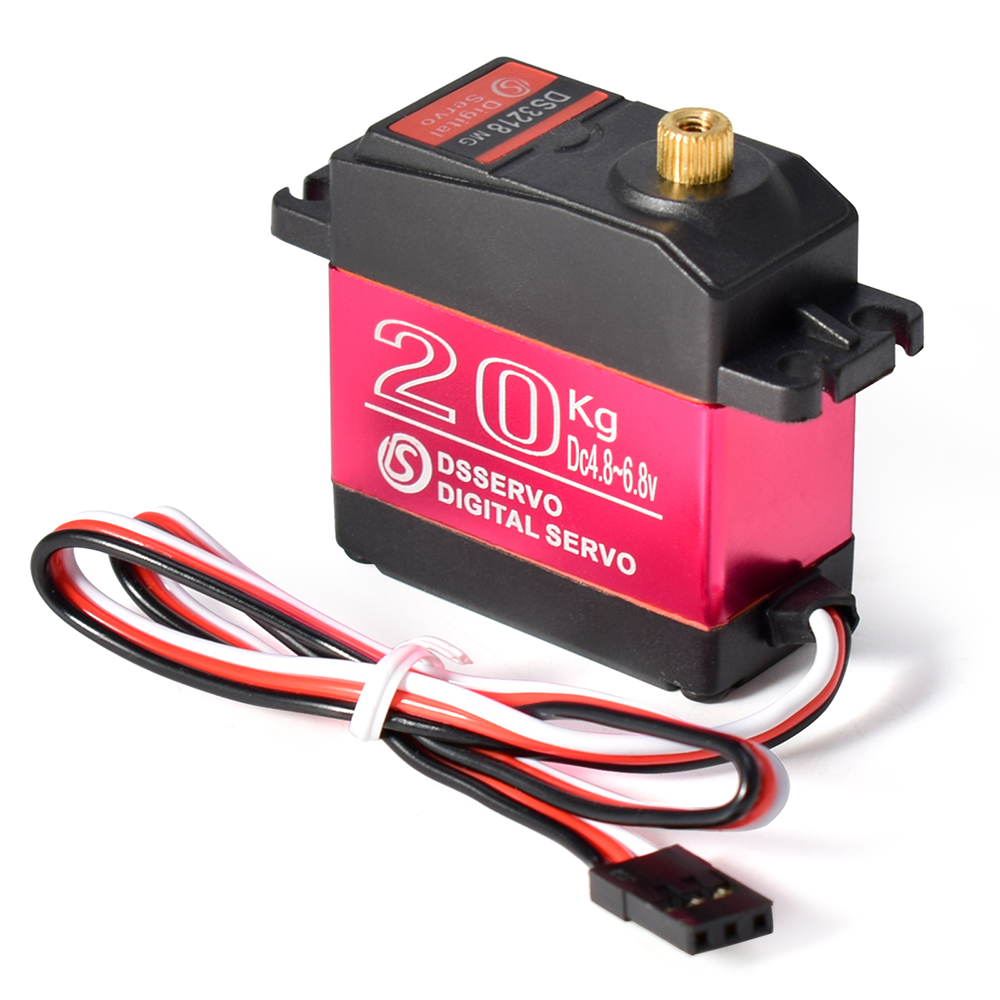

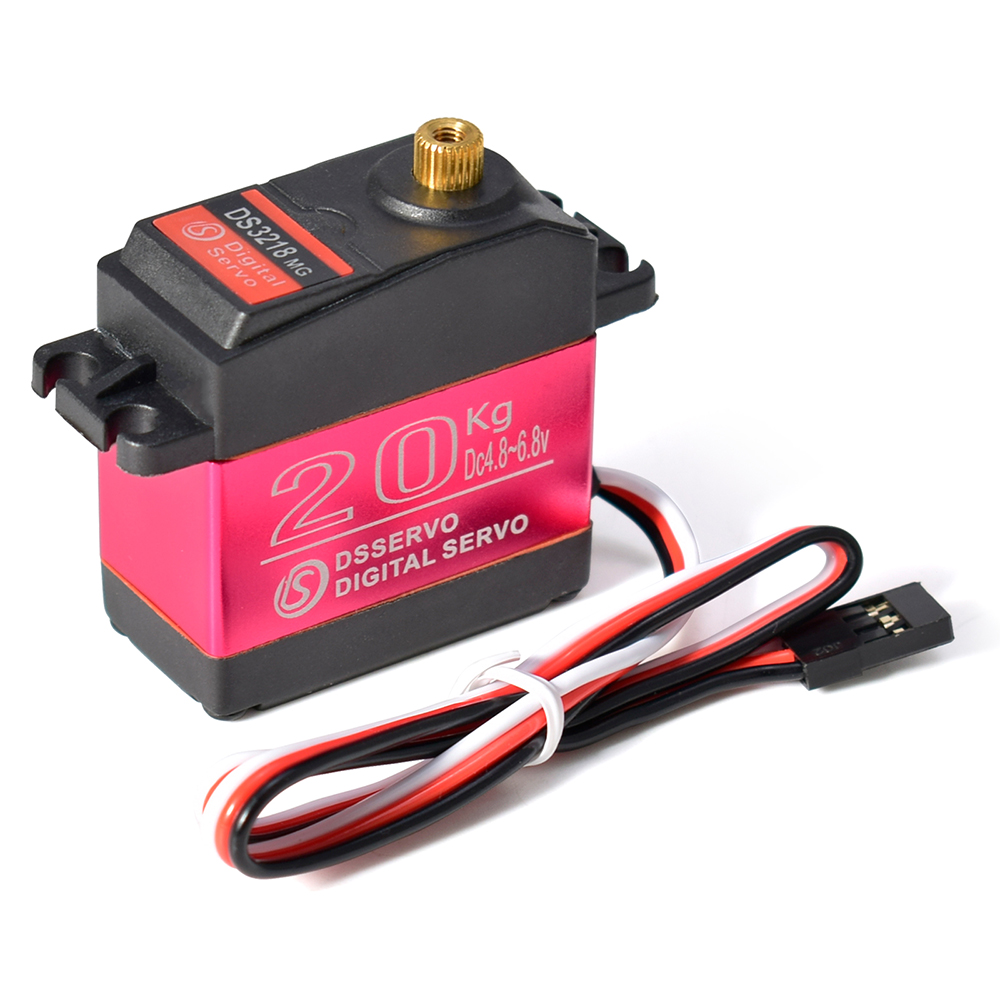

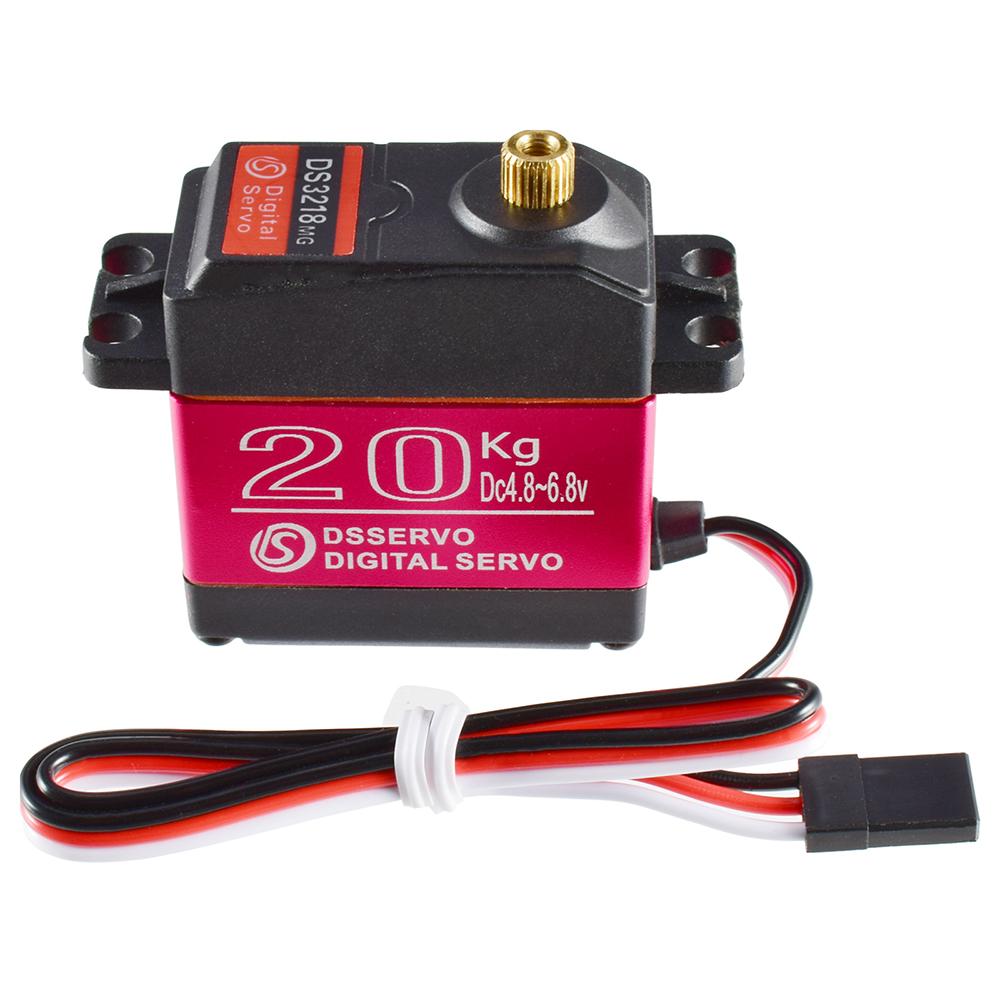

Waterproof Servo DS3218 20KG/0.14sec Metal Gear Digital Servo for 1/8 1/10 1/12 Scale RC Cars Crawler Buggy.
Waterproof Servo DS3218 20KG/0.14sec Metal Gear Digital Servo for 1/8 1/10 1/12 Scale RC Cars Crawler Buggy.
Specifications:
Model: DS3218MG
Item Name: DS3218MG Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 4.8V~6.8V
Operating Speed (5V): 0.16sec / 60° at no load
Operating Speed (6.8V): 0.14sec / 60° at no load
Stall Torque (5V): 19 kg/cm (263.8oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes

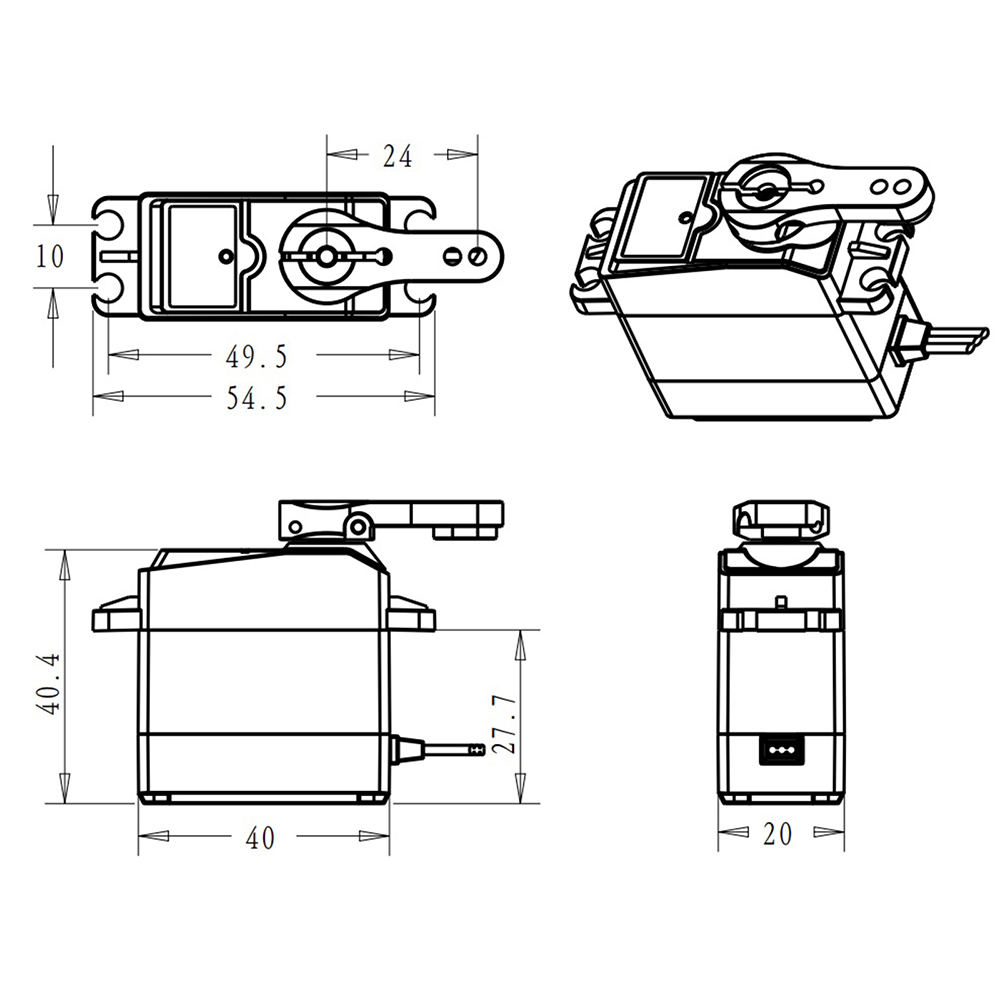

Size: 40.5 * 40 * 20mm
Weight: 60g
Model: DS3218MG
Item Name: DS3218MG Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 4.8V~6.8V
Operating Speed (5V): 0.16sec / 60° at no load
Operating Speed (6.8V): 0.14sec / 60° at no load
Stall Torque (5V): 19 kg/cm (263.8oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm
Weight: 60g
Package information:
Package size:7*7*5cm
Package weight:90g
General box package
Package size:7*7*5cm
Package weight:90g
General box package

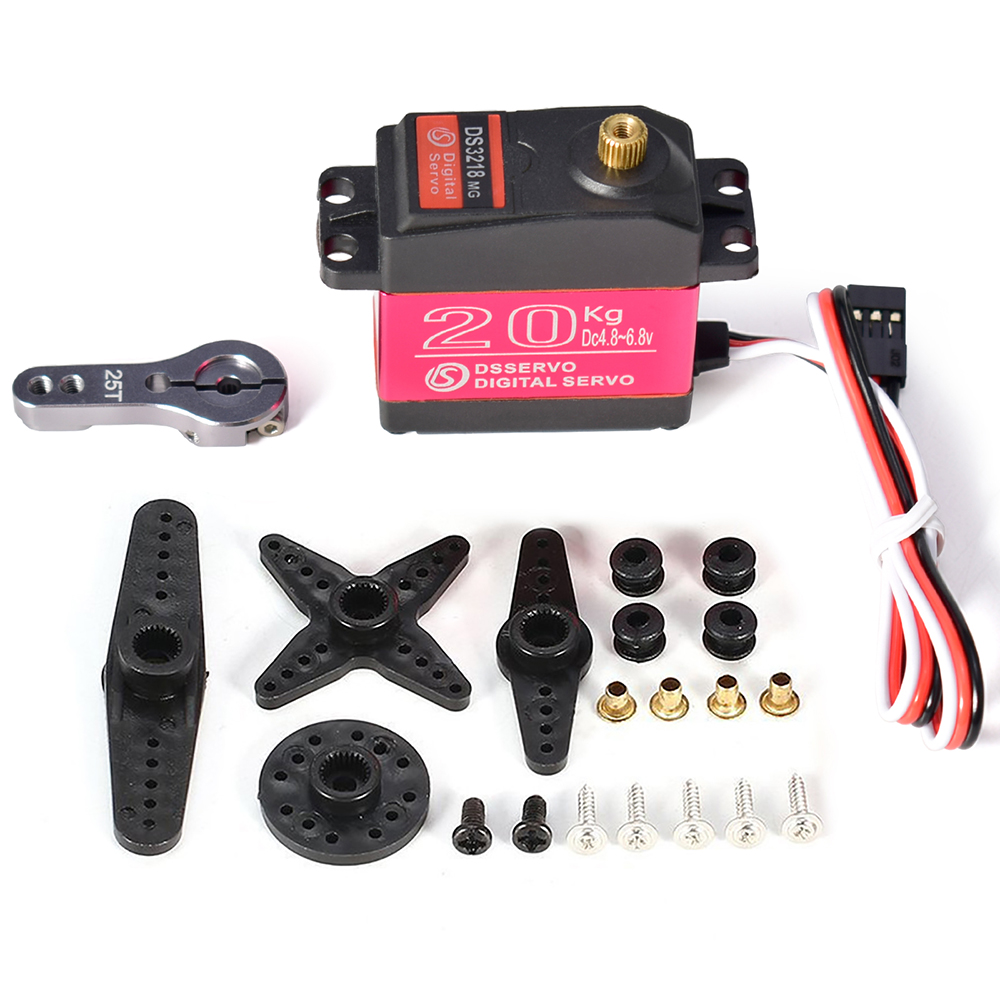

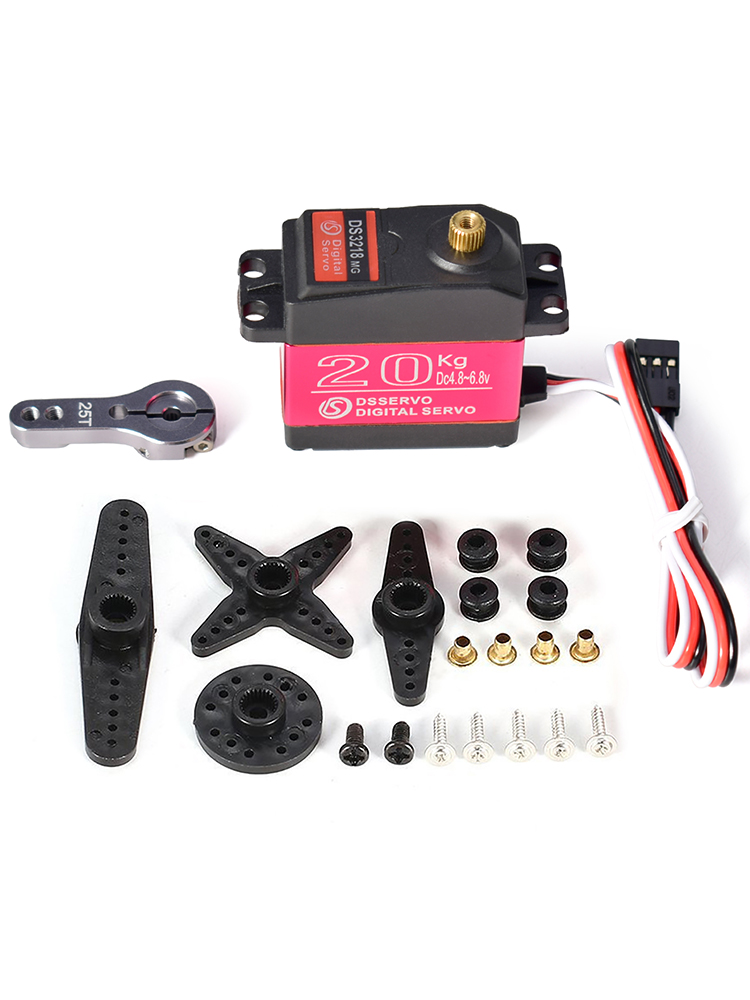

Package included:

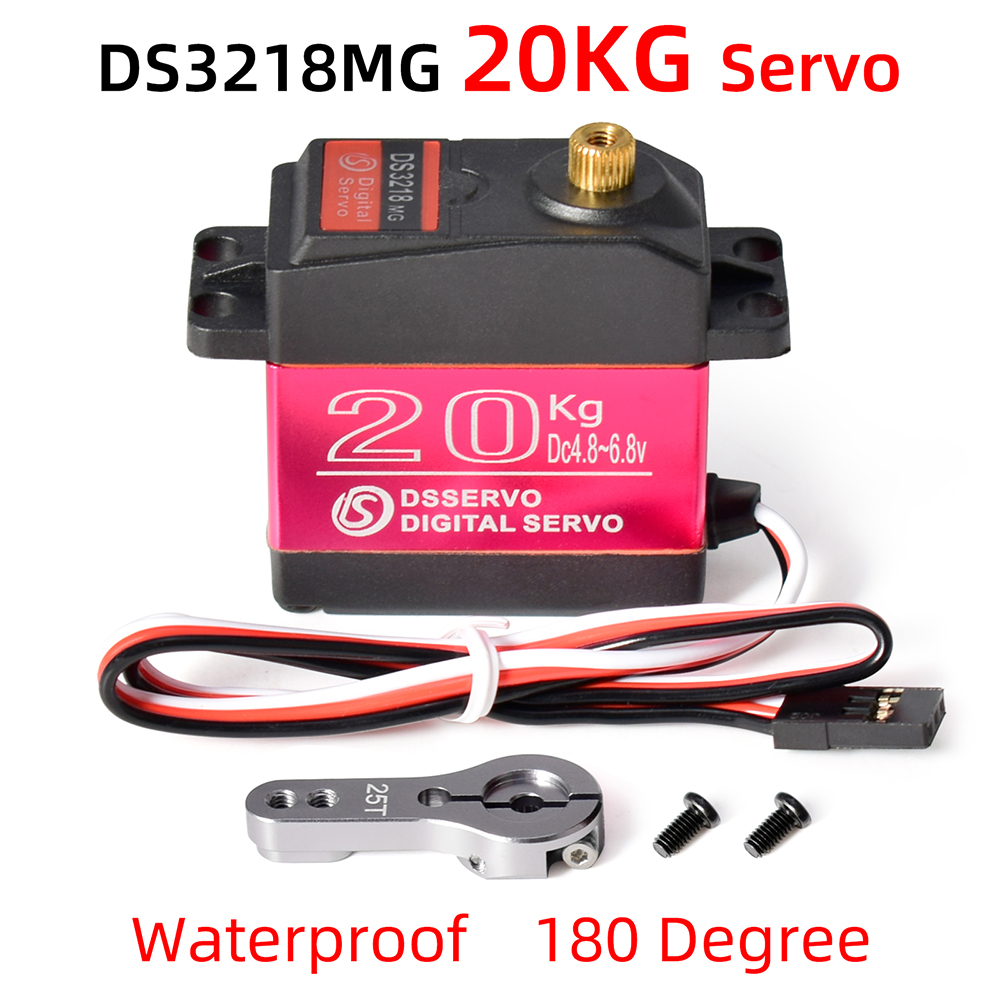

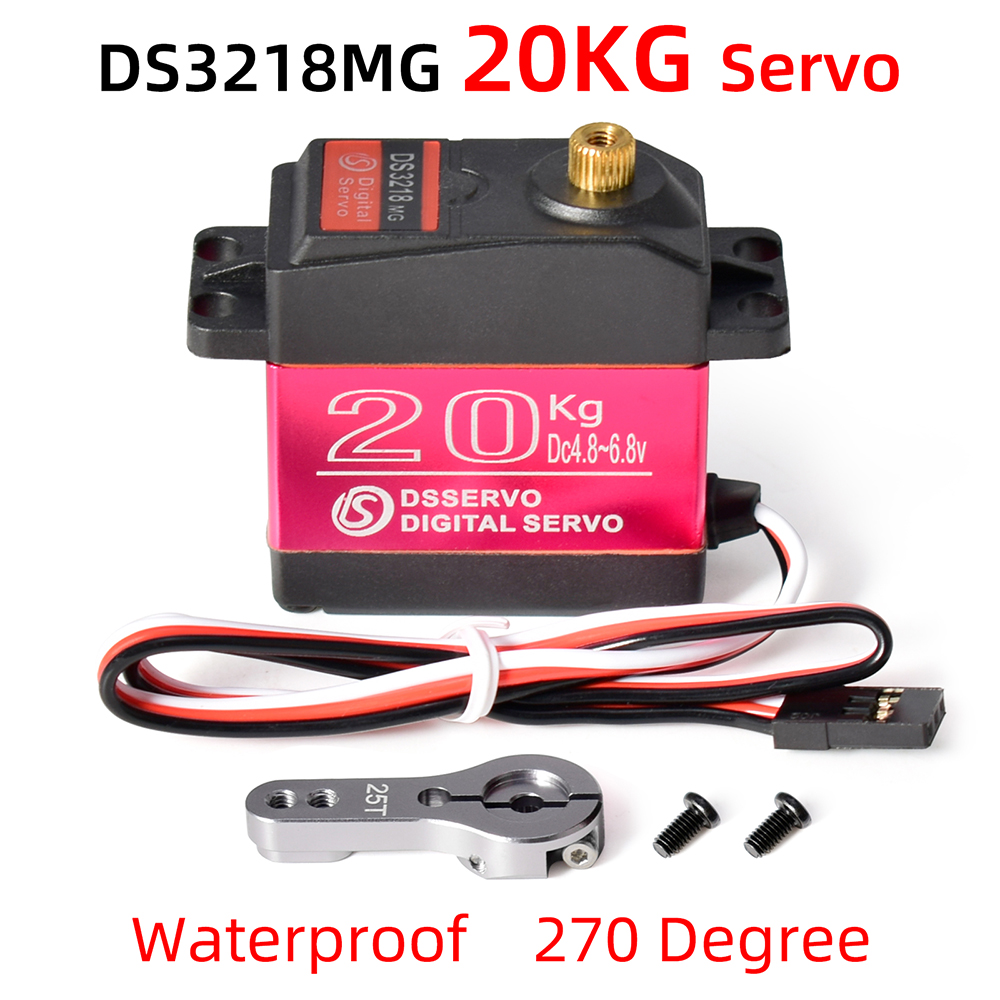

1 x Waterproof Servo DS3218 20KG

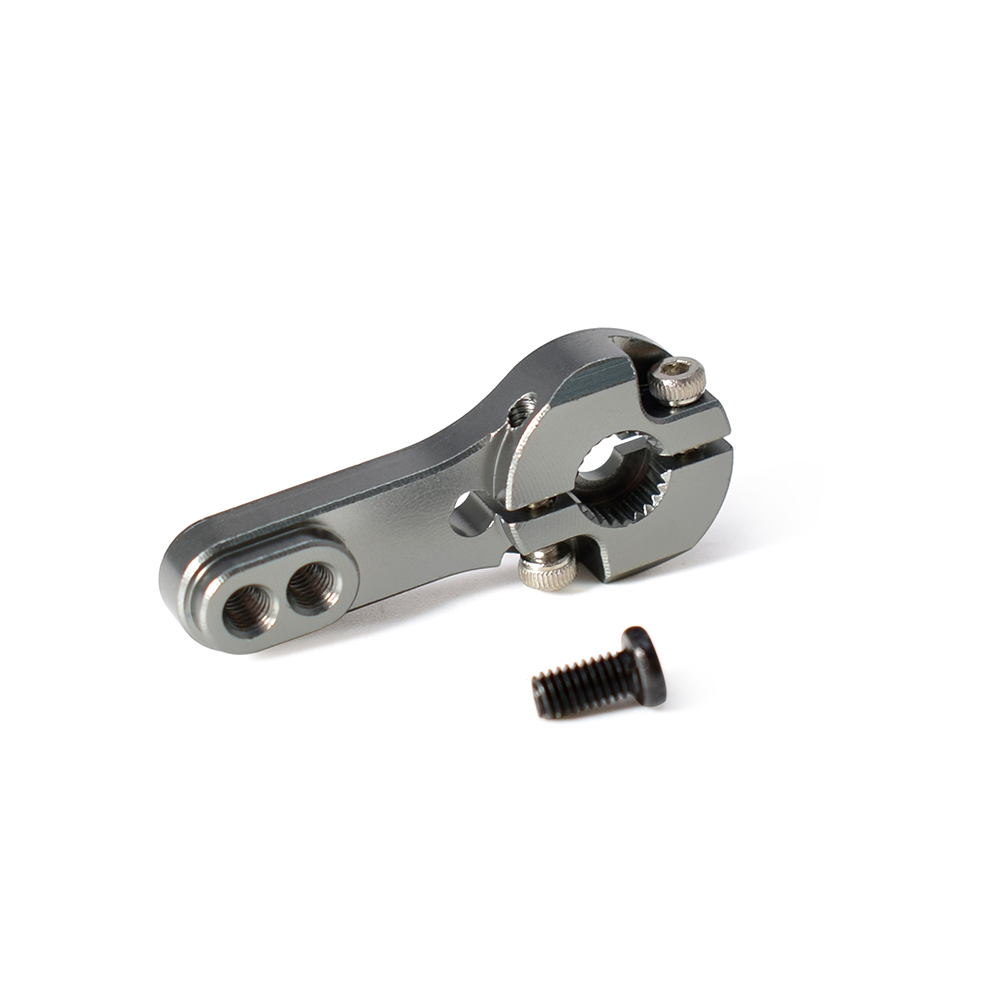

1 x 25T Adjustable Metal Servo Arm
1 x Waterproof Servo DS3218 20KG
1 x 25T Adjustable Metal Servo Arm
