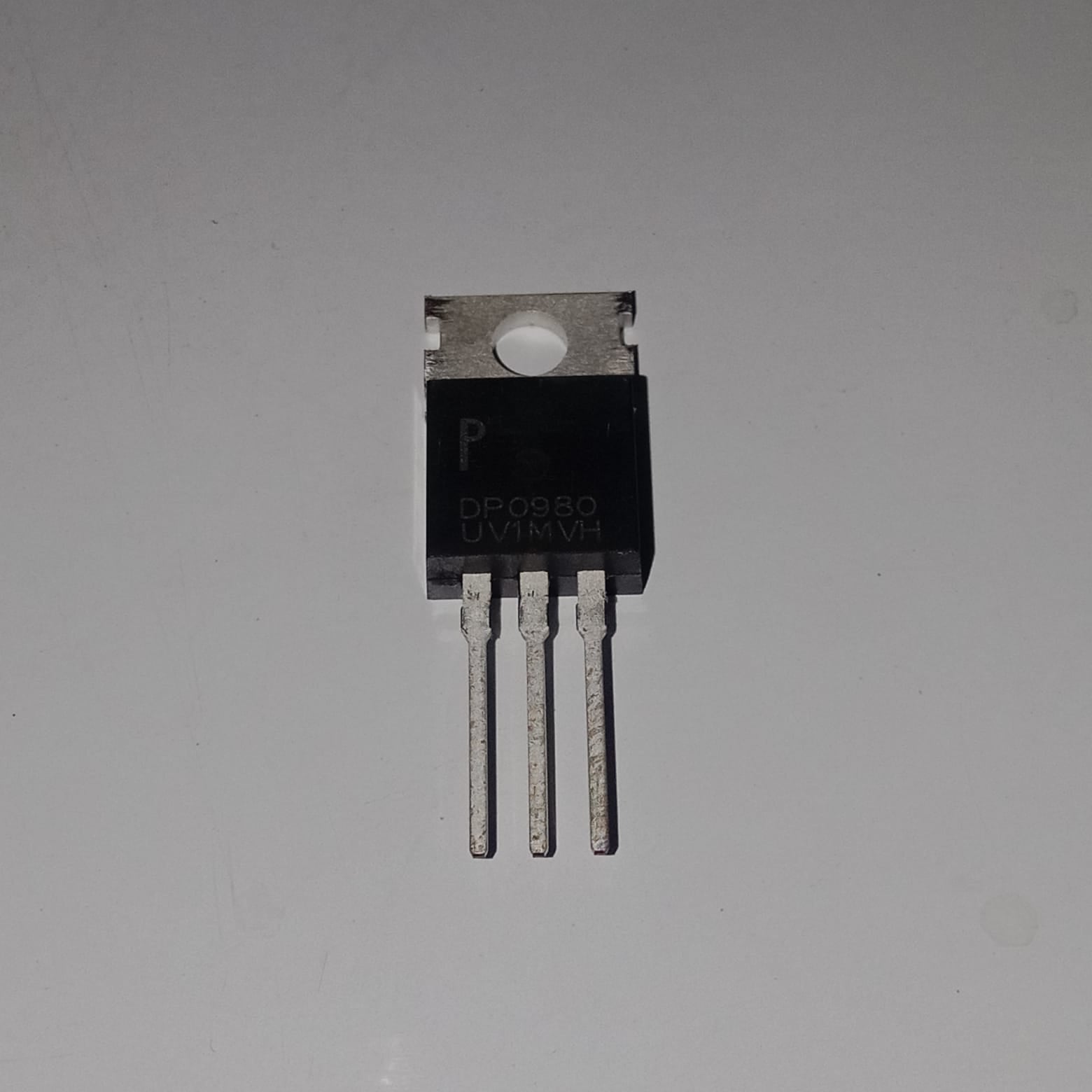

DP0980 100V N-Channel Power MOSFET TO-220
Product Description
The PDP0980 is a 100V N-Channel enhancement-mode power MOSFET built with trench DMOS technology, engineered for high-efficiency, fast-switching applications. It's housed in the standard 3-pin TO-220 through-hole package, making it easy to mount with a heatsink for improved thermal performance.
Key Specifications
| Parameter | Value |
|---|---|
| Package | TO-220 |
| Drain-Source Voltage (VDSS) | 100V |
| Drain Current (ID) | 150A |
| On-Resistance (RDS(ON)) | 4.2mΩ @ VGS = 10V |
| Channel Type | N-Channel, Enhancement Mode |
| Technology | Trench DMOS |
Key Features
- Ultra-low on-resistance (4.2mΩ) minimizes conduction losses
- Improved dv/dt capability for better switching robustness
- Fast switching speed, suited for high-frequency applications
- 100% EAS (Avalanche Energy) tested — guaranteed avalanche ruggedness
- Green/RoHS-compliant device available
Typical Applications
- Networking equipment
- Load switches
- LED lighting drivers
- Quick chargers / fast-charging adapters
Package Includes
- 1x PDP0980 N-Channel Power MOSFET (TO-220 Package)
