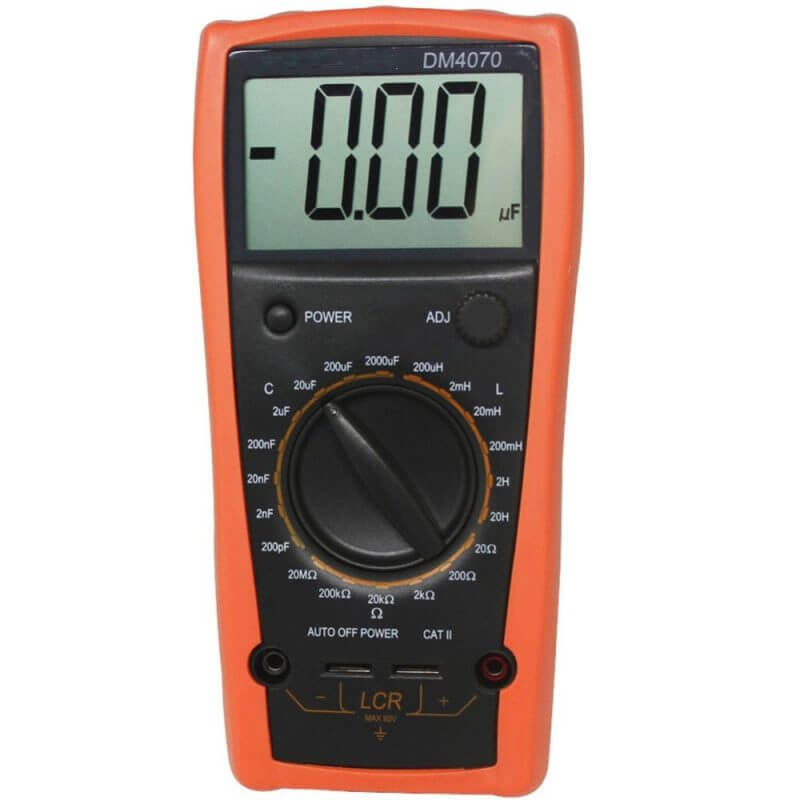

DM4070 Digital LCR Meter – Inductance 20H, Capacitance 2000µF, Resistance 20MΩ
The DM4070 is a handheld LCR meter for checking the parts a normal multimeter cannot: inductance of coils, chokes and transformers, plus capacitance and resistance. It is a common bench tool for inverter, UPS and SMPS repair.
It measures inductance from 0.1µH to 20H and capacitance from 0.1pF to 2000µF. A zero-adjust knob removes lead error before you measure small capacitors.
Key Features
- 🧲 Inductance 0.1µH to 20H for coils and chokes
- 🔋 Capacitance 0.1pF to 2000µF
- 📏 Resistance 0.01Ω to 20MΩ
- 🎯 Zero adjustment for accurate small-capacitance readings
- ✅ 1999-count LCD, low-battery indicator, runs on a 9V battery
Technical Specifications
| Model | DM4070 |
|---|---|
| Inductance | 0.1µH to 20H |
| Capacitance | 0.1pF to 2000µF |
| Resistance | 0.01Ω to 20MΩ |
| Zero adjustment | Yes, for capacitance below 20nF |
| Display | LCD, max 1999 |
| Power | 9V battery (6F22) |
| Battery life | approx. 150 hours (alkaline) |
| Size | 185 × 93 × 35 mm |
| Weight | approx. 290 g with battery |
What's in the Box
- 1 × DM4070 LCR meter
- Test leads
- Operation manual
