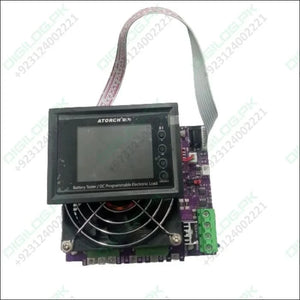

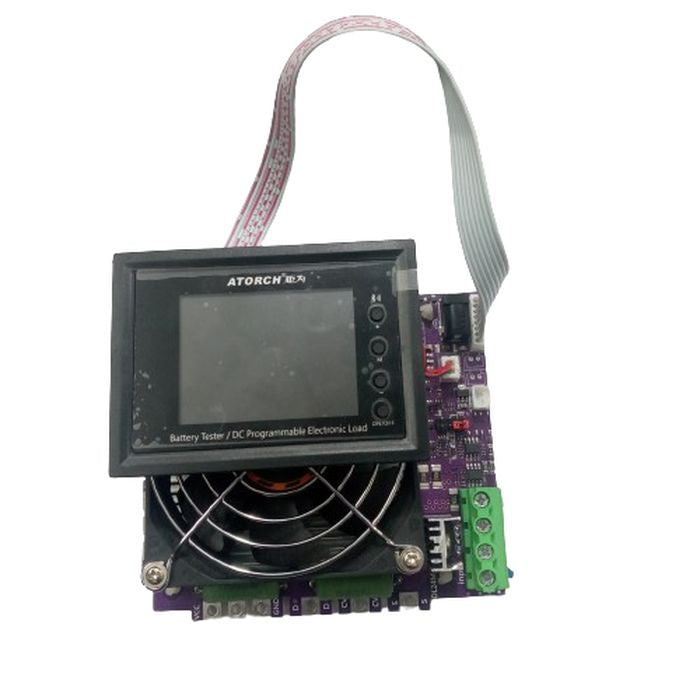

DL24MP-150 200V 150W DC Programmable Electronic Load Battery Tester

·       DL24MP-150 200V 150W DC Programmable Electronic Load Battery Tester Bluetooth Data Transmission

Features:

·       Test battery internal resistance capacity; electronic load with a color display
- High-power load is used for discharge and aging tests. Applicable to all USB chargers, power banks, and batteries. To test parameters and operations such as voltage, current, power, capacity, discharge, resistance, time-limited discharge settings, and stop voltage settings for various power adapters and other power supply equipment

·        Compatible with three online operating systems APP (for Android, Apple, PC computer system)

·        Six powerful functions (constant current, constant power, constant resistance, constant voltage, intelligent one-key measurement of internal resistance, and intelligent one-key power supply test)

·       Automatic detection of battery internal resistance, current and power of DC power supply and charger

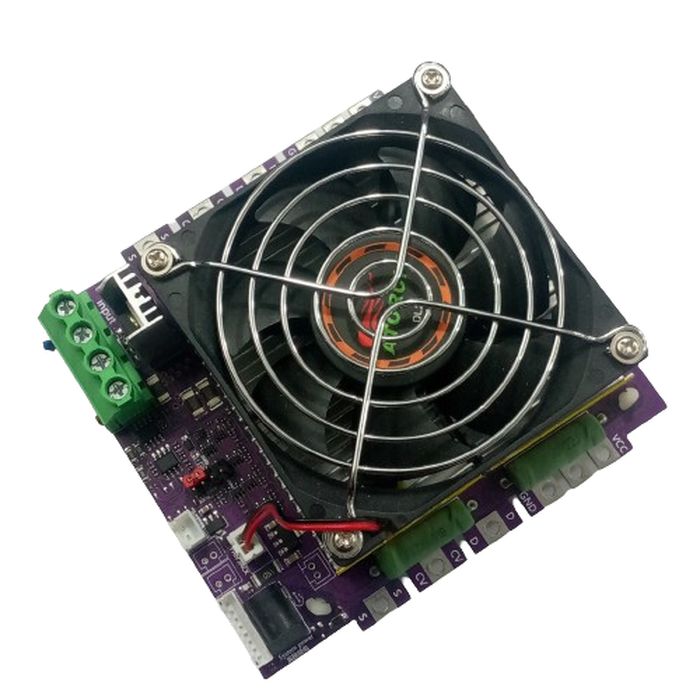

·       Support 4-wire and 2-wire wiring systems. The four-wire system has higher detection accuracy and is more professional. 150W high power discharge aging test. When using the four-wire wiring method, the voltage measurement is not affected by the voltage drop of the wire, making the voltage measurement more accurate. It can be used to test various data such as voltage, current and capacity of various lithium batteries and other batteries. During long-term 150W load discharge aging test, the temperature should be maintained at about 50~80℃. Intelligent temperature control light effect fan and built-in large discharge tube make the power larger and more reliable. Test the overall capacity, use time and aging performance of batteries

·        Lifetime free firmware upgrade function. The host computer OTA Bluetooth air upgrade. Our engineers will continuously update the product firmware and release new firmware according to user needs to obtain better optimization and more functions, and provide lifetime free upgrade services

·       Six operating modes: constant current operation, constant voltage operation, constant power operation, constant resistance operation, one-key measurement of internal resistance, one-key measurement of power supply

·       BRT mode of automatic battery internal resistance test: Engineers research and summarize the operation logic and physical basis of countless battery internal resistance testers, and innovate again. The intelligent one-key detection of battery internal resistance results in the form of a list report truly realizes intelligence, featuring simplicity and humanization

·        One-key automatic detection of DC power supply. PT mode for charger current power performance. By long pressing the menu M key to the mode flashing, wait a moment after pressing the + key for PT mode, it automatically enters into the DC power supply/charger automatic-detector mode. Plug in the power supply and charger under test, and then short press the start button, and after it automatically starts running for a period of time, its report shows 4 important numerical results, making the complicated test instantly simplified and accurate, and easy to use
-


Technical Parameters:

·       Test voltage: 0-200V

·        Test current: 2mA-25A

·       Discharge power: voltage X current <150W

·       Constant load regulation: +/-3%+3 bytes

Attention:

·       In applications, the law of energy conservation should be followed, and the voltage multiplied by the current cannot exceed the maximum power threshold, otherwise there is a risk of burning the equipment.

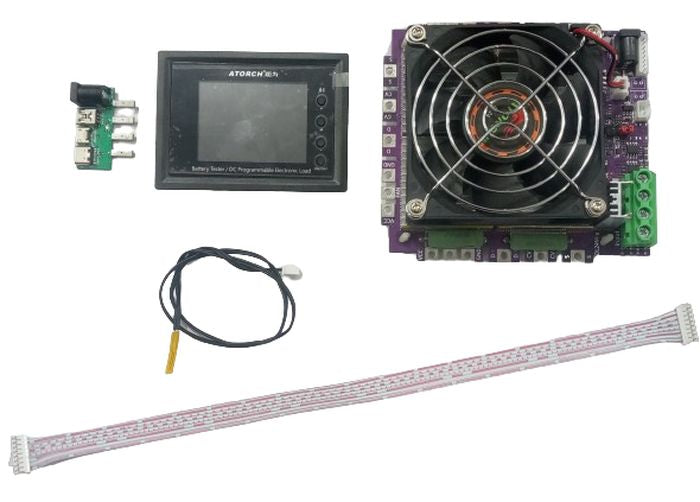

Package Included:

·       1 x Electronic Load

·       1 x DC Power Supply

·       1 x 10A Red Test Cable

·       1 x 10A Black Test Cable

·       1 x Adapter Board for Cable Test
