Specification

• Product name: 2.1 channel Bluetooth-compatible audio power amplifier module
• Product model: ZK-MT21
• Bluetooth-compatible version: 5.0 (unobstructed, 15 meters)
• Input sensitivity: 500mV
• Input method: AUX+ Bluetooth-compatible
• Number of channels: 2.1 channels
• Power amplifier chip: Domestic power amplifier chip
• Adapter power supply: above DC12-24V/5A (24V battery pack is not allowed)
• Adapted speakers: 20-100W, 4-8Q
• Output power: left and right channels <50W; subwoofer <100W
• Protection mechanism: Anti-reverse connection, overheating, overcurrent, short circuit protection
• Product size: 93mm*90mm*22mm
• Product weight: about 130g

Description

ZK-MT21 2x50W+100W 2.1 Channel Subwoofer Digital Power Amplifier Board AUX 12V 24V Audio Stereo Bluetooth-compatible 5.0 Bass Amp for Home Theater Speaker

Feature:

• The Bluetooth-compatible audio power amplifier module has 2.1 channels and the maximum output power is 2X50W+100W.
• It has two audio input modes, AUX and Bluetooth-compatible, and a two-in-one power amplifier board. Bluetooth-compatible5.0, higher transmission efficiency, longer transmission distance
• It has short-circuit protection, over-current, over-heating, and anti-reverse protection to prevent total failure. When an overload occurs, the device reports the fault condition to the processor to protect itself from damage
• It adopts copper DC connectors and barrier terminals. It can withstand high current without heating or damaging wires.

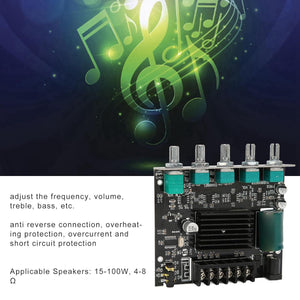

• Classic appearance multi-function main knob. The main knob adopts a rotary encoder that is only used in high-end power amplifiers, which realizes 360-degree stepless tuning and a smooth one-key start and stop. The operation is simple and convenient by long pressing the switch.
• With bass, treble, subwoofer frequency and volume control, you can easily adjust the volume and enjoy the music tone you want. It is widely used in shopping malls, home theaters, speakers, etc.
