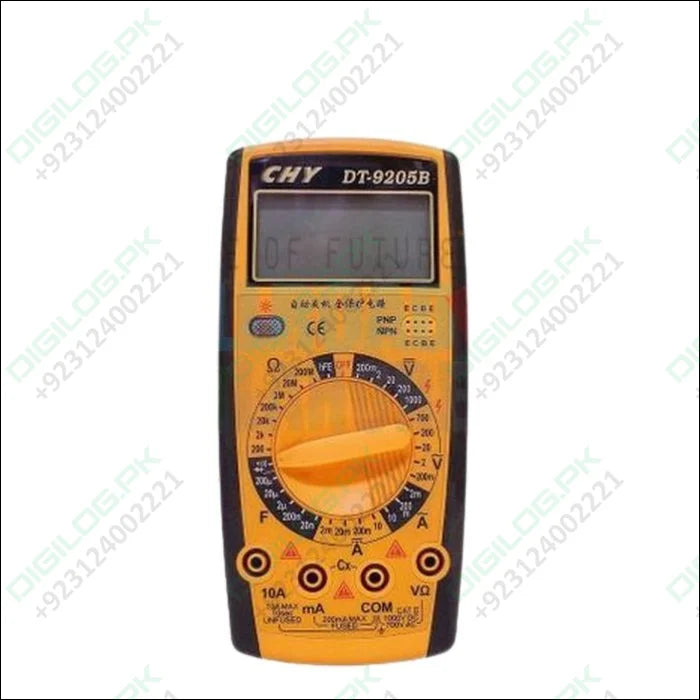

Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, a blank LCD screen, and three input ports at the bottom.

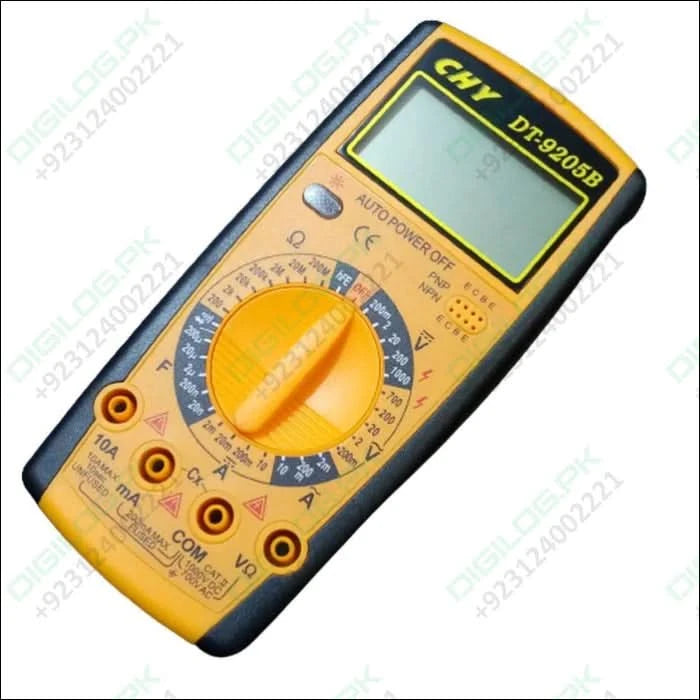

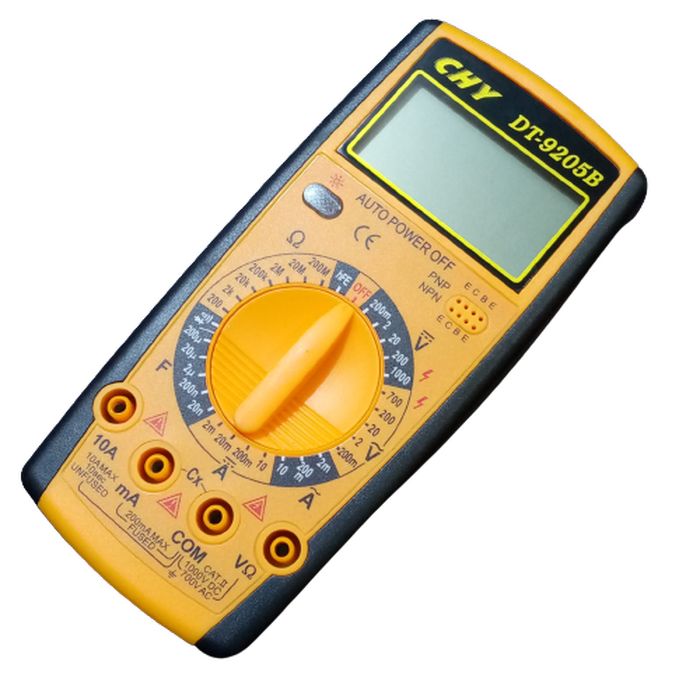

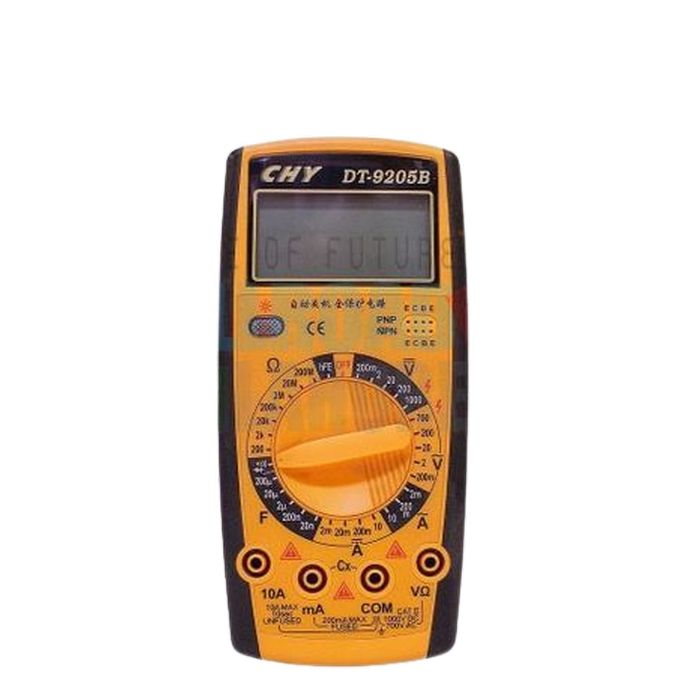

Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, an LCD screen, and four input ports at the bottom.

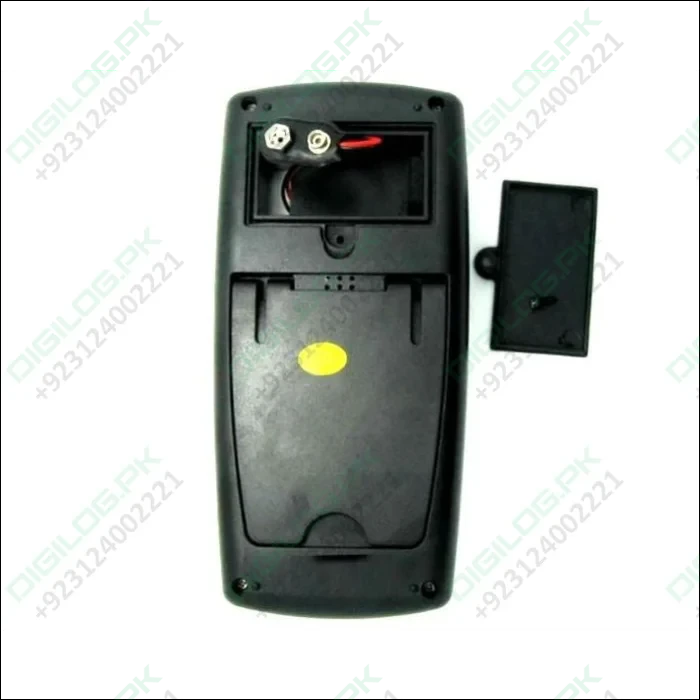

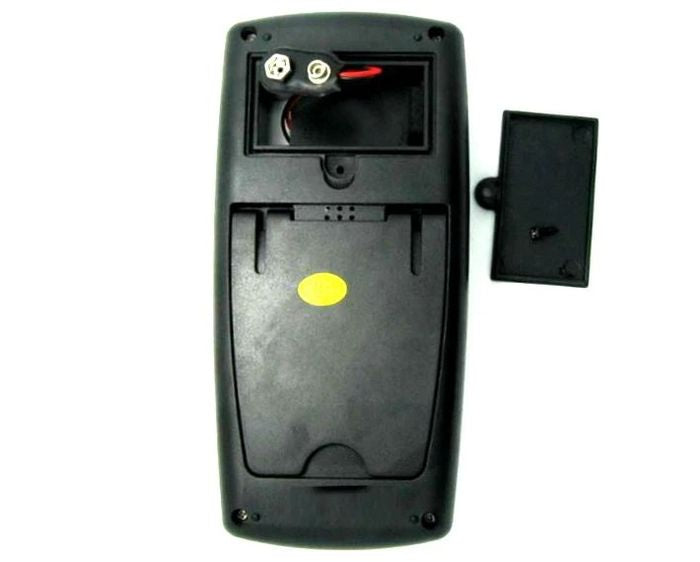

Digital Multimeter - DT-9205B - rear view showing the open battery compartment with a 9V battery connector and the detached black plastic battery cover.

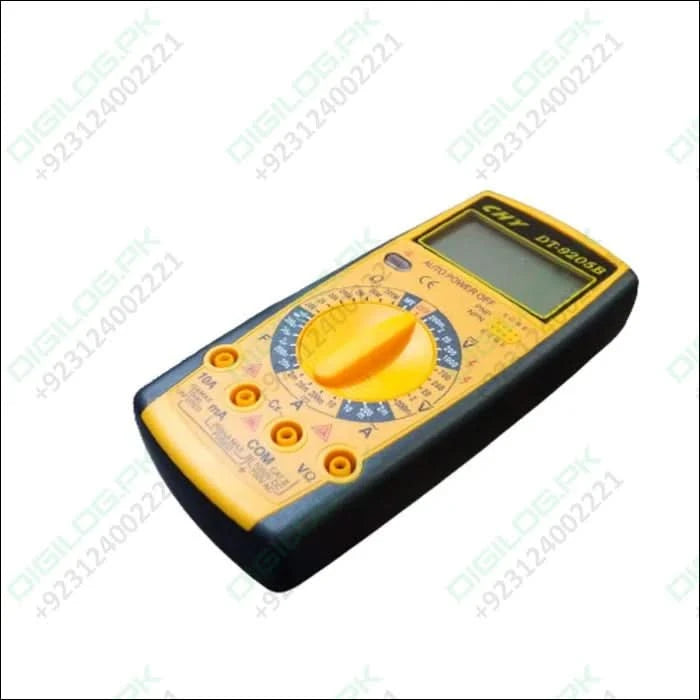

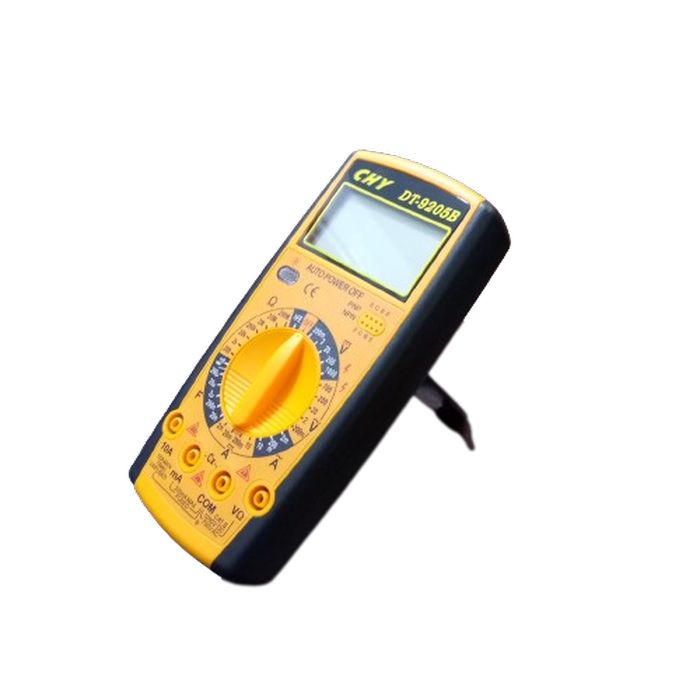

Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, a blank LCD screen, and input ports at the bottom.

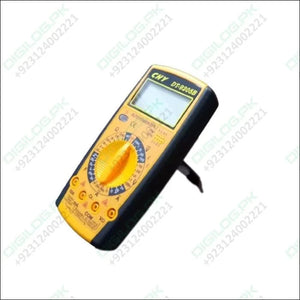

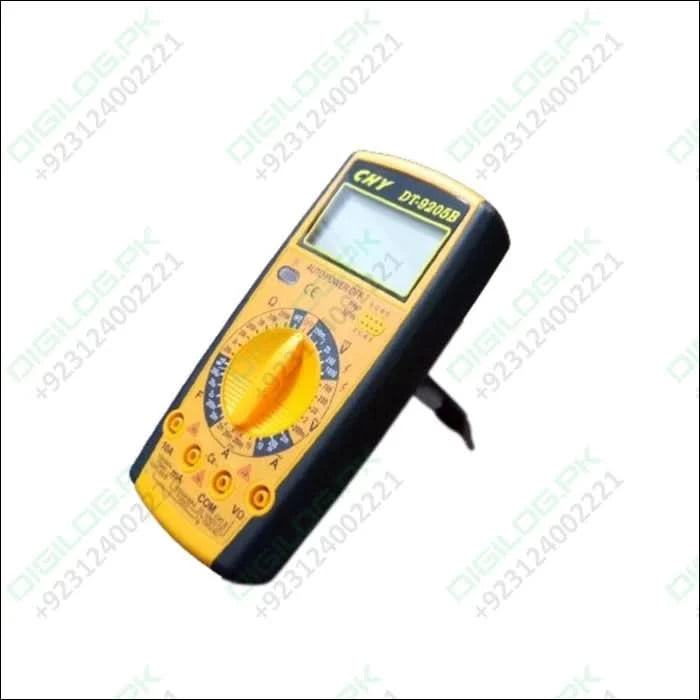

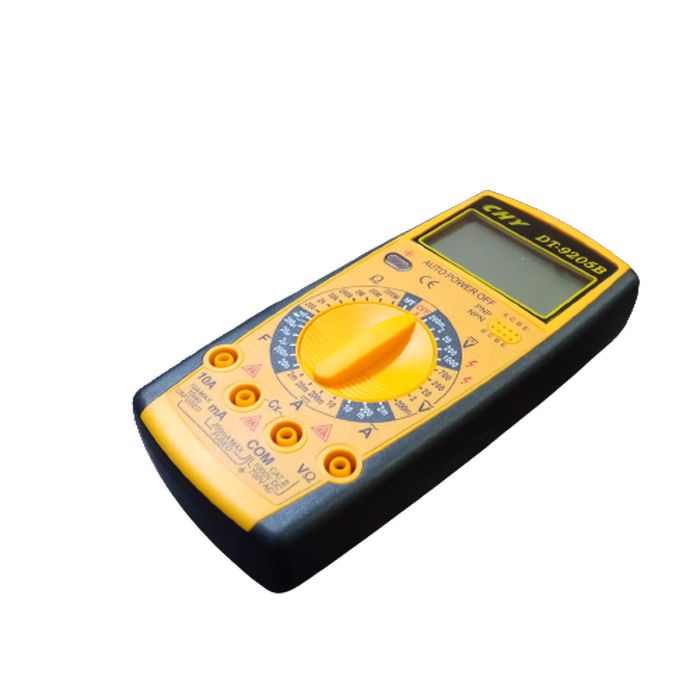

Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, screen, and multiple input ports on the front face.

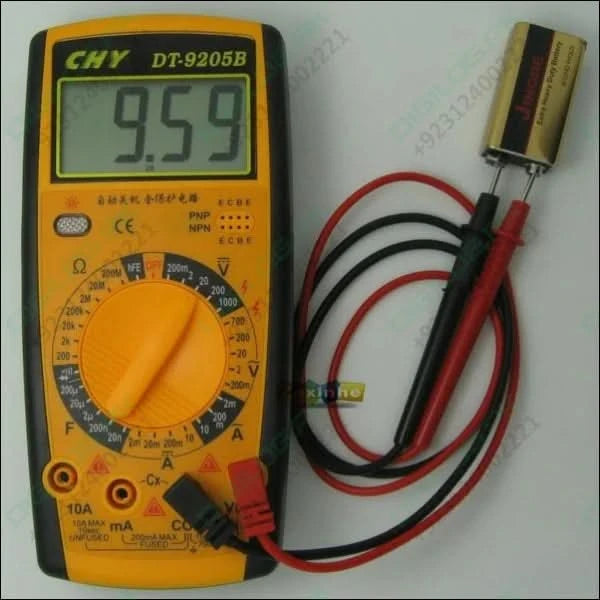

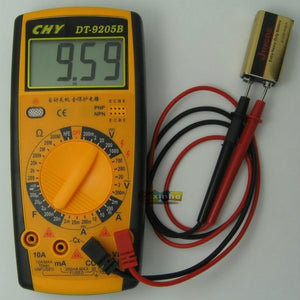

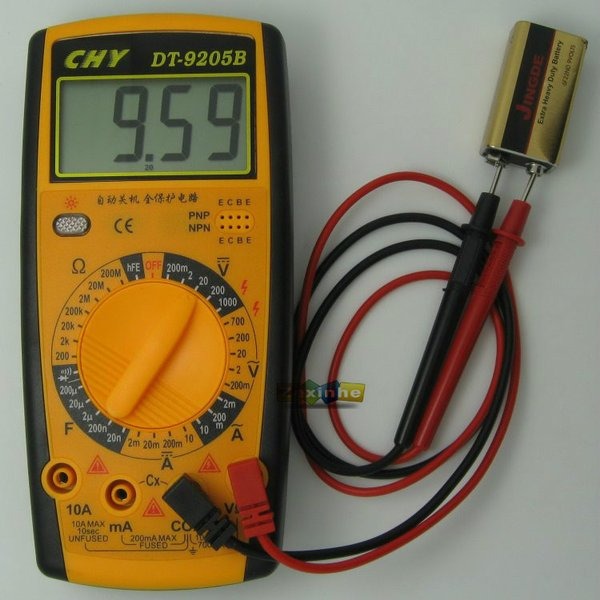

Digital Multimeter - DT-9205B - a yellow and black handheld device with a screen showing 9.59, a central rotary knob, and probes connected to a 9V battery.
Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, a blank LCD screen, and three input ports at the bottom.
Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, an LCD screen, and four input ports at the bottom.
Digital Multimeter - DT-9205B - rear view showing the open battery compartment with a 9V battery connector and the detached black plastic battery cover.
Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, a blank LCD screen, and input ports at the bottom.
Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, screen, and multiple input ports on the front face.
Digital Multimeter - DT-9205B - a yellow and black handheld device with a screen showing 9.59, a central rotary knob, and probes connected to a 9V battery.

Digital Multimeter - DT-9205B

Sale price Rs 1,570
SKU: krt113
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, a blank LCD screen, and three input ports at the bottom.

Digital Multimeter - DT-9205B

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Digital Multimeter - DT-9205B - a yellow and black handheld device with a central rotary dial, a blank LCD screen, and three input ports at the bottom.
Digital Multimeter - DT-9205B
Sale priceRs 1,570

Measuring ranges:

- DC voltage: 200 mV... 1000 V

- alternating voltage: 200 mV... 700 V

- direct current: 2 mA... 10 A

- alternating current: 2 mA... 10 A

- resistance: 200 ohms... 200 Mohmi

- capacities: 2 nF... 200 nF

- continuity tester, signaled by buzzer

- diode tester

- transistor gain factor (hFE)


Specifications:

- LCD digital display, 1999

- Auto Power Off

- automatic display of negative polarity "-"

- displays "1" when exceeding the measurement threshold

- working temperature: 0 °C... +40 °C, humidity max. 75%

- low battery indicator

- 31 scales

- protection warrant: 200 mA / 250 V

Power supply:

- 1 battery 9 V, 6F22

Dimensions:

- overall dimensions: 180x85x35 mm

- Display dimensions: 57x29 mm

- Character dimensions: 24x10 mm

Accessories:

- measurement testers

- 1 battery 9 V, 6F22

- instructions for use

Weight: 253 g (including battery)
