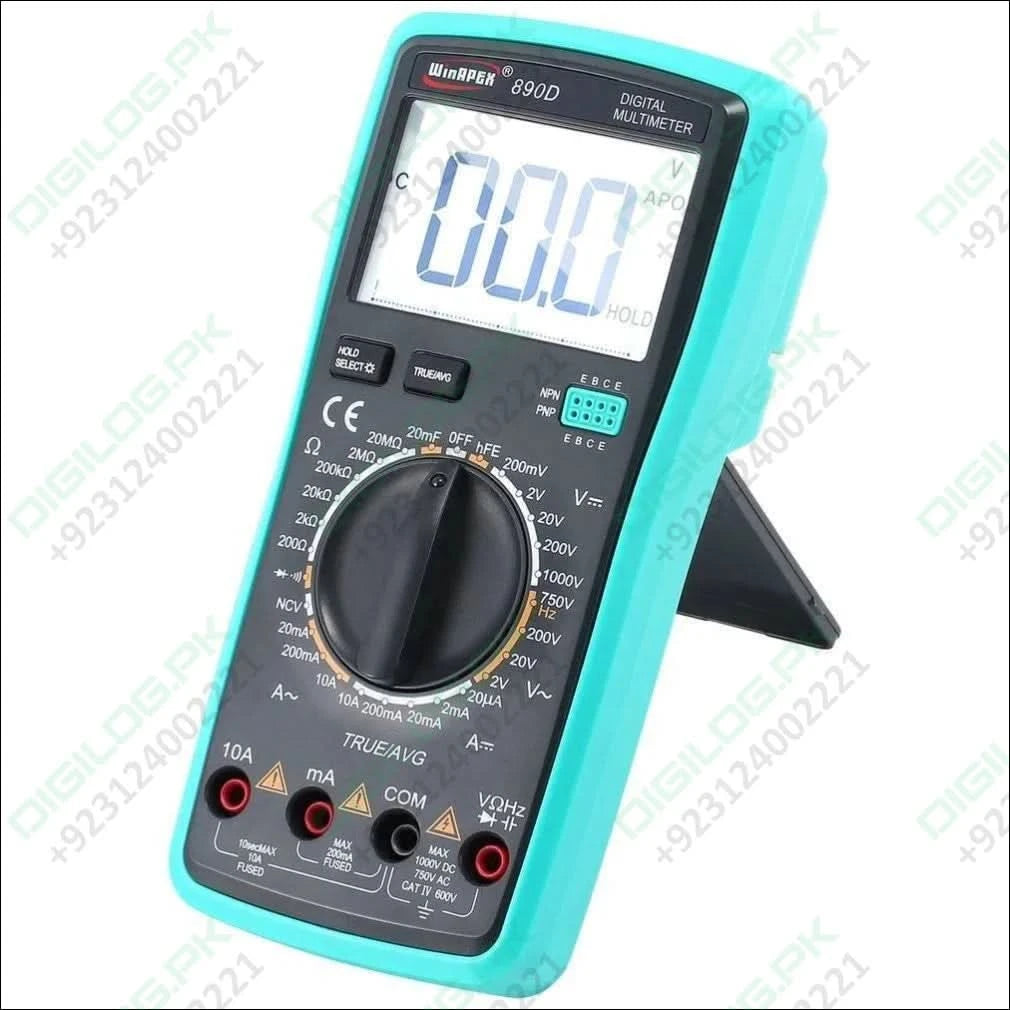

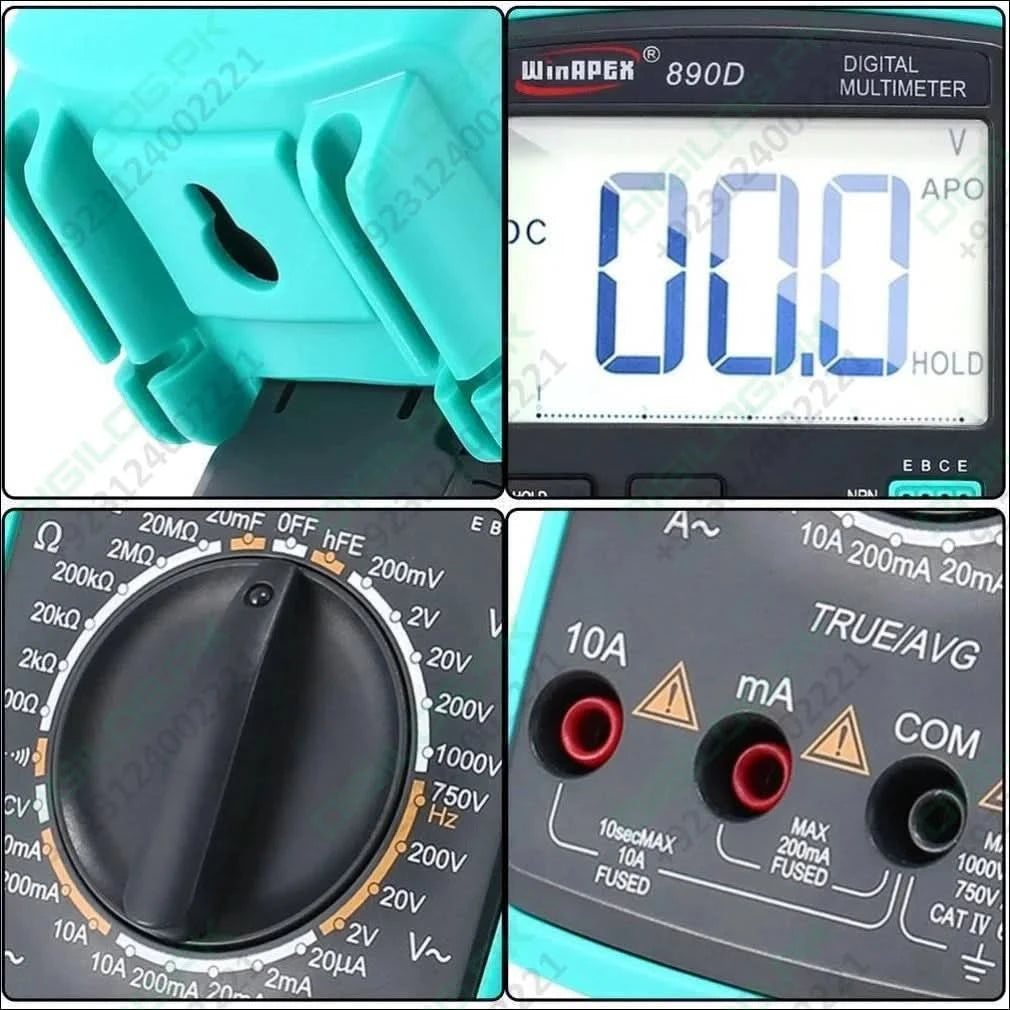

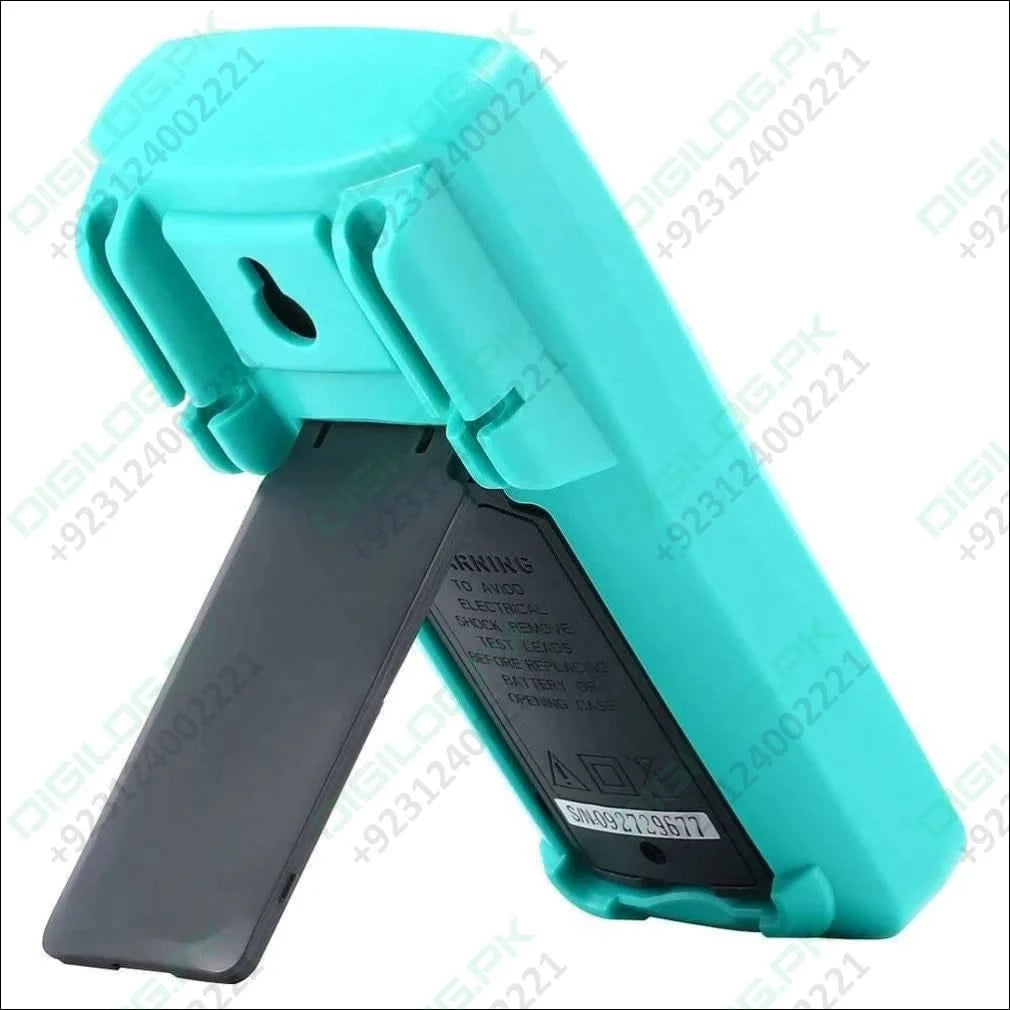

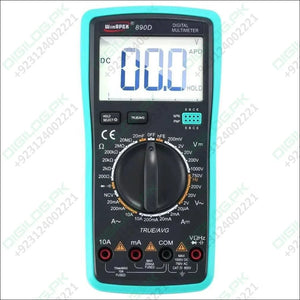

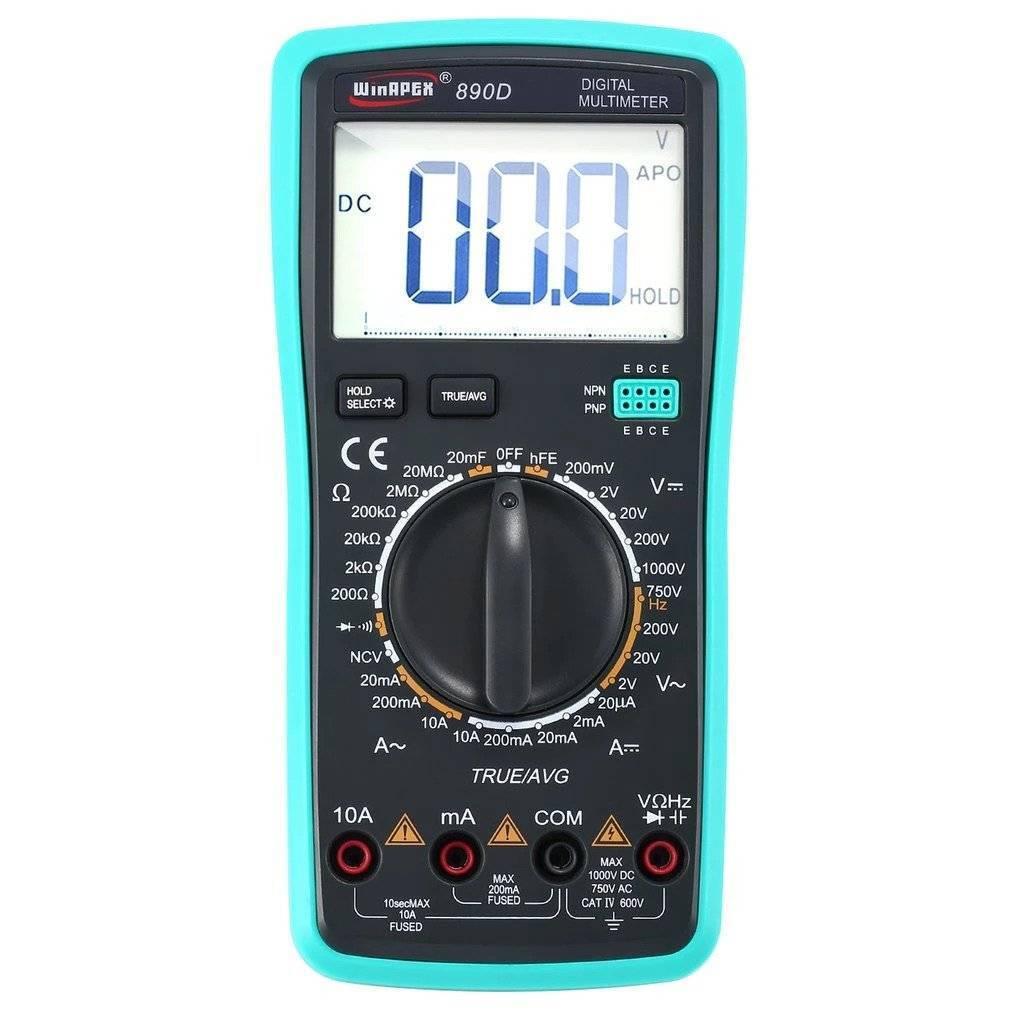

Digital Multimeter 890d Dc Ac Voltmeter Fast Accurately Measures Current Resistance Capacitance For Electrical Maintenance

Digital Multimeter 890d Dc Ac Voltmeter Fast Accurately Measures Current Resistance Capacitance For Electrical Maintenance

Regular price Rs 4,500
Regular price Sale price Rs 4,500
Sale Sold out
Shipping calculated at checkout.

SKU:b249,L,NBP

NOTIFY ME WHEN IN STOCK

890D is digital multimeter can be used for electrical and mechanical maintenance, air conditioning maintenance, electrician maintenance, and on-site teaching. Its professional level multimeter used for most of the measurement requirements in electrical and electronics needs.

Features:

  1. The automatic shutdown function can help you save energy, and it will automatically shut down if there is no operation for about 15 minutes.
  2. The large LCD screen displays high-definition numbers, with a backlight board, and a high-contrast full-screen backlight design.
  3. The multi-function digital multimeter can measure AC and DC voltage, DC current, AC current, resistance and capacitance.
  4. Convenient functions such as data retention, large LCD backlit screen, etc. make measurement and recording easier than ever.
  5. It can meet the needs of long working days, from a durable appearance to a wide range of heavy-duty functions.

Specifications:

  • Model: 890D
  • Basic Function: Range Accuracy
  • DC Voltage: 200mV/2V/20V/200V/1000V (0.5%+4)
  • AC Voltage: 200m/2V/20V/200V/750V (0.8%+3)
  • DC Current: 20uA/2mA/20mA/200mA/10A (0.8%+8)
  • AC Current: 20mA/200mA/10A (1.0%+8)
  • Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ (0.8%+5)
  • Capacitance: 20nF/200nF/2uF/20uF/200uF (2.5%+20)
  • 20mF (5.0%+10)
  • 30mF (<20mF reading is for reference only) (10%+5)
  • True effective value measurement: YES
  • Average measurement: YES
  • ACV frequency response: 40Hz-1kHz (only applicable to sine wave and triangle wave, >200Hz other waveforms are for reference only)
  • Diode test: about 4.2V (convenient to test and light up the ED light)
  • Continuity test: about 1V
  • hFE: can measure the hFE parameters of NPN or PNP transistors
  • Data retention: HOLD
  • High-resolution analog bar: 20 segments
  • LCD backlight: YES
  • Battery undervoltage prompt: YES
  • Automatic shutdown: about 15 minutes
  • Input impedance: ≥10MΩ
  • Use environment: 18℃28℃ (64℉82℉); relative humidity ≤75%
  • Battery: 9V battery (6F22)
  • LCD size: 69*45.5 mm
  • Body size: 1849046mm (LWH)
  • Battery: 9V battery (6F22) (not included)

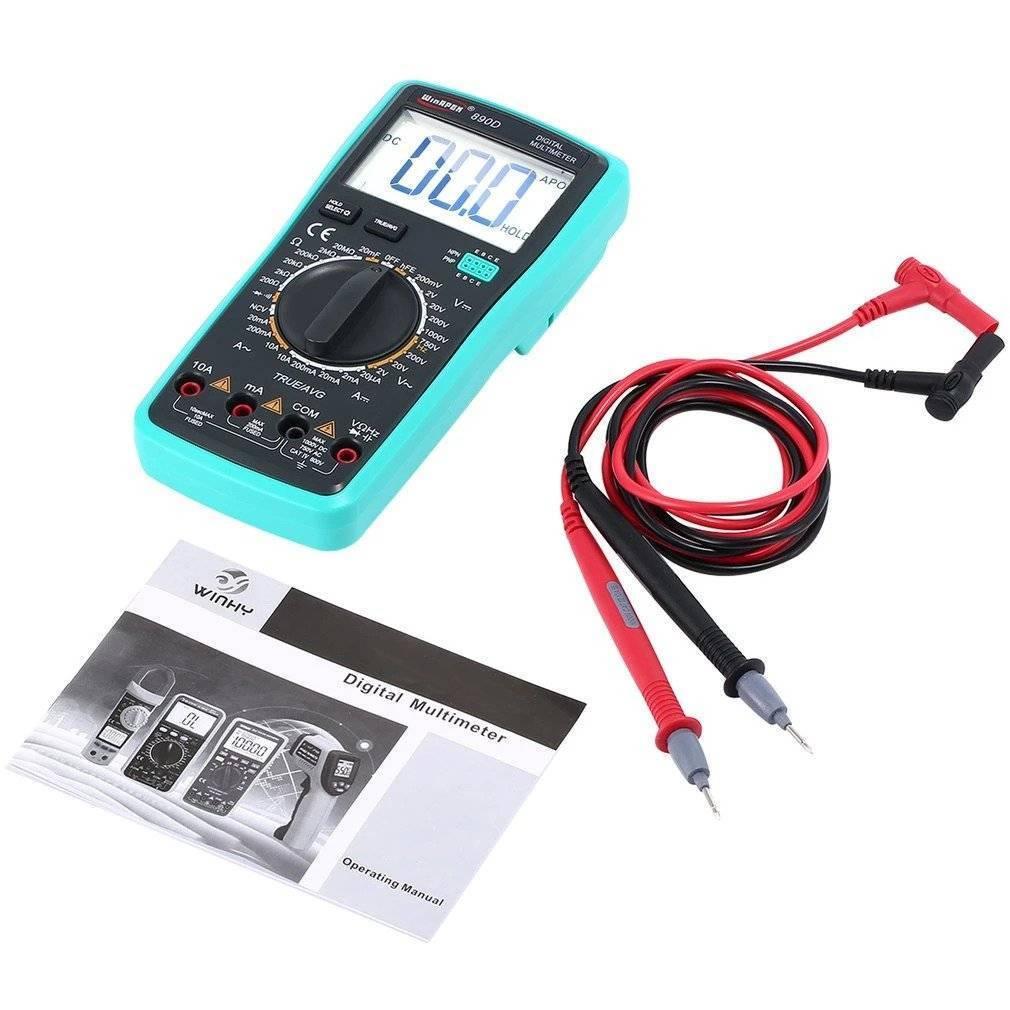

Package Included:

  • 1 pc * Digital Multimeter (without battery)
  • 1 pair * Test Lead
  • 1 pc * manual

Notes:

  • Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
  • Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
