Description

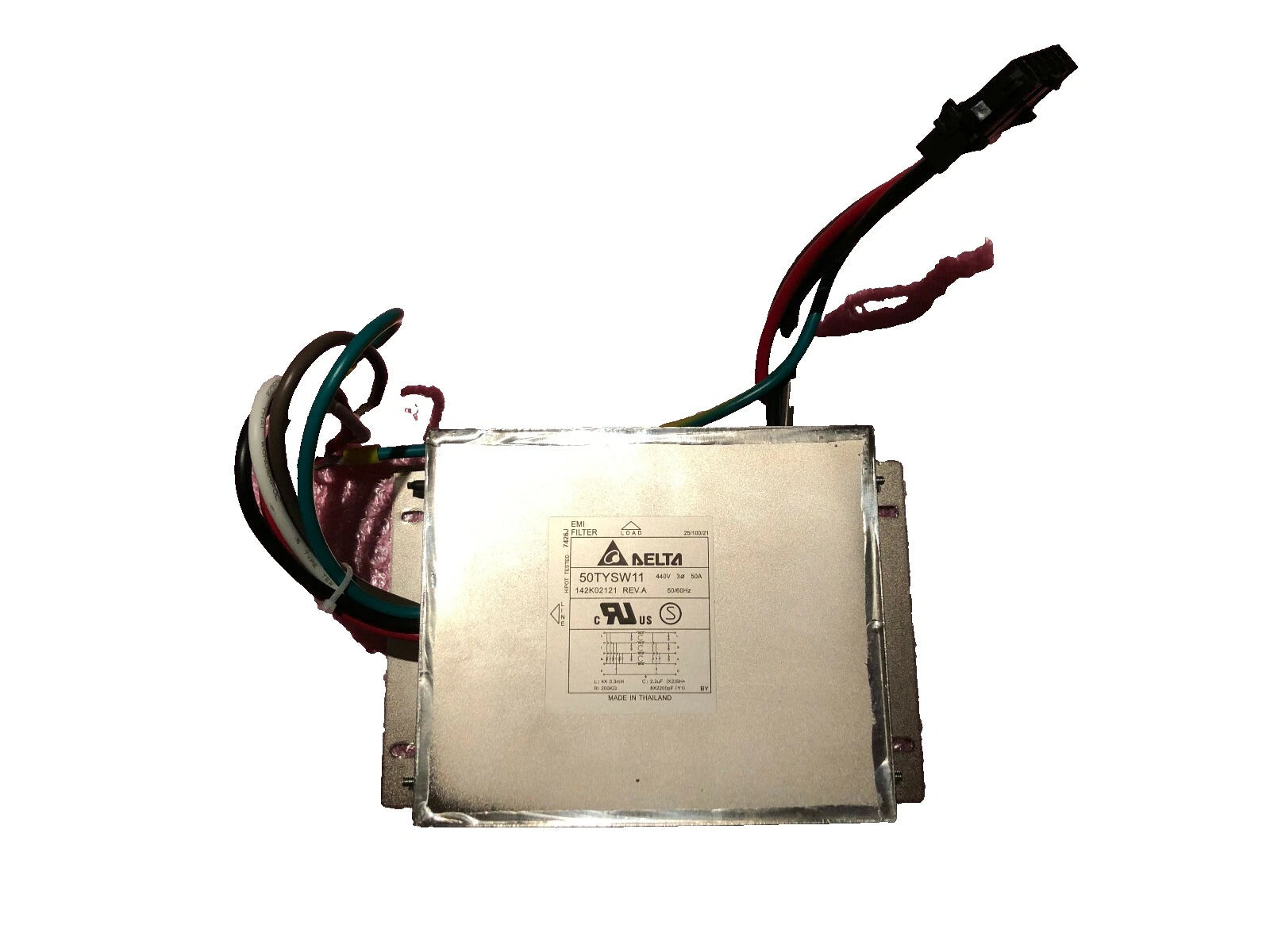

The Delta 50TYSW11 is a 3-phase EMI (electromagnetic interference) power line filter, manufactured by Delta Electronics for use on higher-power industrial equipment. Housed in a rugged, foil-wrapped metal enclosure for shielding and heat dissipation, it's designed to suppress conducted electrical noise on 3-phase AC power lines, helping equipment meet EMC compliance standards while protecting against interference from the mains supply.

As printed on the label, this filter is rated for 440V, 3-phase (3φ), 50A operation at 50/60Hz, making it suited for demanding industrial power applications such as motor drives, CNC machinery, industrial power supplies, and other 3-phase powered equipment. The internal filter network is built from an inductor array (L: 4x0.3mH) and capacitor network (2.2µF X2SH capacitors, plus 2200pF Y1 capacitors), with 200KΩ bleeder resistors for safe discharge.

The unit comes with pre-wired input/output leads — including brown, black, white, and green/yellow (ground) wires along with a connector harness — for direct integration into existing power wiring. It carries UL/cUL and CSA (S) safety certifications, and is clearly marked with LINE and LOAD orientation for correct installation.

Key Specifications

• Model: Delta 50TYSW11 (142K02121 REV.A)
• Type: 3-phase EMI/EMC line filter
• Rated Voltage: 440V, 3-phase
• Rated Current: 50A
• Frequency: 50/60Hz
• Inductance (L): 4 x 0.3mH
• Capacitance (C): 2.2µF (X2SH), 2200pF (Y1)
• Resistance (R): 200KΩ
• Certifications: UL, cUL, CSA (S)
• Wiring: Pre-attached lead wires + connector harness
• Manufactured: Thailand

Common Applications

• 3-phase industrial motor drives and VFDs
• CNC and industrial machinery power input filtering
• High-power industrial equipment EMC compliance
• General 3-phase conducted EMI/RFI noise suppression

Package Includes

• 1 x Delta 50TYSW11 3-Phase EMI Line Filter (with pre-wired leads) (Used Condition)
