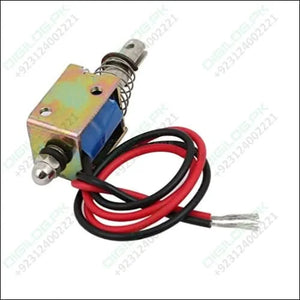

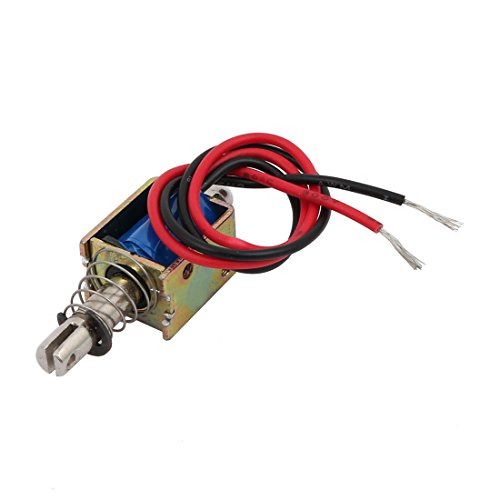

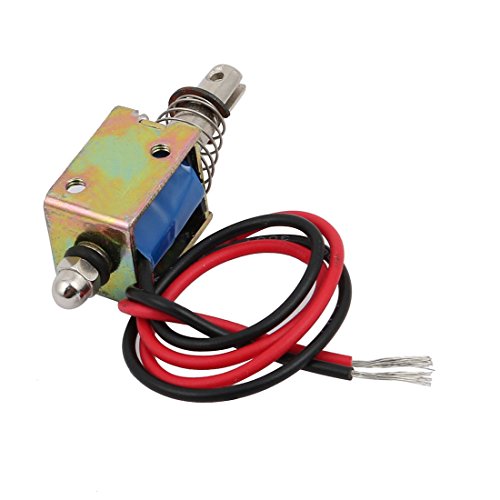

DC6V 300mA Control electrical 10mm 4N Force Push Pull Type Frame DC Solenoid

A DC 6V 300mA Control Electrical 10mm 4N Force Push-Pull Type Frame DC Solenoid is an electromechanical device that converts electrical energy into mechanical motion, specifically designed for pushing or pulling actions. It consists of a coil of wire that creates a magnetic field when current passes through it, moving a plunger or armature within the solenoid's frame.

Key Features:

• Operating Voltage: 6V DC (Direct Current).
• Current: Draws around 300mA when energized.
• Stroke (Movement Distance): The plunger or armature has a movement range of 10mm, indicating how far it travels when activated.
• Force: Capable of exerting a pushing or pulling force of 4N (Newtons), which is roughly equivalent to 0.4kgf (kilogram-force).
• Type: This solenoid is a push-pull type, meaning it can be used for either pushing or pulling depending on how it is mounted and connected.
• Frame: Encased in a sturdy metal frame for structural support, ensuring durability during repeated operation.
• Application: Commonly used in automation, robotics, door locks, vending machines, and other electromechanical systems that require controlled linear motion.

The solenoid provides controlled mechanical movement, ideal for tasks requiring reliable, small-scale force in limited spaces.

Package Included:

1x 6v 300ma Solenoid
