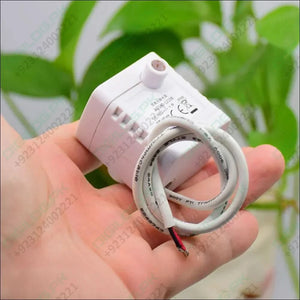

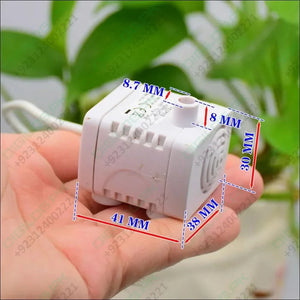

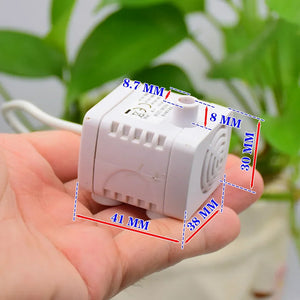

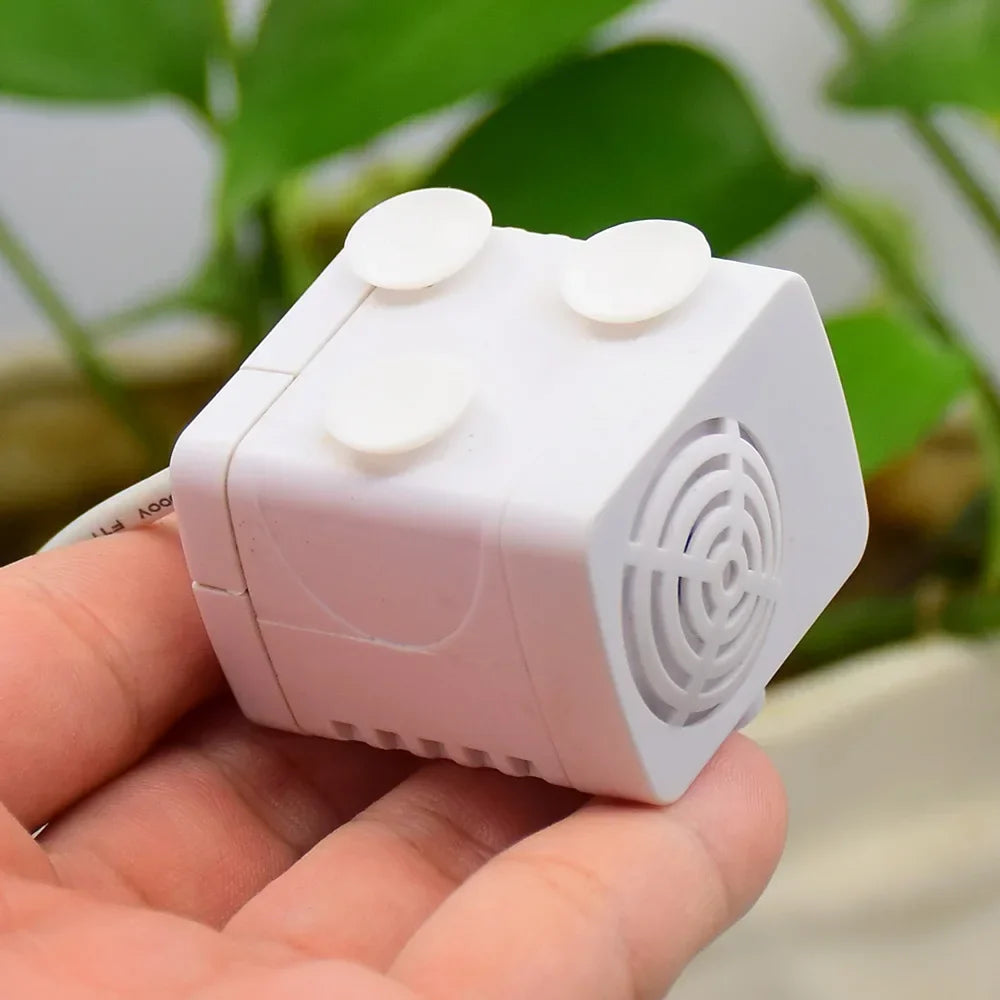

DC brushless water pump DC 12V 2W submersible pump fish tank rockery circulation

Specification:

Voltage: DC 12V

Power: 2W

Current: 0.165 A

Maximum lift: 1.5 m

Maximum flow rate: 220 L/H

Applicable water temperature: below 35 degrees Celsius

Line length: approximately 300 MM

Water pump weight: 70 grams

Attention:
The drive board of the DC brushless motor should be correctly connected to the positive and negative poles.
Connect the red wire to the positive pole and the black wire to the negative pole.

The drive board of this brushless motor has reverse protection,
and if the positive and negative poles are wrongly connected, it just doesn't work and won't burn out the drive board.
