350W/400W Brushless Hall DC Motor Driver - ZS-X11H V2

High-performance DC three-phase brushless control board designed for precise motor control with Hall sensor feedback. This newly upgraded BLDC wide voltage controller supports PLC 0-5V analog control and PWM control for versatile speed regulation.

Technical Specifications:

• Working Voltage: 6-60V DC (limit 60V with margin for safe use)
• Working Current: Rated 16A, Peak 20A
• Power Output: Rated 200-300W, Maximum 350-450W (with enhanced heat dissipation)
• Overcurrent Protection: Yes
• Product Size: 63mm × 45mm × 31mm (L × W × H)
• Net Weight: Approximately 77-93g (including thread)
• Material: Metal + Plastic
• Process: Full SMT patch process for stable performance

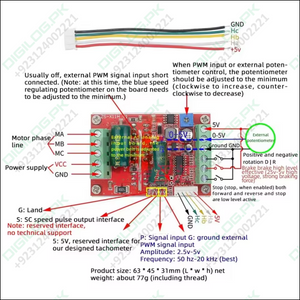

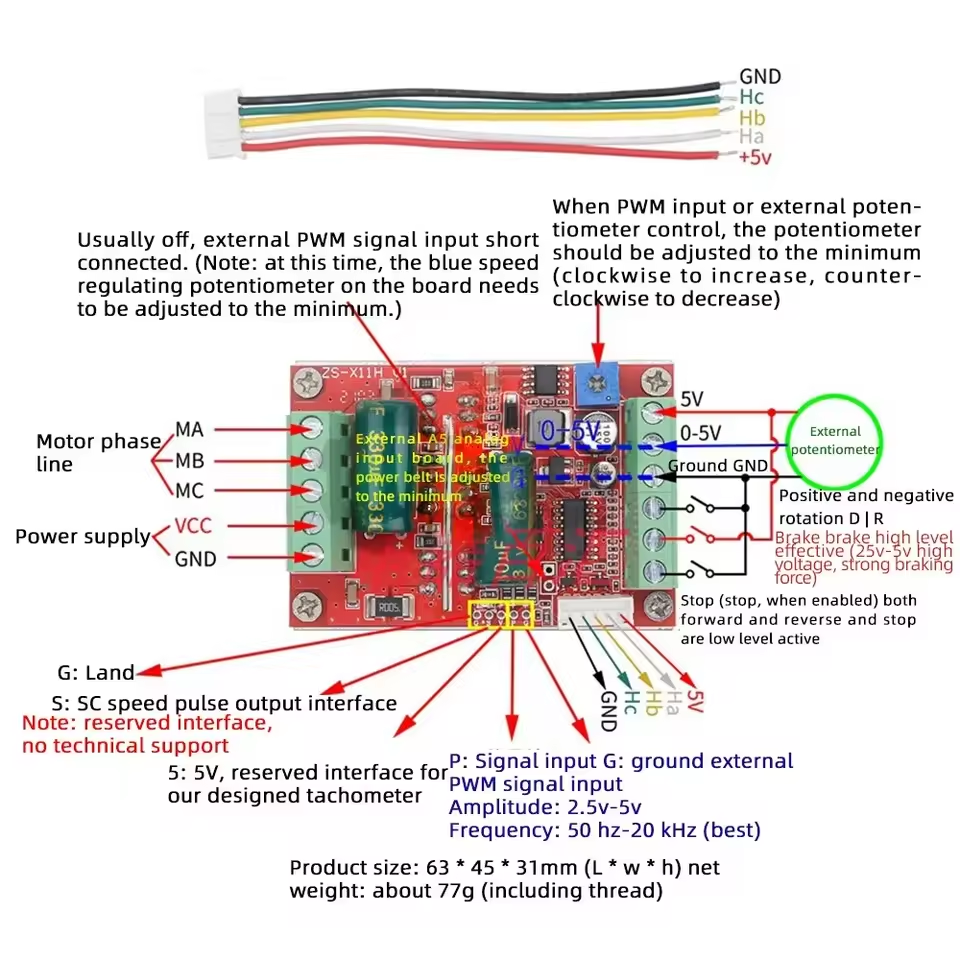

Interface Description:

• MA, MB, MC: Motor phase line output (connect to motor)
• VCC, GND: Main power supply (external DC power supply)
• 5V, GND: Onboard 5V power supply (current ≤30-50mA)
• Ha, Hb, Hc, +5V, GND: Hall signal power input interface (5-wire connection)
• DIR: Direction control - forward/reverse (low level effective, can connect external switch to ground)
• STOP: Stop control interface (low level effective)
• Brake: Brake control (high level effective, 25V-50V high voltage for strong braking force)
• Speed Regulation: Integrated potentiometer or external 0-5V analog/PWM dual signal input
• SC: Speed pulse output interface (reserved, no technical support)
• P: PWM signal input (Amplitude: 2.5-5V, Frequency: 50Hz-20kHz best)

Key Features:

• Wide voltage input range: DC 6-60V (compatible with 12V, 24V, 48V systems)
• Three-phase DC brushless motor control with 120° electrical angle
• PWM and PLC 0-5V analog control support
• Hall sensor feedback for accurate positioning and smooth operation
• Positive/reverse rotation control with external switch capability
• Integrated potentiometer for onboard speed regulation
• Overcurrent protection for safe operation

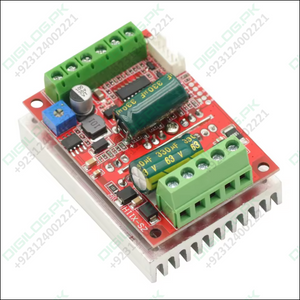

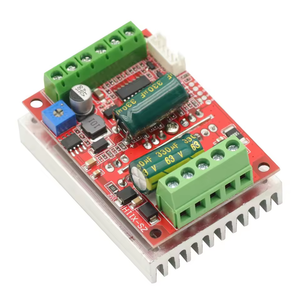

• Compact driver board with aluminum heat sink
• Low-speed stable start with high torque output

Applications:

Ideal for robotics, automation systems, electric vehicles, industrial machinery, CNC equipment, and DIY electronics projects requiring precise brushless motor control.

Important Notes & Precautions:

• This drive requires motors with Hall sensors (120° electrical angle) for normal operation
• Hall wiring sequence is critical - two power supply lines and three signal lines must be correctly connected
• For first-time setup, test with low voltage and current; adjust Hall line sequence until smooth operation is achieved
• Motor phase line sequence (MA, MB, MC) must match motor driver board sequence
• No fuse on power supply circuit - reverse polarity will cause permanent damage (even 2 seconds)
• Do not short circuit motor output during operation
• Ensure proper insulation of wiring lines - avoid contact with board components
• Use motors compatible with the voltage and current ratings of this driver

Package Contents:

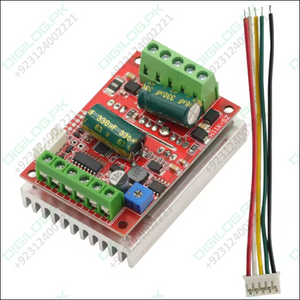

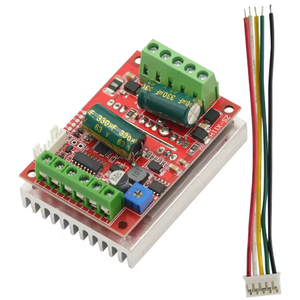

• 1 × BLDC Motor Controller Board (ZS-X11H V2)
• 1 × Wiring Harness

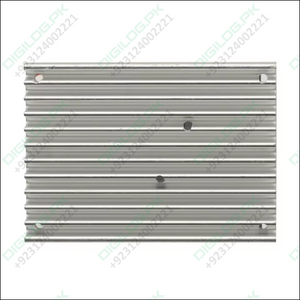

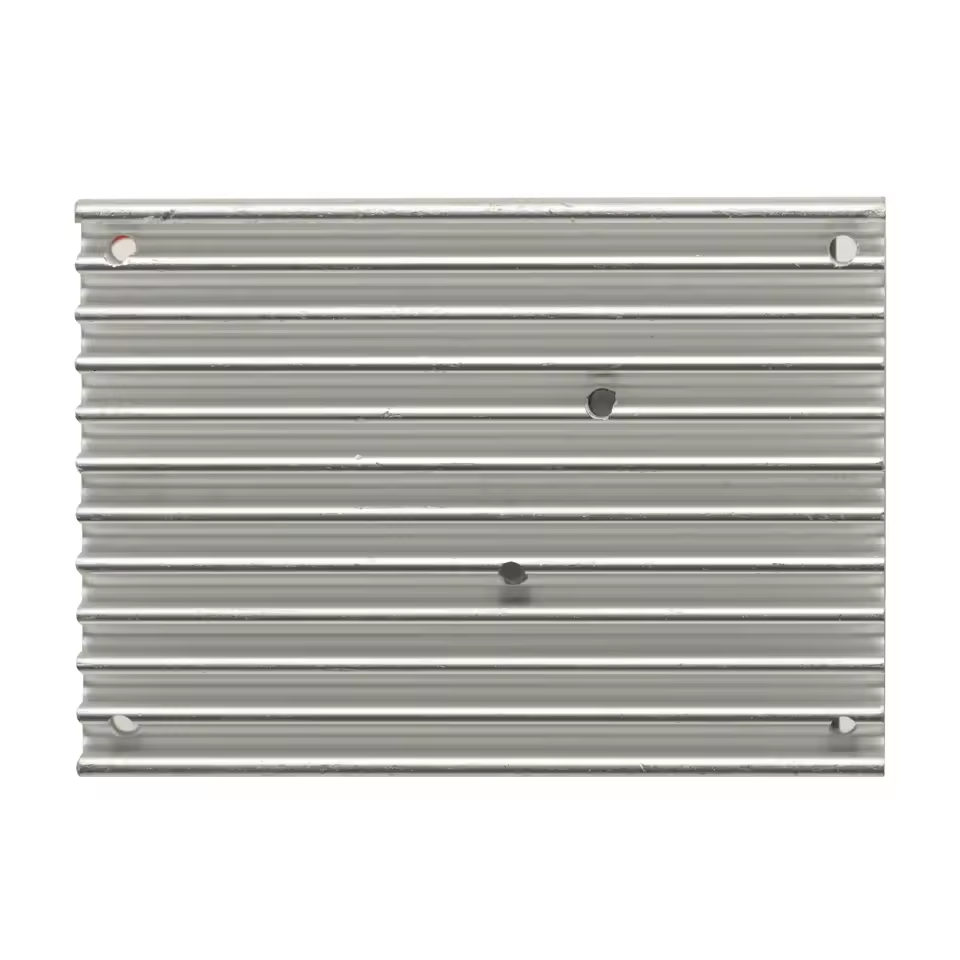

• 1 × Aluminum Heat Sink

Note: Light reflection and different displays may cause slight color variations. Measurement tolerance: ±1-3cm.
