Name: DB15 Male Right Angle Connector d Sub High Density PCB Mounting 15 Pin 3 Rows Connector Dbhd 15
Brand: China
SKU: B623,Dell
Price: 90.0 PKR
Availability: InStock

Home ALL Products

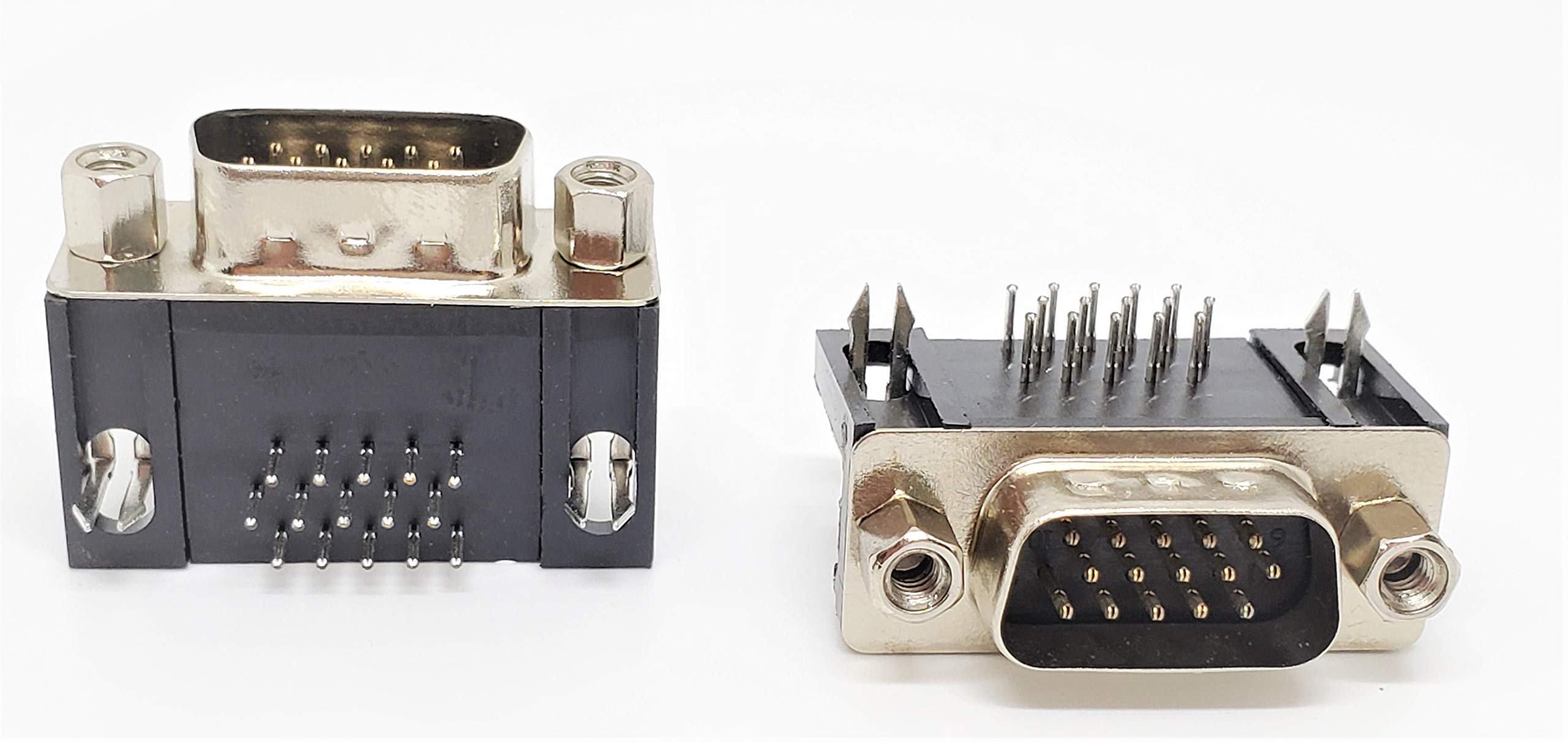

DB15 Male Right Angle Connector d Sub High Density PCB Mounting 15 Pin 3 Rows Connector Dbhd 15 - two black and silver 15-pin high-density D-sub connectors with PCB mounting pins viewed from different angles.

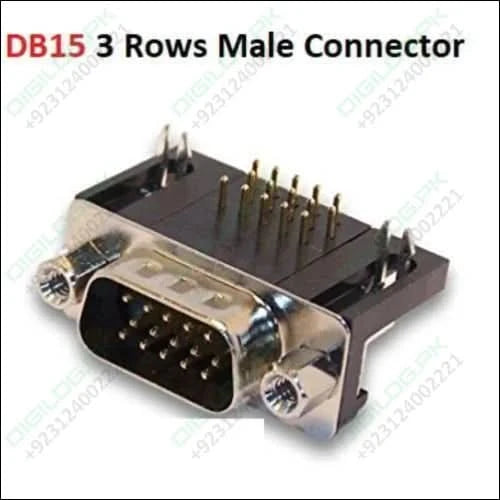

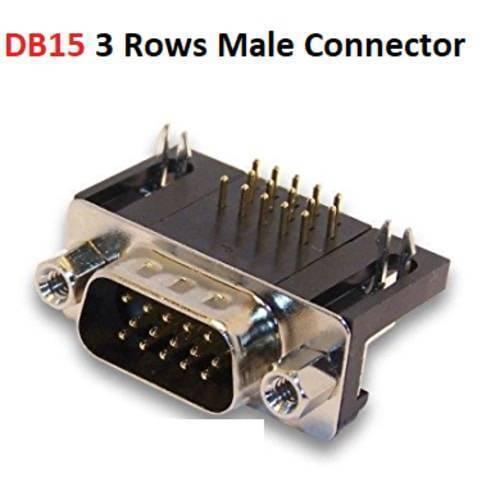

DB15 Male Right Angle Connector d Sub High Density PCB Mounting 15 Pin 3 Rows Connector Dbhd 15 - a black and silver high-density D-sub connector with 15 pins arranged in three rows and right-angle PCB mounting pins.

DB15 Male Right Angle Connector d Sub High Density PCB Mounting 15 Pin 3 Rows Connector Dbhd 15

Rs 90

SKU: B623,Dell

Pickup available at Digilog Electronics

Usually ready in 2 hours

DB15 Male Right Angle Connector d Sub High Density PCB Mounting 15 Pin 3 Rows Connector Dbhd 15

Rs 90

The D-subminiature or D-sub is a common type of electrical connector. They are named for their characteristic D-shaped metal shield. When they were introduced, D-subs were among the smallest connectors used on computer systems. These DB15HD right angle connectors are designed to be mounted on printed circuit boards

Features And Specifications Of D-sub 15 Pin High-Density DBHD15 Male Right Angle Connector:

Gender: Male
Pin Number: 15 pins
Rows: 3
DB15HD connectors have 3 rows of pins as used on VGA connections
The orientation body: Right angle
Gold Plated Contacts and Solder Post
Plug with Grounding Indents on Shell
All 15 pins and two mounting tabs (locking forks) extend through the circuit board

Package Include:

1x DB15 3 Rows male Connector
