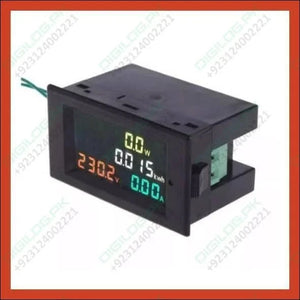

D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular digital display unit with a connected current transformer, showing 0.0W, 0.015kWh, 230.2V, and 0.00A.

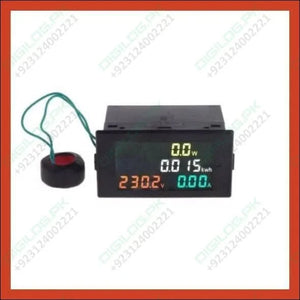

D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular digital display unit showing 230.2V, 0.0W, 0.00A, and 0.015kWh on its screen.

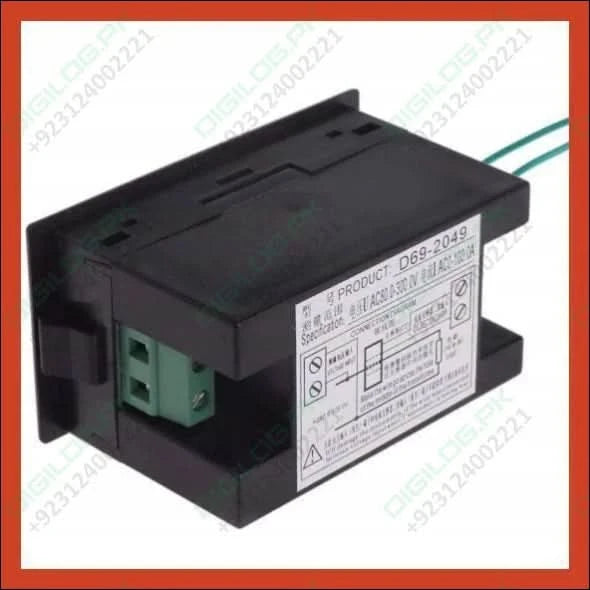

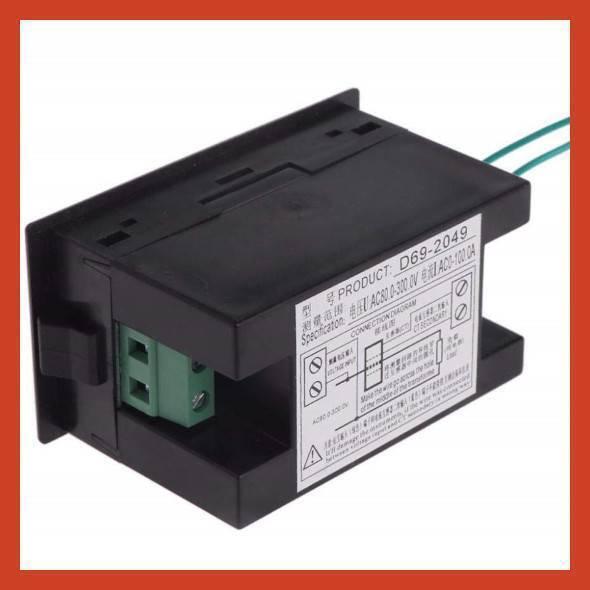

D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular digital meter with a green terminal block and a wiring diagram sticker on the side.

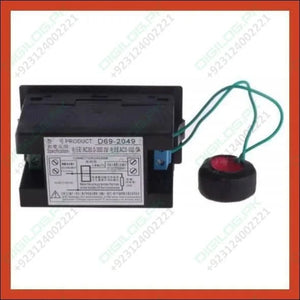

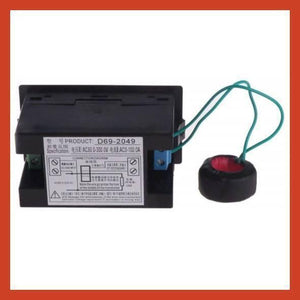

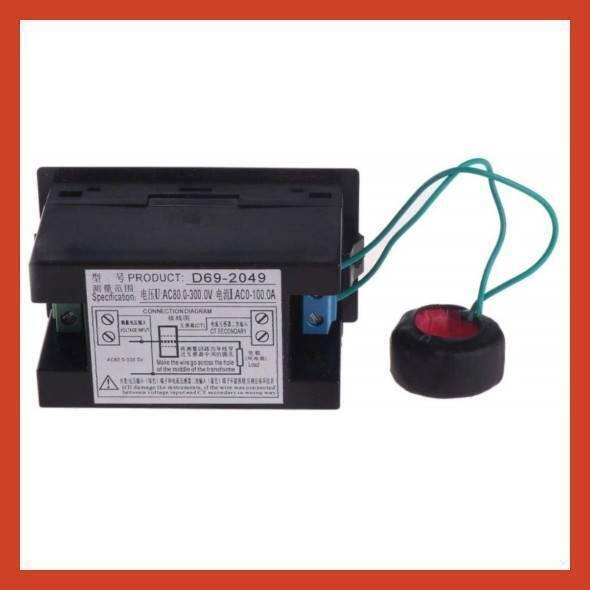

D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular meter with a wiring diagram label and an attached current transformer coil.

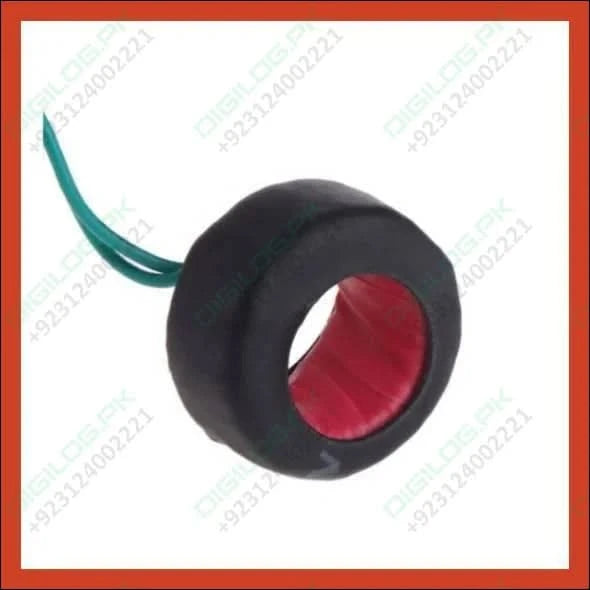

D69-2049 Power Energy Meter Voltmeter Ammeter - a black and red toroidal coil with two green lead wires.
Sold out
D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular digital display unit with a connected current transformer, showing 0.0W, 0.015kWh, 230.2V, and 0.00A.
D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular digital display unit showing 230.2V, 0.0W, 0.00A, and 0.015kWh on its screen.
D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular digital meter with a green terminal block and a wiring diagram sticker on the side.
D69-2049 Power Energy Meter Voltmeter Ammeter - a black rectangular meter with a wiring diagram label and an attached current transformer coil.
D69-2049 Power Energy Meter Voltmeter Ammeter - a black and red toroidal coil with two green lead wires.

D69-2049 Power Energy Meter Voltmeter Ammeter

Sale price Rs 3,180
SKU: B310,IMP5,Th2,A
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

D69-2049 AC80.0-300.0V/AC200.0-450.0V Energy Meter Voltmeter Ammeter Power Energy Meter Volt Amp Power Kwh Meter

Attention:

  1. The meter will be destroyed when you make the wrong connection method with voltage input(green terminal) and secondary current transformer(blue terminal).
  2. The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to measure square wave, the output of inverter and correction sine wave.

Features:

  • Auto-saving: when power off, the electric energy will be saved.
  • The saved electric energy will be accumulated continue when the meter power-on next time.

Specifications:

  • Accuracy: 1%  2words
  • AC voltage: AC 80.0-300.0V/AC200.0-450.0V
  • AC current: AC 0-99.99A
  • Minimum resolution : 0.01A.(Display 100.0A when the current is over 100A)
  • Active power: 0-45000W. resolution is 0.1W (< 0-9999.9W ), otherwise Minimum resolution is 1W.
  • Electric energy: 0-9999999Kwh(0-9999.999kwh minimum resolution is 0.001kwh,10000.00-99999.99kwh minimum resolution is 0.01kwh,100000.0-999999.9kwh minimum resolution is 0.1kwh,The rest minimum resolution is 1Kwh.)
  • Speed: 2 times per second

Package Includes:

1 x D69-2049 Power Energy Meter Voltmeter Ammeter
