Imported Cnc Engraving Pcb Milling Machine Wood Carving Cnc 3018
Advance Payment Only
This is General purpose CNC Engraving PCB Milling Machine CNC3018 For study and research. This CNC engraver requires self-assembly and commissioning, assembly requires a certain mechanical knowledge Includes all the components required for assembly. It has 775 Spindle:(12-36V):12V, 3000rpm; 24V, 7000rpm; 36V, 9000rpm. Supported system: Win XP/Win7/Win8/Linux and Effective working area: X*Y*Z=300 * 180 * 45mm; Frame dimension: X*Y*Z=330 * 400 * 240mm. This CNC milling is suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminium and other materials, but can not carve hard metal, jade and other very hard texture of the items.
Features Of 3018 3 Axis Standard Spindle Motor Wood Engraving Machine Milling Engraver:
- Assembly requires a certain mechanical skill. All assembly components are included.

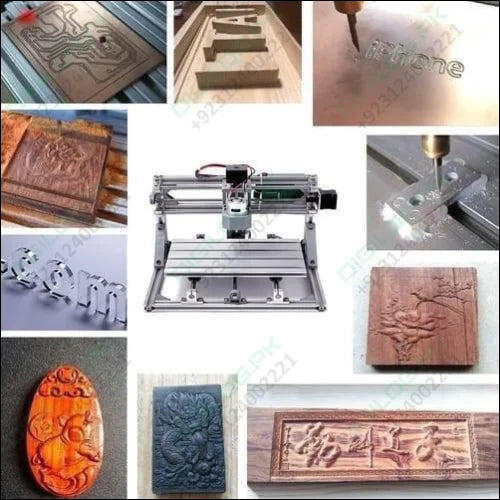

- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.

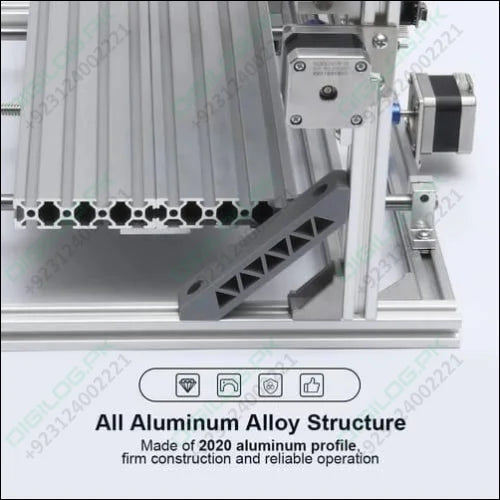

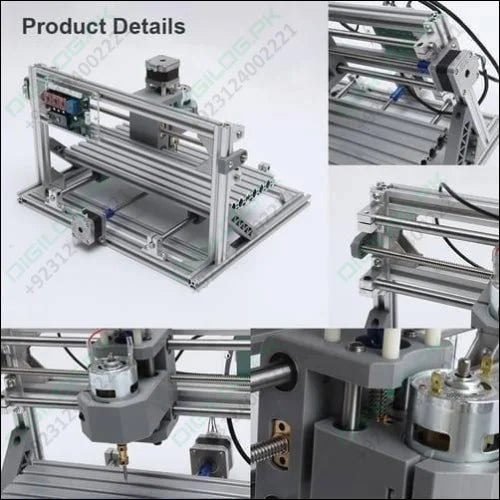

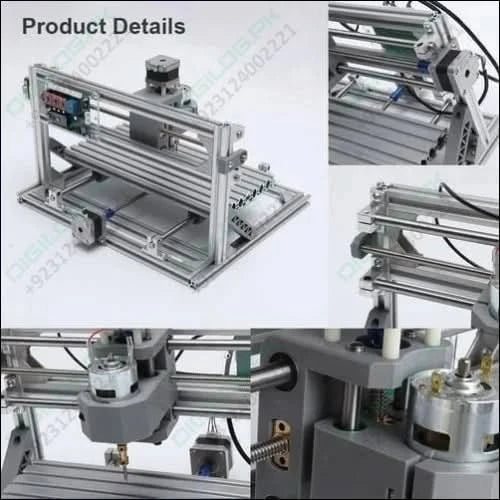

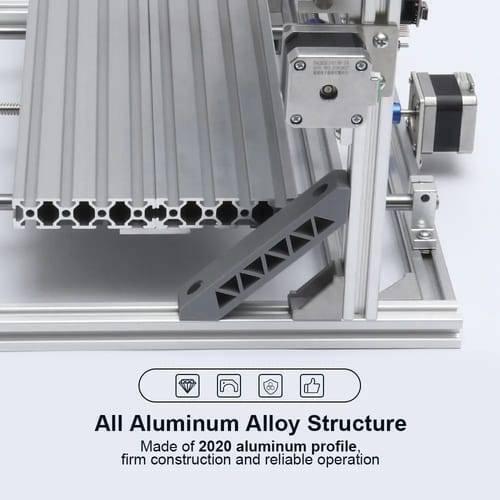

- Aluminum Profile Stable Construction

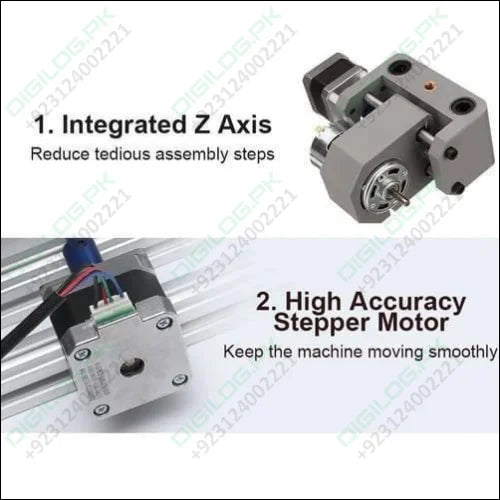

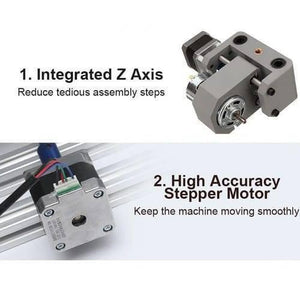

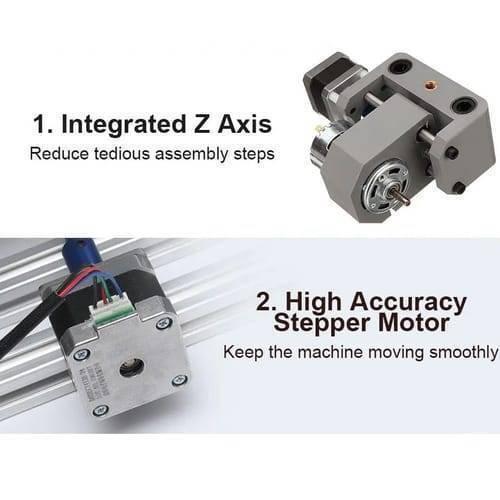

- 3 Axis Movable, Powerful Spindle Motor

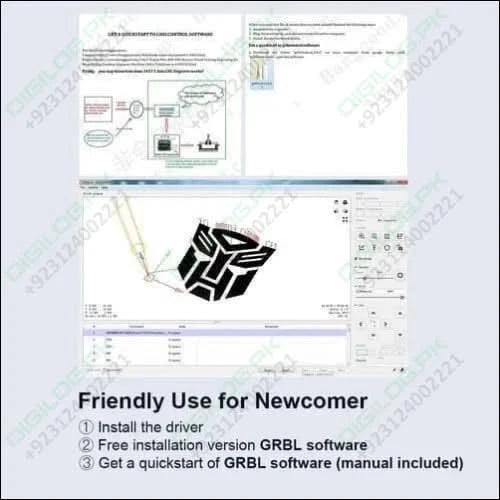

- Contains Quickstart Guide of GRBL Software

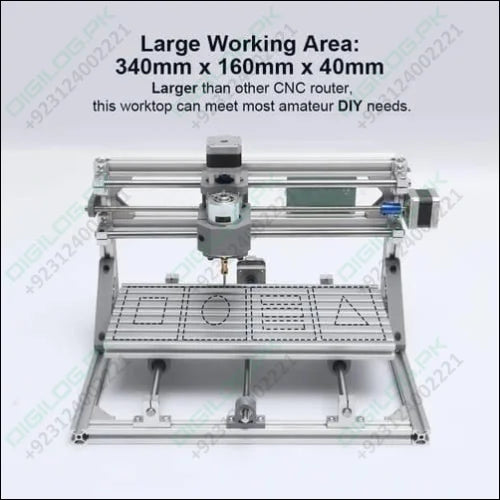

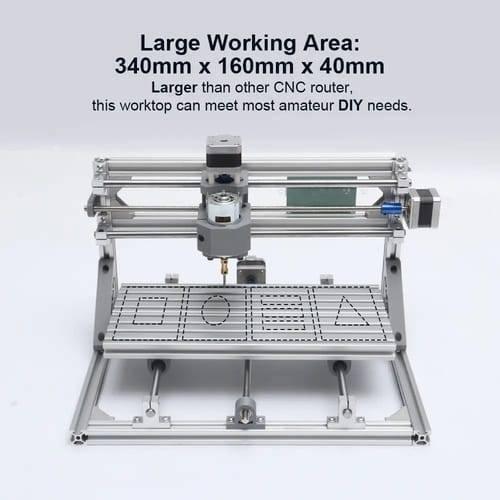

- 340x160x40mm Working Area, Meet Most Amateur DIY Needs
Specifications Of CNC 3018 DIY Mini CNC Router:
- Model: Mini CNC 3018 (Without Laser Module)
- Frame Material: Aluminum Alloy
- Colour: Silver
- Table Area: Approx. 340x160mm
- Working Area: Approx. 340x160x40mm
- Product Weight: 7.5kg
- Control Software for Laser: Litefire

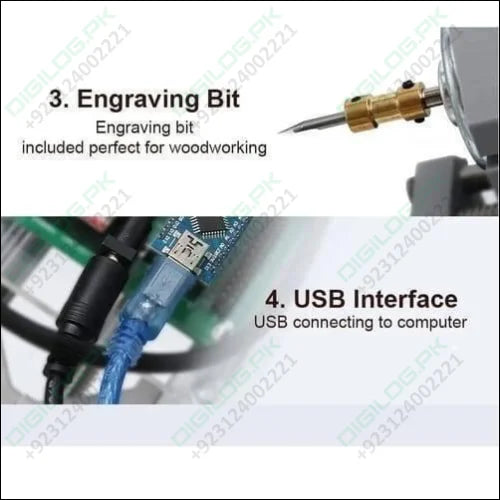

- Interface: USB
- Stepper Motor: 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m
- System Requirements: Windows XP SP3, Win7, Win8, Win10.
- Adapter Plug: 2-Pin US Plug
- Adapter Input Voltage: AC 110-240V 50/60Hz
- Adapter Output Voltage: DC 24V 4A

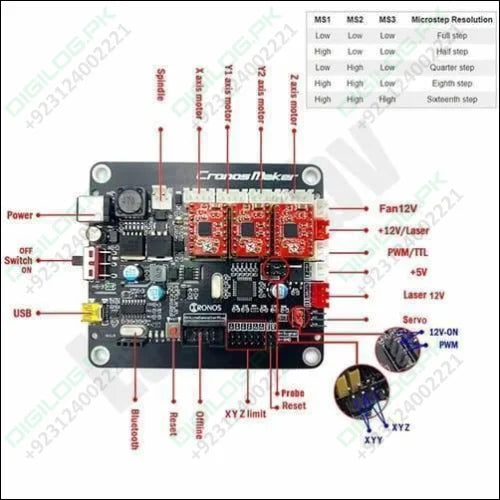

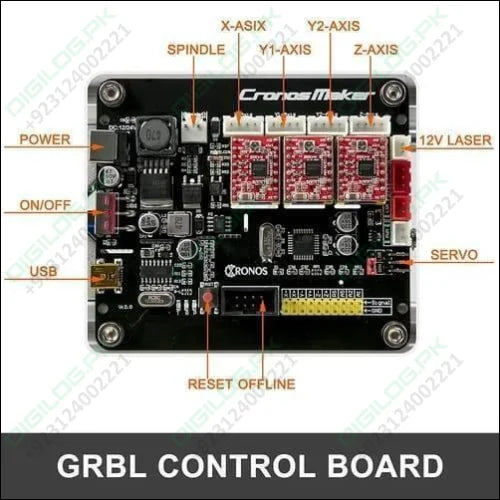

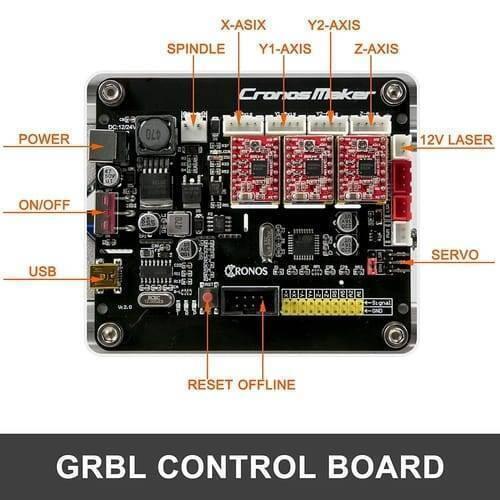

- Control software: GRBL control
- Construction: Aluminum + plastic
- Working area: 300*180*40mm (frame size: 400*330*240mm )
- Accuracy error range: 0.1-0.15mm
- Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
- Step motor: 1.3A 0.25N.m
- Power supply: 24V 5.6A
- Supported system: Windows XP/ Win 7/ Win 8/ Win10
- Laser (options): 500mw/2500mw 12V 405nm5500mw 12V 450nm
- Drill bits:Diameter: 3.175mm tip: 0.1mm length: 30mm(They are for woodworking, not for metal.)
- Click me to Download User manual

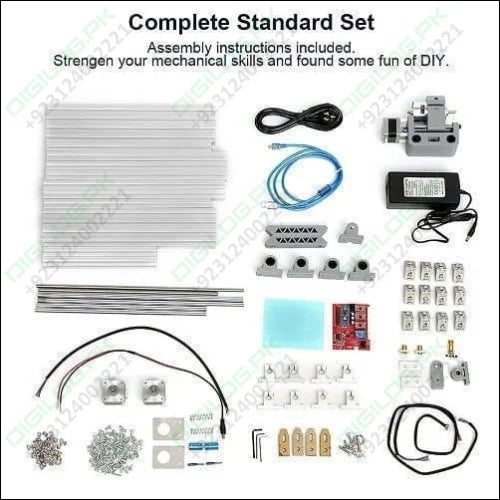

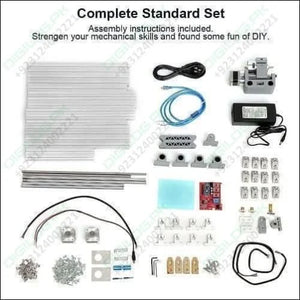

Package Includes:

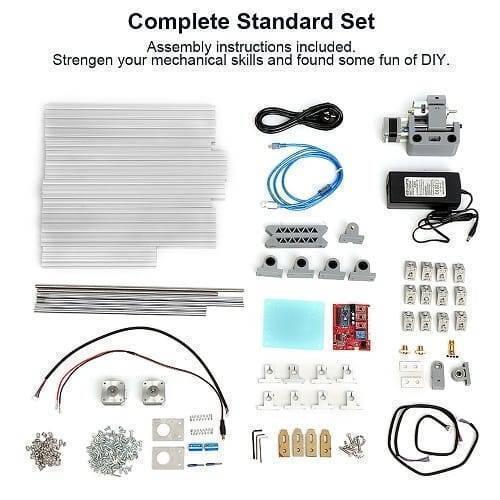

- 1 x Wood Engraving Machine Full Set (Unassembled Delivery)
- 1 x 10 Cutters
- 1 x 4 Set Plates
- 1 x ER11
