CKS32F103C8T6 or CKS32F103 is  ARM-based CKS32 Cortex-M3 Minimum System Development Board In Pakistan is devices use the Cortex-M3 core, with a maximum CPU speed of 72 MHz. The portfolio covers from 16 Kbytes to 1 Mbyte of Flash with motor control peripherals, USB full-speed interface and CAN Microcontrollers/CKS32 32-bit Arm Cortex MCUs/CKS32 Mainstream MCUs/CKS32F1 Series.  This is CKS32F103C8T6 Minimum System Board CKS32 ARM Core Module. This board is a low-cost Minimum System Development Board for ARM Microcontroller CKS32F103C8T6. Board is suitable for learners that want to learn CKS32 microcontrollers with ARM Cortex-M3 32-bit core.

The STM32 clones are also making their way into the popular Bluepill development board, as some sellers have already replaced STM32 with CS32, and are selling the CS32 “Bluepill” board with CS32F103C8T6 MCU

Blinking on-board LED Arduino code:

#define LED PC13

// the setup function runs once when you press reset or power the board
void setup() {
 // initialize digital pin PB1 as an output.
 pinMode(LED, OUTPUT);
}

// the loop function runs over and over again forever
void loop() {
 digitalWrite(LED, HIGH); // turn the LED on (HIGH is the voltage level)
 delay(1000); // wait for a second
 digitalWrite(LED, LOW); // turn the LED off by making the voltage LOW
 delay(1000); // wait for a second
}


Specifications and Features:-

1. 100% Brand new and high-quality CKS32 Board
2. 72MHz work frequency.
3. 64K flash memory, 20K SRAM.
4. 2.0-3.6V power, I/O.
5. Reset(POR/PDR).
6. 4-16MHz crystal.

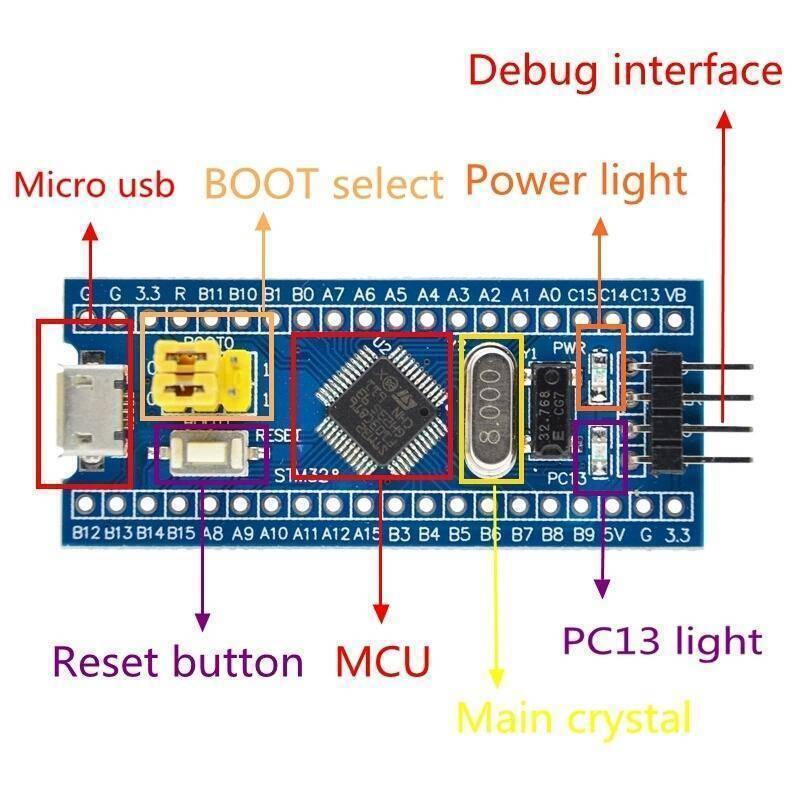

7. Onboard Mini USB interface, you can give the board power supply and USB communication.

To Program CKS32 with Arduino IDE:

 Visit Blog

Package Include:

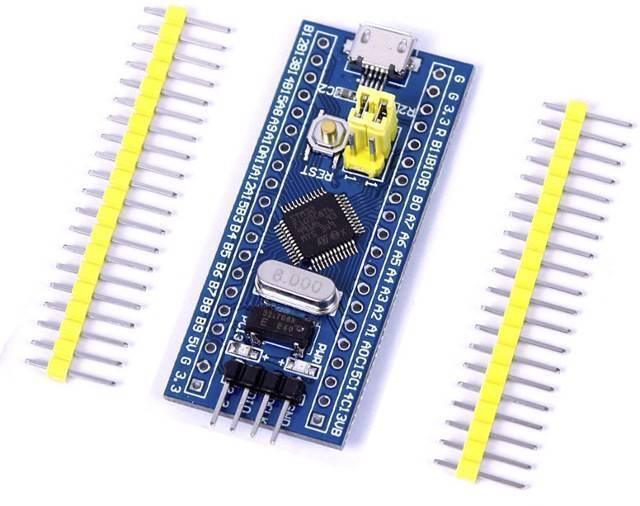

1 x CKS32F103C8T6  CKS32F103 ARM Cortex-M3 Minimum System Development Board
