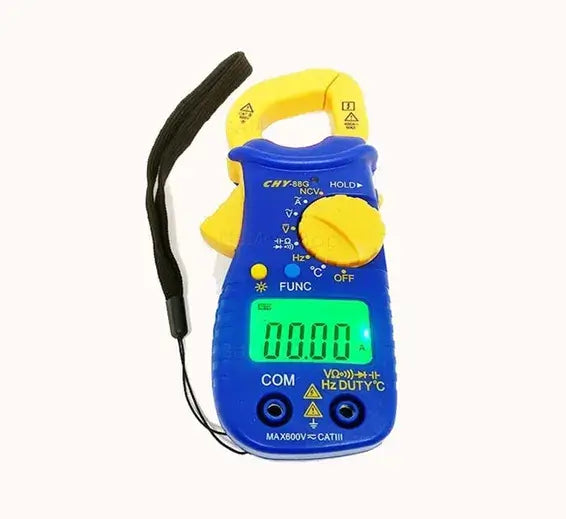

CHY 88G Auto Range Clamp Multimeter – 600A AC, NCV, Capacitance, Frequency
The CHY 88G is an auto-ranging clamp multimeter: pick the function and it chooses the range itself. It reads AC current up to 600A through a 35 mm jaw, and voltage, resistance, capacitance, frequency, diode and temperature through the test leads.
A built-in non-contact voltage (NCV) sensor warns you of a live wire before you touch it, and the 3999-count display gives a finer reading than basic 1999-count clamps.
Key Features
- ⚡ AC current 4A / 40A / 400A / 600A, auto ranging
- 🔧 DC and AC voltage 400mV to 600V
- 📏 Resistance 400Ω to 40MΩ, capacitance and frequency (Hz)
- ⚠️ NCV non-contact live-wire detection
- ✅ Diode, continuity buzzer, temperature, overload protection
Technical Specifications
| Model | CHY-88G |
|---|---|
| Brand | CHY |
| AC Current | 4A / 40A / 400A ±(2.5%+10); 600A ±(1.5%+5) |
| DC Voltage | 400mV / 4V / 40V / 400V ±(0.8%+2); 600V ±(1.0%+2) |
| AC Voltage | 400mV / 4V / 40V / 400V ±(1.0%+10); 600V ±(1.2%+10) |
| Resistance | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ ±(1.2%+2); 40MΩ ±(2.0%+5) |
| Other functions | Capacitance, frequency, temperature, diode, continuity, NCV |
| Display | 3999 counts |
| Jaw opening | 35 mm |
| Power | 3 × 1.5V AAA |
| Size | 155 × 55 × 25 mm |
What's in the Box
- 1 × CHY 88G clamp multimeter
