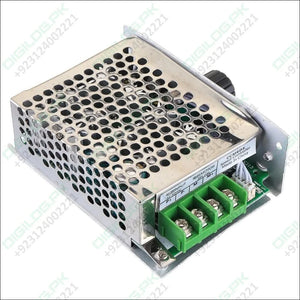

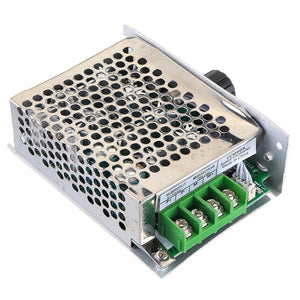

Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller - a silver metal box with a black rotary knob, a perforated top cover, and a green four-terminal screw connector block.

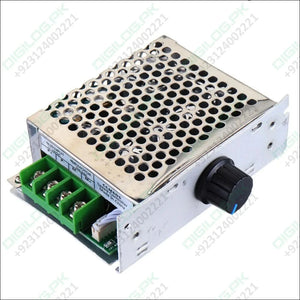

Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller - a silver metal-cased unit with a green terminal block, four screw connectors, and a black rotary knob.

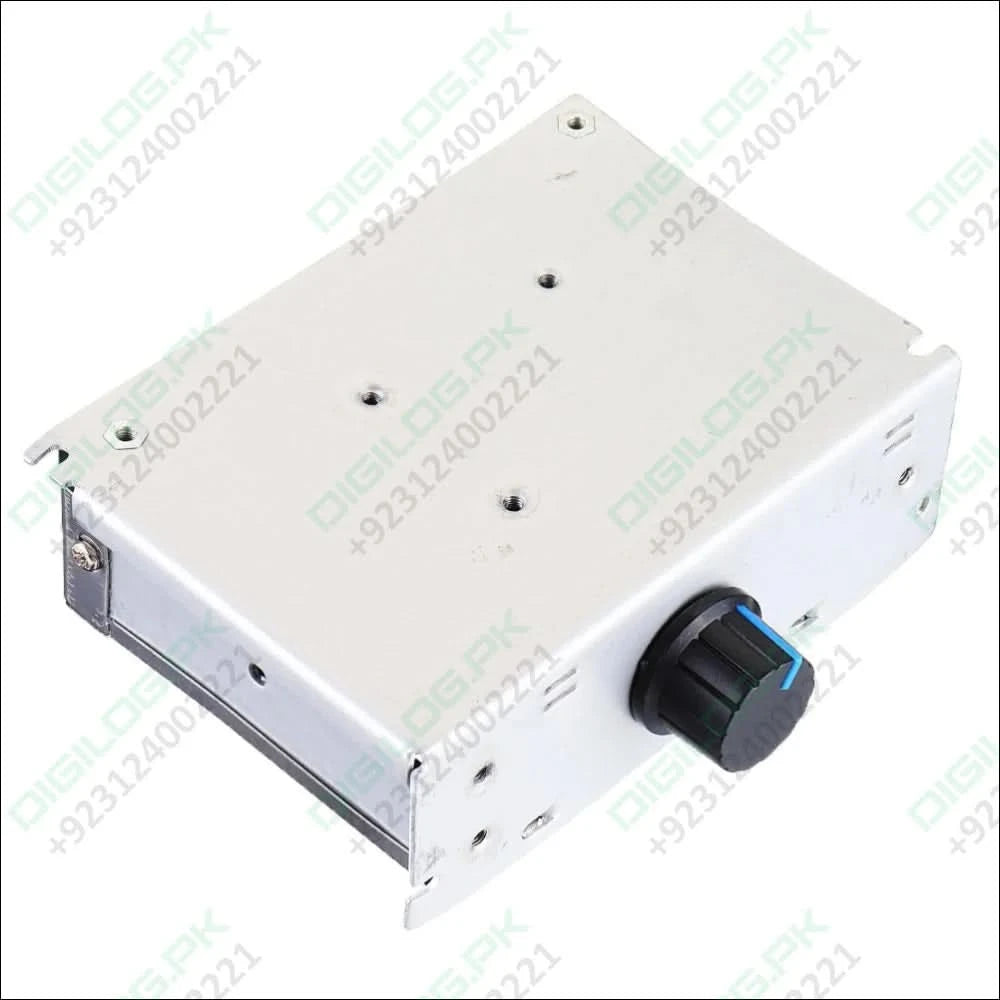

Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller - a silver rectangular metal-cased motor speed controller featuring a single black rotary control knob on the front side.
Sold out
Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller - a silver metal box with a black rotary knob, a perforated top cover, and a green four-terminal screw connector block.
Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller - a silver metal-cased unit with a green terminal block, four screw connectors, and a black rotary knob.
Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller - a silver rectangular metal-cased motor speed controller featuring a single black rotary control knob on the front side.

Ccm6ds PWM DC Motor Governor 12V 24V 36V 30A DC Motor Speed Controller

Sale price Rs 2,020
SKU: B156
Log in to use Wishlist
Add to Compare

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.
Specifications:

Model: CCM6DS
Potentiometer: resistance B100K, opening 8mm
Work voltage: 12V-50VDC (wide range)
Work current: 30A
The power range: maximum 1500W, recommended 12V250W, 24V350W, 48V500W use.
Speed range: 0% -100%
The product frequency: 21KHz
Size:110x76x35mm
Net weight: 203g

Warmly Noted:

1. DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.
2. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
3. The motor can be divided into positive and negative poles. When the running direction is inconsistent with the desired direction, the direction can be changed by adjusting the thread se quence.
4. The potentiometer knob can change the governor output duty cycle to change the motor speed.

Package Included:

1 x CCM6DS PWM DC Motor Governor 12V 24V 36V 30A
