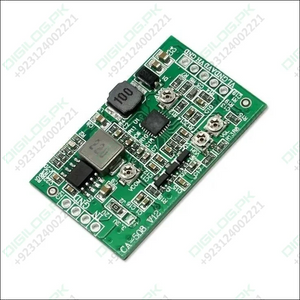

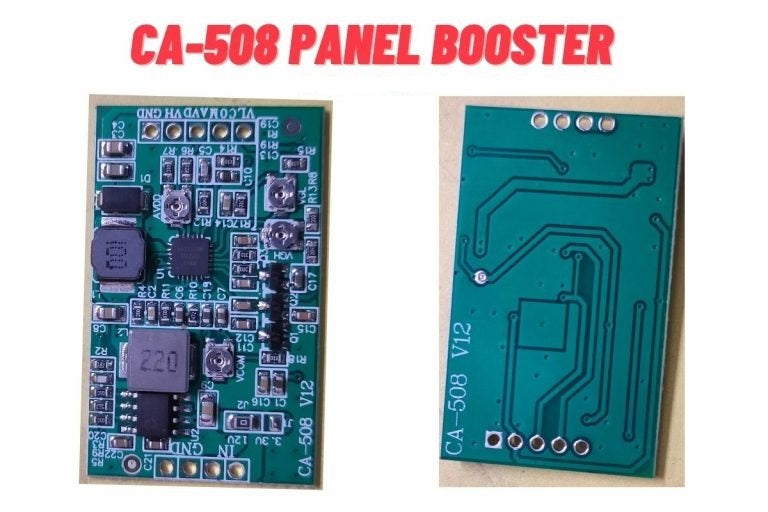

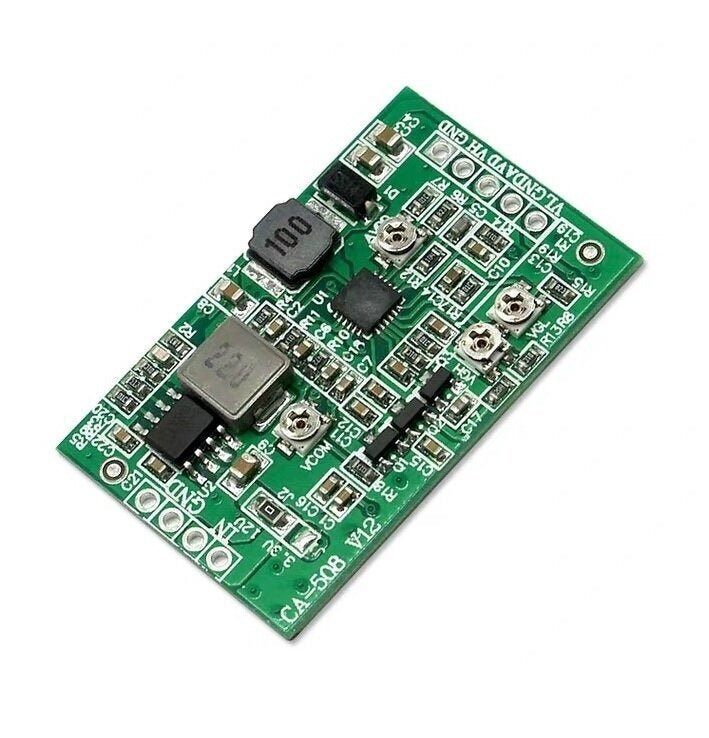

CA-508 Boost Board Module Lcd Tcon Board Vgl Vgh Vcom Avdd 4 Channel Adjustable Step Up Module

The CA-508 Boost Board Module is a versatile 4-channel adjustable step-up converter designed to provide precise voltage regulation for LCD TCON (Timing Controller) boards. It efficiently manages the critical voltages required for optimal LCD performance, including VGL, VGH, VCOM, and AVDD.

Key Features:

• Adjustable Output Channels:

  • VCOM: 3V to 5V
  • AVDD: 7.5V to 12V
  • VGH: 17V to 23V
  • VGL: -6V to -8V

• Input Voltage Range: 3.3V to 5V

• Compact Dimensions: 42mm x 25mm

Applications:

• LCD Panel Repairs: Ideal for restoring functionality to malfunctioning LCD screens by providing stable voltage outputs.

• DIY Electronics Projects: Suitable for hobbyists working on custom display solutions or integrating LCDs into various devices.

• Educational Purposes: Useful in academic settings for teaching and experimenting with voltage regulation and display technologies.

Package Includes:

• 1 x CA-508 Boost Board Module

For more details and purchasing options, visit Digilog Electronics.
