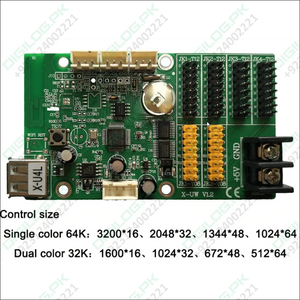

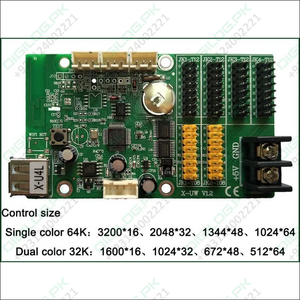

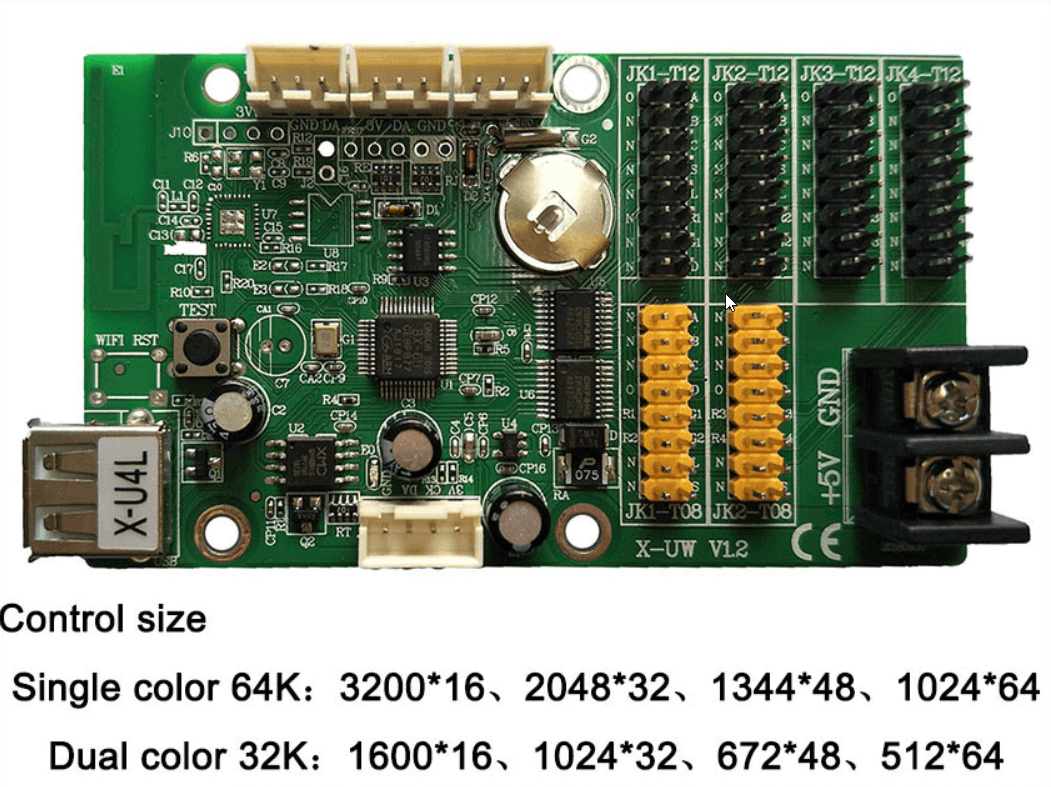

Bx-u4l P10 LED Signs Control Card, P10 Display Module Control Card, Single & Double Color Advertising LED Panel Controller
Pickup available at Digilog Electronics
Usually ready in 2 hours
BX-U4L P10 led signs control card, P10 Display module control card, Single&double color advertising led panel Controller:
X-U4L(USB) Single&double color P10 LED Display control card:
X-U4L
X-U4L upload program by USB, easy and convenient, free wiring. widely used in all kinds of LED lintel screen.
USB on board，USB transmit distance≤12 meters；
Good compatibility, strong recognition capability to all kinds of USB driver；
Setup screen parameters/setup scan mode/update program/time correction/adjust the brightness/timing switch
1.Strong
⑴ Strong software function, easy to use
⑵High brightness, big control size, fast communication speed
⑶ High freshmen, stable and smoothly moving;
⑷ Multi-area linkage precise algorithm
⑸Support update firmware online
⑹ All BX-5 series support temperature/temp&humidity sensor, support IR /button select program.BX-5E support noise sensor
⑺ Support area border, animation text, colorful background, IR control, one frame, text animation, , breakpoint relay, super large control size, full color grayscale, wireless cluster.
⑻ BX-5E series support super length and super height screen size
⑼ BX-5K supply open protocol , special applicate in the industrial field, equipment support, bus display, intelligent station card and cluster display system
⑴ resistant to harsh environments.3.5V-6V wide working voltage ; working temeprature is - 40 ℃ ~ 80 ℃
⑵ Anti-static design of serial port makes communication more stable
⑶ It supports server mode and Internet transmission and is highly adaptable to complex network environments.L long time no power down stable communication
⑷ Strong reading ability
⑸ WIFI onboard antenna signal is strong, the communication speed is fast
Innovation：
1. X series launched into the market at 2018, best performance and good quality
⑴ Match with mperature sensor, temperature and humidity sensor, brightness sensor on board
⑵ X series are made of plastic shell and bracket package, flame retardant, environmental protection, anti-static, high temperature resistant
⑶ X series antenna has strong wifi signal and fast communication speed
⑴ Support domestic and international weather forecasts
⑵ The all-powerful editor can easily support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, easy to make the vertical font
BX-5 series products with its excellent quality and excellent performance demonstrated the technology "passion innovation perfect definition " product concept!
|
Technical parameter |
|
|
Status |
Launched into market in Sept 2018 |
|
Control size |
Single color 16K：1024*16、512*32 Dual color 16K：512*32、256*32 |
|
Storage |
2MByte |
|
Software function |
|
|
Software function |
group sending/multi-program edit/multi-area display/multi-lanuage version； |
|
Program quantity |
Support 128 programs |
|
Area quantity |
Each program maximum support 8 areas |
|
Area type |
Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas |
|
Border |
Program shine border /Area shine border |
|
Clock |
Lunar /Dial/ Chinese and English clock/timer (all support multi-groups) |
|
Module compatibility |
|
|
Module |
Support all kinds of single/dual color LED modules |
|
Column driving IC |
Support 74HC595, SM16188, etc, those mainstream LED driving chip |
|
Row decoding IC |
Support 74HC138 and the modules without row coding |
|
Scan mode |
Support static、1/2、1/4、1/8、1/16 |
|
Interface |
|
|
Interface |
1 nos T8+2 nos T12 |
|
Communication |
USB |
|
Important functions |
|
|
Remote |
Support select program/lock screen/brightness adjustment/power on & off/screen test |
|
Sensor |
Support temperature, temp&humidity ，brightness sensor |
|
Brightness adjust |
16 grade brightness, support manual /timing/auto adjust mode |
|
Remote swith |
Support auto timing switch, software/remote switch |
|
Any layout |
Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make the vertical font |
|
System update and maintenance |
|
|
Firmware update |
Support firmware update online cost efficient |
|
Electronic parameters |
|
|
Working voltage |
5V（3.5V～6V wide working voltage) |
|
Max power |
≤2W |
|
Working temperature |
-40℃～80℃ |
|
Software |
|
|
PC software |
LedshowTW |
Software download link:
http://www.onboncloud.com/upload/download/LedshowTW2018(V18.9.6.0).rar
http://www.onboncloud.com/download/166.html
