Product

• Voltage: 600V
• Current: 100A
• Module Type: IGBT

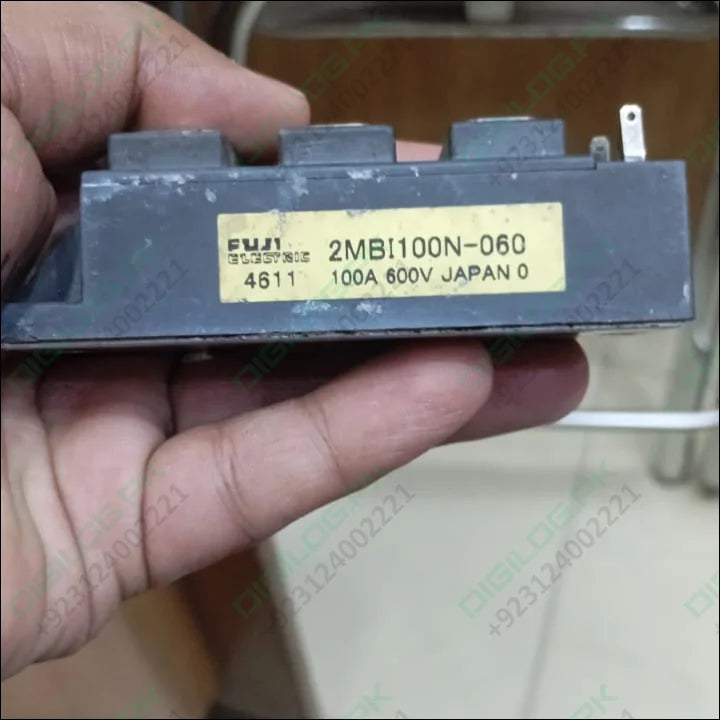

The 2MBI100N-060, available for purchase across Pakistan including major cities like Lahore, Karachi, Peshawar, and Quetta through digilog.pk, is a high-performance Insulated Gate Bipolar Transistor (IGBT) module. It is specifically engineered for applications such as motor drives, uninterruptible power supplies (UPS), renewable energy inverters, servo drives, and welding converters, among other power electronic systems. Its optimized design and exceptional performance characteristics make it highly suitable for high switching frequency applications. This device features rapid switching capabilities, low power dissipation, and a fast recovery time. Furthermore, it incorporates short circuit protection and is designed to withstand challenging environmental conditions. With a broad operating temperature range, it ensures reliable operation and simplified maintenance. (For reference only)

Features

• Square Reverse Biased Safe Operating Area (RBSOA)
• Low Saturation Voltage
• Less Total Power Dissipation
• Improved Free-Wheeling Diode (FWD) Characteristic
• Minimized Internal Stray Inductance
• Overcurrent Limiting Function (~3 Times Rated Current)

Applications

• High Power Switching
• A.C. Motor Controls
• D.C. Motor Controls
• Uninterruptible Power Supply (UPS)

The N-Series IGBT, model 2MBI100N-060, is designed and manufactured by Fuji Electronics for high-speed switching applications. This module is configured as a 2-in-1 package, designed for operation at 600V and 100A, with basic circuit schematics tailored for current control circuits. It boasts a maximum power dissipation of 400W and can operate at temperatures up to 150°C. An isolation voltage capacity of 2500V for 60 seconds ensures safe operation and equipment protection.

Key Electrical Characteristics:

• Collector-Emitter Voltage (VCES) rating: 600V
• Gate-Emitter Voltage (VGES): +/-20V
• Continuous Collector Current (Ic): 100A (with a pulse capacity of 200A for 1 millisecond)
• Collector-Emitter Saturation Voltage (VCE(sat)): 2.8V maximum at a Gate-Emitter Voltage of 15V and Collector Current of 100A.

Featuring two gates within a single 180-gram package, this module is ideal for installation in inverters for motor drives and both AC and DC servo drive amplifiers. Its high-speed switching capability also makes it suitable for UPS (Uninterruptible Power Supply) systems and welding machines that draw high current values. The module exhibits a turn-on time of 1.2 microseconds (0.6 microseconds typical) and a turn-off time of 0.6 microseconds (0.2 microseconds typical) at maximum ratings.

External Linking

Additional resources for further reading:

• Understanding IGBT Technology
• Power Electronics Applications Overview

FAQs

1. What is the 2MBI100N-060?

   It is a high-performance 600V, 100A IGBT module designed for various power electronic applications.

2. In which applications can this IGBT module be used?

   It is suitable for motor drives, UPS, renewable energy inverters, servo drives, welding converters, and other high-power switching applications.

3. What are some key features of this module?

   Key features include square RBSOA, low saturation voltage, reduced power dissipation, improved FWD characteristics, minimized internal stray inductance, and overcurrent limiting function.

4. Where can I purchase the 2MBI100N-060 IGBT module in Pakistan?

   You can buy it online from digilog.pk, with availability in cities like Lahore, Karachi, Peshawar, and Quetta.
