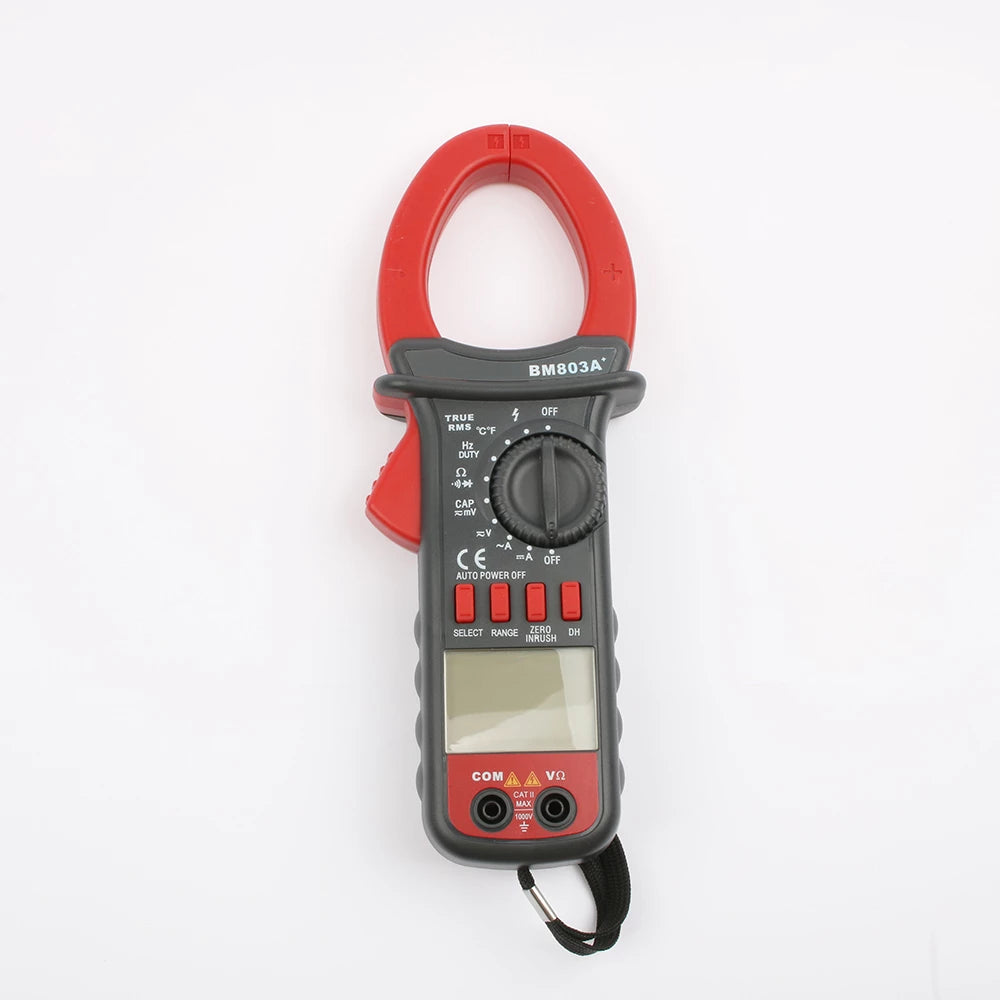

BM803A+ True RMS AC/DC Clamp Meter – 1000A, 52mm Jaw, NCV, Frequency
The BM803A+ is a large-jaw true RMS clamp meter that measures both AC and DC current up to 1000A. The 52 mm jaw closes around thick battery and inverter cables, so it suits solar, UPS and industrial panel work where DC current matters.
With the test leads it also covers DC voltage to 1000V, AC voltage to 700V, resistance, capacitance, frequency up to 40MHz, duty cycle and temperature, on an auto-ranging 3999-count backlit display with NCV live-wire detection.
Key Features
- ⚡ AC and DC current 40A / 1000A, true RMS
- 🔌 52 mm jaw for thick solar and battery cables
- 🔧 DC voltage to 1000V, AC voltage to 700V
- 📏 Resistance to 40MΩ, capacitance to 10mF, frequency to 40MHz, duty cycle 1–99%
- 🌡️ Temperature −50 to 1000℃, NCV, diode, continuity, backlight, data hold
Technical Specifications
| Model | BM803A+ |
|---|---|
| AC Current | 40A / 1000A |
| DC Current | 40A / 1000A |
| DC Voltage | 400mV / 4V / 40V / 400V / 1000V |
| AC Voltage | 400mV / 4V / 40V / 400V / 700V |
| Resistance | 400Ω to 40MΩ |
| Capacitance | 10nF to 10mF |
| Frequency | 100Hz to 40MHz |
| Duty cycle | 1% to 99% |
| Temperature | −50 to 1000℃ (−58 to 1832℉) |
| True RMS / Auto range | Yes / Yes |
| Display | 3999 counts, backlit |
| Jaw opening | 52 mm |
| Other functions | NCV, diode, continuity, data hold |
| Power | 1 × 9V 6F22 battery (not included) |
| Size | 249 × 89 × 38 mm |
| Weight | 360 g |
What's in the Box
- 1 × BM803A+ clamp meter
