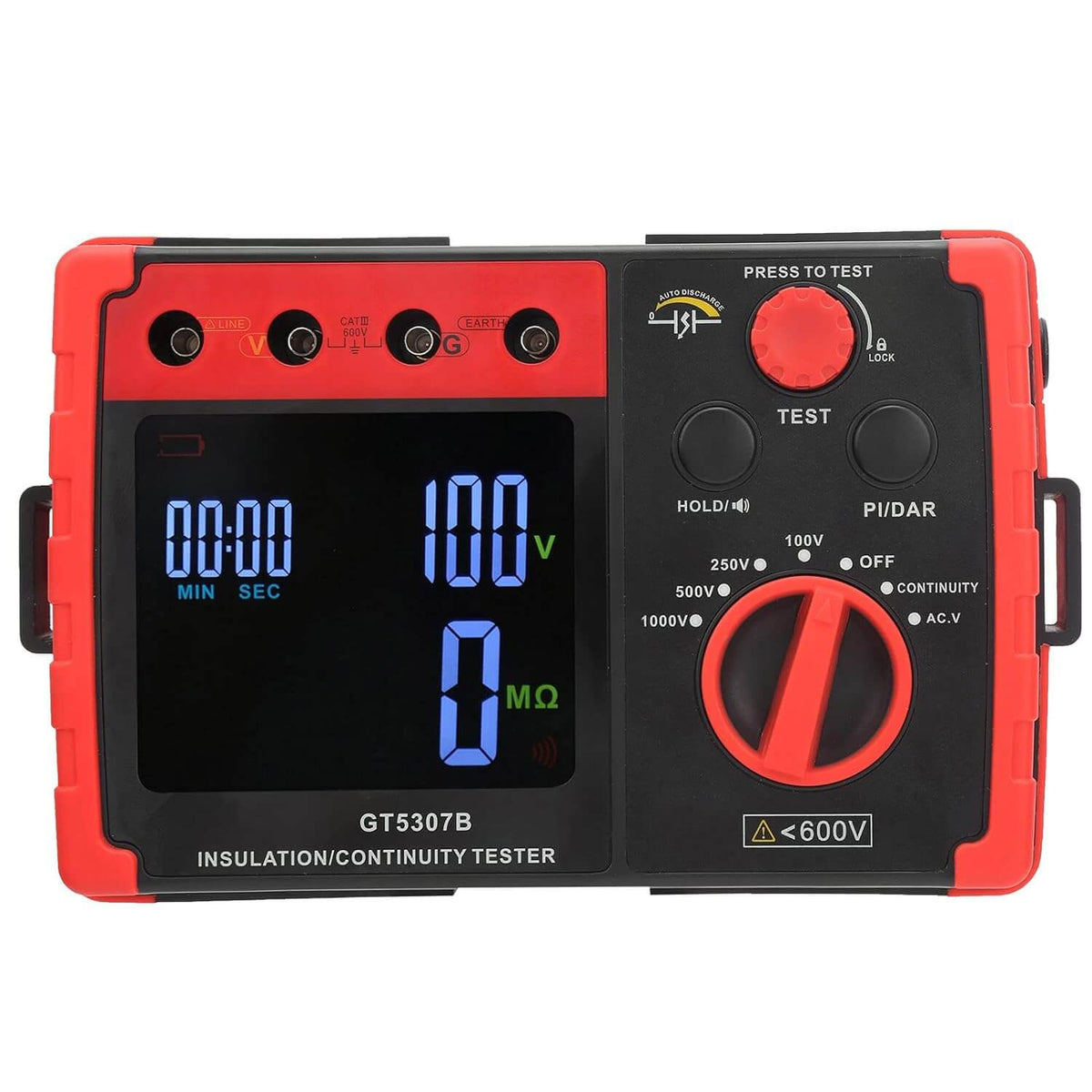

BENETECH GT5307B Insulation and Continuity Tester – PI and DAR, Auto Discharge
The BENETECH GT5307B is a professional insulation and continuity tester for motors, cables and switchgear. Besides plain insulation resistance it runs Polarization Index (PI) and Dielectric Absorption Ratio (DAR) tests, which show whether motor and transformer windings are dry and healthy over time.
It detects voltage on the circuit before testing, identifies AC and DC automatically, discharges the cable after the test, and warns with a red light and buzzer on over-limit or high voltage. It runs on six AA cells or an external 9V supply.
Key Features
- 🔌 Insulation resistance with auto range and test-voltage display
- 📊 Polarization Index and absorption ratio tests
- ⚡ AC and DC voltage, automatic AC/DC identification
- 📏 Low resistance / continuity measurement
- 🚨 Live-circuit detection, auto discharge, red light and buzzer alarms
Technical Specifications
| Model | GT5307B |
|---|---|
| Brand | BENETECH |
| Functions | Insulation resistance, AC voltage, DC voltage, low resistance, PI, absorption ratio, data hold |
| Protection | Live detection, short-circuit protection, automatic discharge, over-limit and high-voltage alarms |
| Overload protection | Insulation range AC 1200V / 10 s; voltage range AC 720V / 10 s |
| Withstand voltage | AC 6000V (50/60Hz) / 5 s |
| Sampling rate | 2 times per second |
| Power | DC 9V (6 × 1.5V AA) or external DC 9V 1.5A |
| Battery life | about 12 hours |
| Size | 176 × 110 × 77 mm |
What's in the Box
- 1 × BENETECH GT5307B tester
